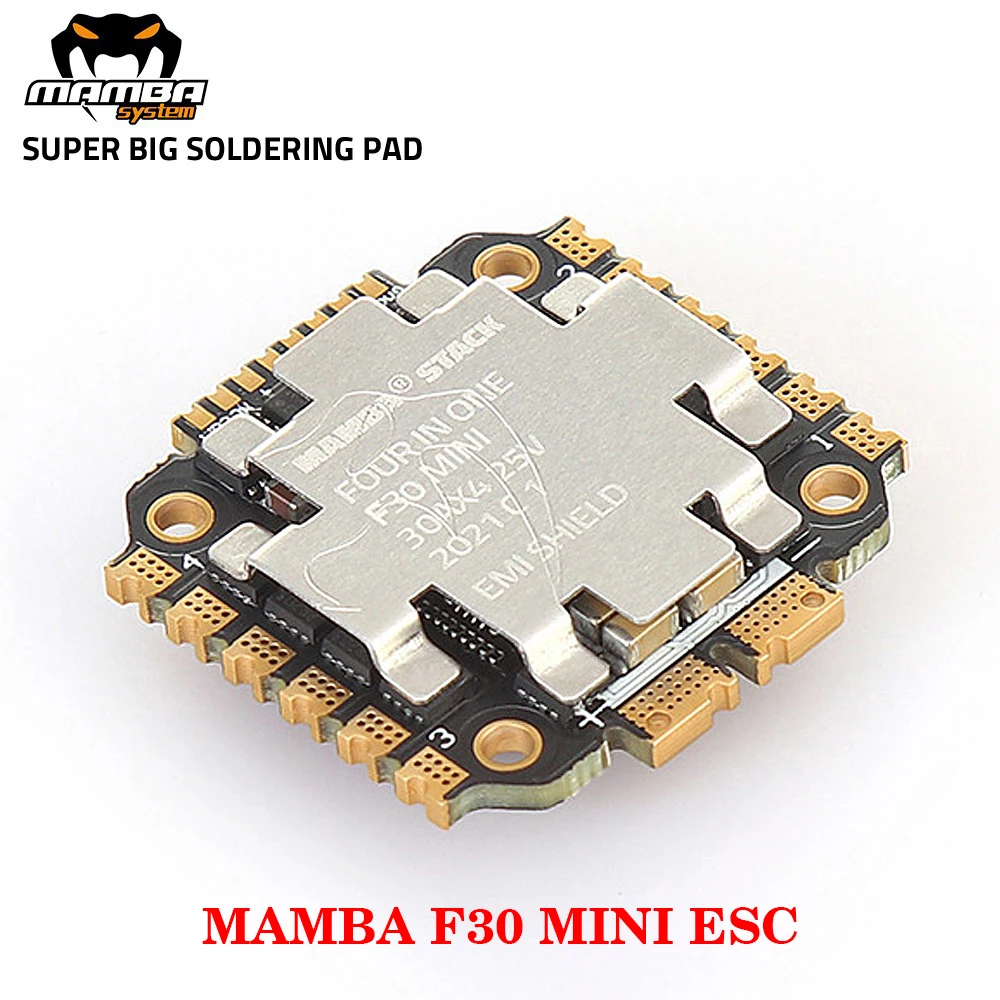

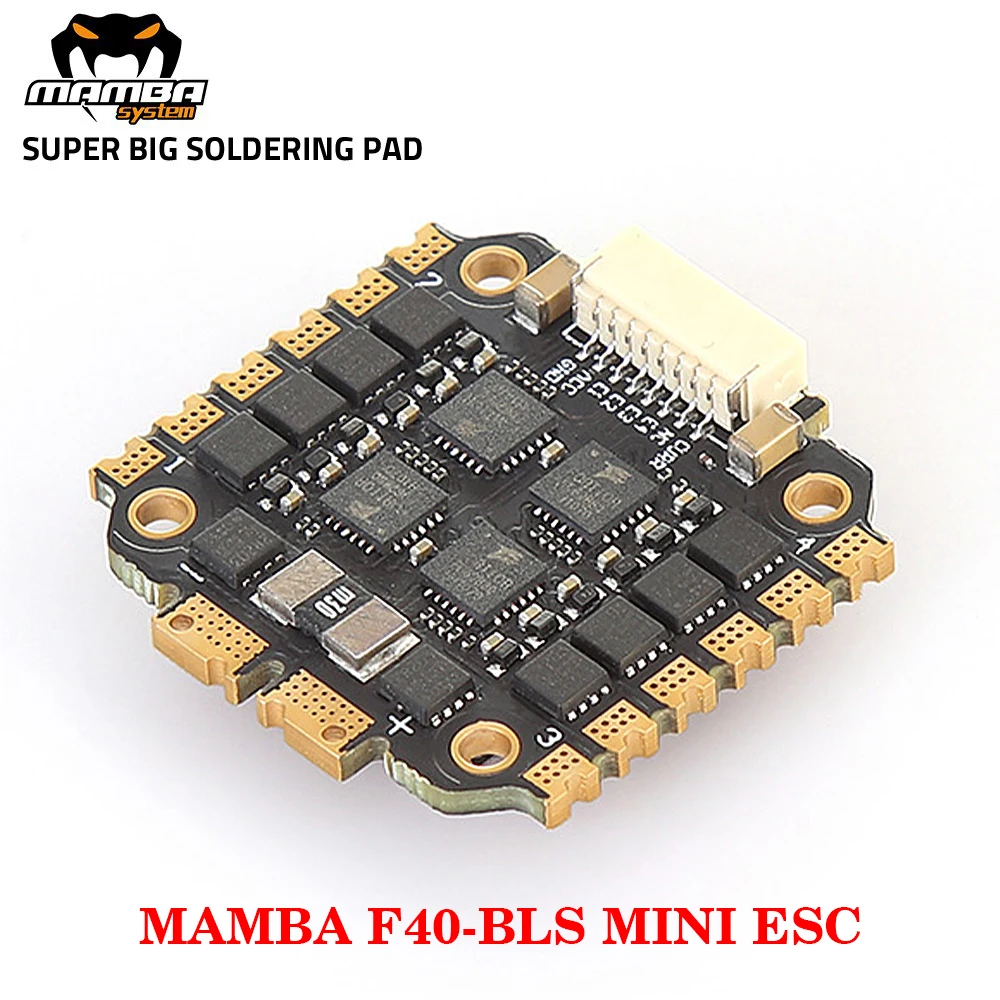

DIATONE MAMBA MINI F30/ F40_BLS/ F40_128K BLHeli_S/ BLHeli_32 4in1 ESC

DIATONE MAMBA MINI F30/F40_BLS/F40_128K BLHeli_S/BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 20mm,M2/M3 For RC FPV Drone

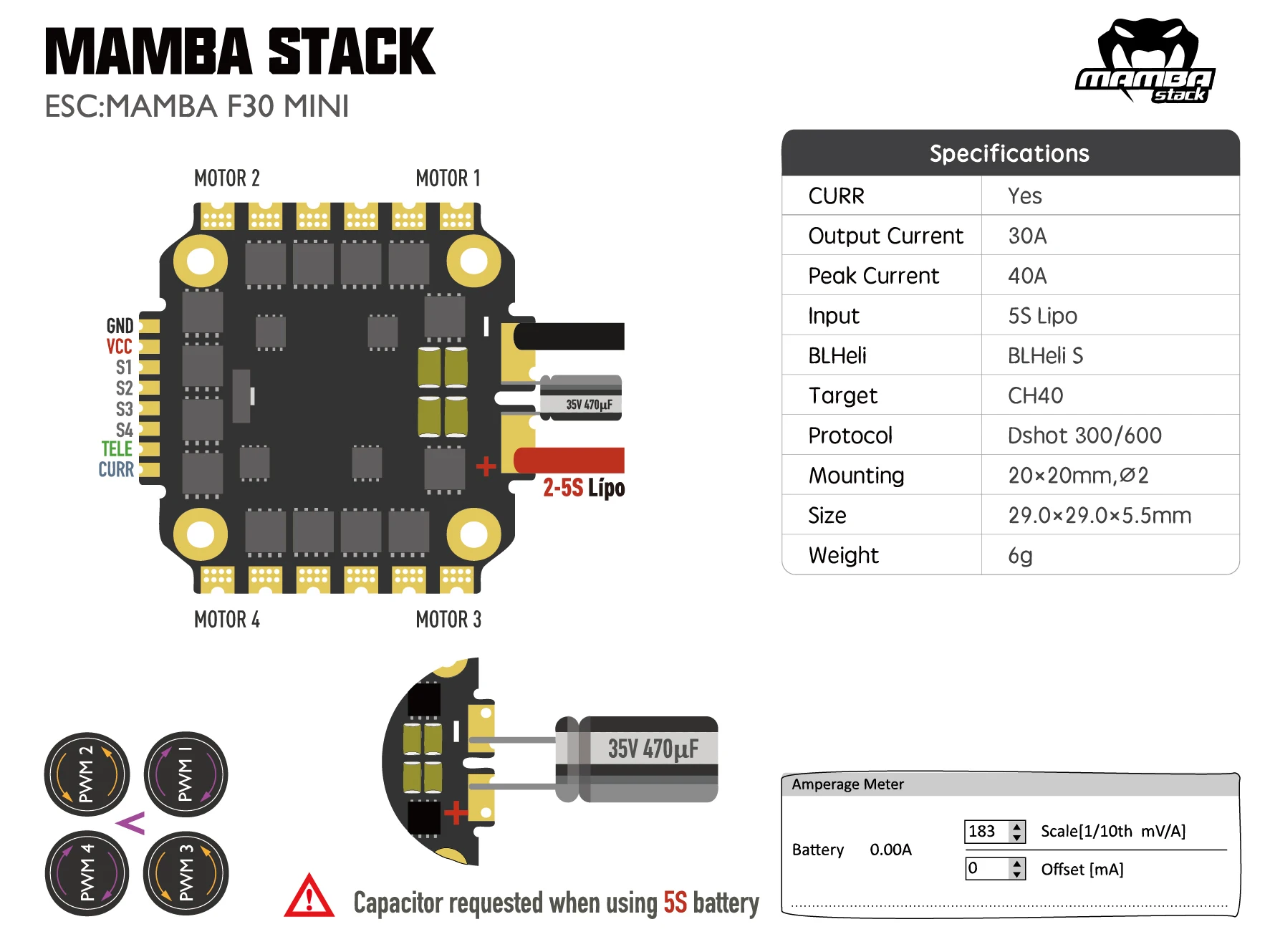

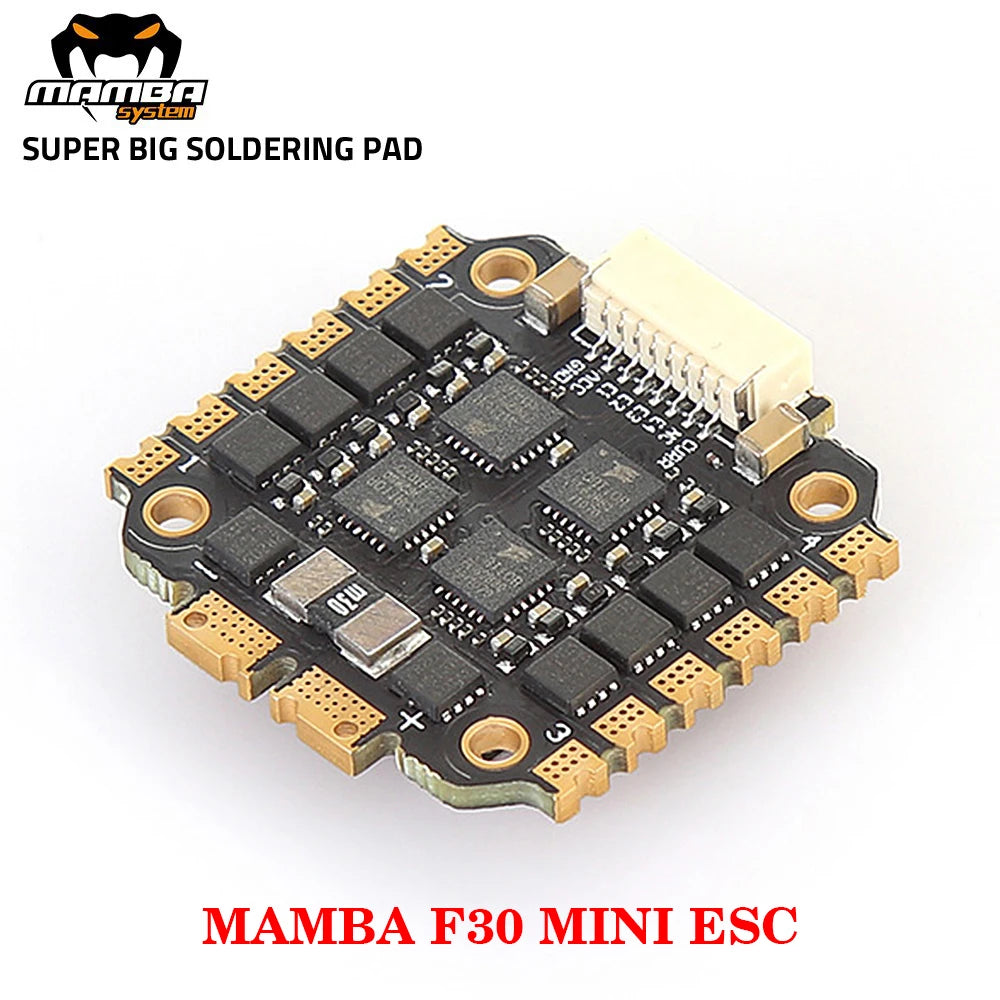

• Input voltage: 2 ~ 5S LIPO (8.4V ~ 21V)

• Rated current: 30A × 4

• Peak current: 40A (10S)

• BEC: NO

• Firmware: BLHELI_S CH40

• Program: DSHOT300/600

• TVS Power Protection: Yes

• Install holes: 20mm, m2

• Shipping:

• 8pin SH1.0 × 2

• AmAss Original XT30

• High -frequency capacitor 330UF/25V

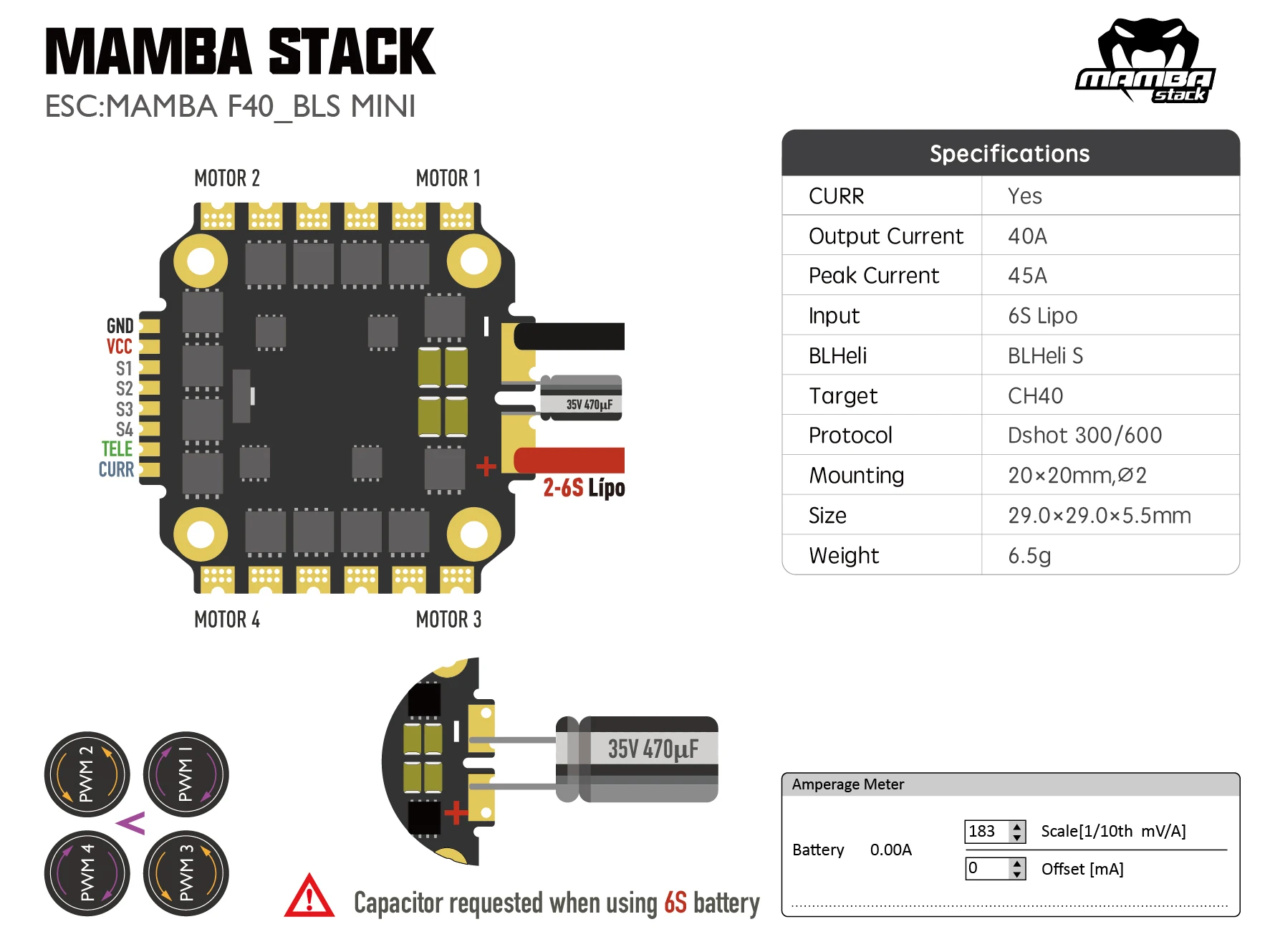

• Input voltage: 2 ~ 5s Lipo (8.4V ~ 25.2V)

• Rating current: 40A × 4

• Peak current: 45A (10S)

• BEC: NO

• Firmware BLHELI_S CH40

• Program: DSHOT300/600

• TVS Power Protection: Yes

• Install holes: 20mm, m2/m3

• Size: 29 × 29 × 5.5mm

• Shipping:

• 8pin SH1.0 × 2

• AmAss Original XT60

• High -frequency capacitor 470UF/35V

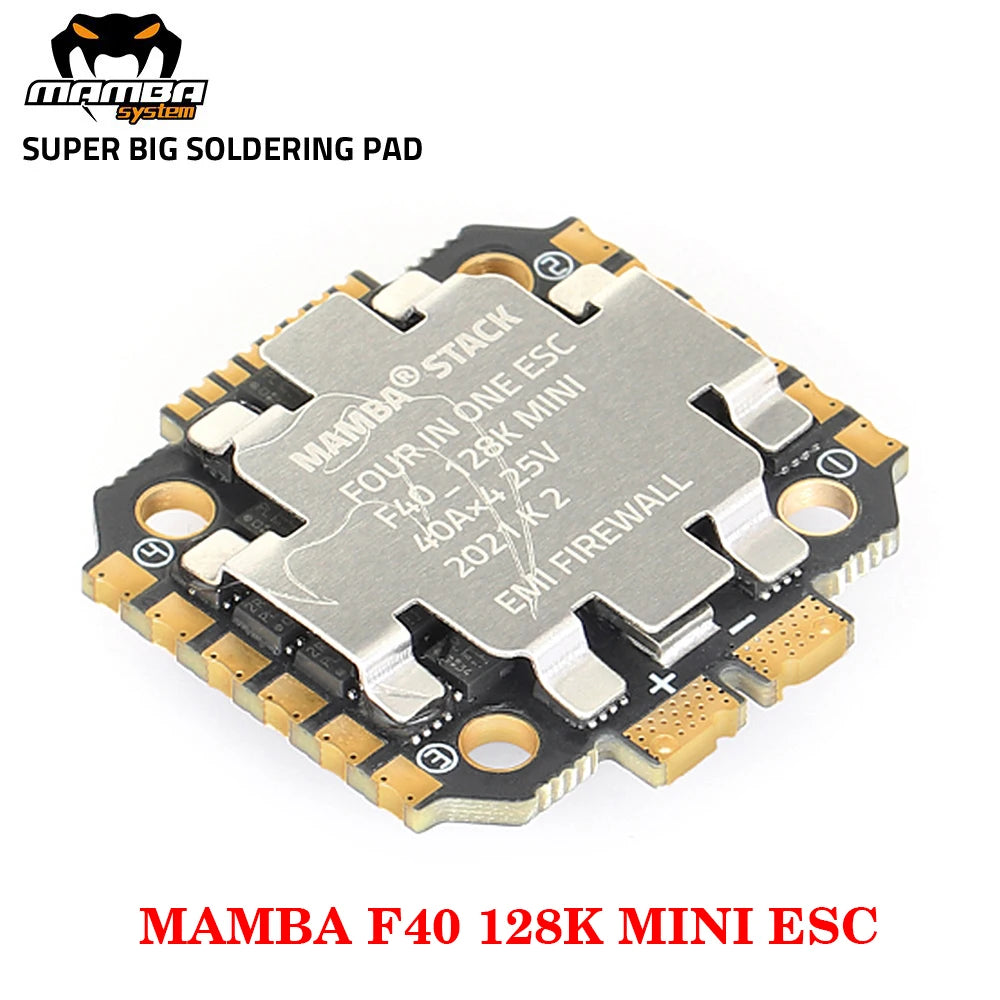

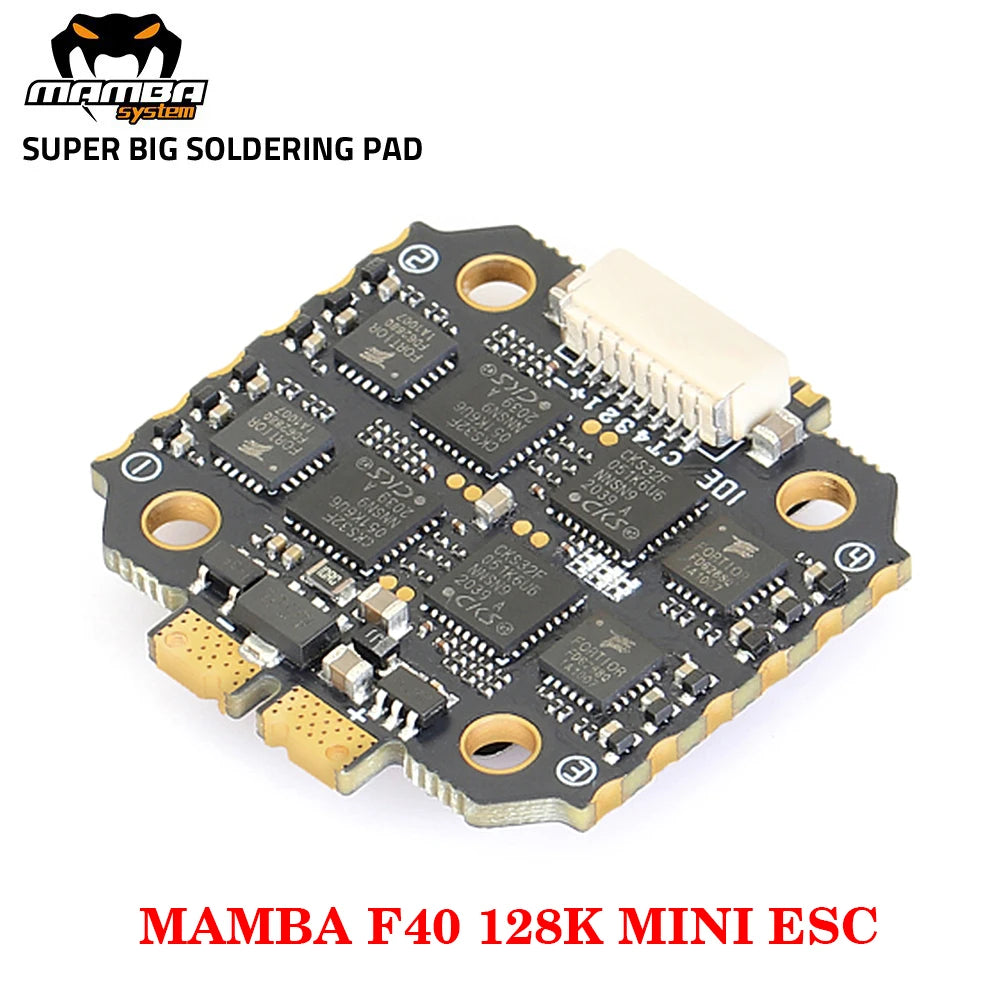

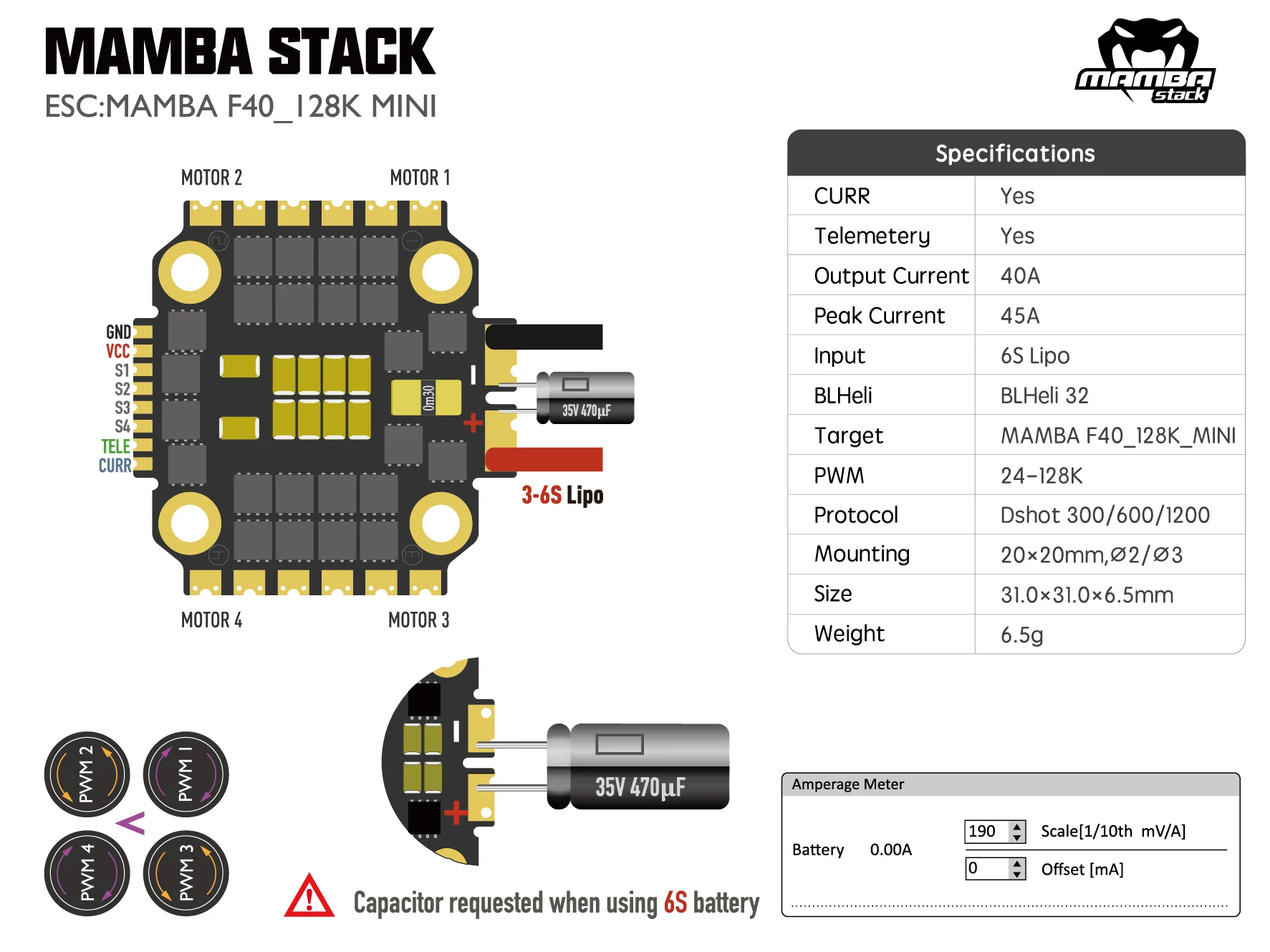

• Input voltage: 4 ~ 6S LIPO (8.4V ~ 25.2V)

• Rating current: 40A × 4

• Peak current: 45A (10S)

• BEC: NO

• Firmware: BLHELI_32 MABA F40_128k_mini

• Program: DSHOT300/600/1200

• PWM: 24 ~ 128K

• TVS Power Protection: Yes

• Install holes: 20mm/m2-m3

• Shipping: 8pin SH1.0 × 2

• AmAss Original XT60

• High -frequency capacitor 470UF/35V
