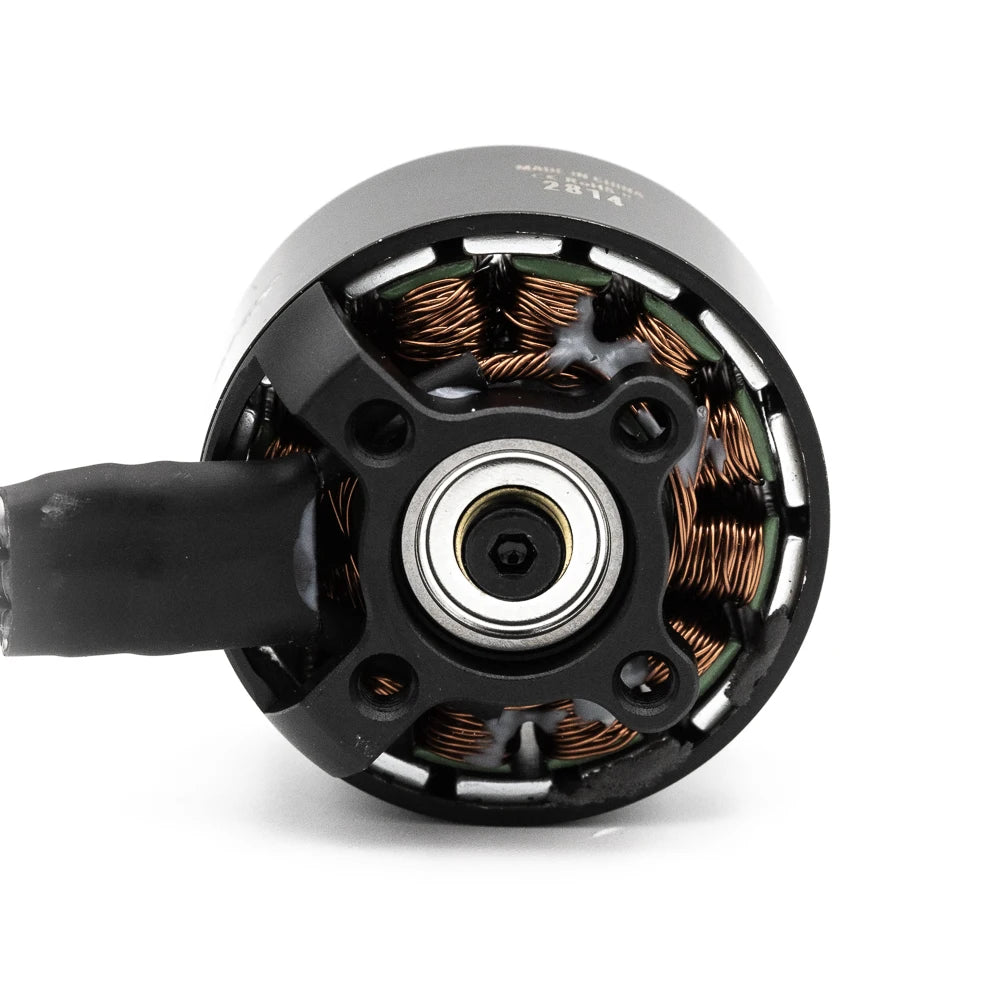

EMAX 2814 PRO Brushless Motor

EMAX 2814 PRO 730KV / 830KV Brushless Motor 3-6S LiPo Compatible 8-10 Inch propeller for Long Range RC FPV Freestyle Drone

• 1. High-performance brushless motor for superior flight performance.
• 2. Available in two different KV ratings for varied flying styles.
• 3. Specifically designed for 8/9 inch quadcopters, ensuring compatibility.
• 4. Durable construction for long-lasting use.
• 5. Easy to install and replace, providing convenience for enthusiasts.

• Optional KV: 730KV / 830KV
• Shaft Thread: CW
• KV: 730KV
• Configuration: 12N14P
• NO. of Cells: 3-6S
• Shaft Diameter: 4mm
• Dimension: 33.2x46.45mm
• Weight: 79.5g (W/O wire)
• Silicone Wire: 18AWG, 250mm
• Internal Resistance: 78mΩ 62mΩ
• Idle Current (10V): 1.0A 1.2A
• Peak Current (6S): 48A 63A
• Max. Power (6S): 1209W 1587W
• Recommend Propeller: 8-10 Inch
