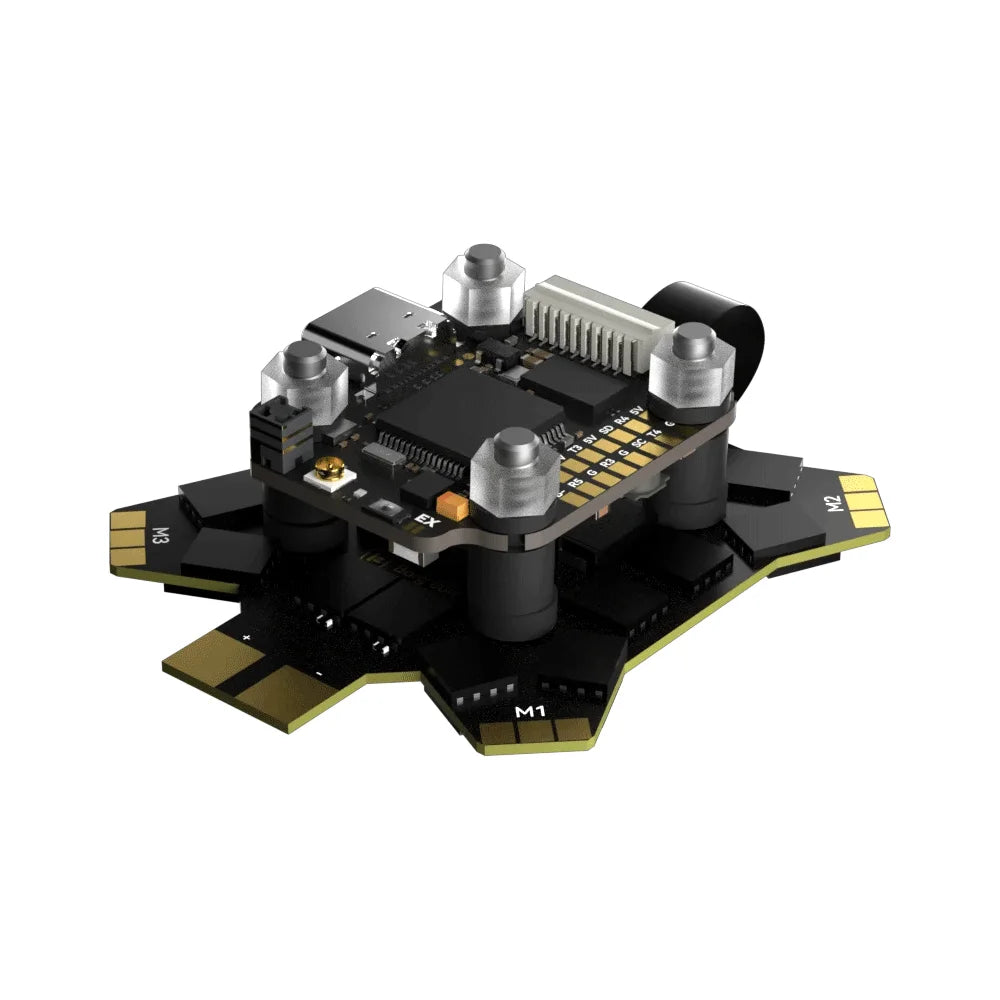

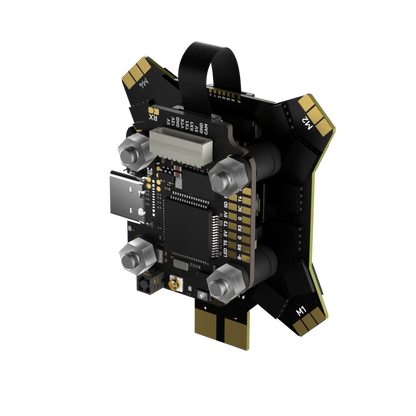

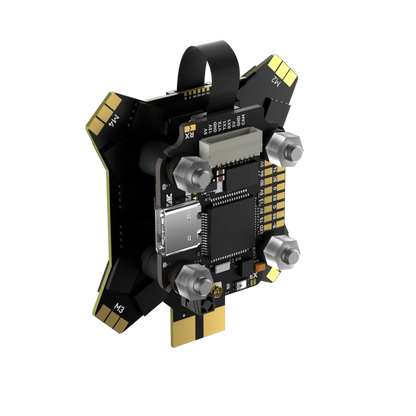

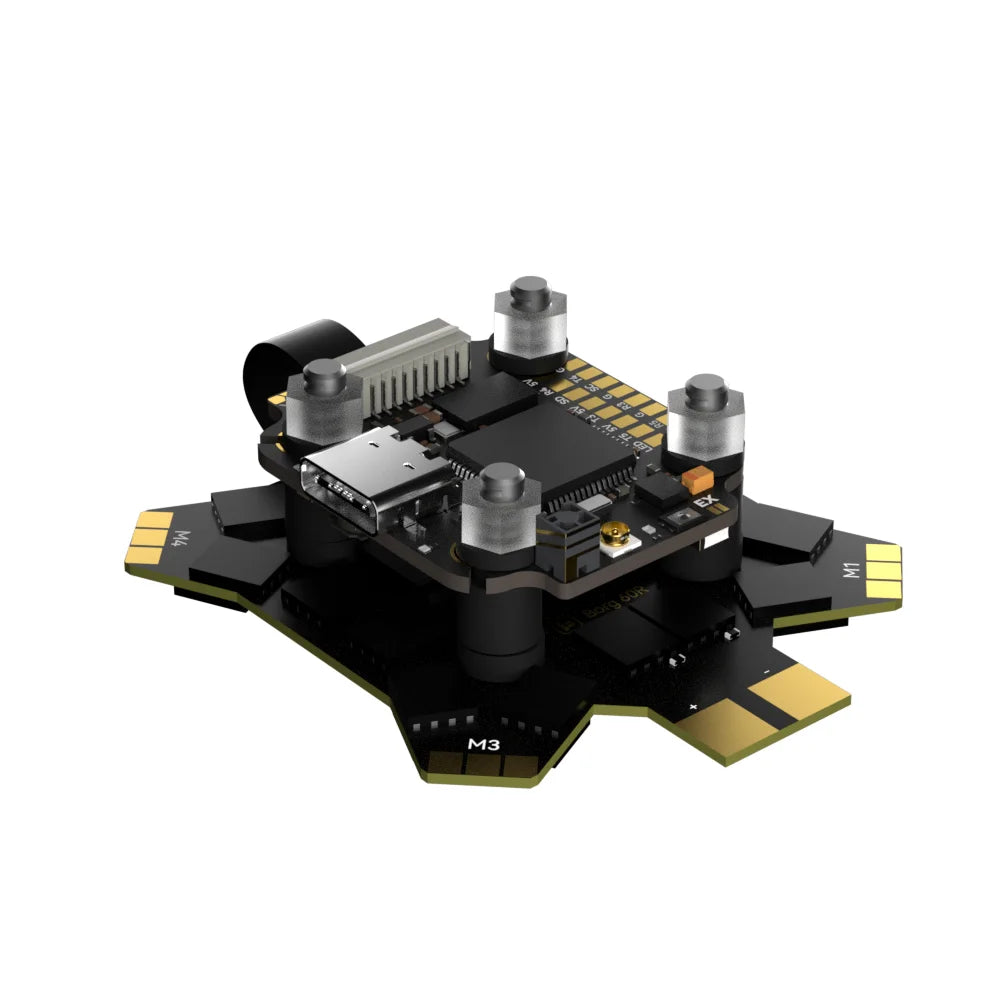

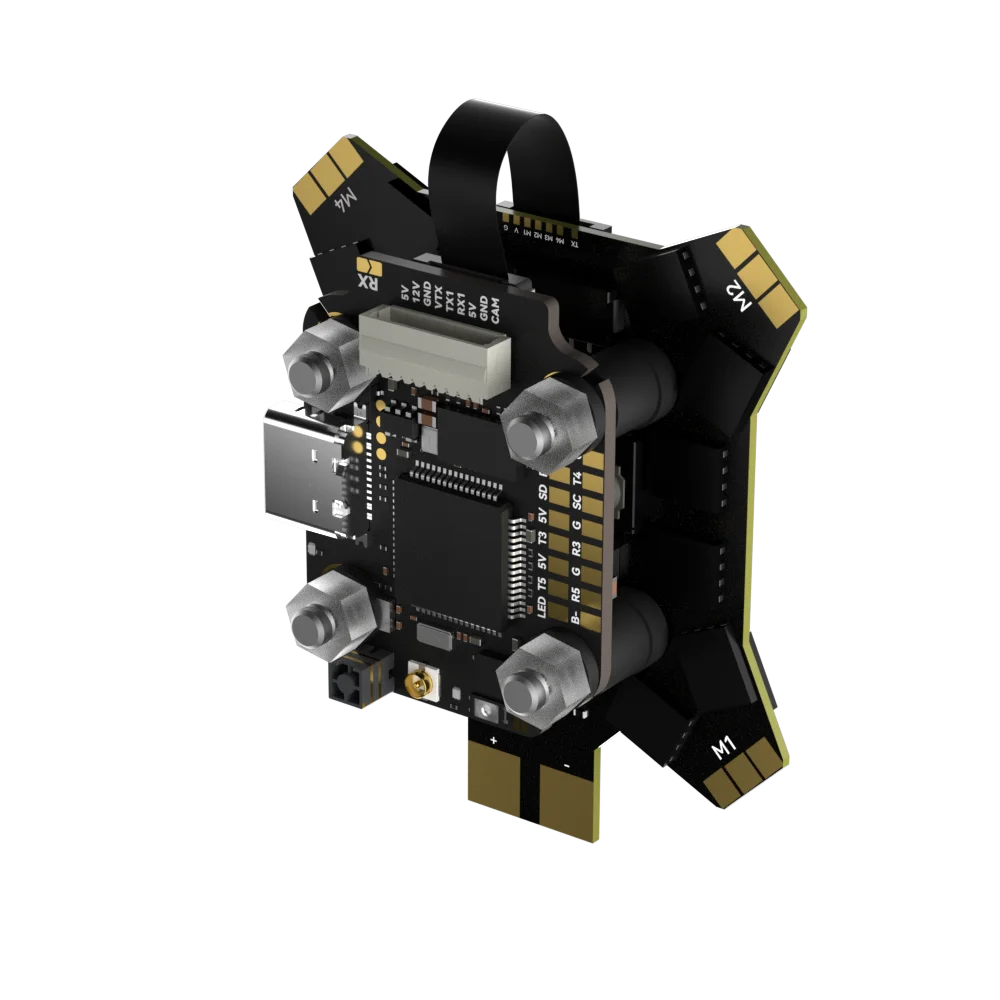

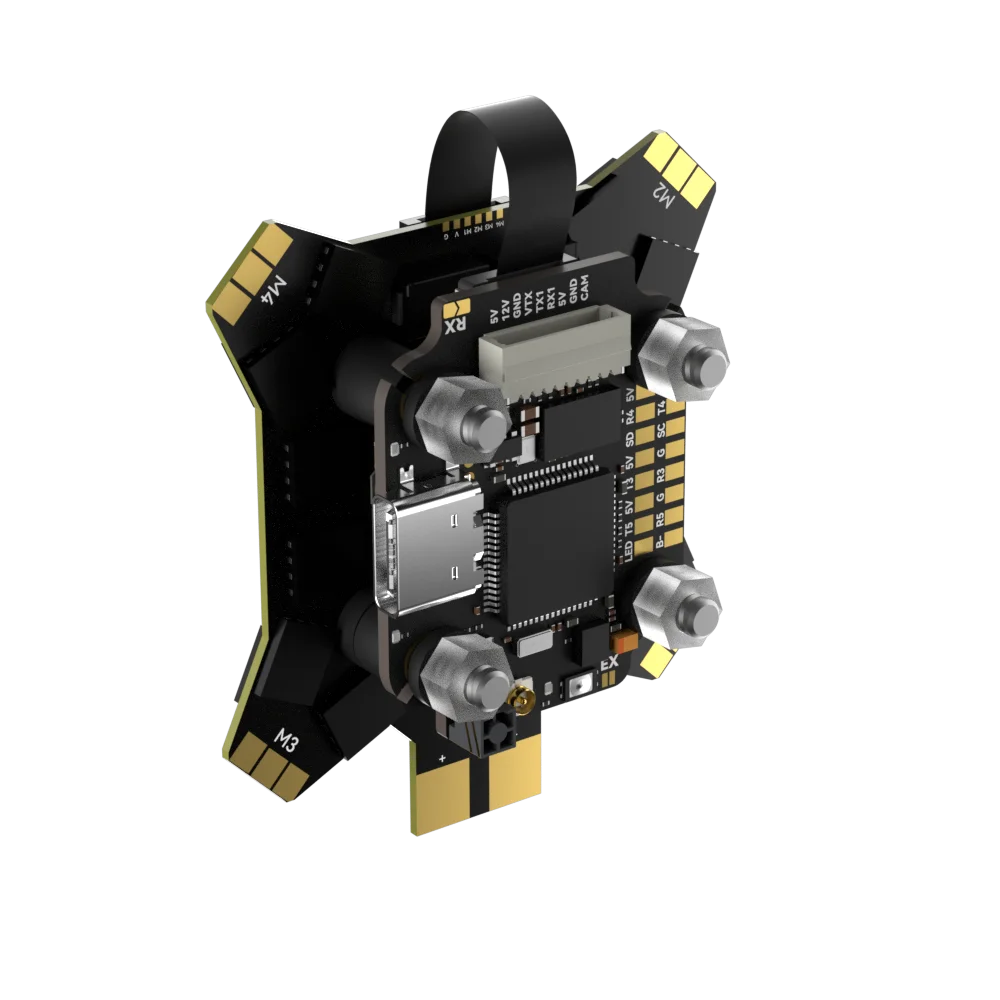

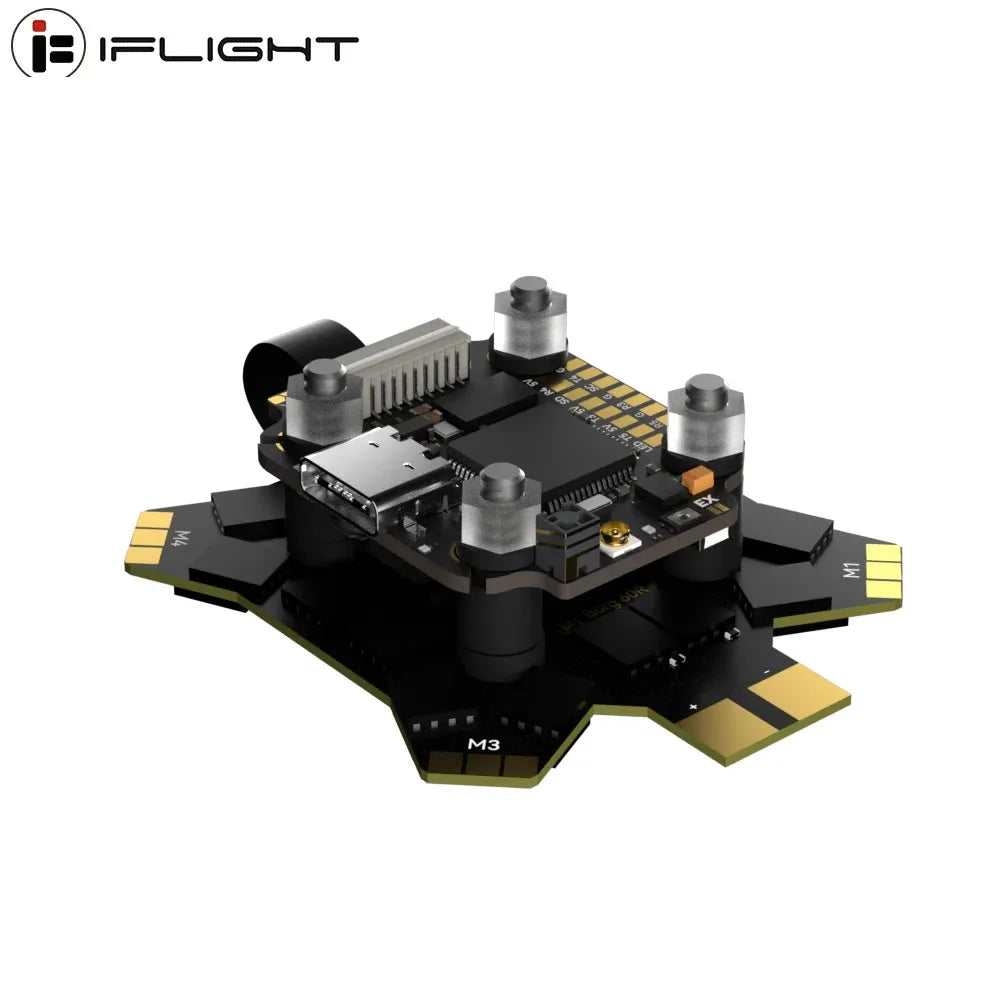

IFlight Borg Mini F7 Stack (60R 4-IN-1 ESC) - w/Rx

IFlight Borg Mini F7 Stack with Borg Mini F7 Flight Controller Built-in 2.4GHz Receiver / 60R 4-IN-1 ESC for RC FPV Racing Parts

• Introducing the All-New Borg Series – Power Meets Precision!
• The Borg Mini F7 Flight Controller (With On-board Receiver) is custom-built for racing FPV and delivers exceptional performance. This advanced controller comes with a built-in ELRS 2.4GHz receiver and integrated antenna. It delivers a stable signal connection and smoother flight control during use.
• Beyond its internal receiver, the Borg Mini F7 Flight Controller (With Receiver) also supports external receivers. This lets you tailor your device setup to fit your unique racing requirements. Upgrade your FPV racing experience with the state-of-the-art Borg Series!

• Flight Controller Features
• Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.
• Supports 4S to 8S battery inputs, offering versatility for various racing setups.
• Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
• FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.

• Support 4- 8S Battery Input for versatile power options.
• 6-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
• Integrated Anti-Spark Filter protects your equipment from voltage spikes.
• Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.

• Flight Controller Specifications
• Input voltage: 4-8S; Support LIHV battery
• MCU: STM32F722RET6
• Gyro: ICM42688
• OSD Chip: AT7456E（LGA）
• Flash: 16MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4
• I2C serial: Support
• VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
• LED controller: Yes
• Beeper pad: Yes
• Betaflight Firmware target: IFLIGHT_BLITZ_F722

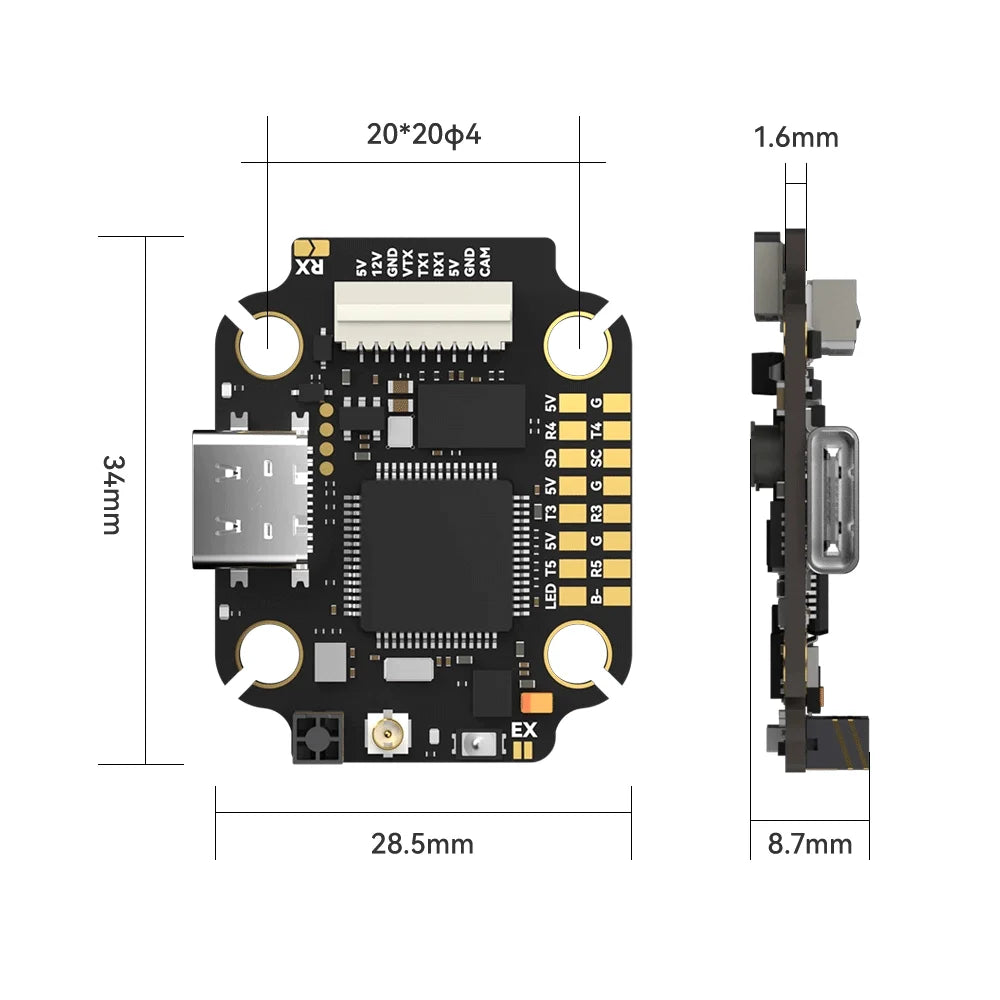

• Mount pattern: 20x20 φ4
• Dimensions: 34x28.5mm±1
• Weight: 6.8g±1
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
• SMD Receiver Specifications
• MCU: ESP8285
• RF: SX1281
• Receiver Type: 2.4GHz
• Telemetry power: 17mW (12.3dBm)
• LNA: No
• Lua Script: iFlight 2.4GHz Nano
• TCXO: Yes
• Firmware: iFlight 2.4GHz Nano RX

• Product Name: Borg 60R ESC
• Input Voltage: 4-8S; Support LIHV battery
• Max. Continuous Current: 60A
• Max. Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32bit ESC)
• Target: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: No
• BEC: No
• Telemetry: Supported
• Bidirectional DSHOT: Supported

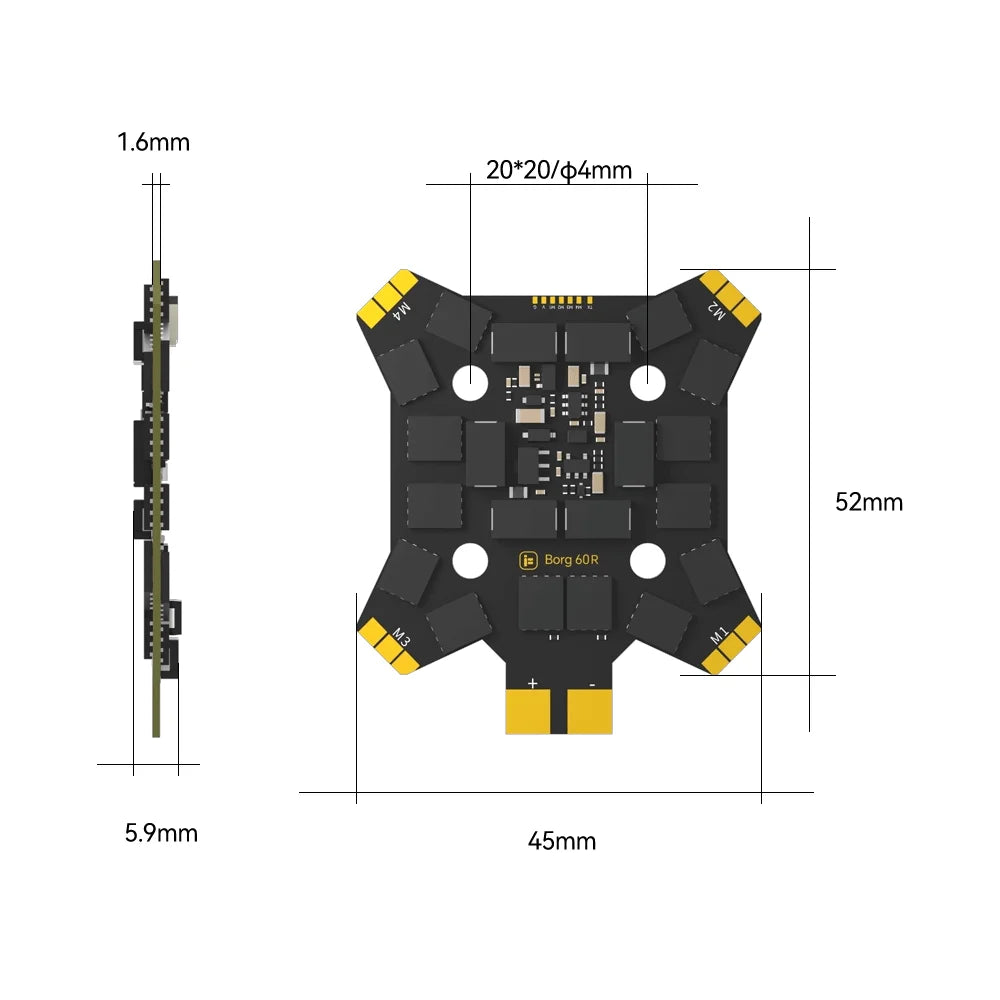

• Dimensions: 45x52mm±1
• Mounting Holes: 20x20 mm/Φ4
• Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

• UART 1 for VTX HD / Analog
• UART 2 for On-board Receiver
• UART 3 for GPS or other sensors that require a serial port
• UART 4 for GPS or other sensors that require a serial port
• UART 5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemet

• resource PINIO 1 C0
• set pinio_config = 1,1,1,1
• set pinio_box = 40,41,255,255
• set box_user_1_name = VTX_ON_OFF
• aux 0 40 8 900 2100 0 0
• save

• 1 x Borg Mini F7 Flight Controller With SMD Receiver
• 1 x Borg 60R 4-in-1 ESC
• 1 x Cable set
• 5 x silicon grommets
