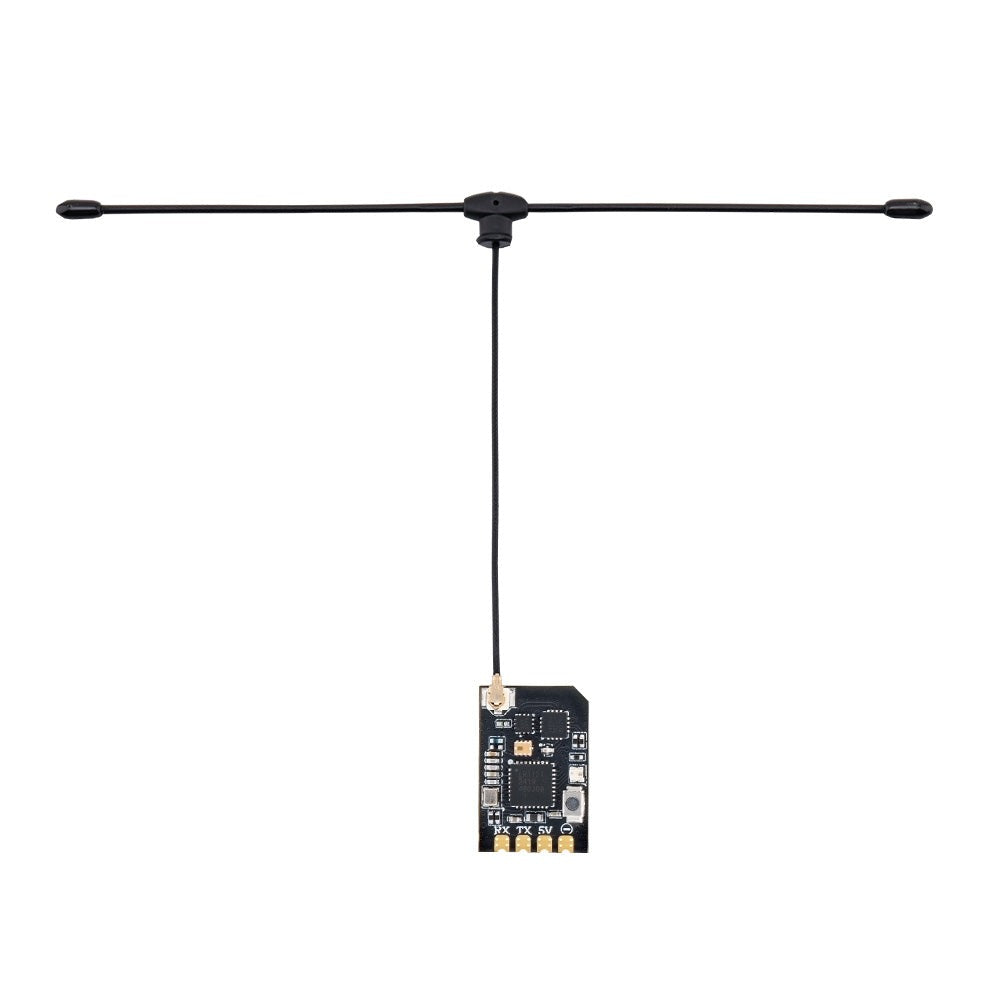

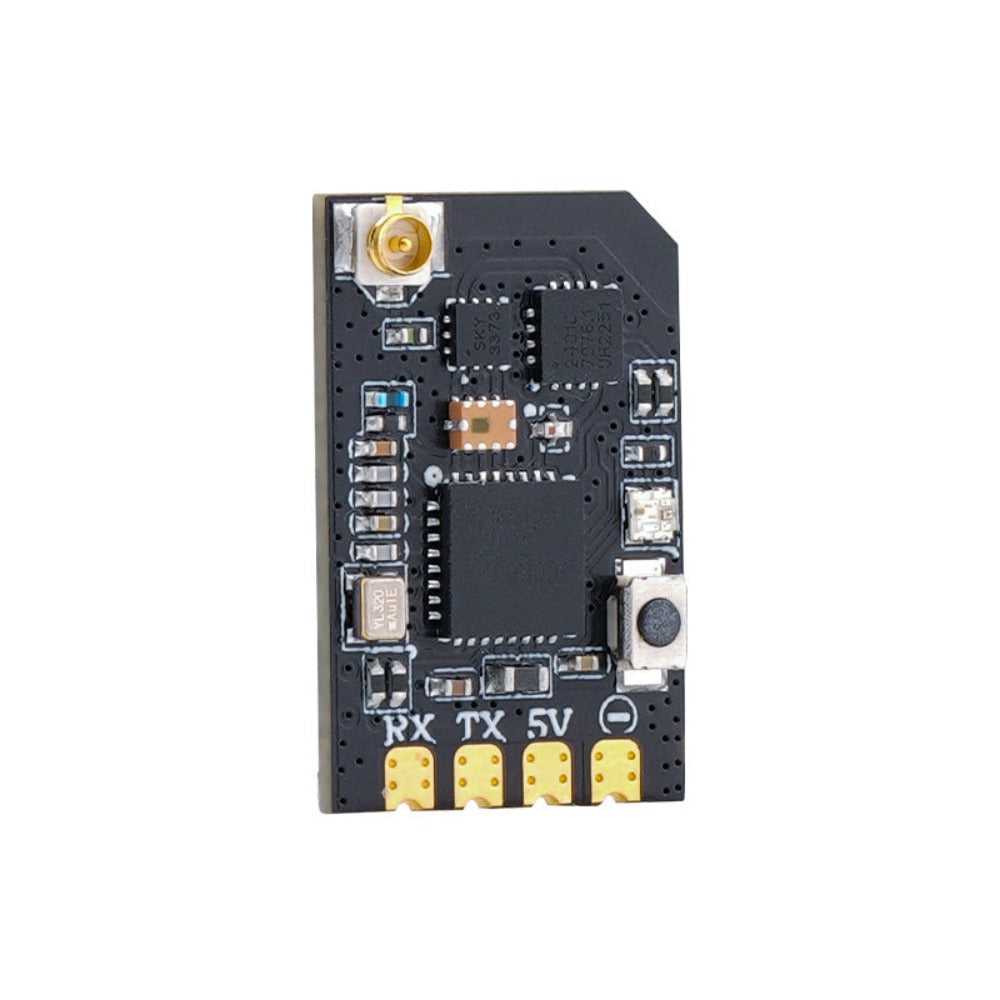

RadioMaster XR1 Nano Multi-Frequency ExpressLRS Receiver
RadioMaster XR1 Nano Multi-Frequency ExpressLRS Receiver
369 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden

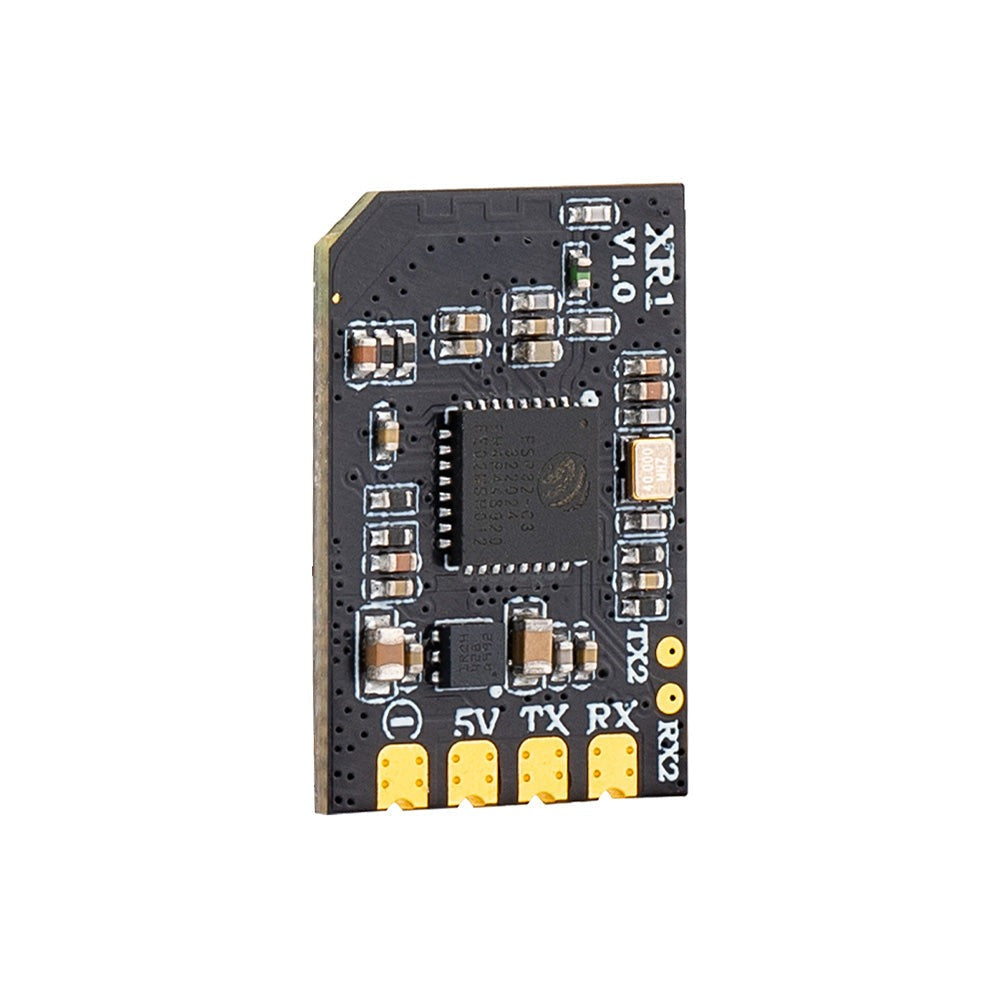

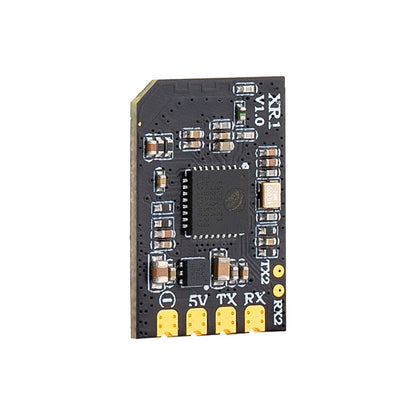

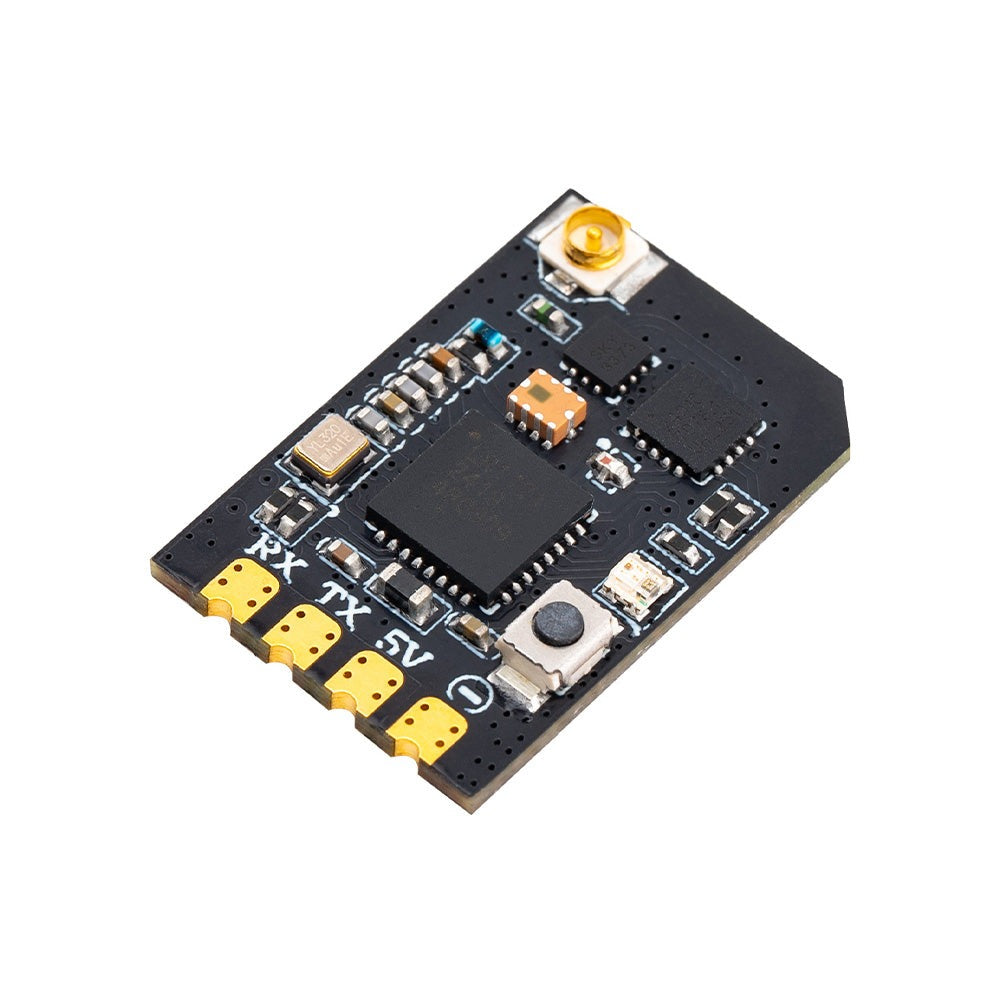

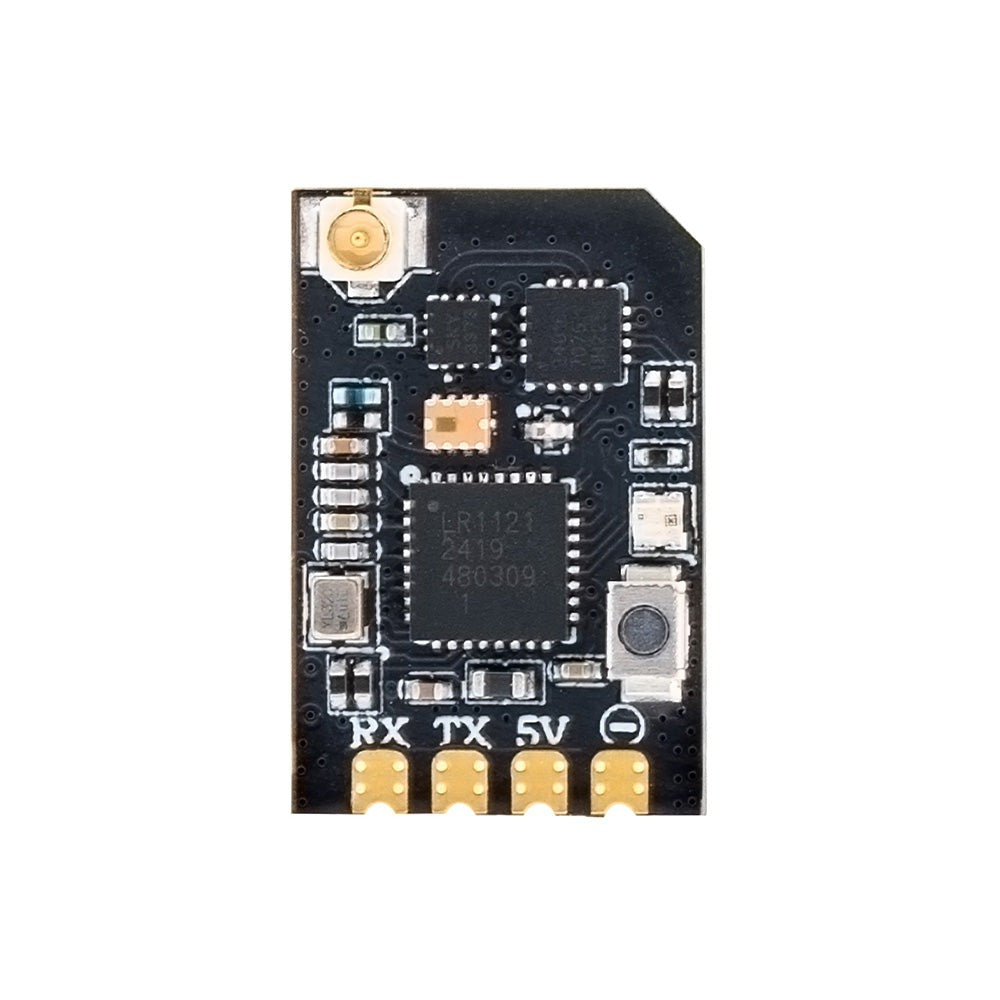

The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver measuring just 20 × 13 mm. Powered by the third-generation Semtech LR1121 transceiver, the XR1 operates on either the 2.4 GHz or Sub-G 900 MHz bands. Whether using 2.4 GHz or 900 MHz, the XR1 delivers strong range and sensitivity in a small, lightweight package—well suited for a wide range of builds. With the reliability of ExpressLRS, you can focus on operation without worrying about link quality.
Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.
For more details and support, visit expresslrs.org.
Features
- Telemetry RF power: 100mW
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver

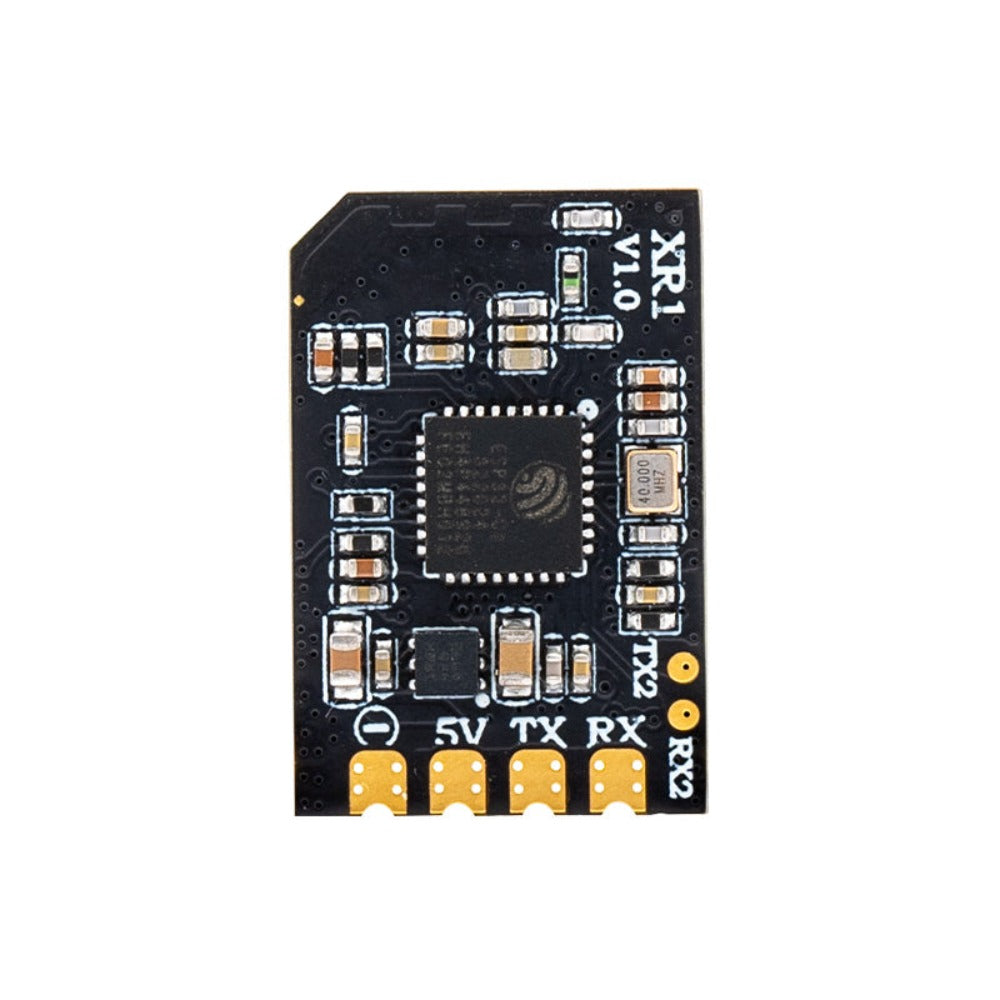

- Secondary UART port
- Castled pads for easy soldering
- Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
- Type: ISM2.4 or CE868
- MCU: ESP32C3
- RF chip: Semtech LR1121
- RF connector: IPEX-1
- Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- Frequency Range: 2.4GHz or Sub-G 900MHz
- Telemetry Power: 100mW
- Maximum Packet rate: DK500Hz / K1000Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 1.0g (without antenna)
- Dimension: 20mm * 13mm * 3mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR1 2.4/900 RX
- Bus interface 1: CRSF
- Bus interface 2: UART

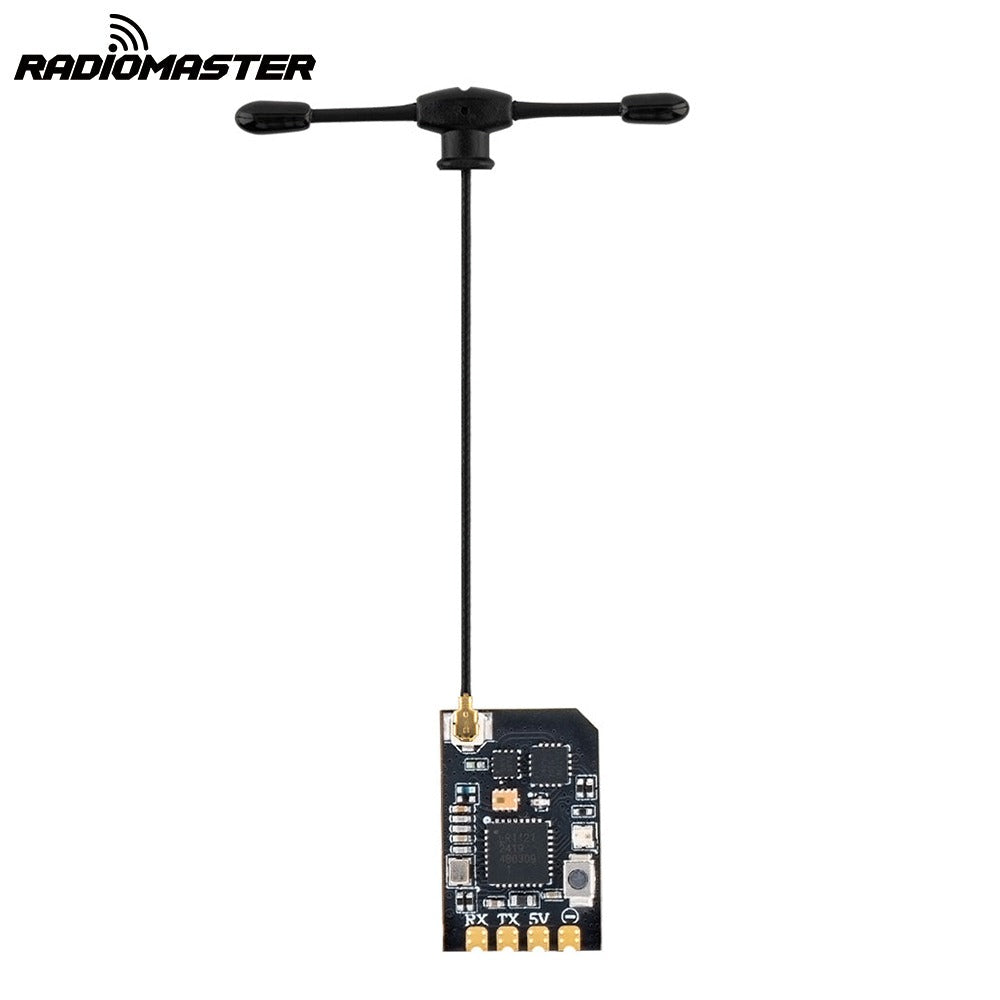

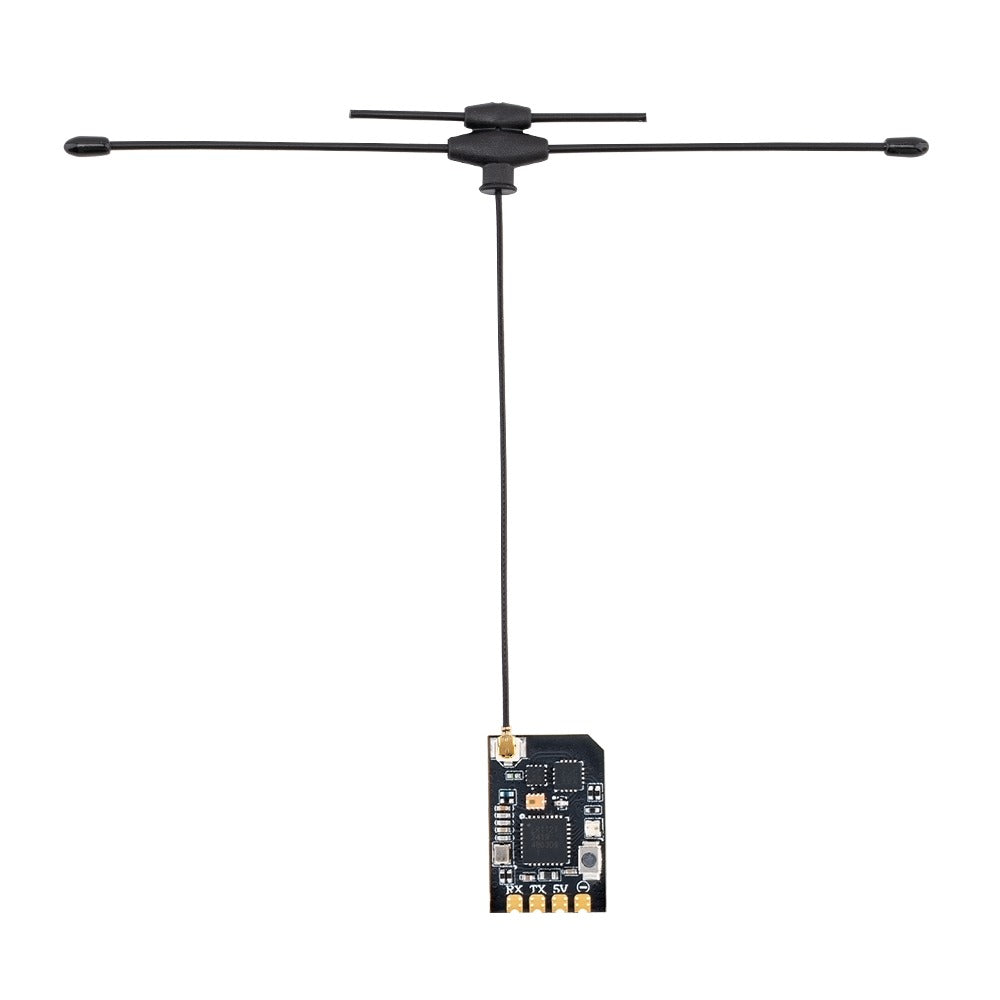

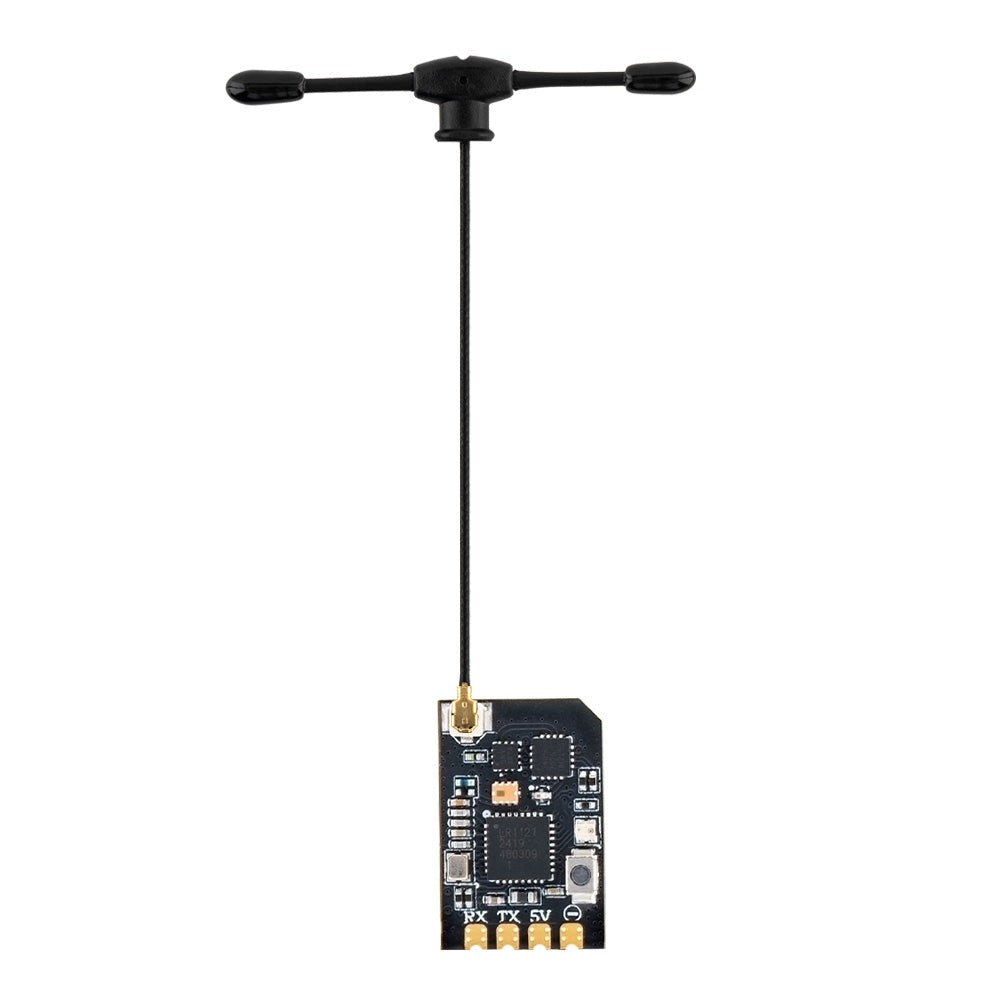

The XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!
Dimensions
Package Includes
- 1 * XR1 Nano Multi-Frequency ExpressLRS Receiver
- 1 * T Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- 1 * CRSF wire
- 3 * Heat-Shrinkable Tube
- 1 * Manual Card
