- CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
- 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Note: If the package weight exceeds 4kg, the system will indicate that shipping is unavailable.
Solutions: 1. Split your purchase into multiple orders. 2. Please let me know the product model and quantity, and I will provide a quote that includes both the product cost and shipping fees.
RadioMaster Zorro Radio Controller (M2)
RadioMaster Zorro Radio Controller (M2)
Normaler Preis
$105.50 USD
Normaler Preis
$0.00 USD
Verkaufspreis
$105.50 USD
369 auf Lager
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
RadioMaster Zorro Radio Controller (M2)
Download
Vollständige Details anzeigen

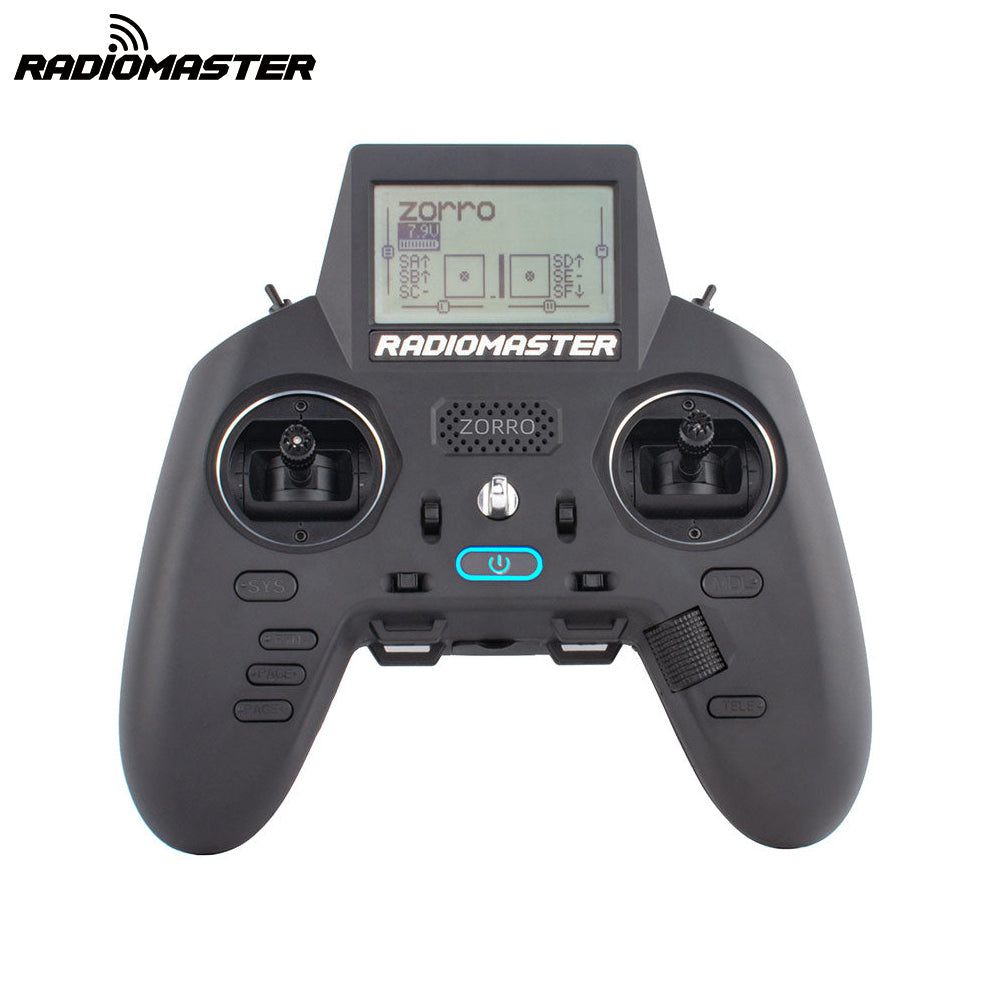

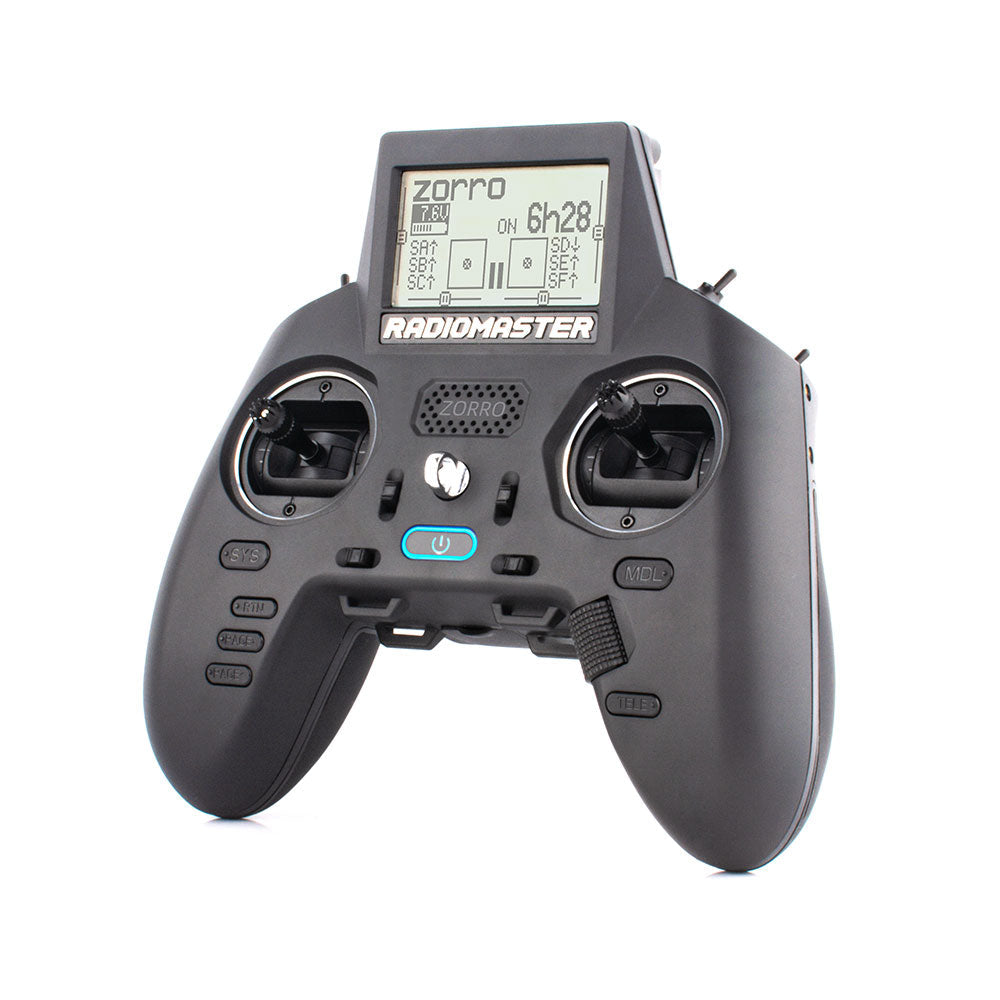

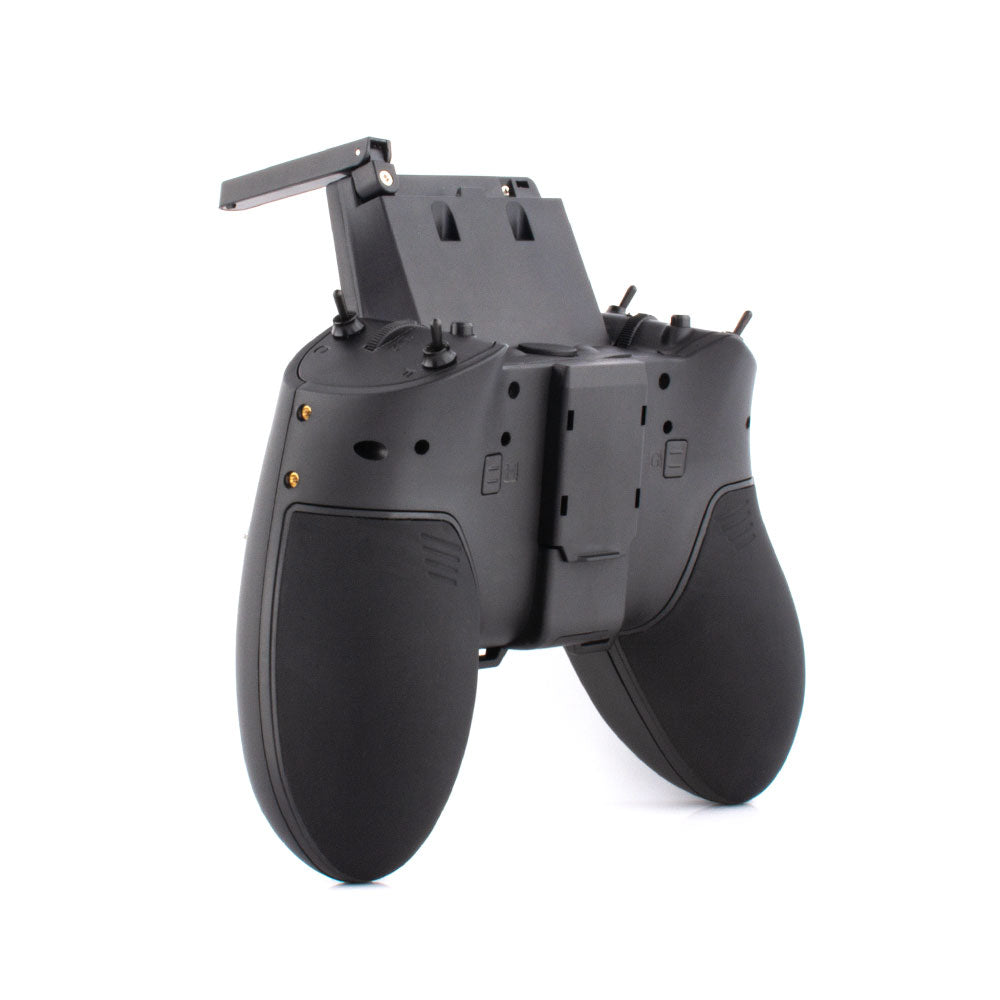

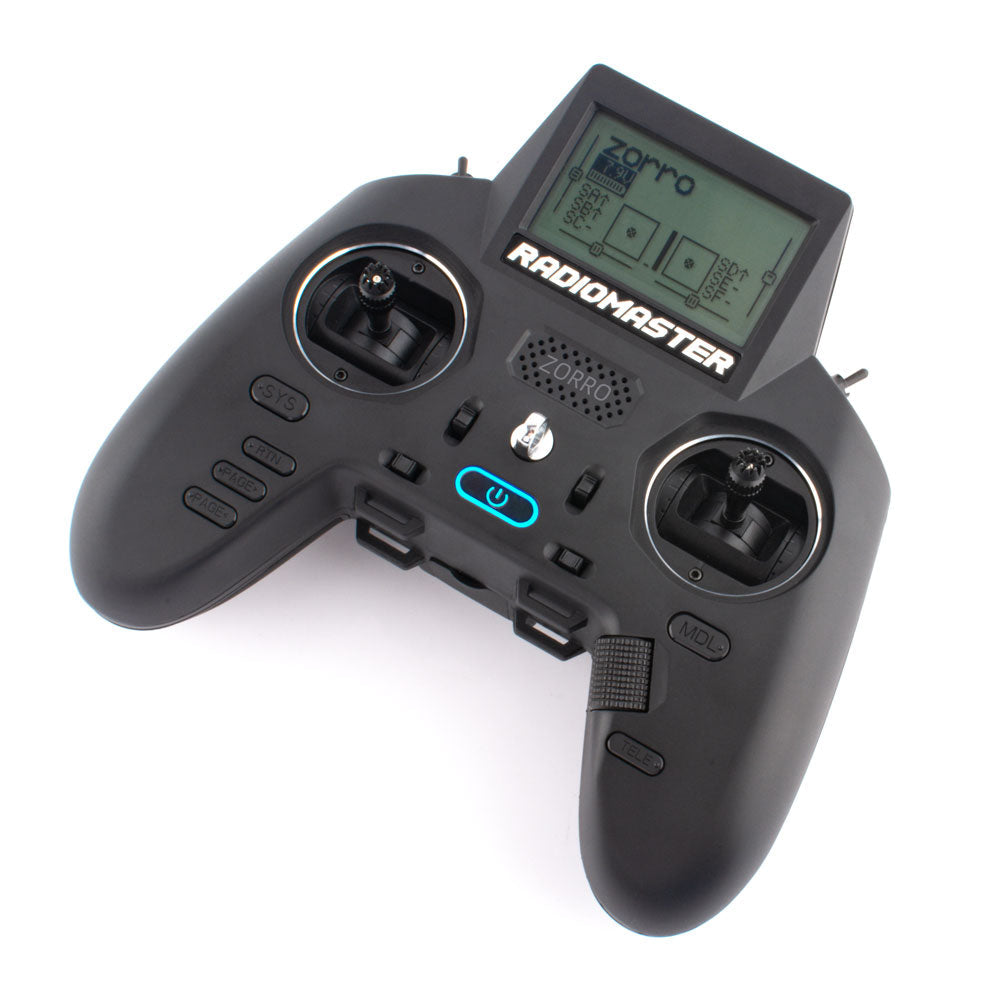

RadioMaster Zorro Radio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specification
|
Versions |
CC2500 |
4in1 |
ELRS |
ELRS Starter Set |
CC2500 + TBS Nano Crossfire Combo |
|
Physical Dimensions |
170*159*108mm |
||||
|
Weight |
350 grams |
||||
|
Operating Frequency |
2.400GHz-2.480GHz |
||||
|
Internal RF Options |
CC2500 multi-protocol |
4-in-1 multi-protocol |
ELRS |
CC2500 multi-protocol |
|
|
Supported Protocols |
Module dependent |
Module dependent |
ELRS |
Module dependent |
|
|
Antenna Gain |
Folding 2db |
||||
|
Operational Current |
160mA@8.4V |
||||
|
Operational Voltage |
6.6-8.4v DC |
||||
|
Control Distance |
> 2km |
> 2km |
Receiver and Power Output dependant |
> 2km |
|
|
Operating system |
OpenTX / EdgeTX Compatible |
||||
|
Control channels |
Maximum 16 (Rx dependent) |
||||
|
Display |
128*64 Monochrome LCD |
||||
|
Battery |
2 x 18350 (Not included) |
||||
|
Charging |
Built in USB-C Charging |
||||
|
Gimbal |
X4 Hall-effect gimbals (AG01 Mini compatible) |
||||
|
Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
||||
|
Firmware Upgrade Method |
Via USB or SD card |
||||
Click to check the RadioMaster Radio Comparison Chart.
FCC Version and EU LBT Version are Available
Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.
Standard FCC Version
- CC2500 (FCC) Version supports all CC2500 protocols
- 4in1 (FCC) Version supports all MPM protocols
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)
EU LBT Version
Download
Package Includes
Please note, when you choose a different version, it is packaged with different parts.
The chart below doesn't mean you will receive all versions.
| Version | Package Includes |
| CC2500 |
|
| 4-in-1 |
|
| ELRS |
|
| ELRS Starter Set |
|
| CC2500 + TBS Nano Crossfire Combo |
|
