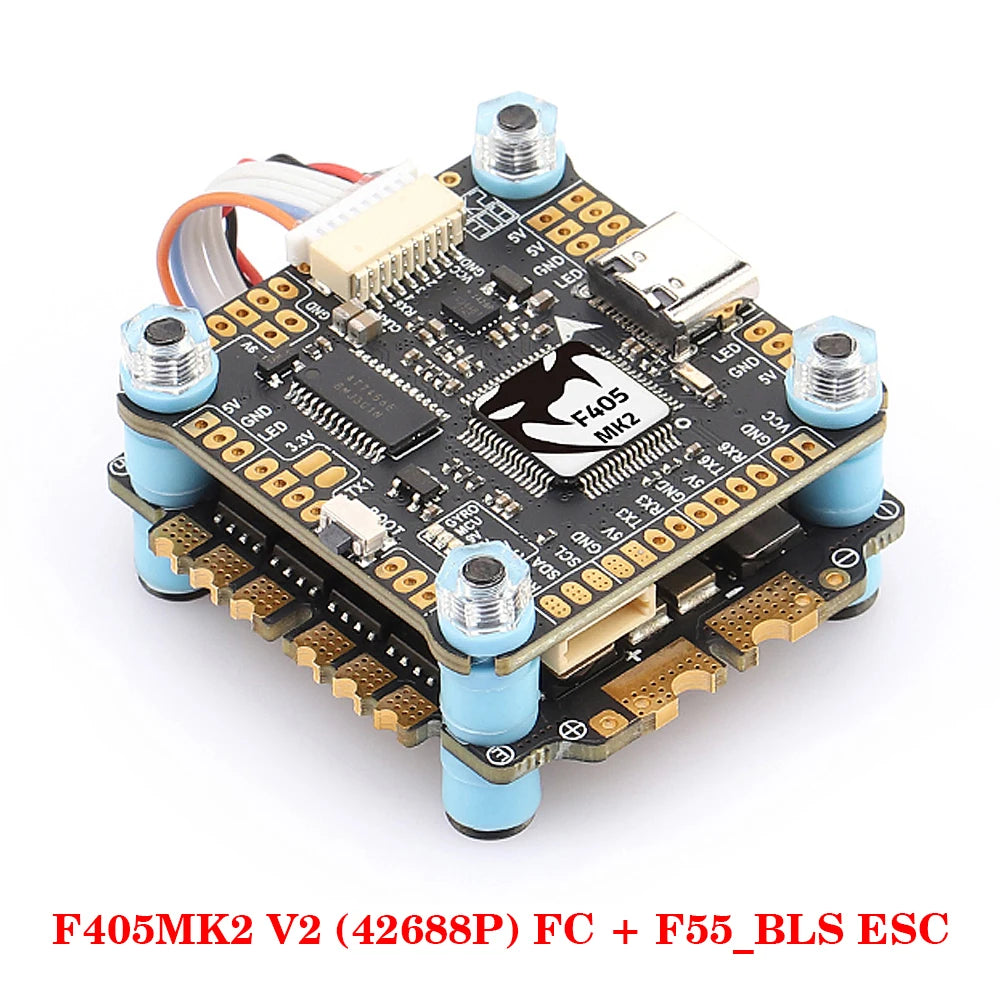

DIATONE MAMBA F405 MK2 V2 Stack (F55 BLS/ F65 BLS 4in1 ESC)

DIATONE MAMBA F405 MK2 V2 (ICM42688P) Flight Controller W/ F55 BLS F65 BLS 4in1 ESC Dshot 300/600 3-6S for RC FPV Racing Drone

• Firmware: Furyf4osd
• Main control: 168MHz STM32F405
• Gyroscope: ICM-42688-P
• OSD: Support
• Black box: 16M Flash Memory
• Ben: NO
• Serial port: 3SET
• I2C signal: support
• F.Port signal: NO
• RSSI signal: support
• Bee Narrator: Support
• Electric output: 6 set
• Electrical Agreement: DSHOT300/600
• Electrochemical return: support
• Status indicator: Yes
• LED output: BF LED
• Sky end interface: support
• Wifi tuning: NO
• VTX power control: NO
• BEC protection: yes
• Receiving machine protection: yes
• TVS Power Protection: Yes
• BEC output: 3.3V 0.5A & 5V 2A & 9V2A
• Working voltage: 3 ~ 6S Lipo (12.6 ~ 25.2V)
• Installation size: 30.5mm/m3

• Input voltage: 4 ~ 6s Lipo (12.6V ~ 25.2V)
• Rating current: 55A × 4
• Peak current: 60A (10S)
• BEC: NO program: DSHOT300/600
• Firmware: BLHELI_S CH40
• TVS Power Protection: Yes
• Install holes: 30.5mm/m3
• Size: 44.5 × 40 × 6.8mm

• Input voltage: 4~6S Lipo (14.8~25.2V)
• Output Current: 65A×4
• Peak Current: 75A (10S)
• BEC Output: No
• Target Firmware: BLHeli_S CH40/DX40/DX30
• Protocol: Dshot300/600
• TVS Power Protection: Yes
• Product Size: 44.5×40×6.8mm

• Shipping: 8pin SH1.0 × 2
• AMASS Original XT60 × 1
• High -frequency capacitor 470UF/35V × 1
