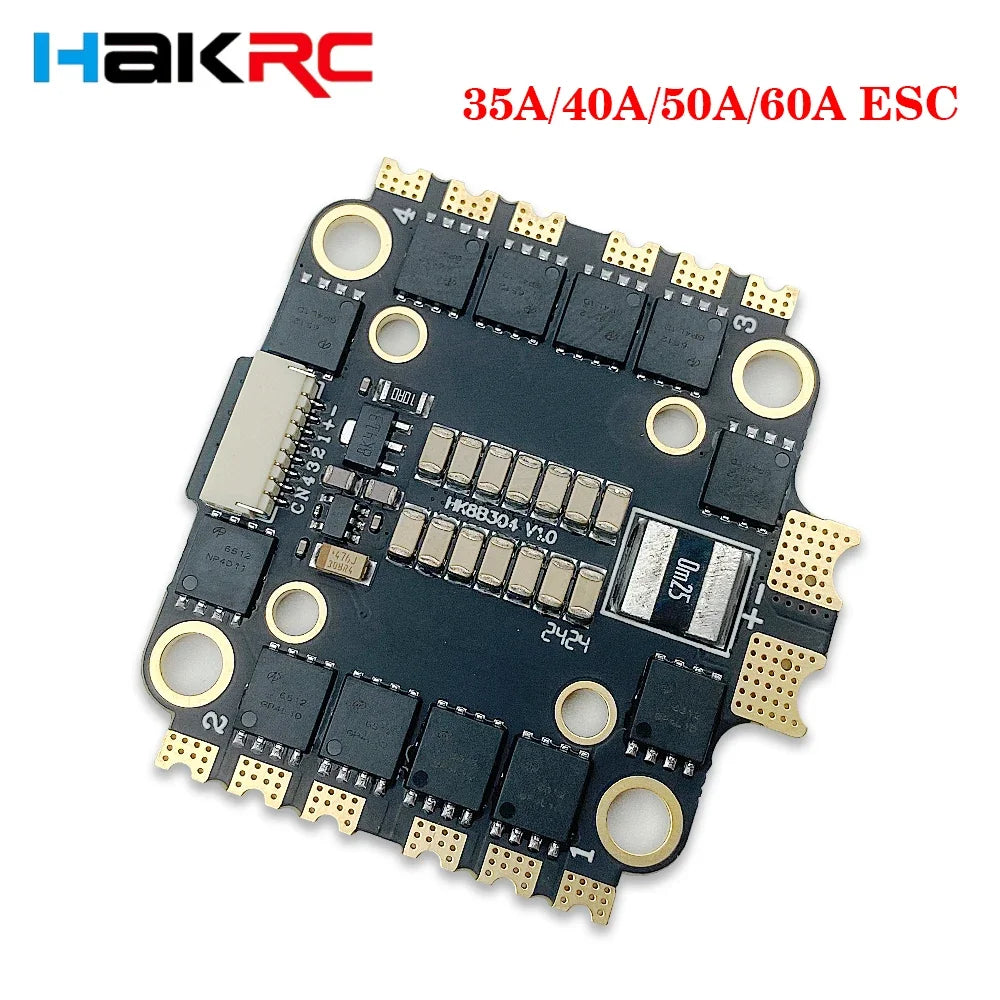

HAKRC 8BIT 35A/ 50A/ 32BIT 40A/ 60A BLHeli-32 4in1 ESC

HAKRC 8BIT 35A/ 50A/ 32BIT 40A/ 60A BLHeli-32 4in1 ESC

$22.99 USD
$0.00 USD $22.99 USD
Oferta Agotado
0 units sold · 0 people bought this
Color

369 en existencias

HAKRC 8BIT 35A/ 50A/ 32BIT 40A/ 60A BLHeli-32 4in1 ESC Speed Controller DShot150/300/600 PWM 2-6S for RC FPV Racing Drone

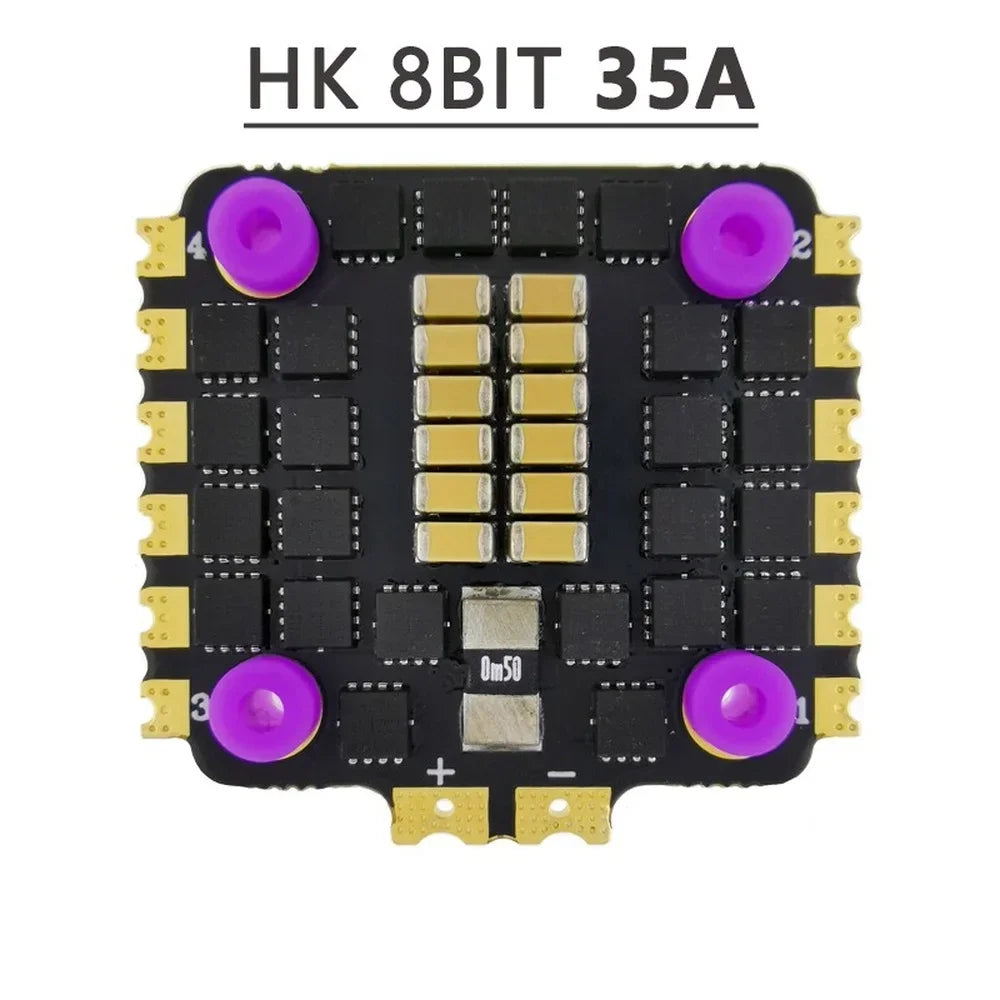

HK 8BIT 35A 4IN1 ESC

* Emf8bb21f16g main control chip, operating frequency up to 48mhz. MOSFET, three in one IC driver and high quality high frequency ceramic capacitor are imported. In high-end PCB production process, pads are metallized to avoid pad falling off when using; 3 oz copper thick, 6-layer board, greatly reducing heating and higher efficiency.

* Integrate 4 high-performance 35A electric adjustment, built-in galvanometer, and purchase new advanced . After such high integration, the volume is only the same as that of the flight control of the traversing aircraft, so the installation and wiring will become very simple. This incredible size and volume is tailor-made for race class traversers.

* Using blheli-s firmware has powerful performance and rich functions; it also supports setting electric tuning parameters in various ways, or upgrading electric tuning firmware (such as setting or upgrading electric tuning via throttle signal line, using other development boards, or using cleanflight or betaflight firmware flight control).

* Hardware PWM drive motor, less noise, more smooth throttle response. Damp light technology, regenerative braking function, make motor deceleration more sensitive and effective, control more accurate; active freewheeling technology, let the battery recover power, prolong the endurance time;

* It not only supports ordinary PWM throttle signal mode, oneshot 125, oneshot 42 and multshot ultra-high speed throttle signals, but also supports the latest dshot150 / 300 / 600 digital throttle, with strong anti-interference ability and rapid response. Soft silicone wire is used for input and output line, which is very durable, high temperature resistant and easy to weld.

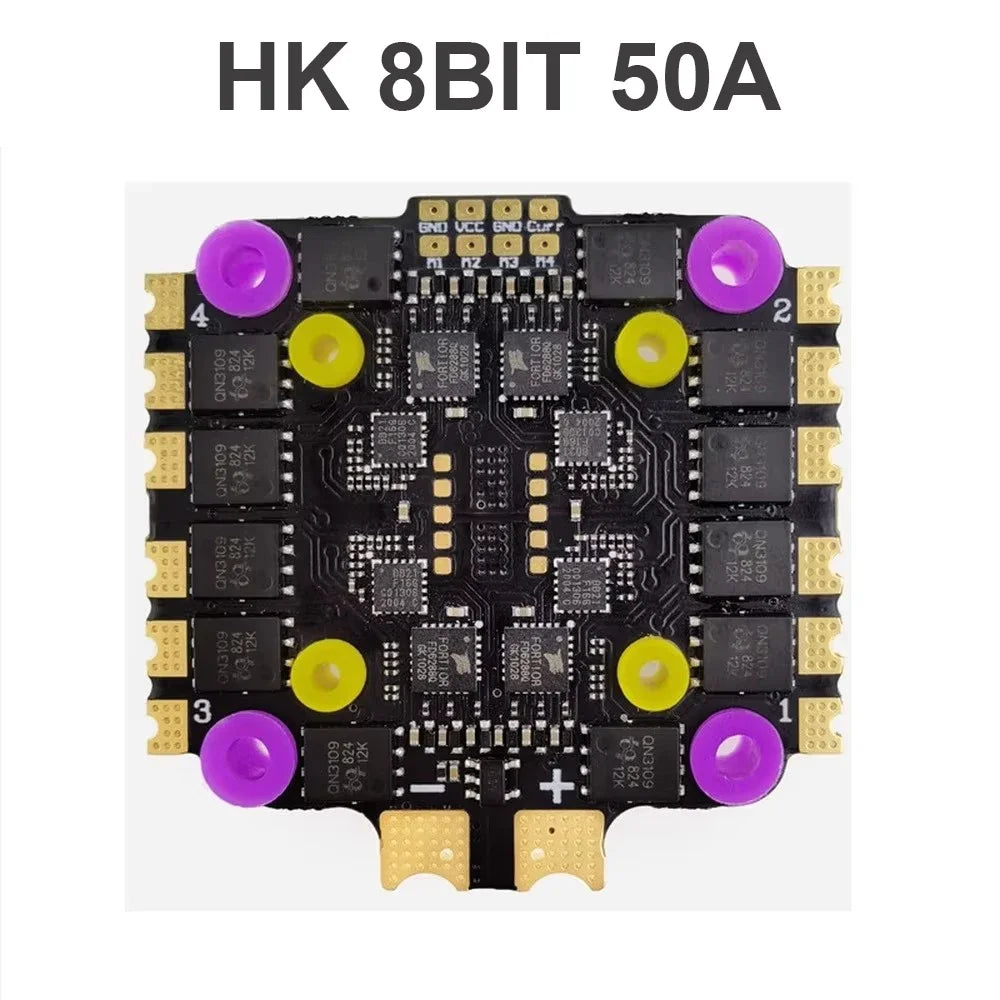

HK 8BIT 50A 4IN1 ESC Parameter

  • Working voltage: 2-6s

  • Maximum continuous working current: 50A

  • Maximum instantaneous working current: 55A

  • Support communication mode: dshot150 / 300 / 600 PWM, oneshot 125, oneshot 42 and multshot

  • Parameter adjustment software blhelisuite

  • Firmware version bl16.7

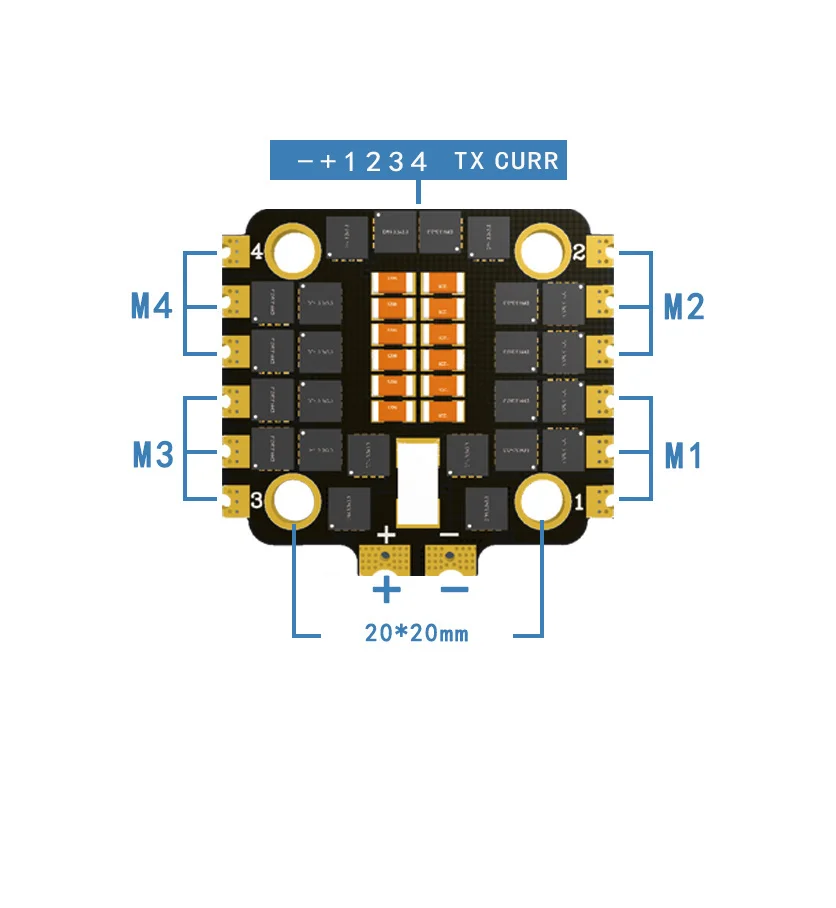

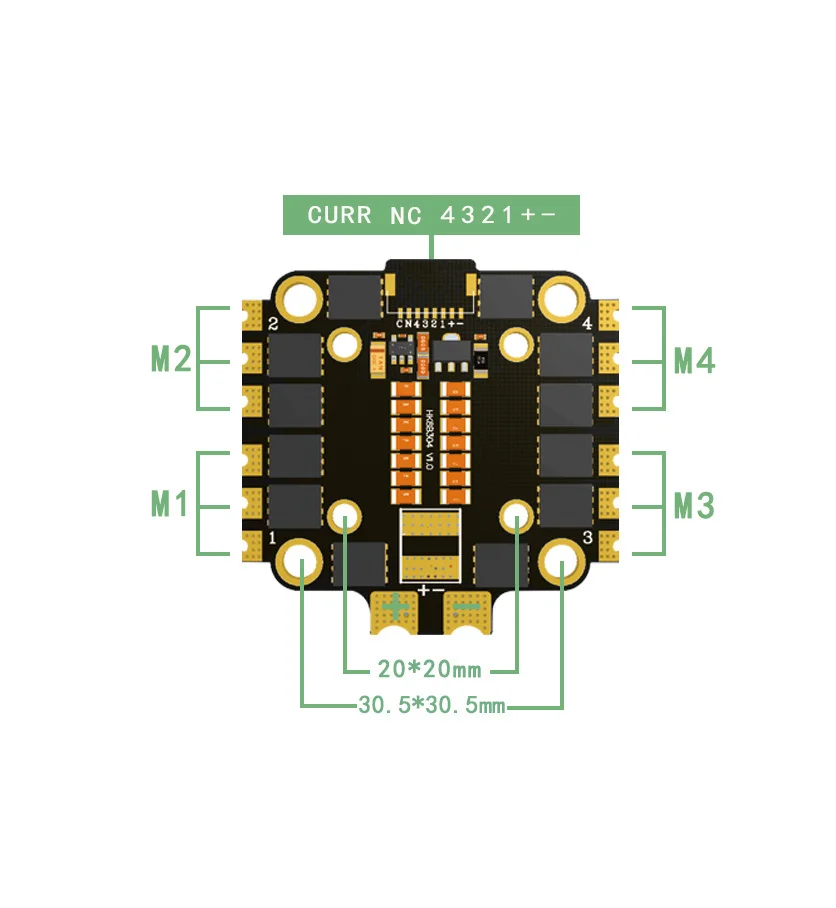

  • Installation hole spacing: 20 * 20MM / 30.5 * 30.5mm

  • Product size: 44 * 44 * 5.5mm

  • Package size: 62 * 58 * 18mm

  • The net weight of the product is 13.6g

  • Package weight: 27g

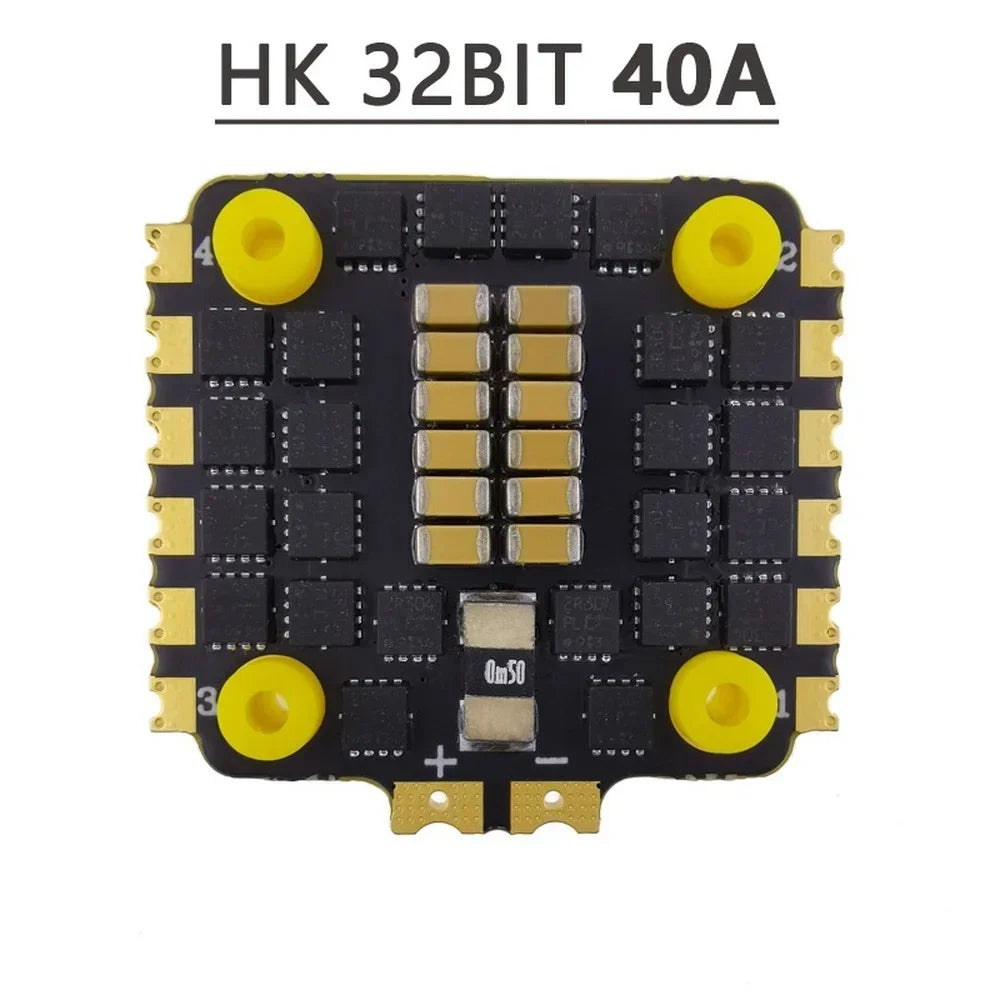

HK 32BIT 40A 4IN1 ESC Feature
* Stm32f051 is the main control chip, and the operation frequency is as high as 48mhz. MOSFET, three in one IC driver and high quality high frequency ceramic capacitor are imported. In high-end PCB production process, pads are metallized to avoid pad falling off when using; 3 oz copper thick, 6-layer board, greatly reducing heating and higher efficiency.

* The built-in 40t is highly integrated with the new SMA in high performance after installation. This incredible size and volume is tailor-made for race class traversers.

* Using blheli-32 firmware has powerful performance and rich functions; it also supports various ways to set electric tuning parameters, or to upgrade electric tuning firmware (for example, setting or upgrading electrical tuning via throttle signal line, using other development boards, or using cleanflight or betaflight firmware flight control).

*Hardware PWM drive motor, less noise, more smooth throttle response. Damp light technology, regenerative braking function, make motor deceleration more sensitive and effective, control more accurate; active freewheeling technology, let the battery recover power, prolong the endurance time;

* It not only supports ordinary PWM throttle signal mode, oneshot 125, oneshot 42 and multshot ultra-high speed throttle signals, but also supports the latest dshot150 / 300 / 600 / 1200 digital throttle, with strong anti-interference ability and rapid response. Soft silicone wire is used for input and output line, which is very durable, high temperature resistant and easy to weld.

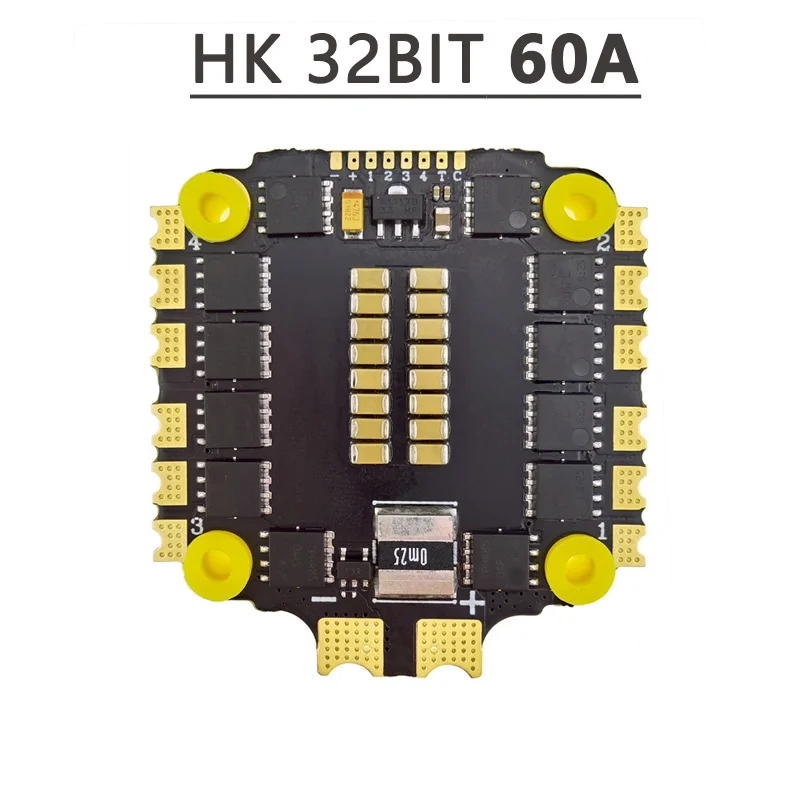

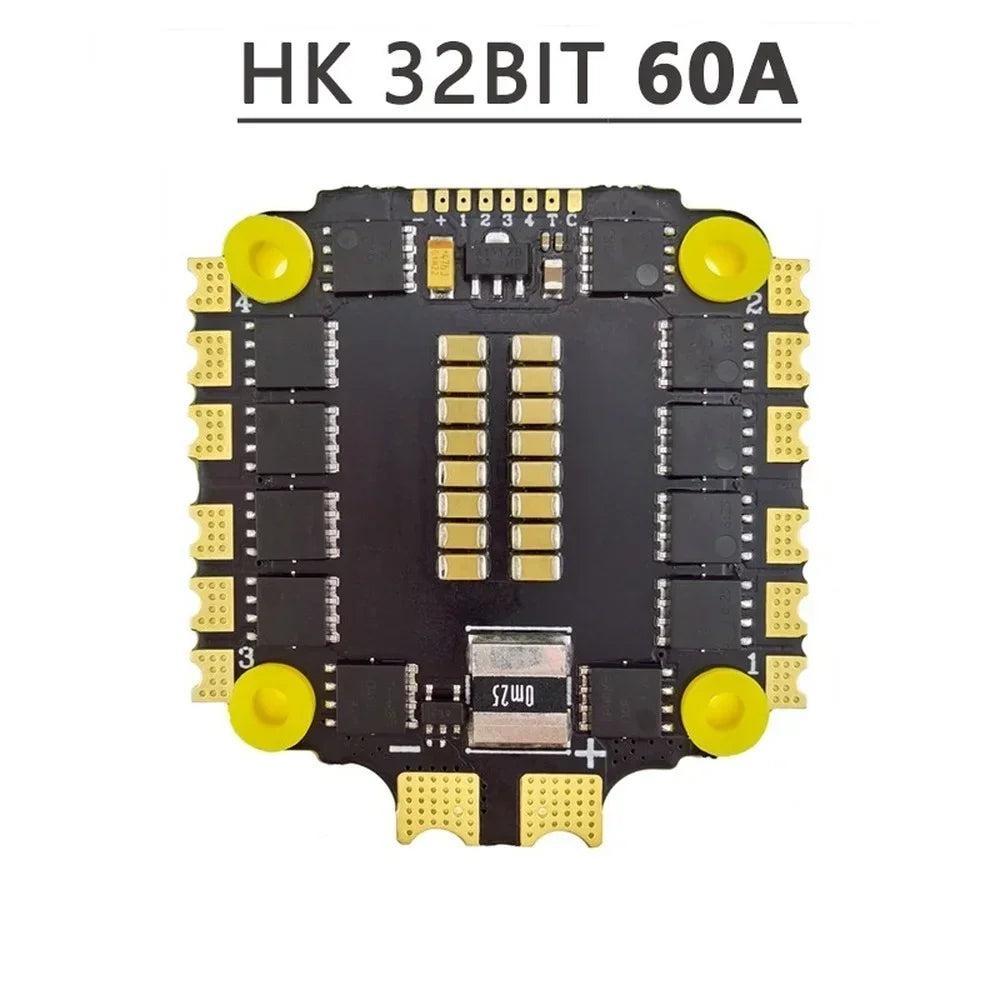

HK 32BIT 60A 4IN1 ESC Parameter

  • Working voltage: 2-6s

  • Maximum continuous working current: 60A

  • Maximum instantaneous working current: 70A

  • Support communication mode: dshot150 / 300 / 600 / 1200 PWM, oneshot 125, oneshot 42 and multshot

  • Parameter adjustment software blheli 32

  • Firmware version bl32.7

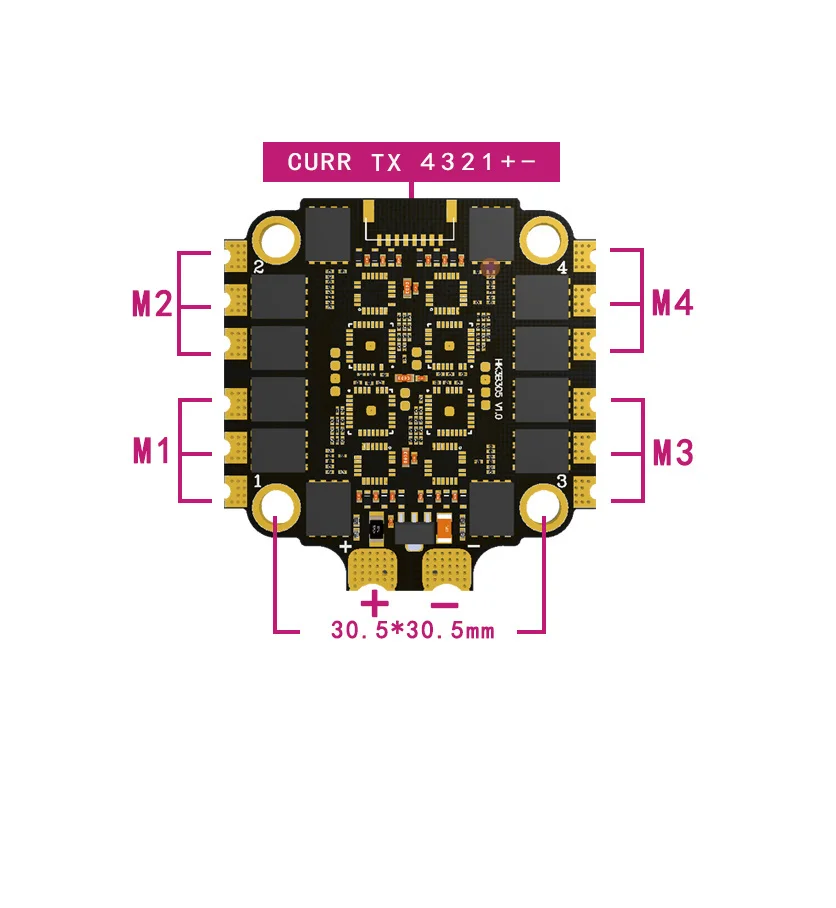

  • Installation hole spacing: 30.5 * 30.5mm

  • Product size: 45 * 42.5 * 6mm

  • Package size: Φ 62 * 33mm

  • The net weight of the product is 14.5g

  • Package weight: 40g
