IFlight XING 1303 5000KV 3-4S FPV Micro Brushless Motor
IFlight XING 1303 5000KV 3-4S FPV Micro Brushless Motor
369 en existencias
No se pudo cargar la disponibilidad de retiro

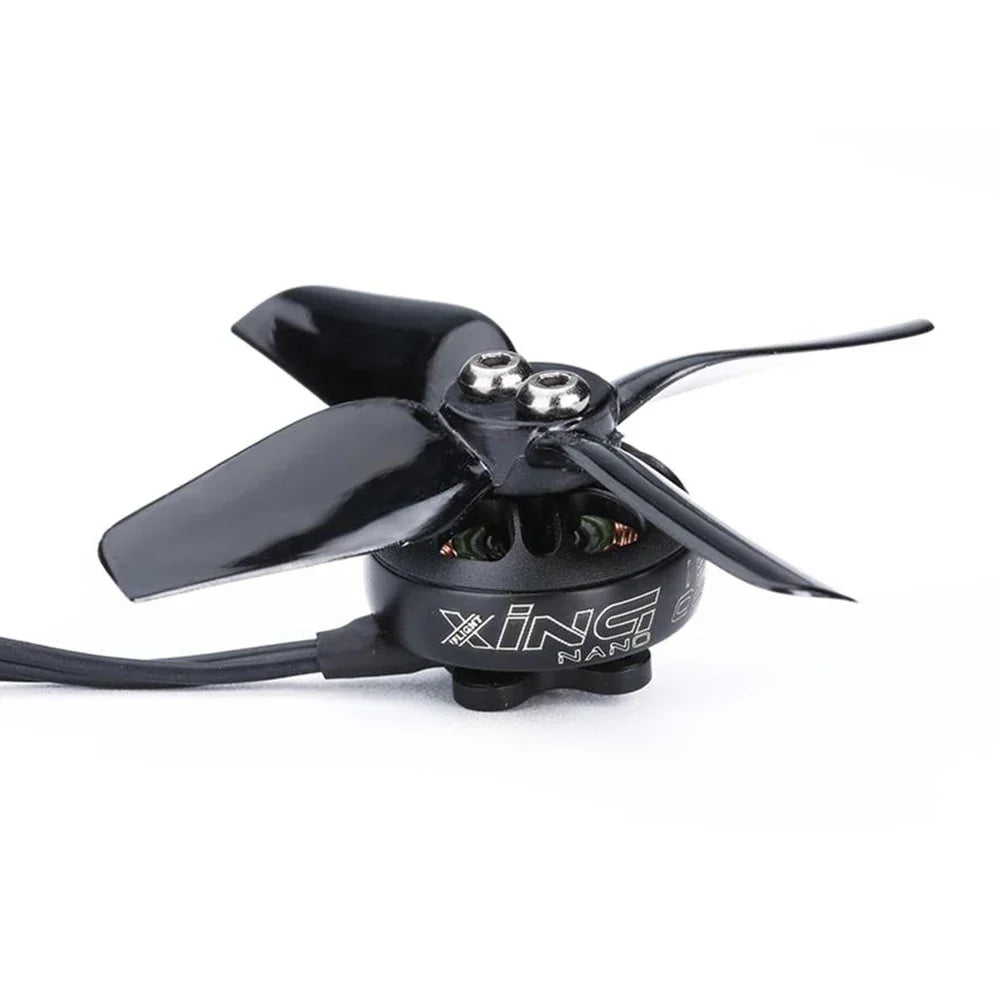

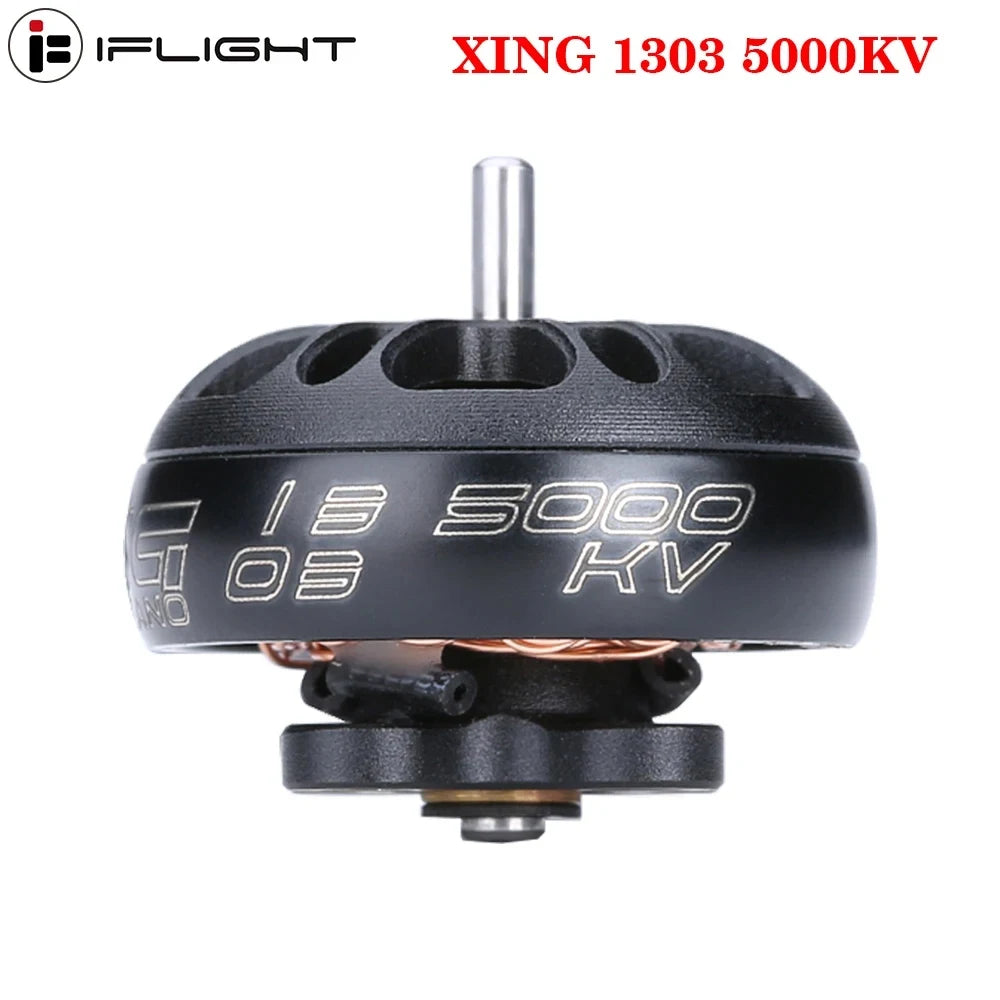

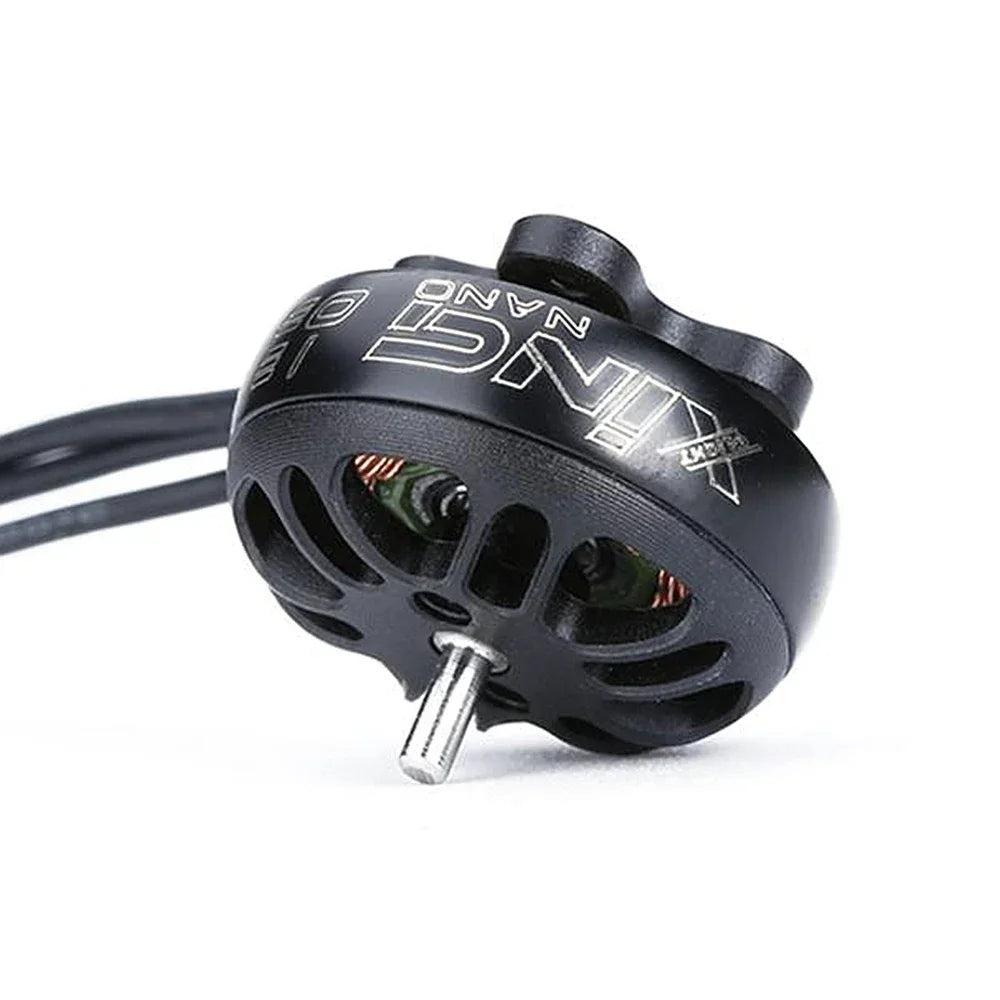

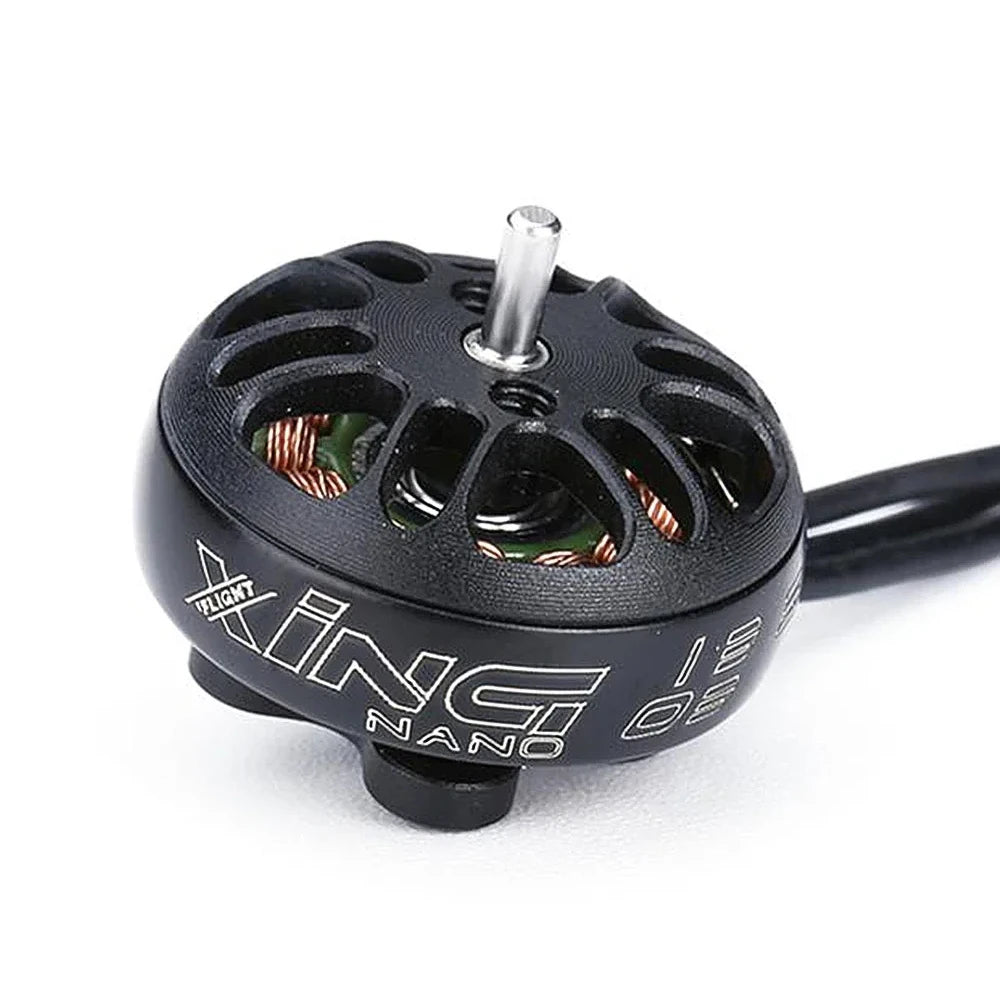

IFlight XING 1303 5000KV 3-4S FPV Micro Brushless Motor With 1.5mm shaft compatible 2 inch propeller for FPV whoop Drone
-
XING 1303 brushless motors are customized for 3~4S brushless whoop drone.
-
Super durable and ultra-light with only 6.5g on short wires.
-
Whatever frame you put these motors on, you'll have your mind blown!
Specifications
-
Model: XING 1303
-
KV: 5000KV
-
Input Voltage: 3-4S
-
Dimension: Ф17.58*11mm
-

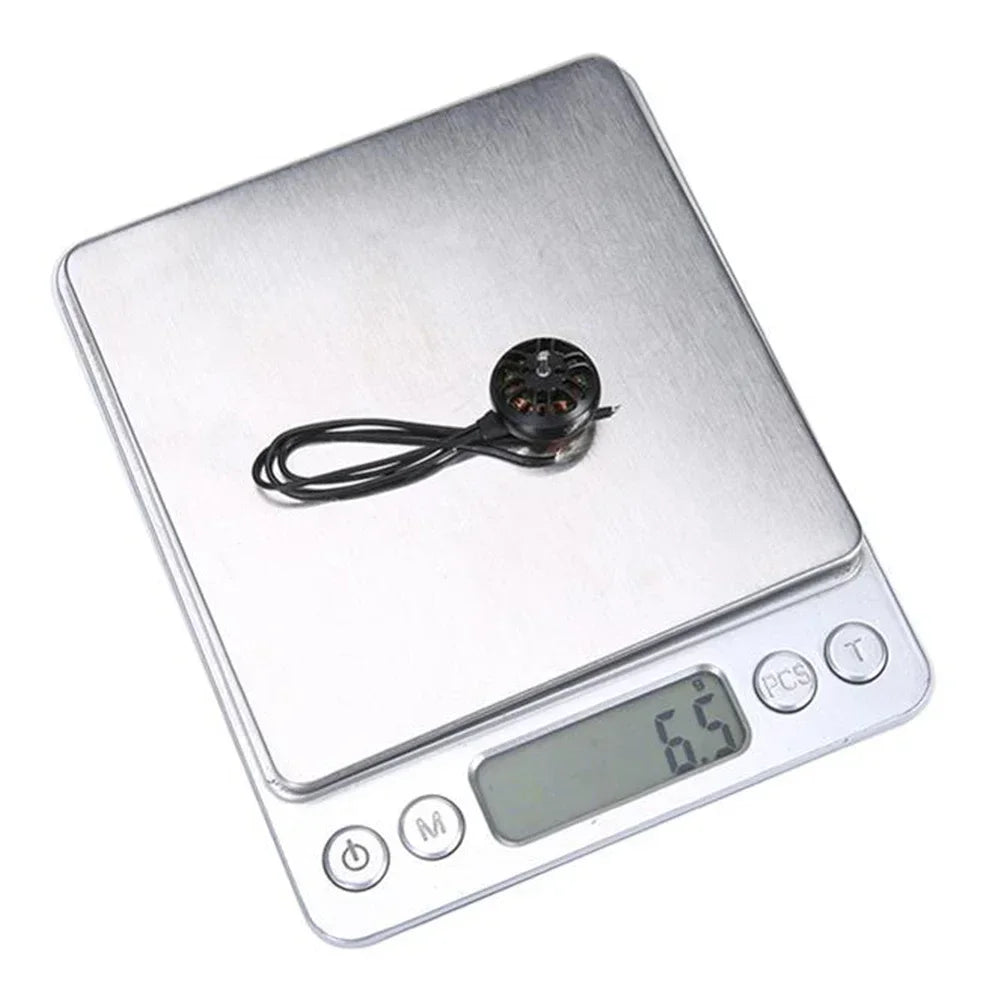

Weight(included wire): 6.5g
-
Interphase Resistance: 386mΩ
-
Peak Current: 6.13A
-
Max Watt: 98.1W
-
Mounting Holes: 9*9 φ2mm
-
Shaft Diameter: 1.5mm
-
Shaft Protruding Length: 4mm
-
Magnet: N52H Curved
-
Configuration: 9N12P
-
Bearing Type: NSK
-
Winding: Single Strand copper winding
Packing List
-
1 x XING 1303 Motor
-
4 x M2*5 screws
-
4 x M2*7 screws
