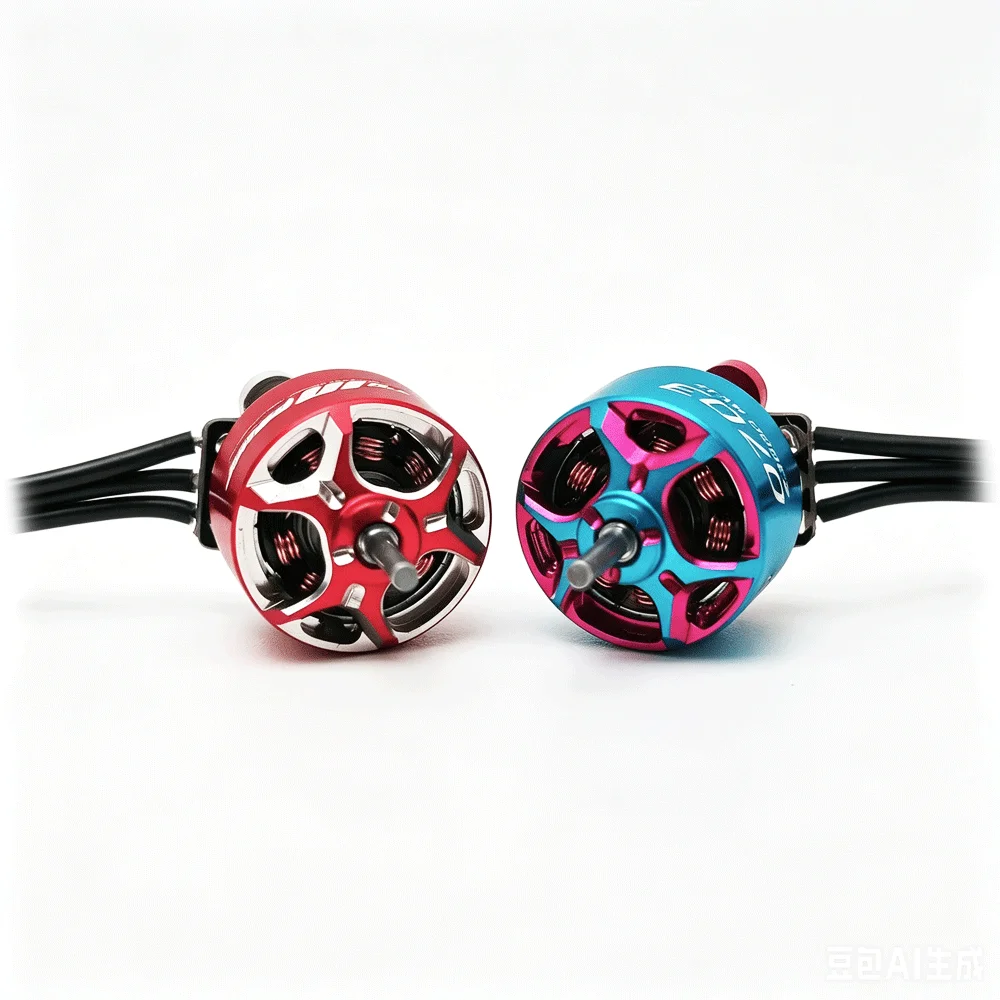

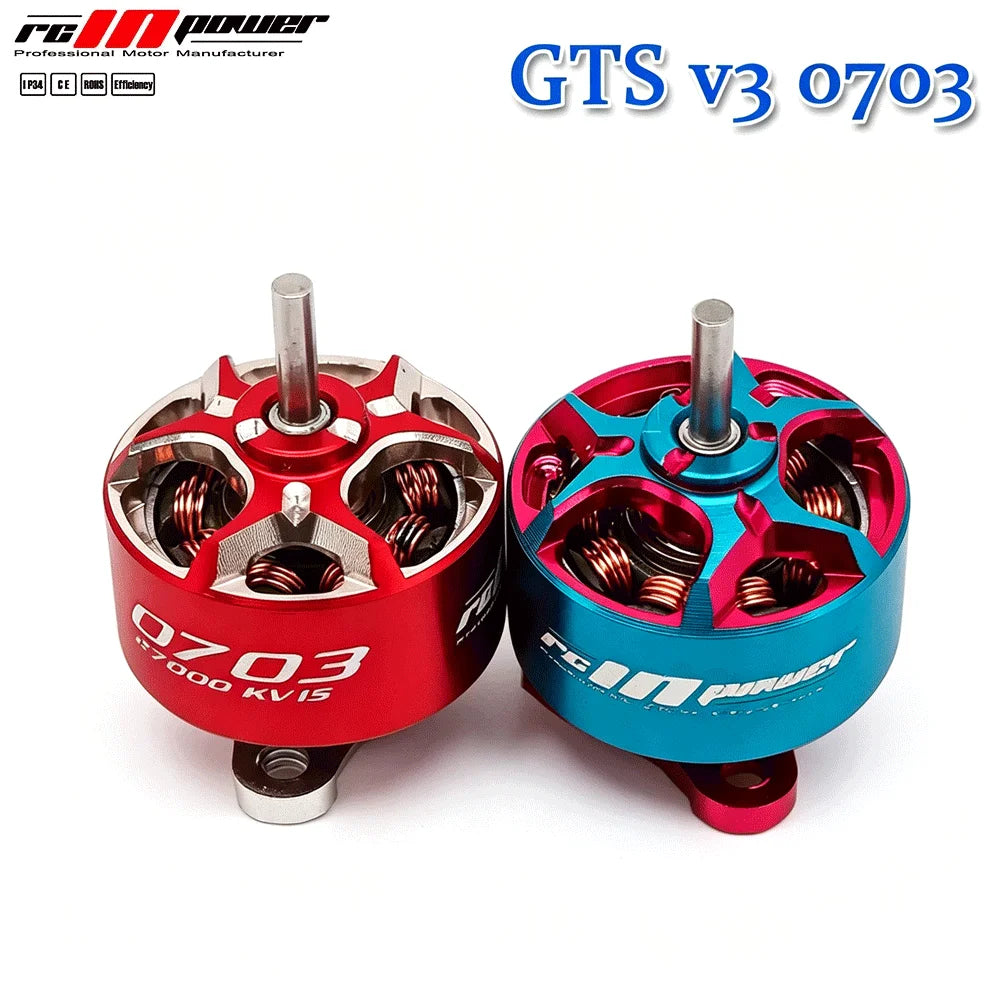

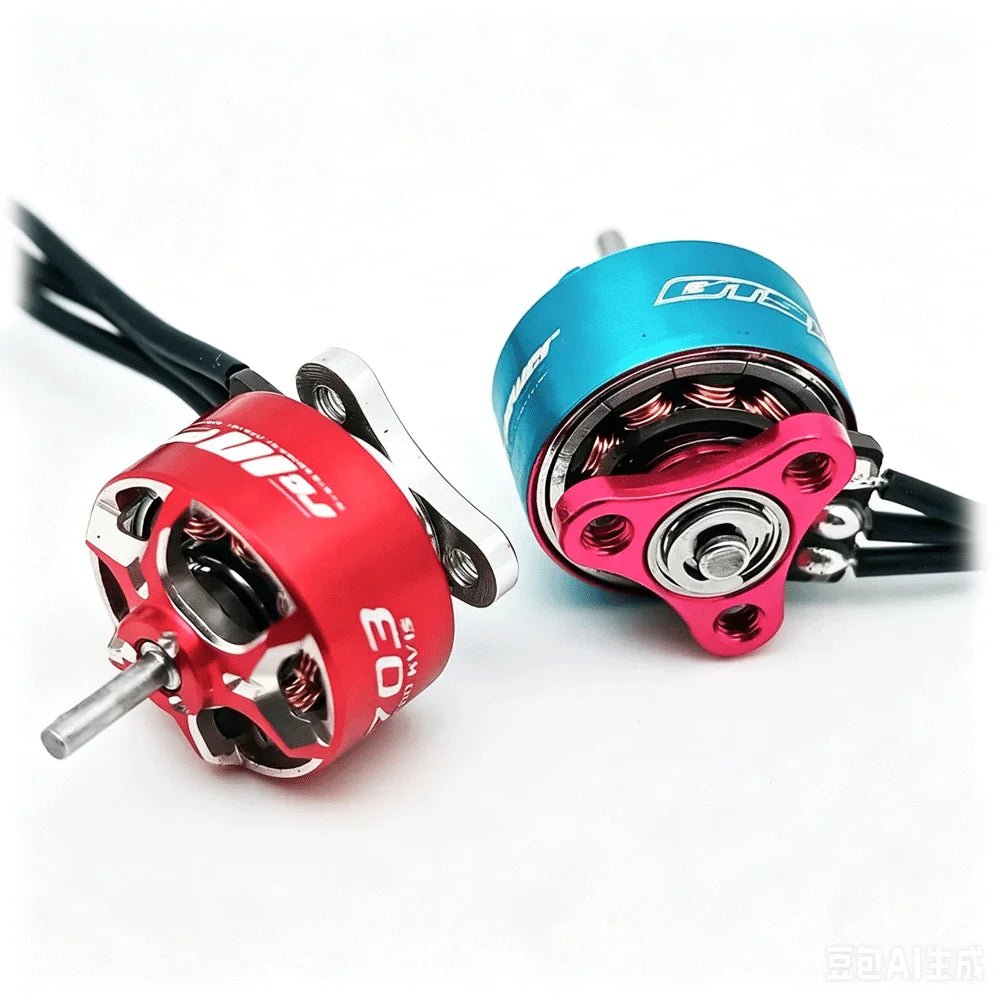

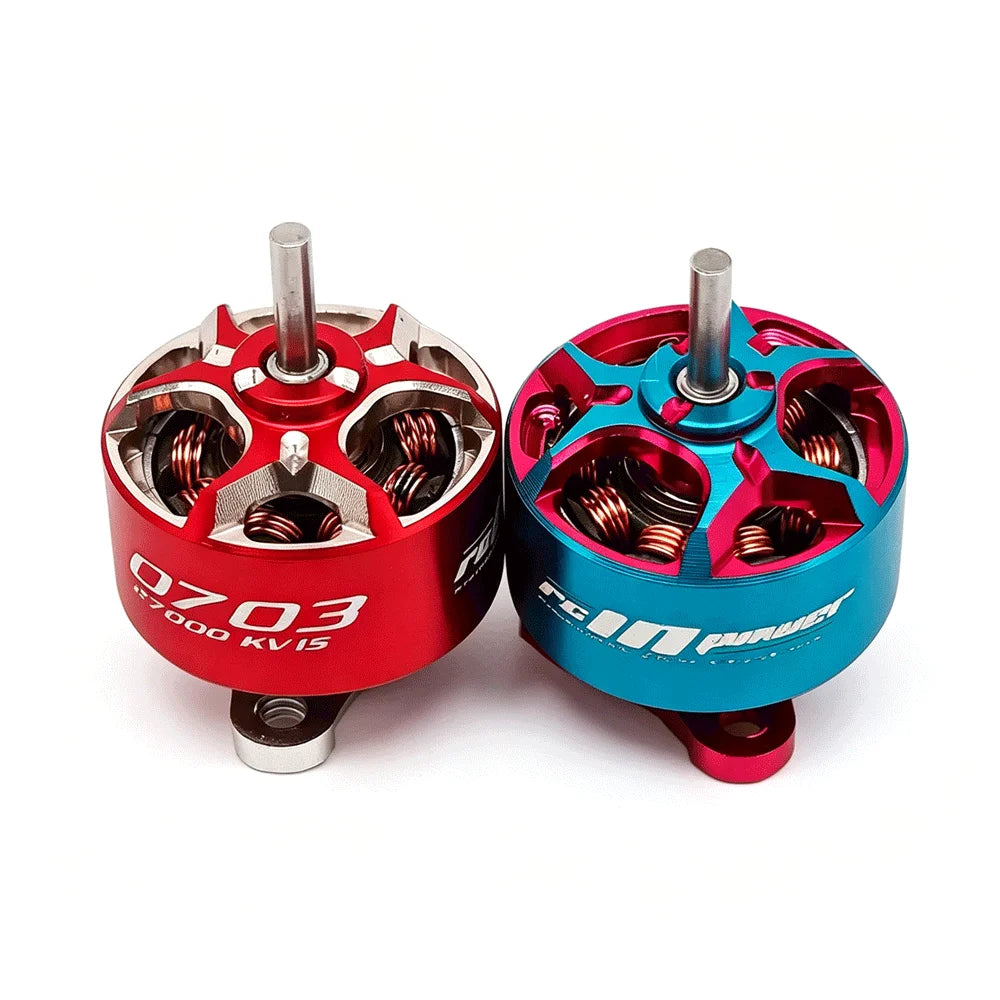

RCinpower GTS V3 0703 23000KV 27000KV Brushless Motor

RCinpower GTS V3 0703 23000KV 27000KV Brushless Motor 1S Lipo Compatible 1.2-inch Propeller for RC FPV Racing Drone

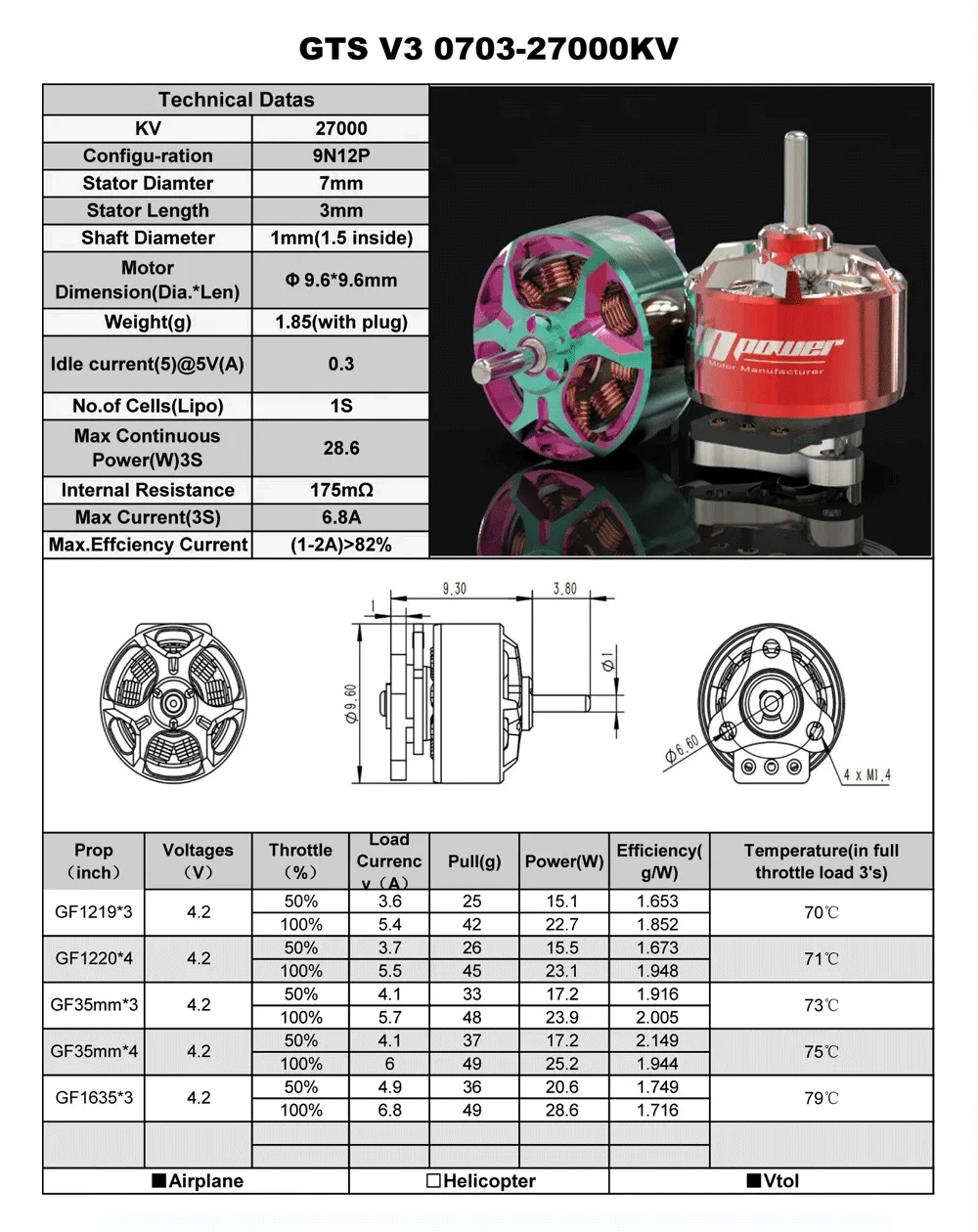

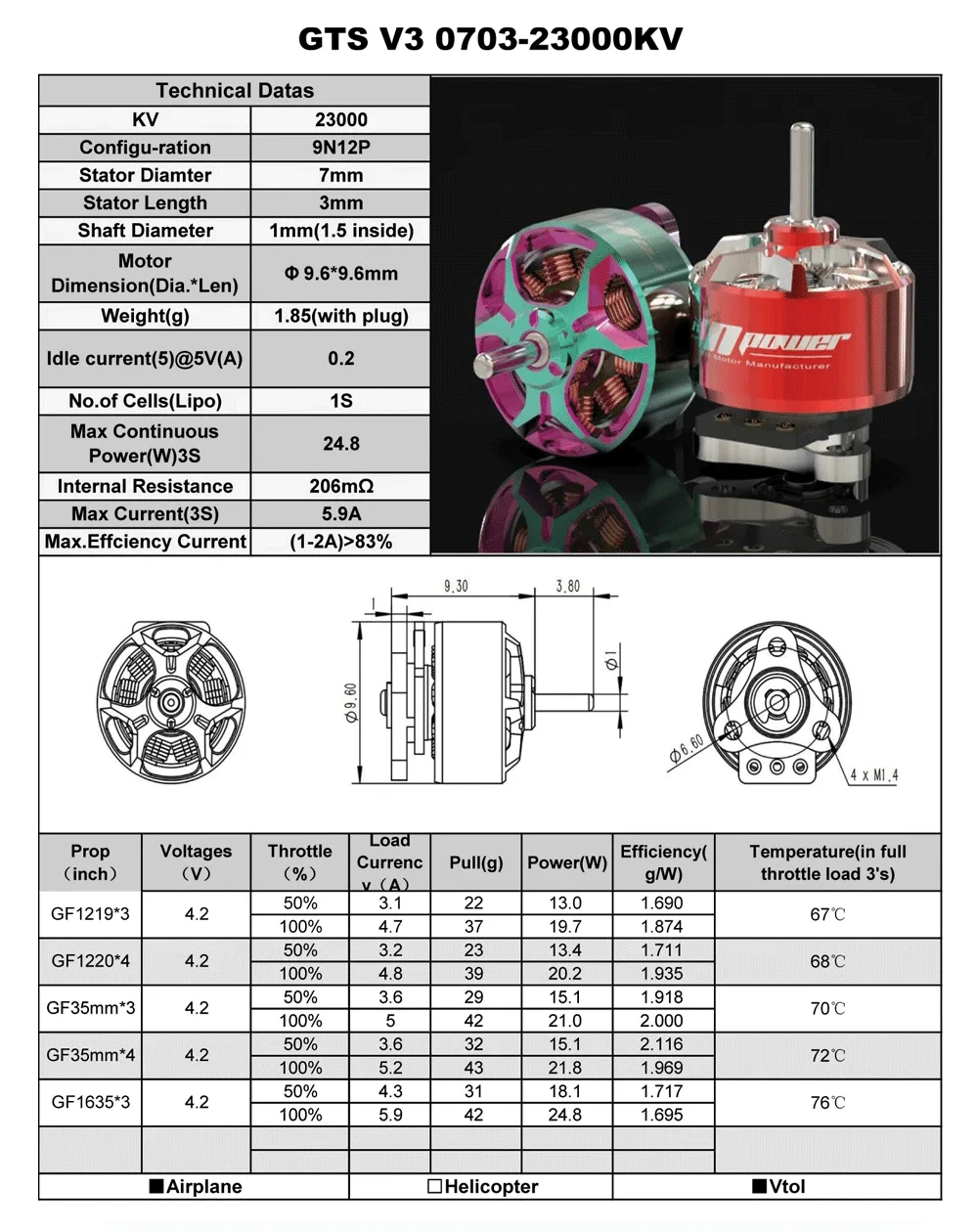

• KV:23000KV / 27000KV
• Configure 9N12P
• Stator diameter 7mm
• Stator length 3mm
• Shaft diameter 1mm (internal 1.5)
• Motor size: (diameter * length) Φ 9.6 * 9.6mm
• Weight (g): 1.85 (with plug)
• No load current: (5) @ 5V (A) 0.2 / 0.3
• Cell count: (Lipo) 1S
• Maximum continuous power: (W)3S 24.8 / 28.6
• Internal resistance: 206m Ω / 175m Ω
• Maximum current: (3S) 5.9A / 6.8A
• Maximum effective current: (1-2A)>83% / 82%

• FPV small indoor unmanned aerial vehicle
• Suggest using a 1.2-inch blade

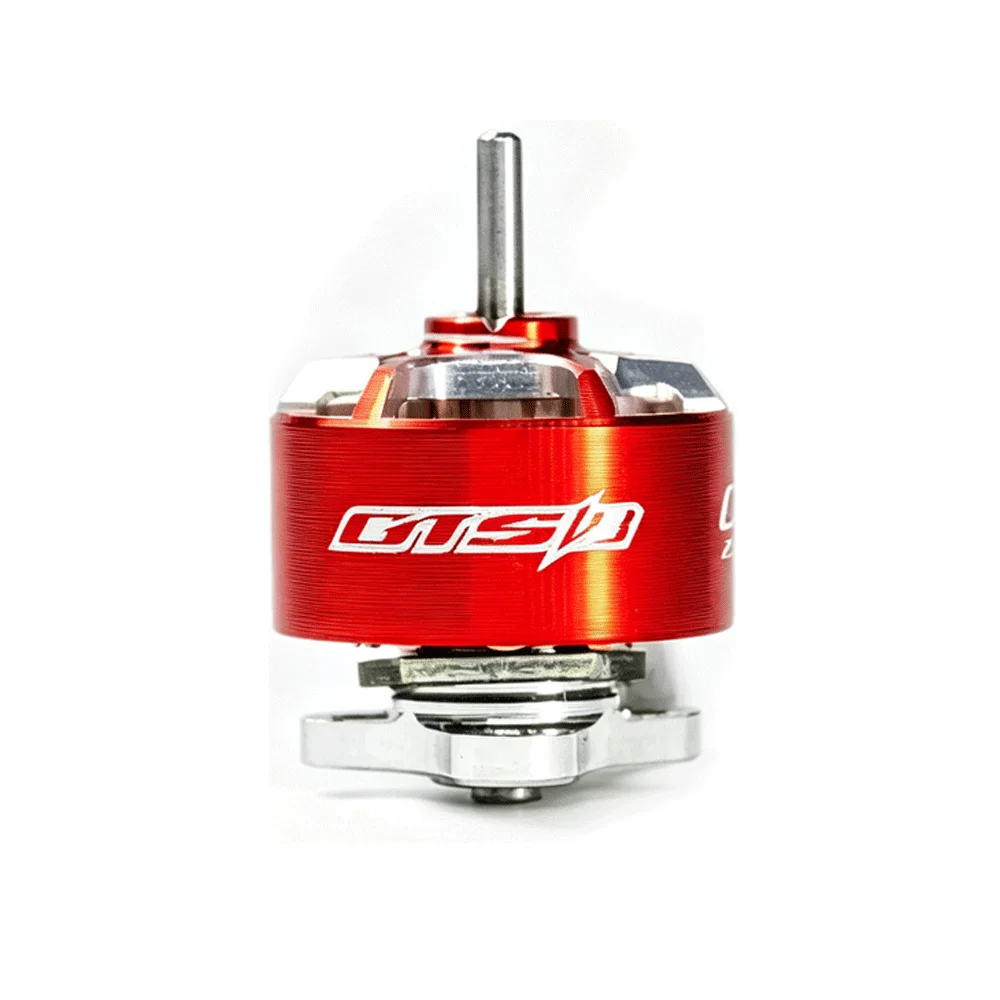

• Integrated shell, durable and long-lasting; Dual bearing design for longer service life and more stable operation

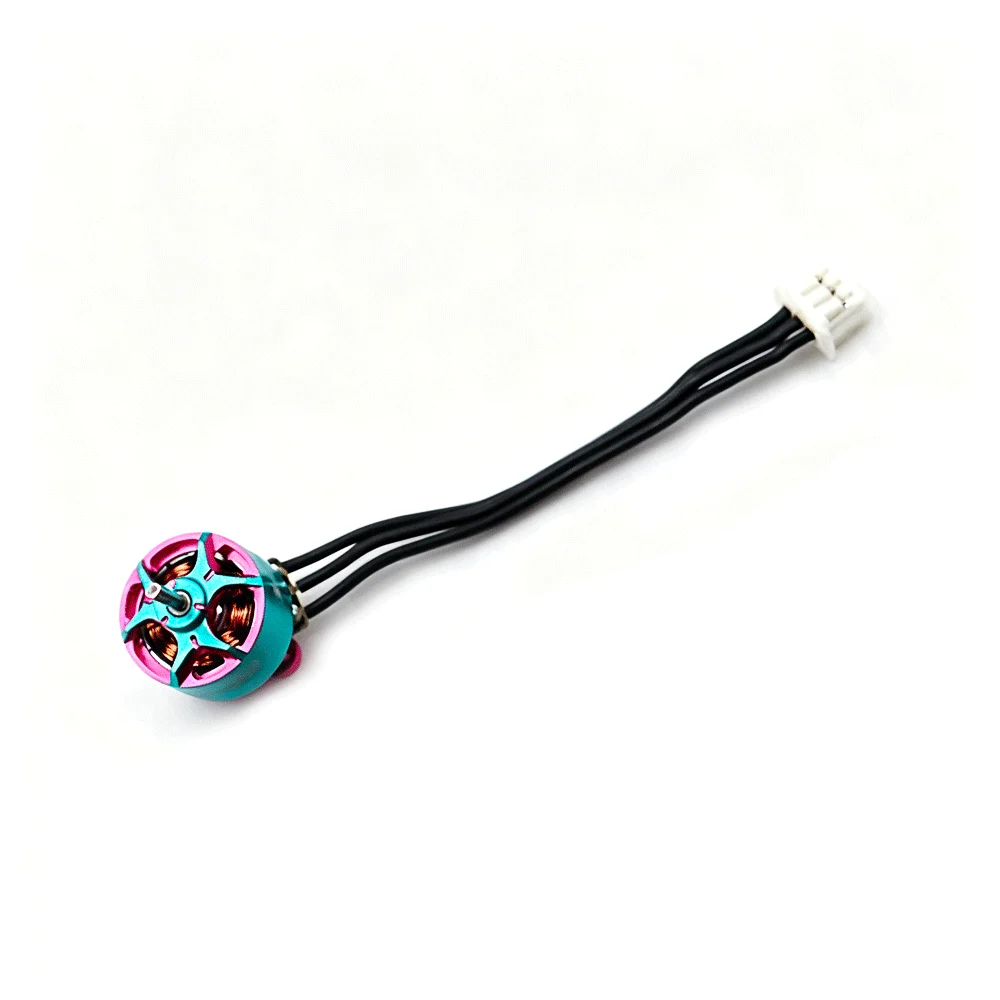

• PCB soldering, durable and easy to maintain
• Weighing only 1.85 grams

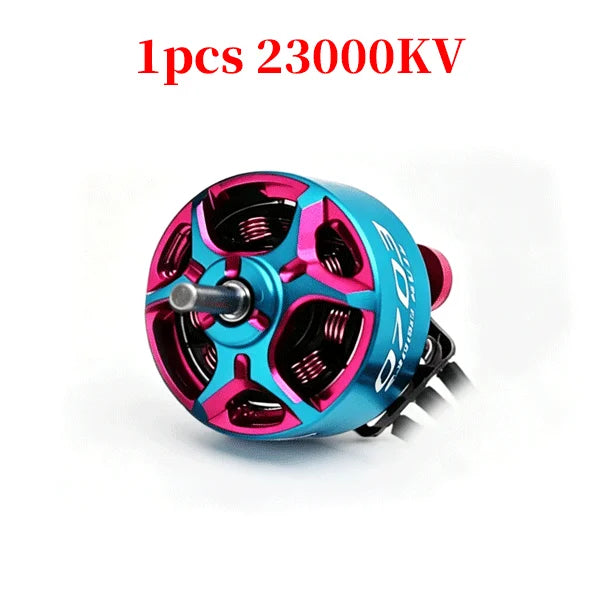

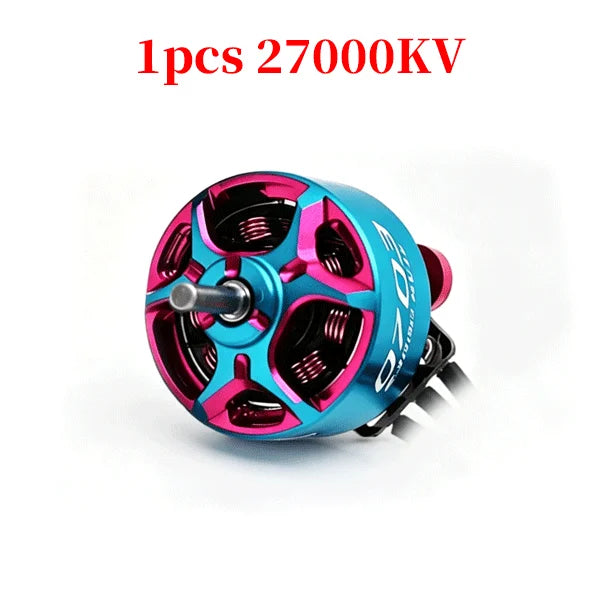

• 1x GTS V3 0703  23000KV / 27000KV (KV Optional)
