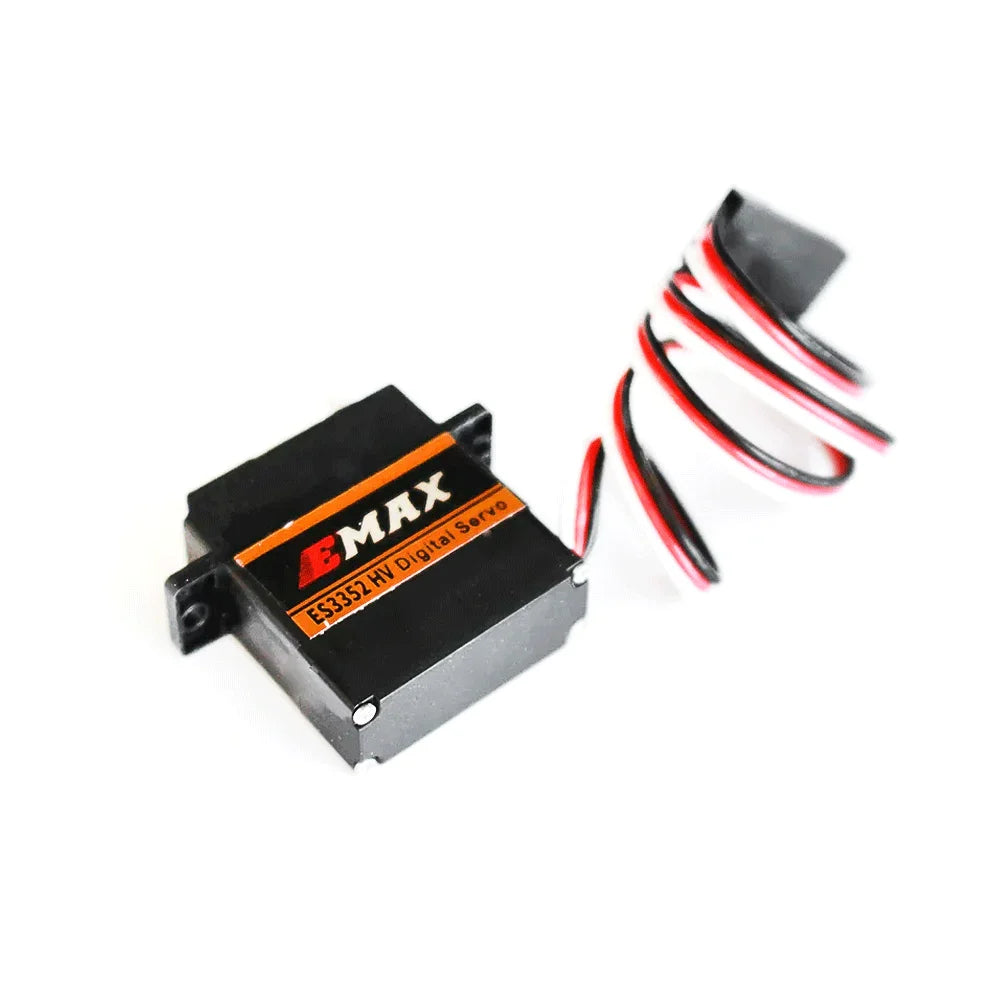

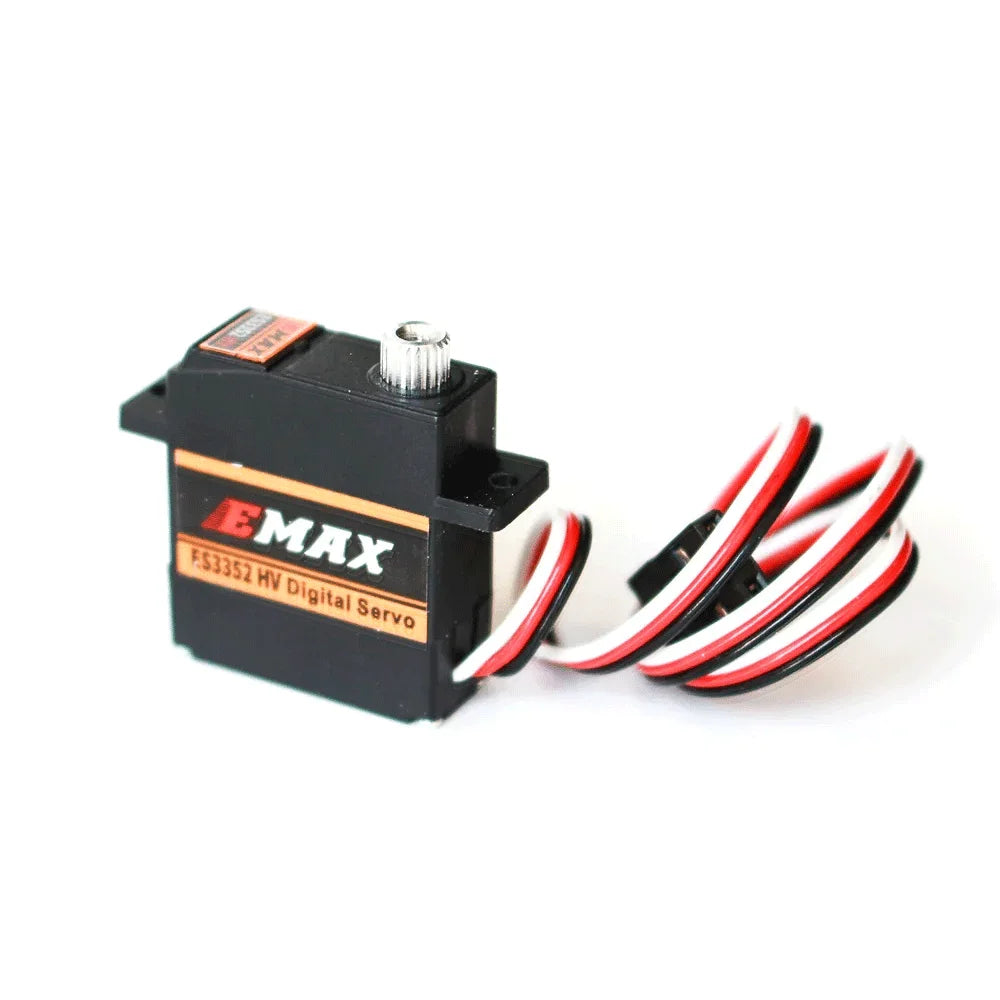

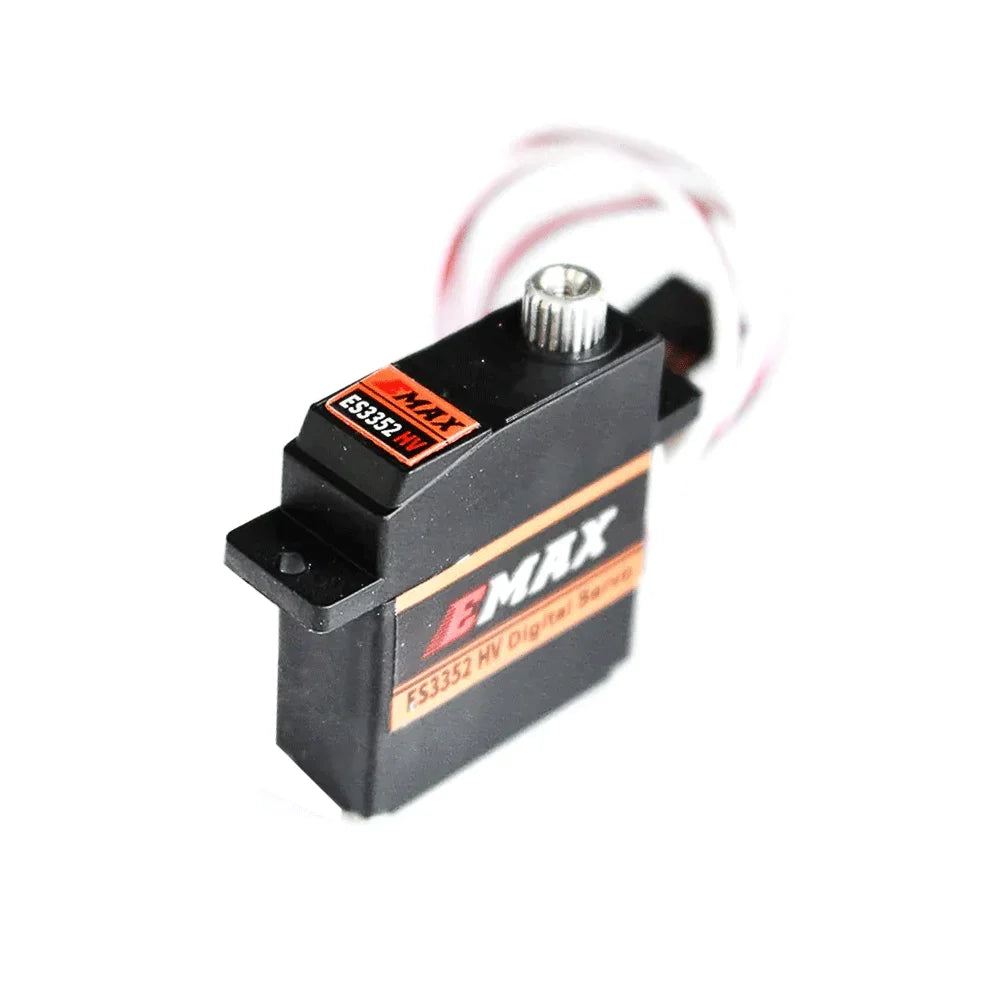

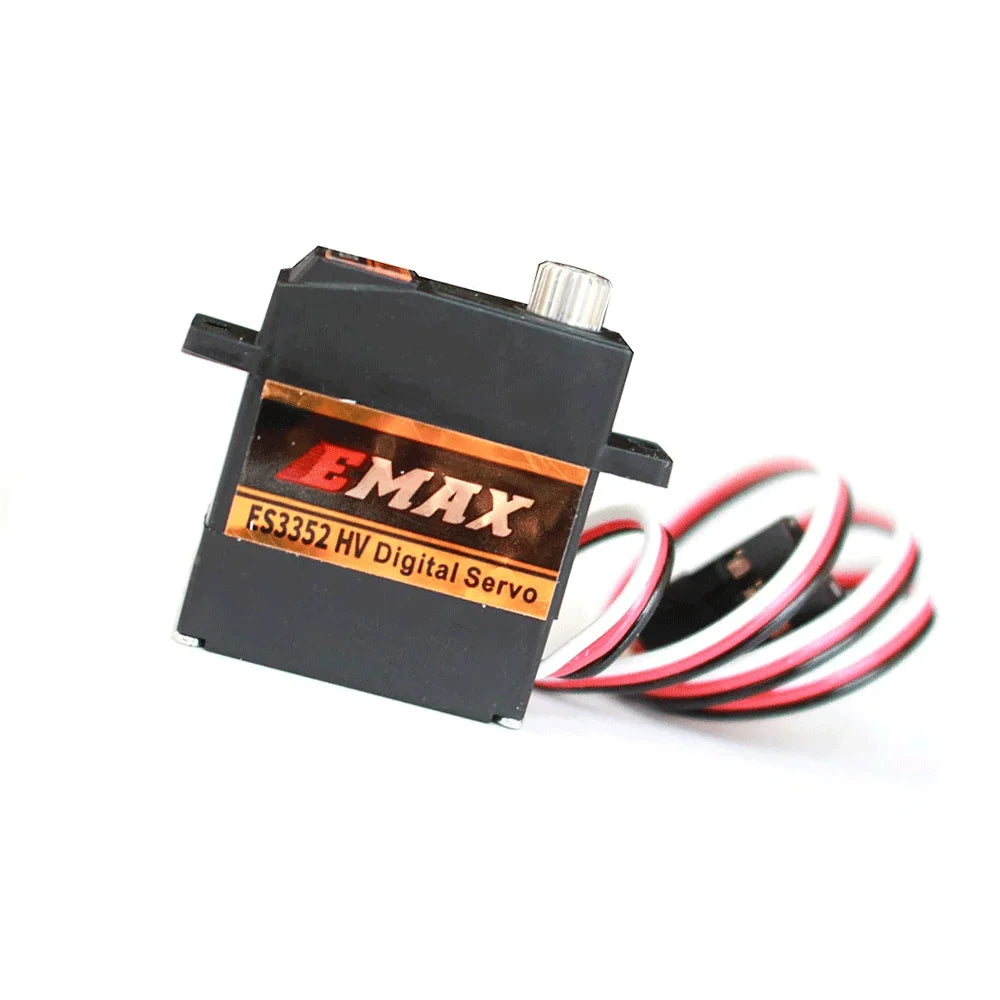

EMAX ES3352 HV All-Purpose High Voltage 12G Metal Gear Digital Standard Servo

EMAX ES3352 HV All-Purpose High Voltage 12G Metal Gear Digital Standard Servo for RC Car Robot Airplane Drone

• Operating Speed (at no load):
• 6.0V | 0.18 sec/60°
• 8.4V | 0.13 sec/60°
• Running Current (at no load):
• 6.0V | 200mA Max
• 8.4V | 260mA Max

• 6.0V | 1.7kg.cm Max
• 8.4V | 2.4kg.cm Max
• Maximum Current:
• 6.0V | 0.4A Max
• 8.4V | 0.6A Max

• 6.0V | 9.5mA
• 8.4V | 9.5mA

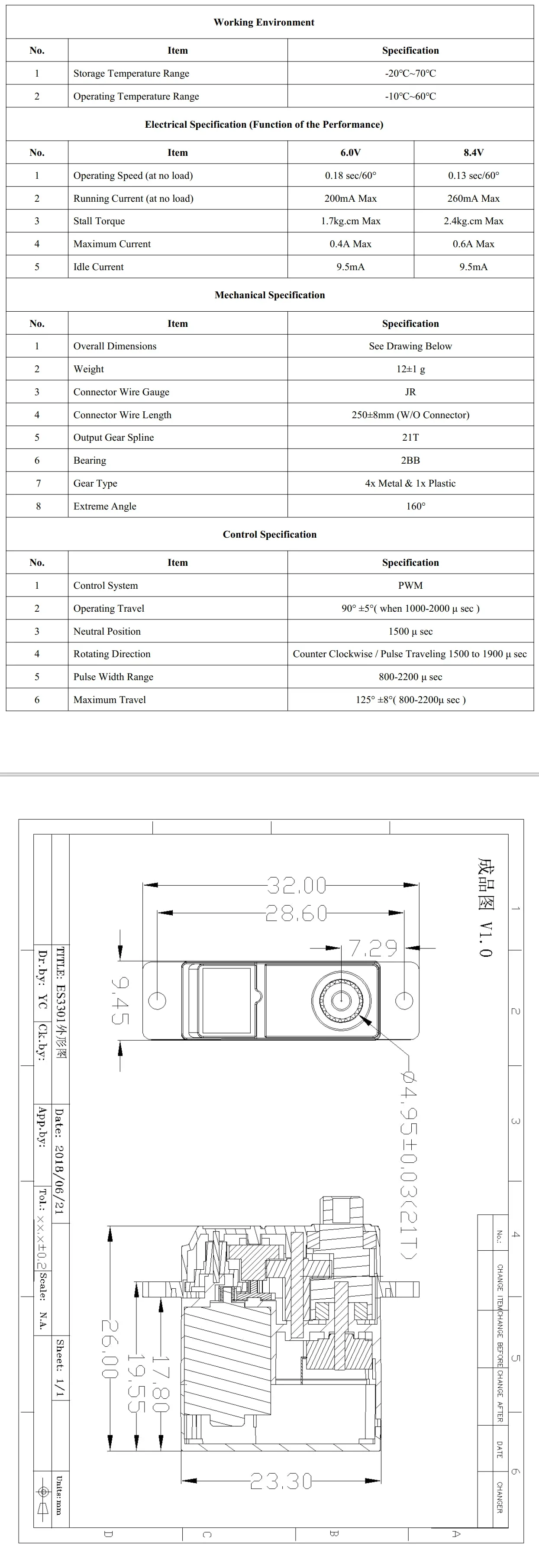

• Overall Dimensions: See Drawing Below
• Weight: 12+1 g
• Connector Wire Gauge: JR
• Connector Wire Length: 250±8mm (W/O Connector)
• Output Gear Spline: 23T
• Bearing: 2BB
• Gear Type: 4x Metal & 1x Plastic
• Extreme Angle: 160°

• Control System: PWM
• Operating Travel: 90° ±5°( when 1000-2000 μ sec )
• Neutral Position: 1500 μ sec
• Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
• Pulse Width Range: 800-2200 μ sec
• Maximum Travel: 125° ±8( 800-2200μ sec )

• 1. High Voltage: Operates efficiently with a wide range of voltage inputs, providing consistent performance.
• 2. Fast and Precise: Delivers quick and precise responses, enhancing the control of your RC toy.
• 3. Compact Size: The servo's compact design allows for easy installation and integration into various models.
• 4. Durables Construction: Built with high-quality materials, ensuring long-lasting durability and reliability.
• 5. Versatile Application: Suitable for a wide range of RC models, including airplanes, helicopters, and cars.

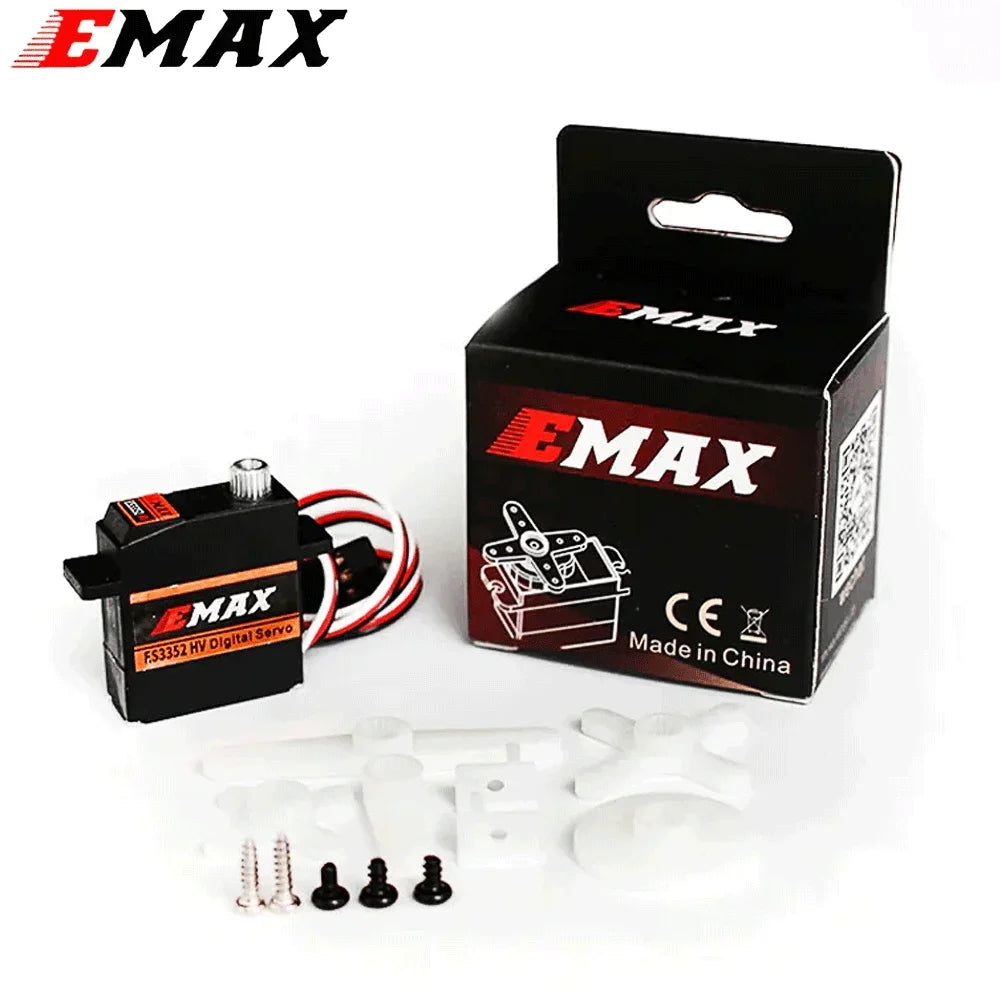

• 1 X EMAX ES3352 HV High-Voltage Servo
