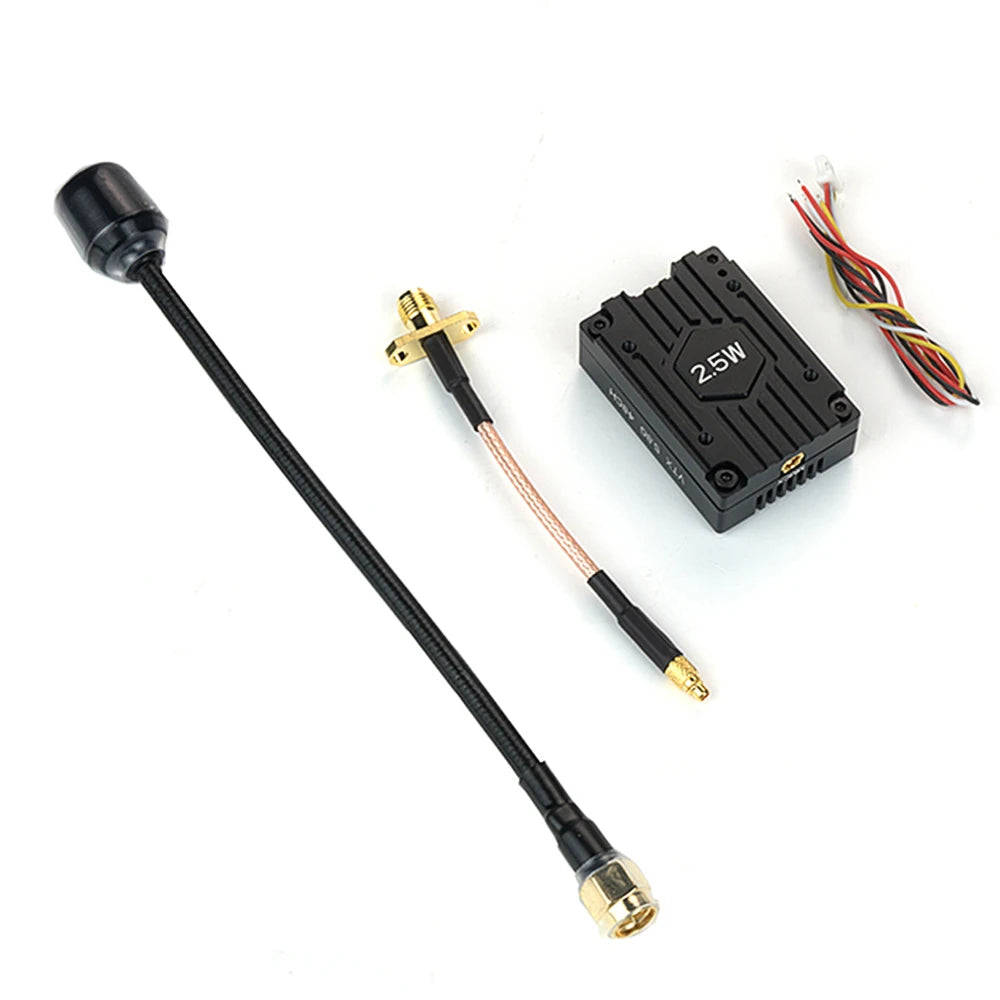

RUSHFPV 5.8G 2.5W 48CH Analog VTX CNC Enclosure

RUSHFPV 5.8G 2.5W 48CH Analog VTX CNC Enclosure

$31.86 USD
$0.00 USD $31.86 USD
Promotion Épuisé

365 en stock
RUSHFPV 5.8G 2.5W 48CH Analog VTX CNC Enclosure 25mW/400mW/800mW/1600mW/2500mW/Pit Racing FPV Drone Video Transmitter MMCX IRC

Product Specifications:

  • Input Voltage: DC7 - 36V (2 - 8s Battery)

  • Working Current: 120 - 860mA (12V/25mw - 2500mW)

  • Working Temperature: -10 - 60℃

  • Video Input Impedance: 75

  • Size: 39.5x27.5x14.5mm

  • Antenna Interface: MMCX

  • Format: NTSC/PAL

  • Protocol: IRC Tramp

  • Product Weight: 20g

  • Mounting Hole Position: 25.5x25.5mm / M2

  • Output Power: 25mW/400mW/800mW/1600mW/ 2500mW/Pit

  • Built-in Microphone

Button Operations and LED Indicators:

  • Band Switching Operation: Short press button 6 to switch bands. Each short press of the button switches to the next band, and the corresponding green LED will flash. The number of flashes represents the corresponding band, which are frequency groups A, B, E, F, R, and L in sequence. Circular operation is available.

BAND-A        BAND-B        BAND-E                  BAND-F                 BAND-R               BAND-L
Flash once    Flash twice    Flash three times    Flash four times    Flash five times    Flash six times

  • Frequency Point Switching Operation: Short press button 5 to switch frequency points. Each short press of the button switches to the next frequency point, and the corresponding blue LED will flash. The sequence is frequency groups 1, 2, 3, 4, 5, 6, 7, 8. Circular operation is available.

CH1               CH2              CH3                         CH4                       CH5                      CH6                    CH7                         CH8
Flash once    Flash twice    Flash three times    Flash four times    Flash five times    Flash six times    Flash seven times    Flash eight times
