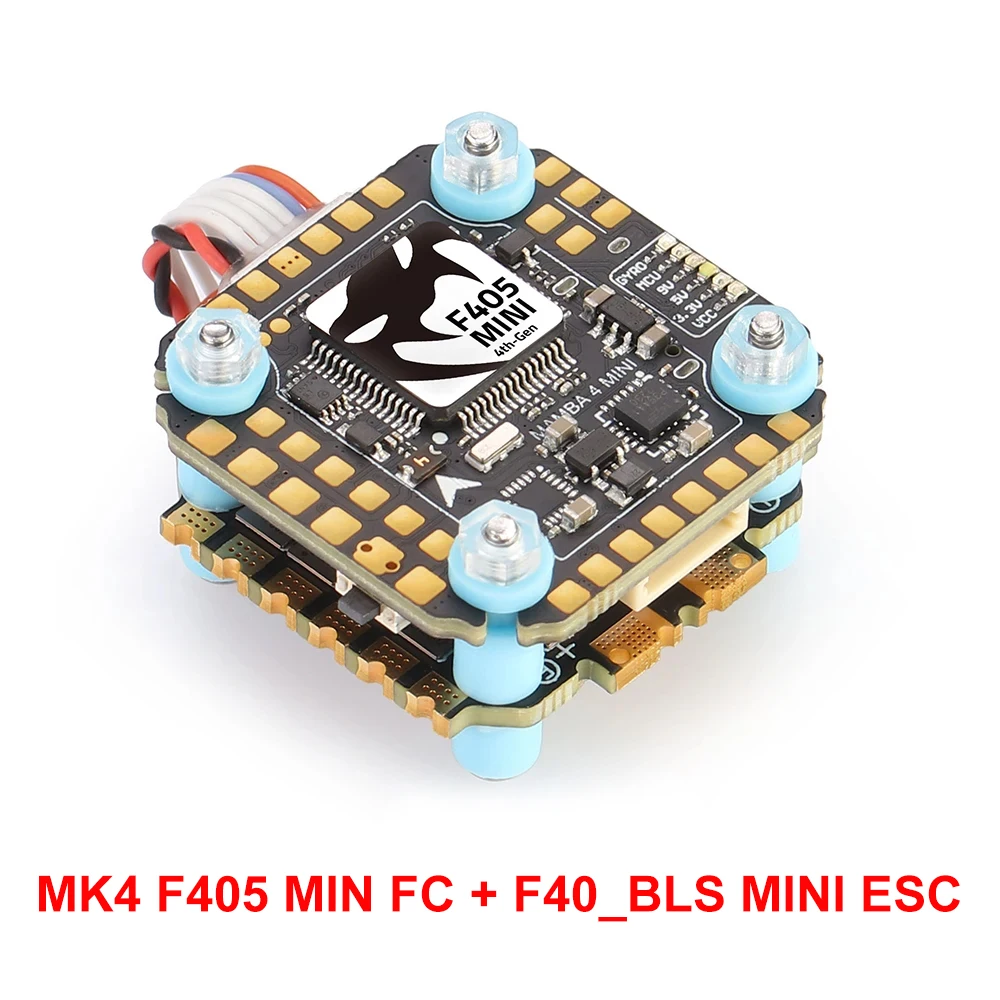

DIATONE MAMBA MK4 MINI F405 Stack (F40_BLS MINI ESC 3-6S)

DIATONE MAMBA MK4 F405 MINI ICM42688P Flight Controller W/ F40_BLS MINI ESC Dshot 300/600/1200 3-6S For RC FPV Racing Drone

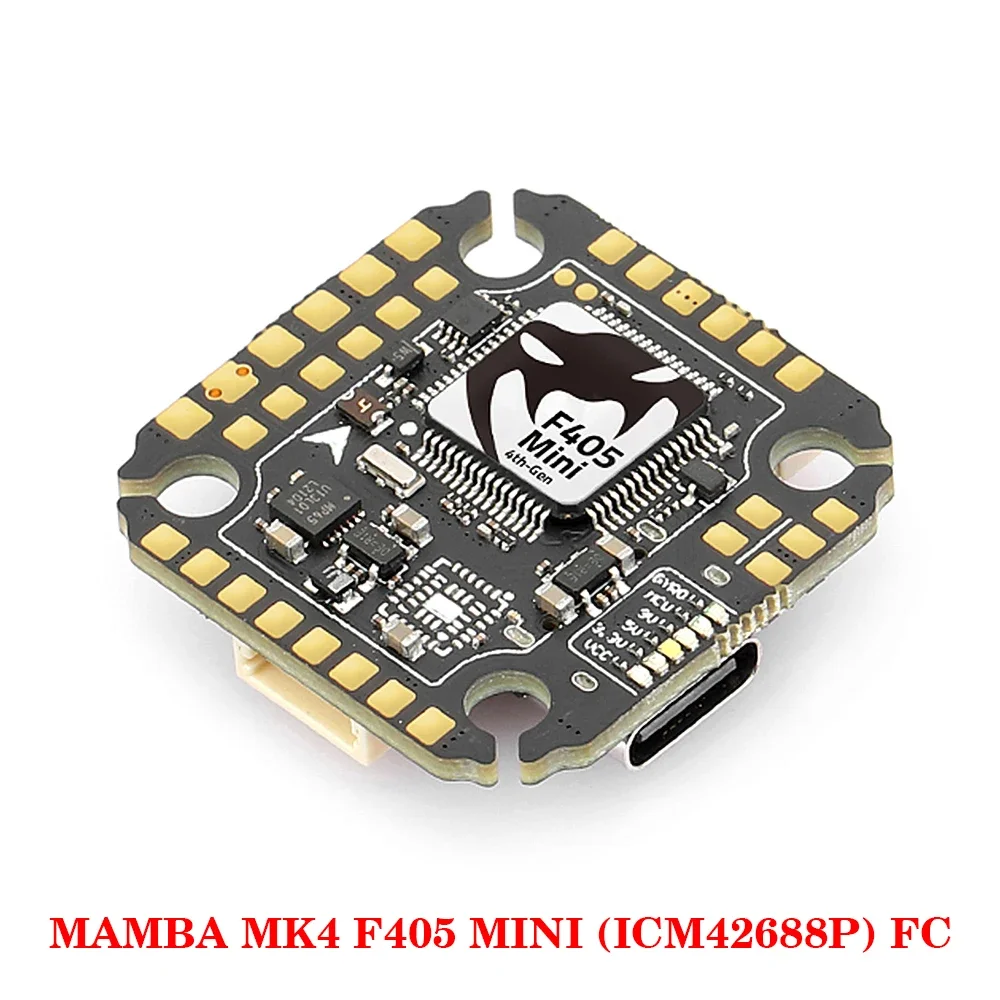

• MCU: 168MHz STM32F405

• Gyro: ICM42688P

• OSD: Yes

• Black box: 16M Flash Memory

• Ben: SPL06

• Number of serial ports: 6SET

• I2C: Yes

• F.Port: Yes

• RSSI: NO

• Beekee: Yes

• Circuit: Yes

• ESC signal interface: 6 set

• ESC program: DSHOT300/600/1200

• ESC Return: Yes

• Flying control status indicator: yes

• LED control switch: BF LED

• Sky end interface: yes

• Wifi: NO

• Picture transmission power control: yes

• Short -circuit protection of receiving machine: yes

• TVS Power Protection: Yes

• BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A

• Input voltage: 3 ~ 6s Lipo (12.6 ~ 25.2V)

• Install holes: 20mm, m2/m3

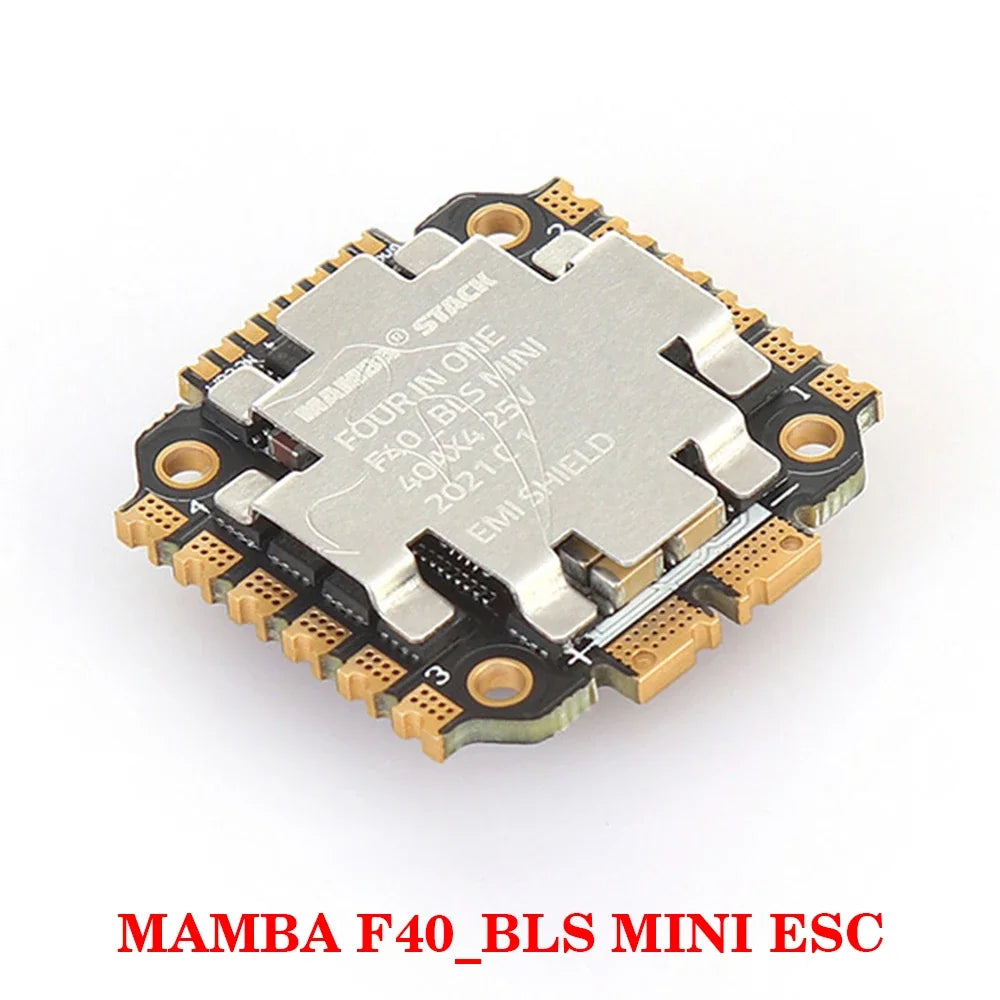

• Input voltage: 2 ~ 5s Lipo (8.4V ~ 25.2V)

• Rating current: 40A × 4

• Peak current: 45A (10S)

• BEC: NO

• Firmware BLHELI_S CH40

• Program: DSHOT300/600

• TVS Power Protection: Yes

• Install holes: 20mm, m2/m3

• Size: 29 × 29 × 5.5mm

• Shipping:

• 8pin SH1.0 × 2

• AmAss Original XT60

• High -frequency capacitor 470UF/35V
