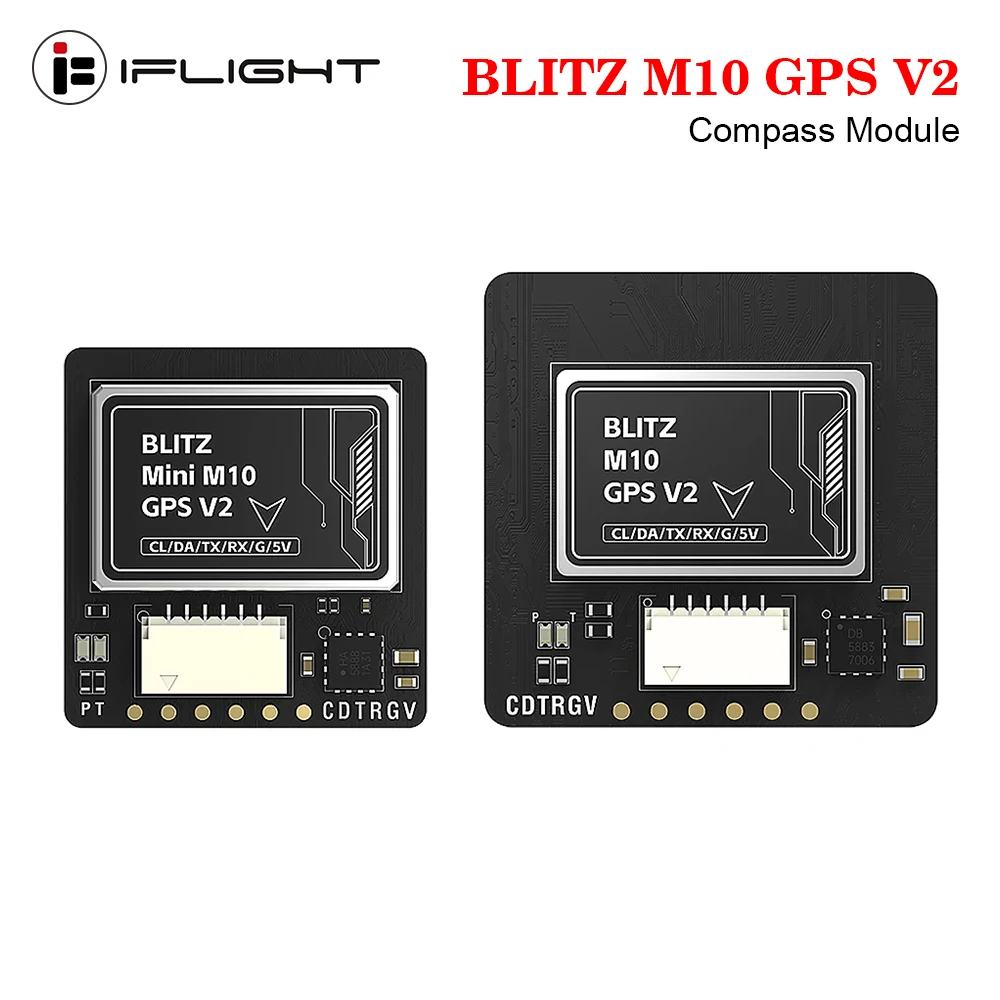

IFlight BLITZ M10 GPS V2 Compass Module

IFlight BLITZ M10 GPS V2 Compass Module QMC5883L Integrated 10 Hz Refresh Rate Built-in Flash 3.3-5.5V for FPV Long Range Drone

Description

• The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.

Features

• M10 chip, low power consumption, strong signal

• Compass module QMC5883L integrated

• Built-in farad capacitor for faster hot start

• High-precision positioning

• Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)

• 10 Hz Refresh rate

• Built-in Flash

Specifications

• Compass module: QMC5883L

• Baud Rate: 9600-460800 / 4800bps-921600bps (Default - 115200bps)

• Sensitivity: Tracking: -167dBm

• Cold start: 27s

• Hot start: 1s

• Maximum height: 80000m

• Maximum speed: 500 m/s

• Speed accuracy: 0.05 m/s

• Maximum acceleration: ≦ 4G

• Refresh Rate: 10 Hz

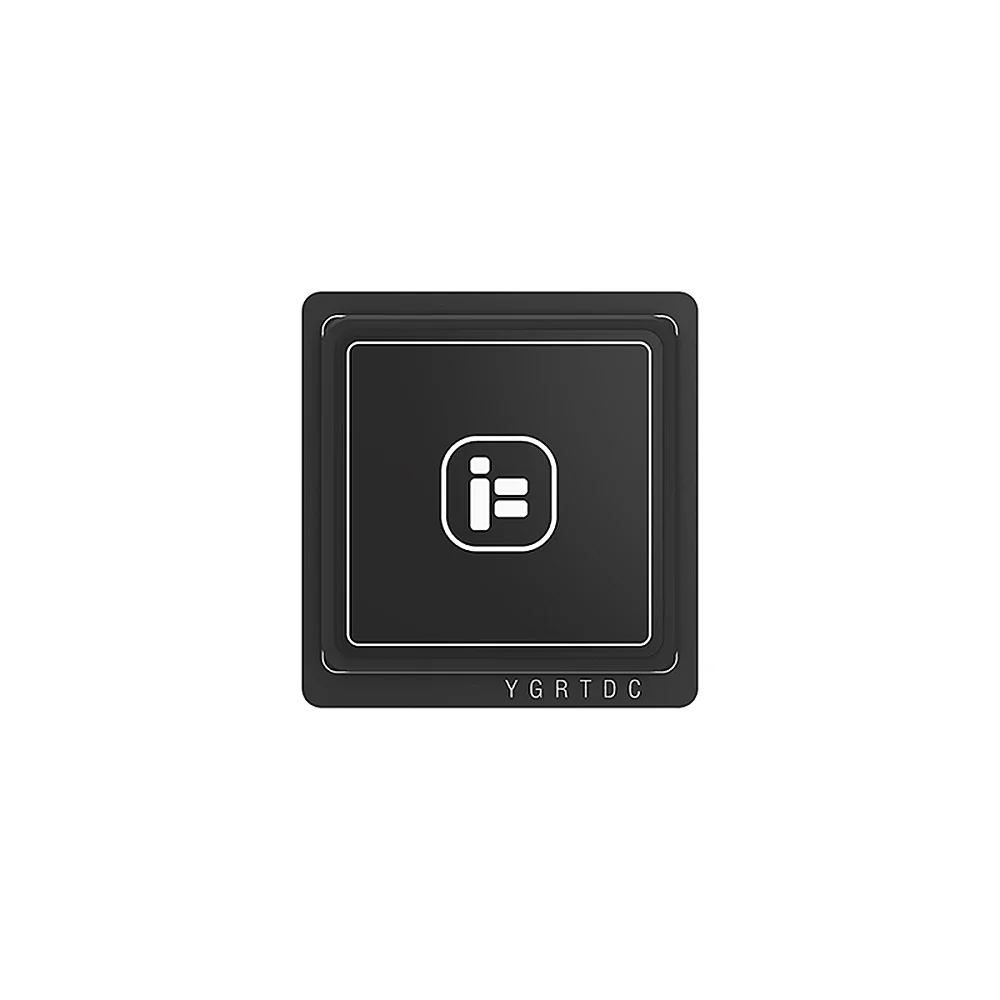

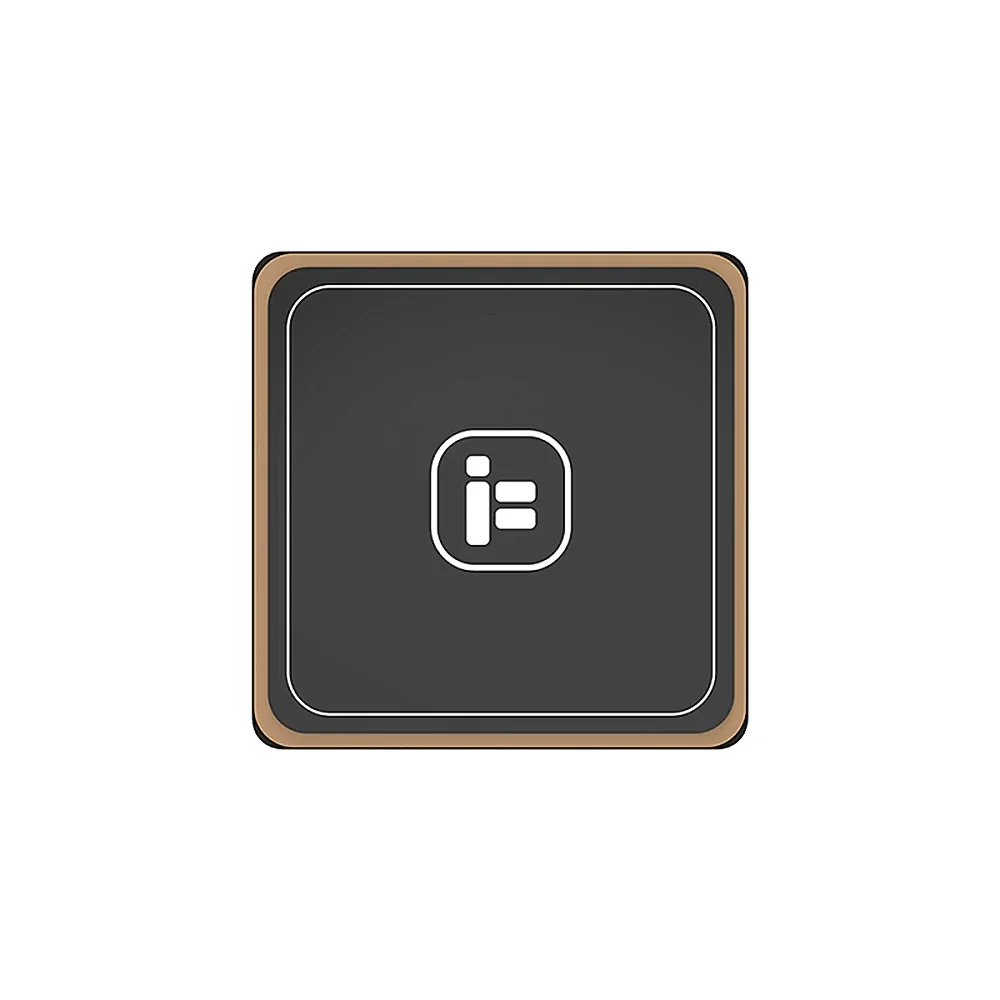

• GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm

• Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm

• Weight: 8g / 16 g

• Input Voltage: 3.3-5.5 V

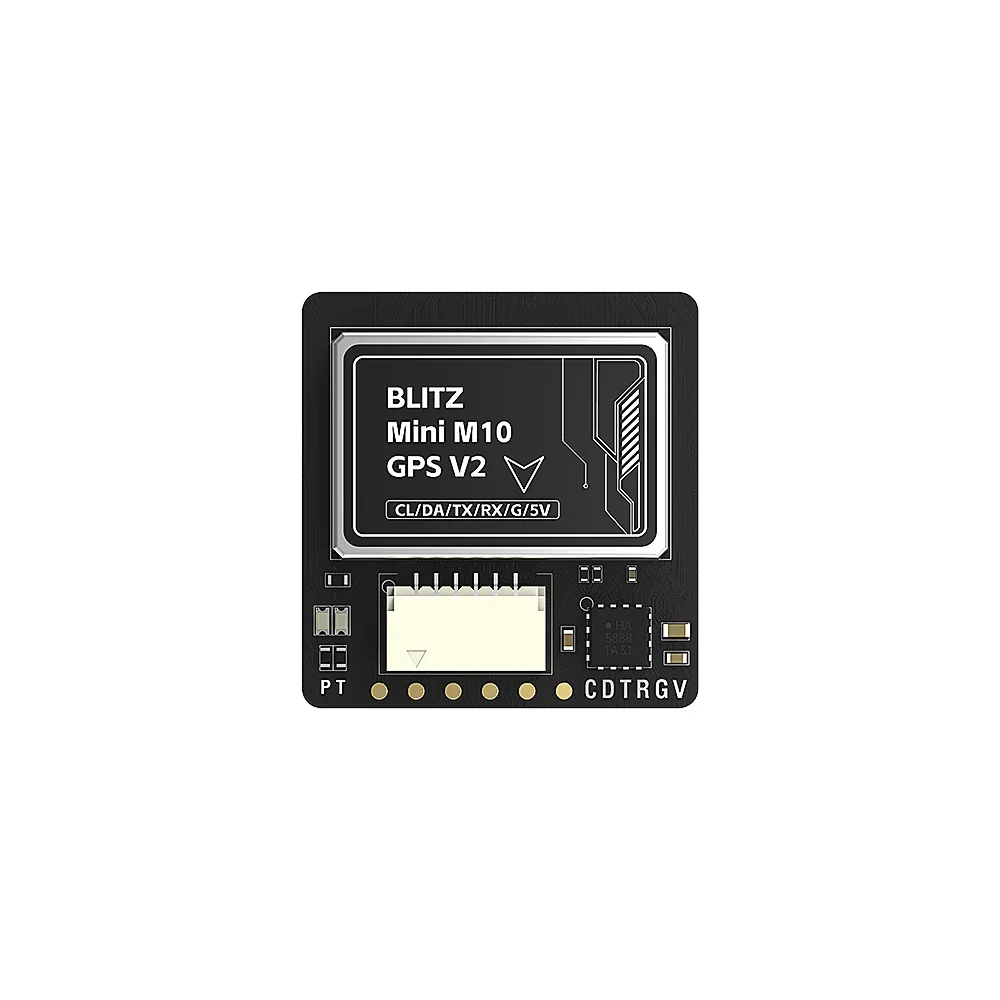

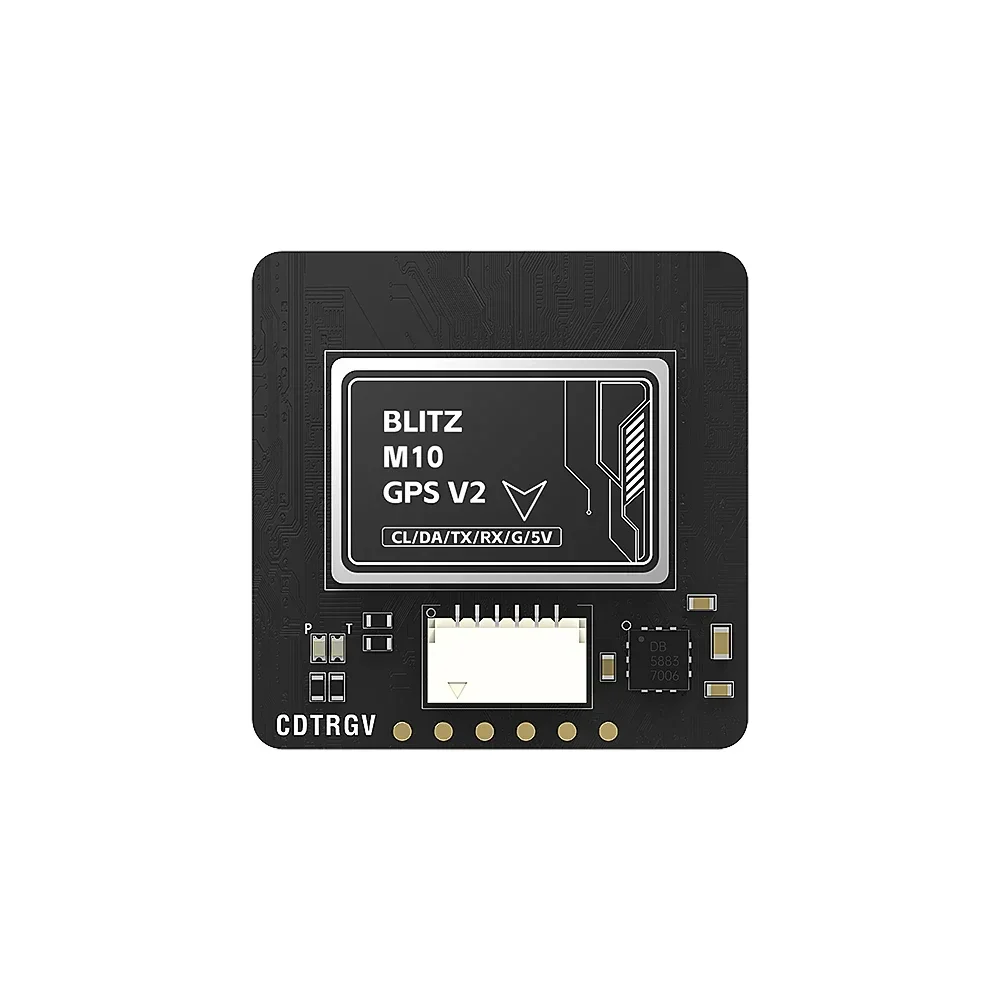

• GPS pin definition: RX/TX UART

• Compass pin definition: SDA/SLA

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Compatibility

• Single-hole TPU mount:

• Chimera7 Pro v2

• iH3 O3

• Nazgul Evoque F4/F5/F6

• XL10 v6

• BOB57 HD

• Nazgul XL5/DC5 ECO V1.1

Dual hole TPU mount:

• Nazgul5 V3

• Nazgul XL5/DC5 ECO V1

• Taurus X8 Pro/V3

• ProTek60 Pro

GPS TPU mount is not required:

• Helion 10

25*25*6 Version compatibility:  M10 GPS V2

• Centurion X8 Frame Kit

• Taurus X8 Pro Max

Packing List

• 1 x Mini M10 GPS V2 / BLITZ M10 GPS V2

• 1 x Cable set
