IFlight XING-E 4214 400KV Brushless Motor 6mm Shaft Compatible HQ13-15inch GF1410 Propeller for X413 Frame Kit Long Range Drone

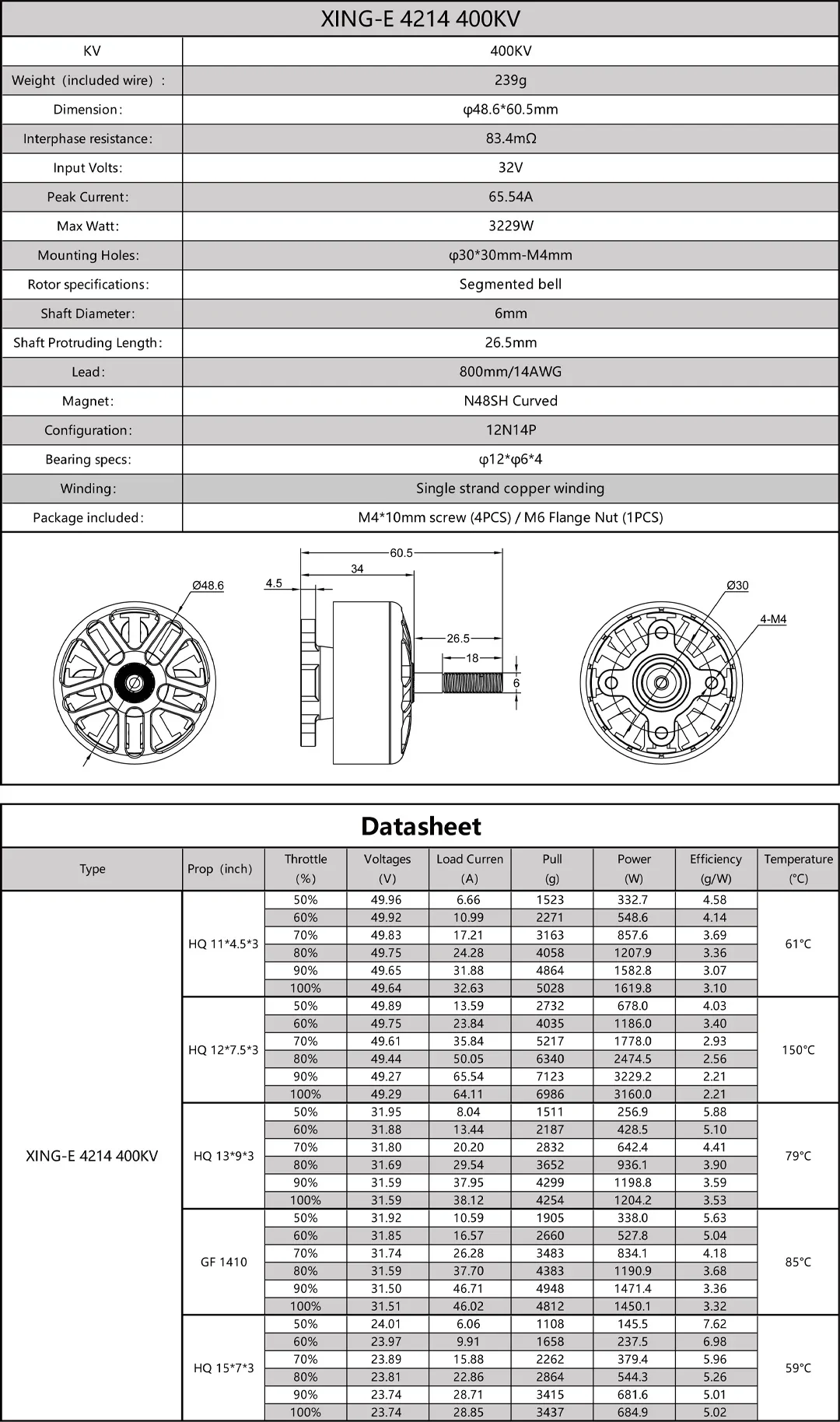

TEST REPORT:
전체 세부 정보 보기
- Introducing the newest high-performance motor from Xing-E.
- Crafted to push the boundaries of what's possible, this motor harnesses the latest advancements in technology, ensuring reliable and consistent performance. Unlock the full potential of your X413 Frame Kit and experience the difference that Xing-E's cutting-edge innovation can make.
Changelog
- Oct. 26, 2024: The screws specification in Packing is updated from M4x10 screws to M4x8mm.
Specifications
- KV: 400KV
- Weight(included wire): 239g
- Dimension: φ48.6*60.5mm
- Interphase Resistance: 83.4mΩ
- Input Volts: 32V
- Peak Current: 65.54A
- Max Watt: 3229W
- Mounting Holes: φ30*30mm-M4mm
- Rotor Specifications: Segmented Bell
- Shaft Diameter: 6mm
- Shaft Protruding Length: 26.5mm
- Lead: 800mm/14AWG
- Magnet: N48SH Curved
- Configuration: 12N14P
- Bearing Specification: φ12*φ6*4
- Winding: Single Strand copper winding
Packing List
- 1 x XING-E 4214 400KV Motor
- 4 x M4x8 screws
- 1 x M6 Flange Nut
