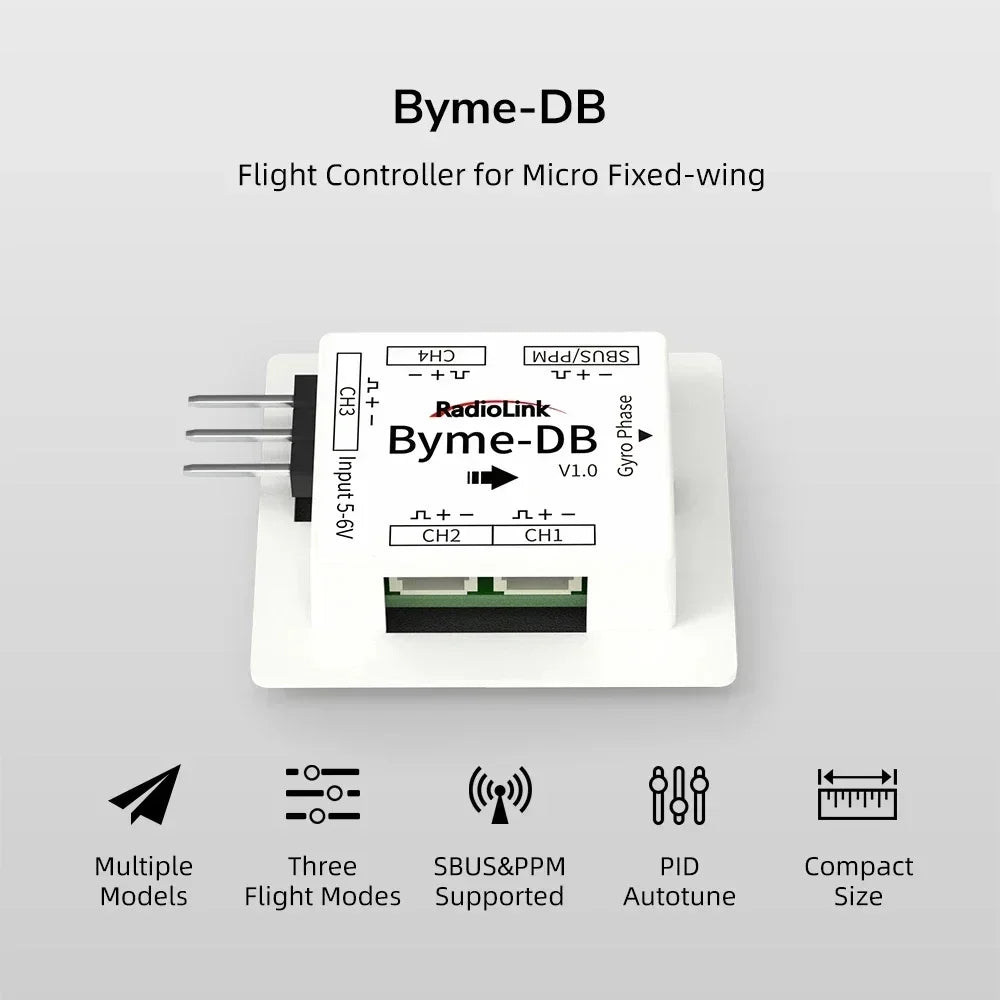

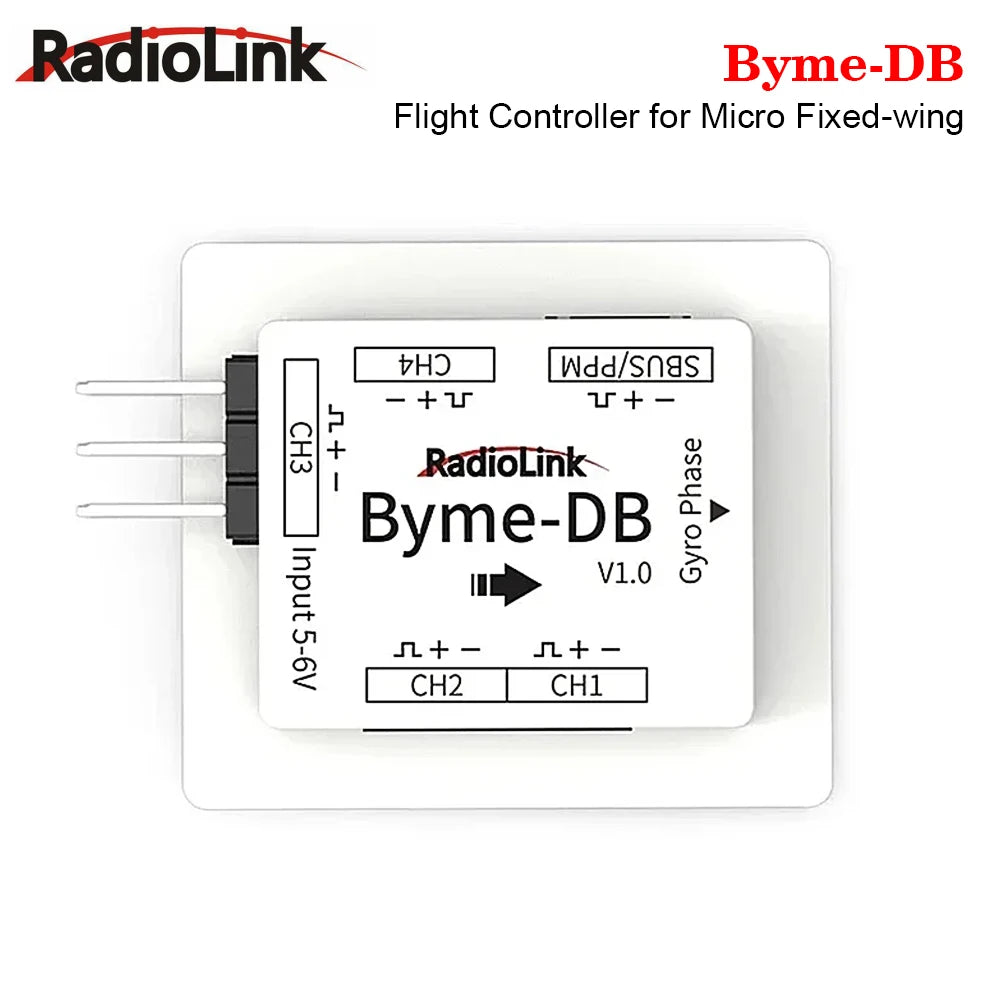

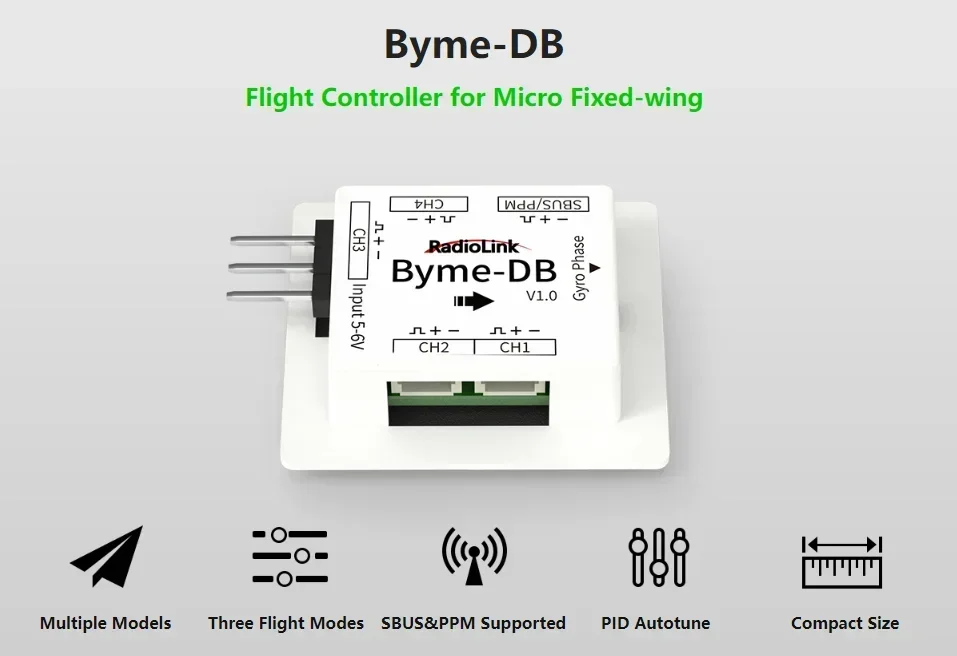

Radiolink Byme-DB Flight Controller

Features:

• Applicable for Multiple Models: Applicable to all model airplanes with mixed elevator and aileron controls including delta wing, paper plane, J10, traditional SU27, and the SU27 with rudder servo, F22.


• Flight Controller Assist Enhance Stability: Three-axis gyroscope and three-axis acceleration sensor combined with the full attitude algorithm, control algorithm, and digital filter make the airplane with the flight controller Byme-DB easy to change from Modes of Stabilize Mode/Gyro Mode/Manual Mode. Beginners can start with the Stabilize Mode and quickly master it even on the first flight.

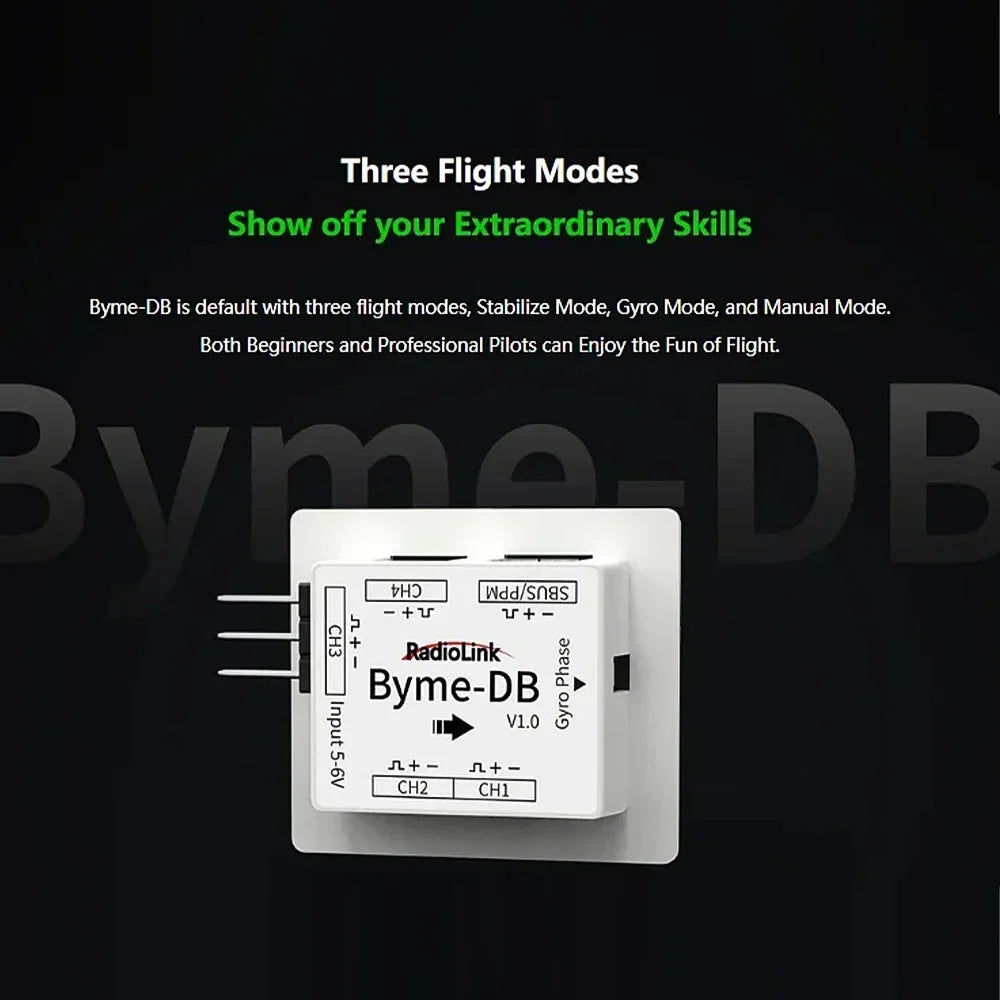

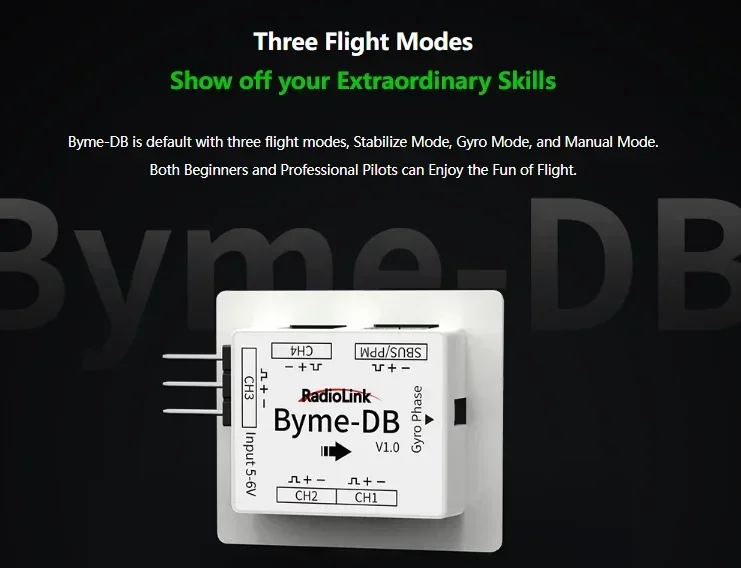

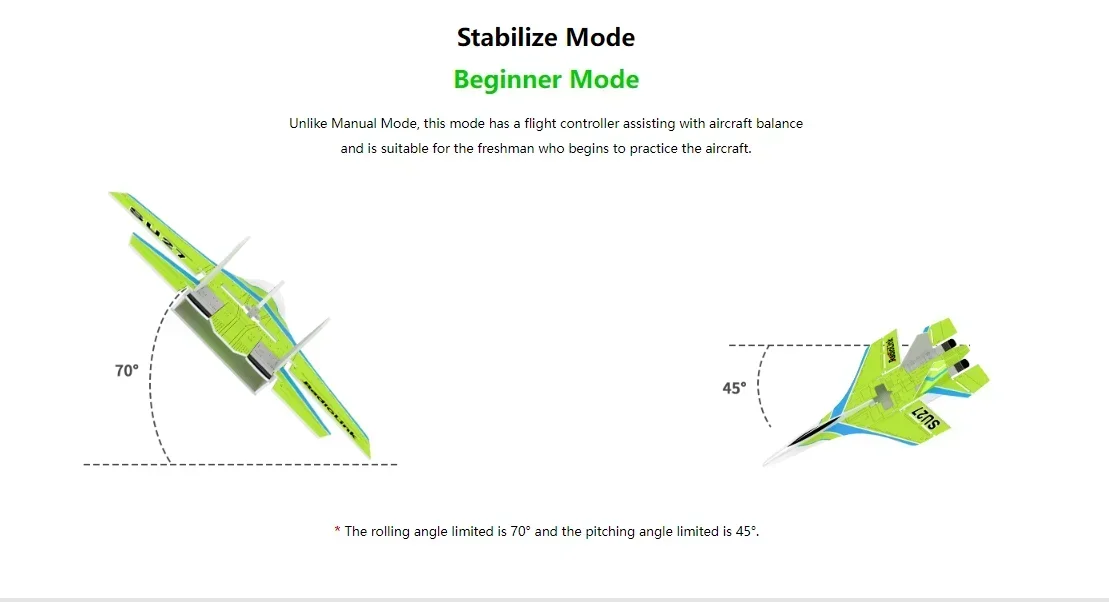

• Three Flight Modes: Stabilize Mode, Gyro Mode, and Manual Mode. Both beginners and professional pilots can enjoy the fun of flight.


• PID AutoTune: Byme-DB continues to optimize the optimal PID parameters based on Byme-D. The fourth channel output is used for a delta wing with rudders, etc. No need for parameter adjustment. Only the flight control mode switch and flight controller calibration need to be set when the first wiring.

Specifications:

• Product Name: Byme-DB Flight Controller

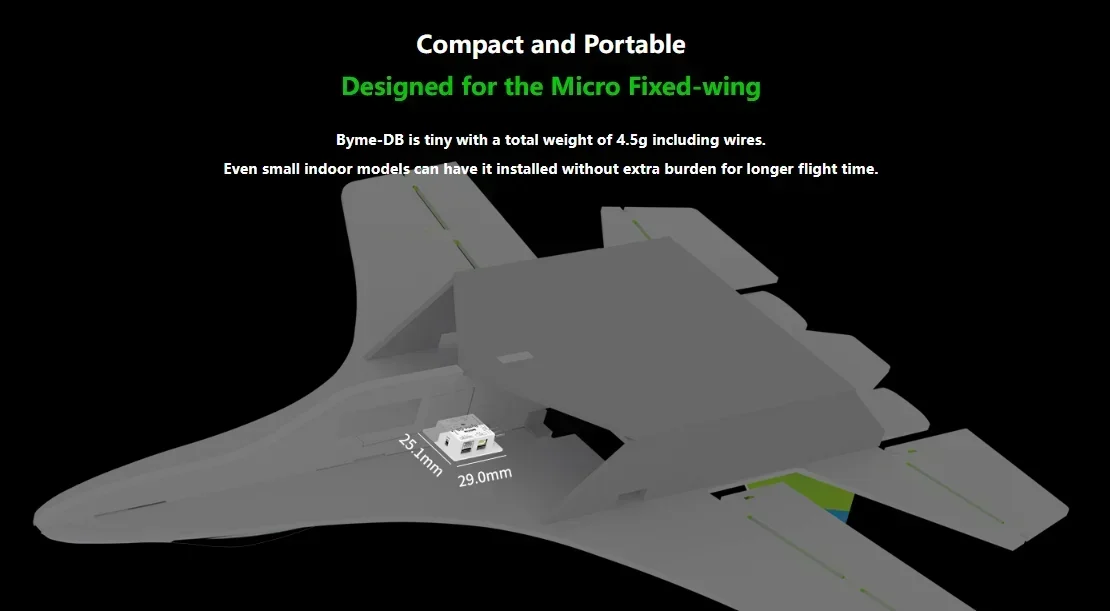

• Dimension: 29*25.1*9.1mm (1.14"*0.99"*0.36")

• Weight (With wires): 4.5g(0.16oz)

• Channel Quantity: 4 channels

• Signal Supported: SBUS/PPM

• Input Voltage: 5-6V

• Operating Current: 25±2mA

• Integrated Sensor: three-axis gyroscope and three-axis acceleration sensor

• Flight Modes: Stabilize Mode, Gyro Mode, and Manual Mode

• Channel for Flight Mode Switch: Channel 5

• Channel for Throttle Cut: channel 7(requires at least 7 channels transmitter)

• Models Compatible: Applicable to all model airplanes with mixed elevator/aileron controls including delta wing, paper plane, J10, traditional SU27 and the SU27 with rudder servo, F22

• Transmitters Compatible: all the transmitters with SBUS/PPM signal output

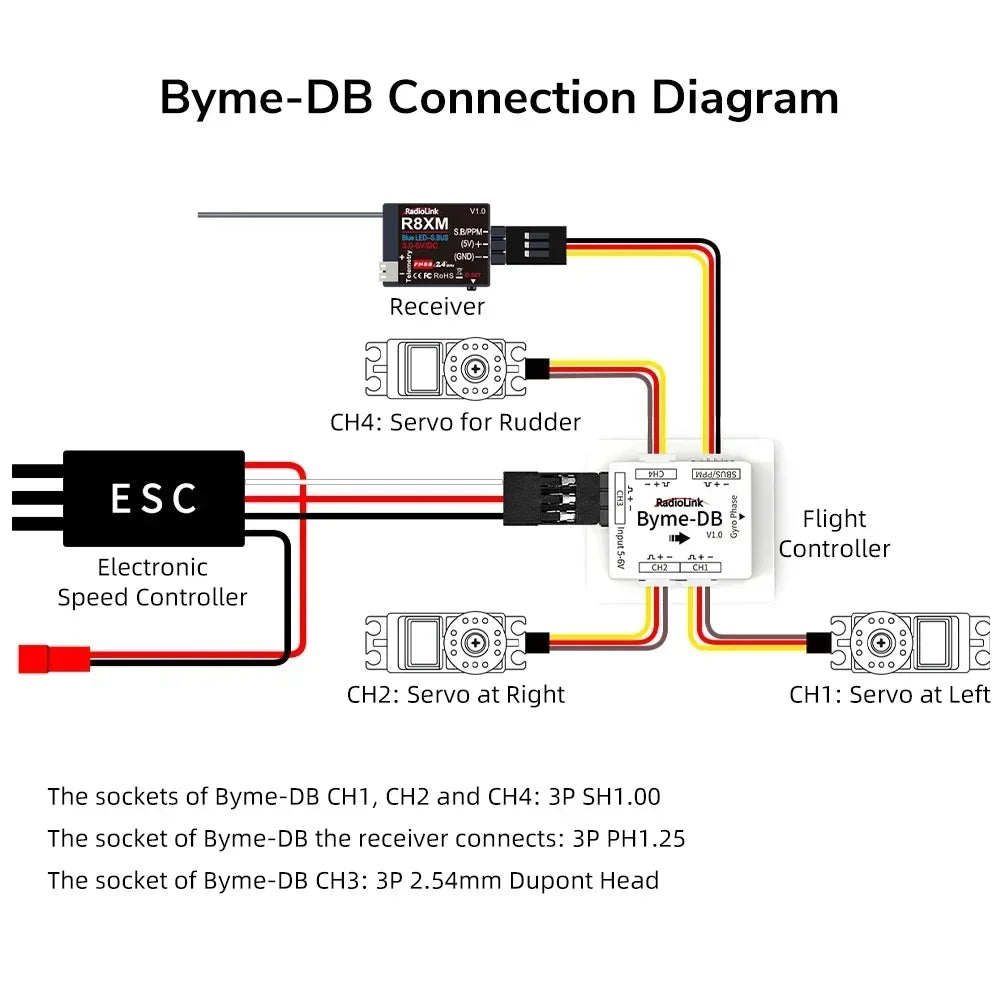

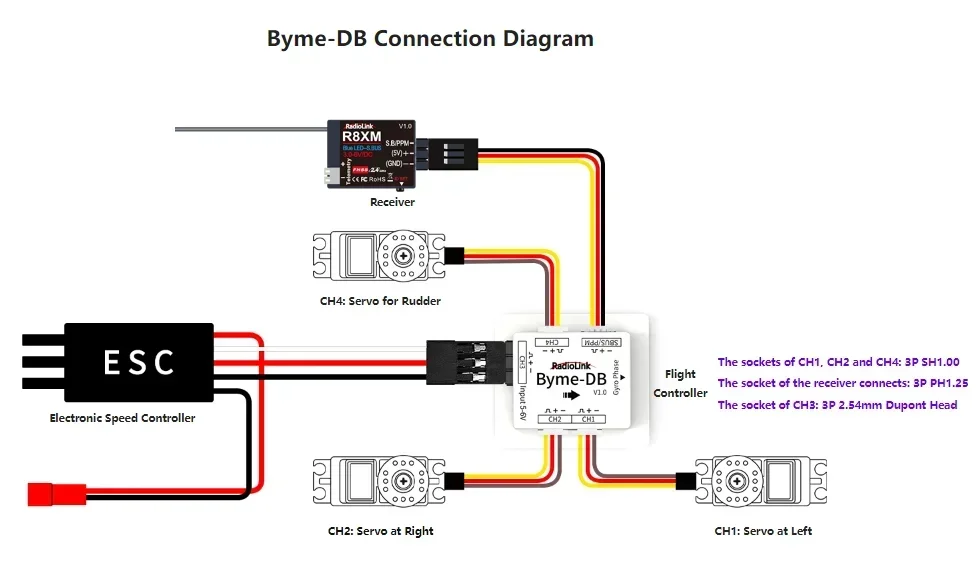

• Socket Specifications: CH1, CH2 and CH4 are 3P SH1.00 sockets; the receiver connect socket is 3P PH1.25 socket; CH3 is a 3P 2.54mm Dupont Head
