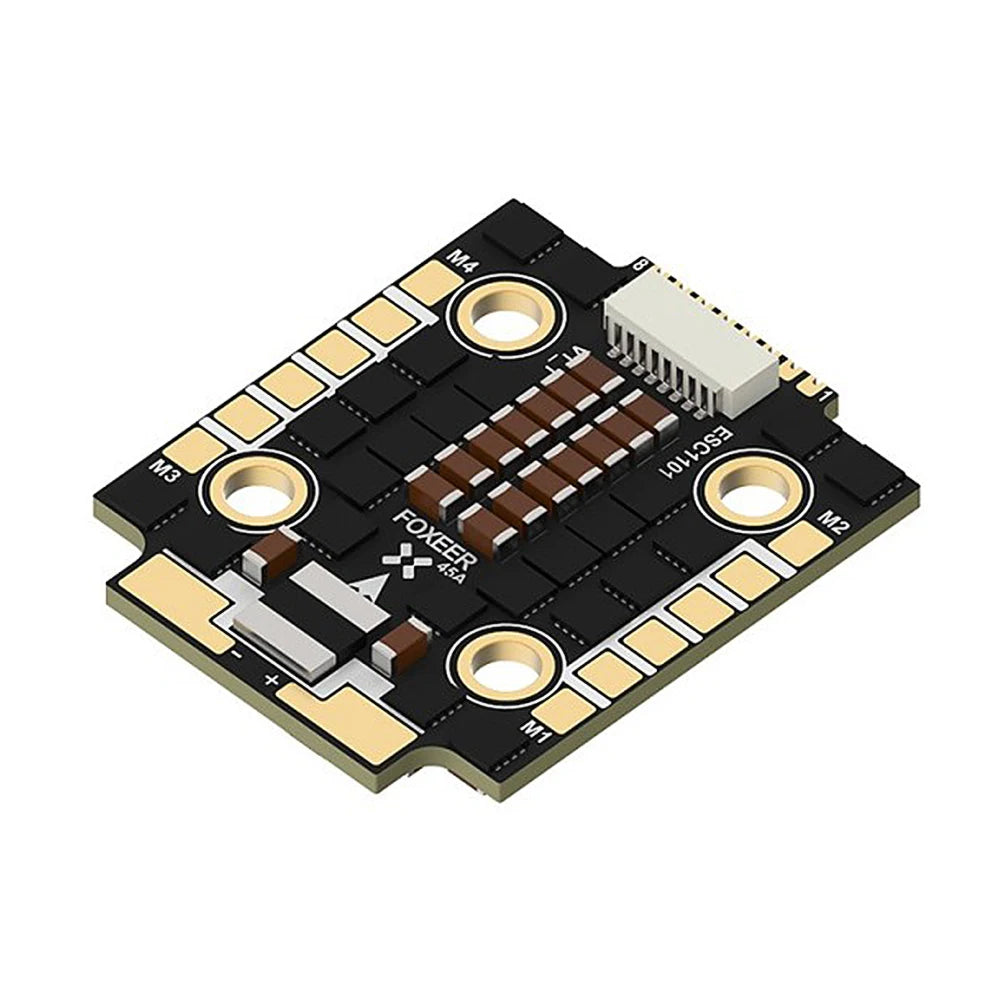

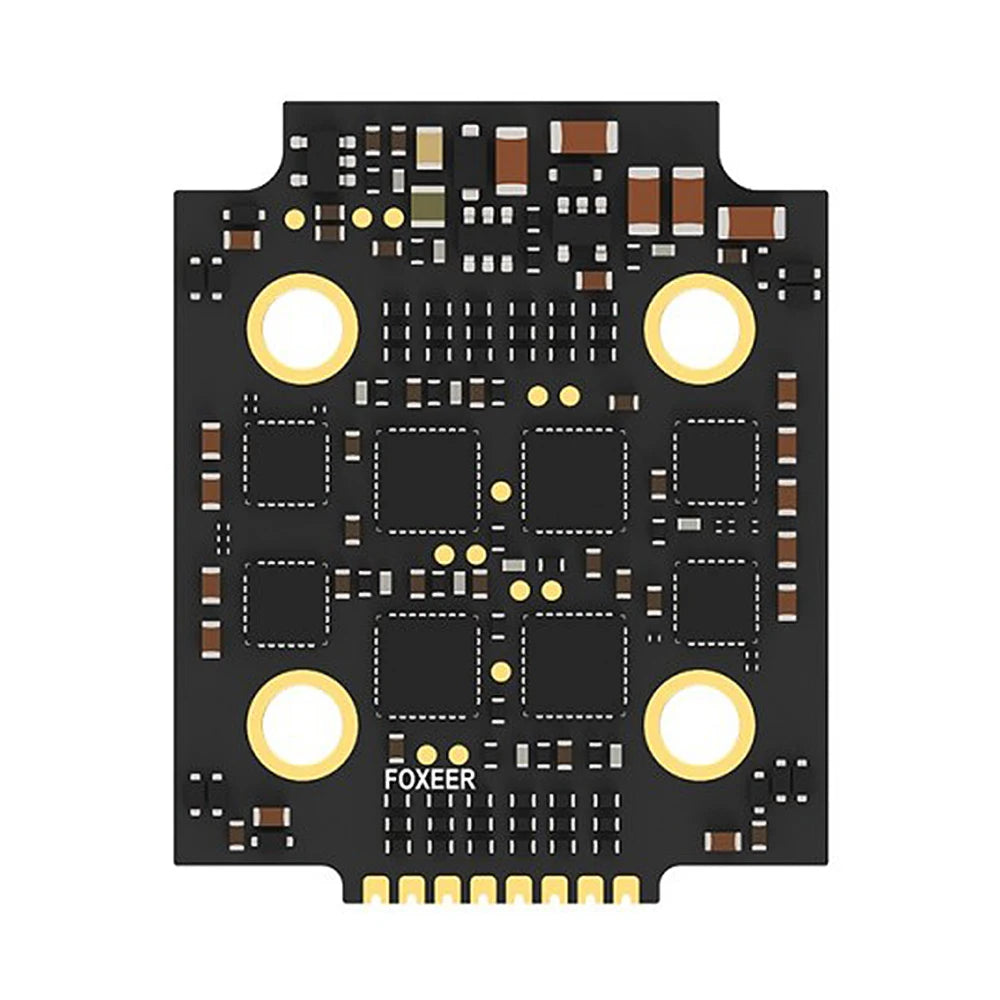

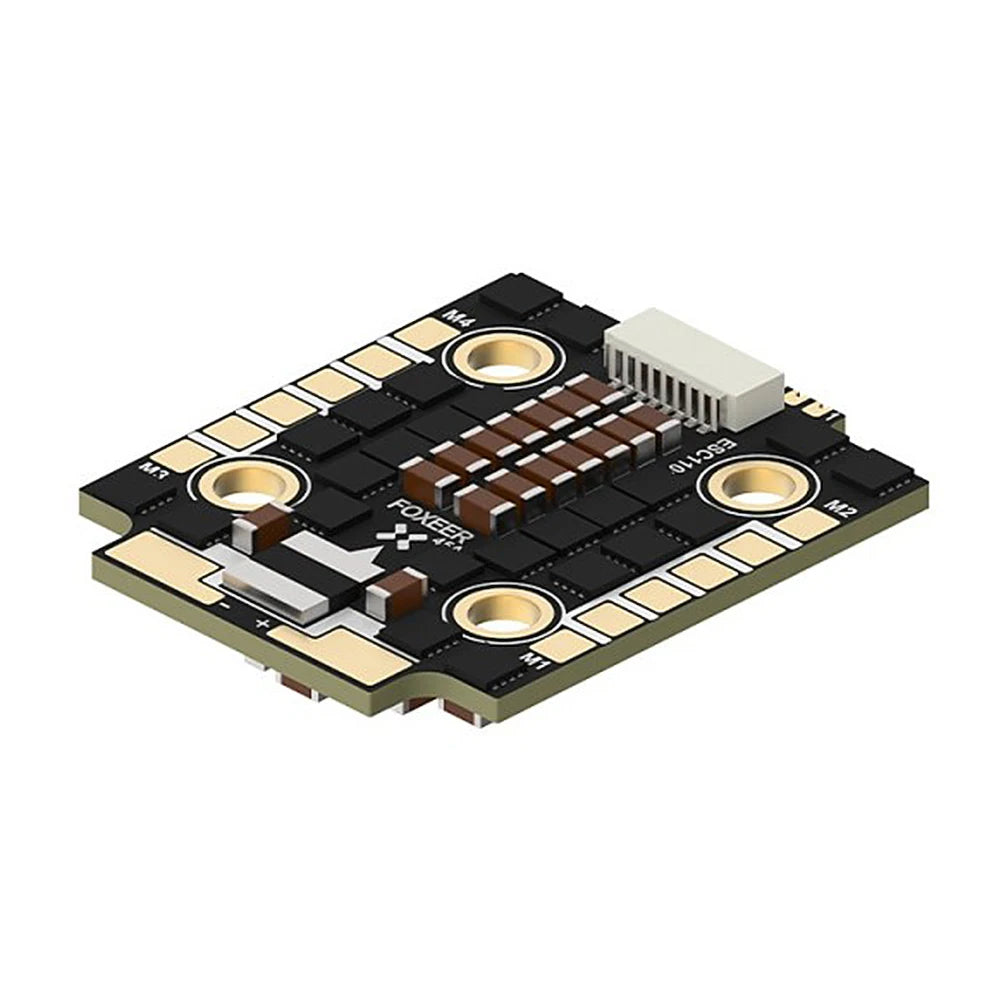

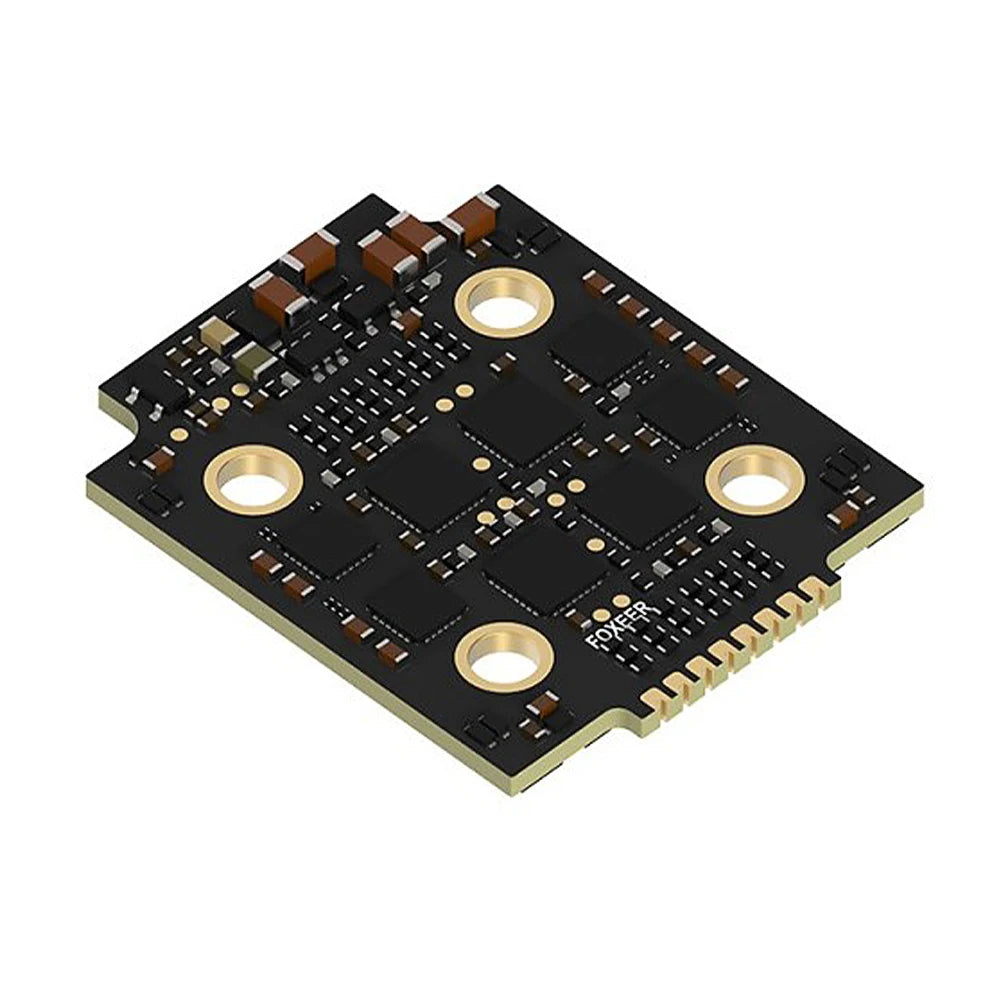

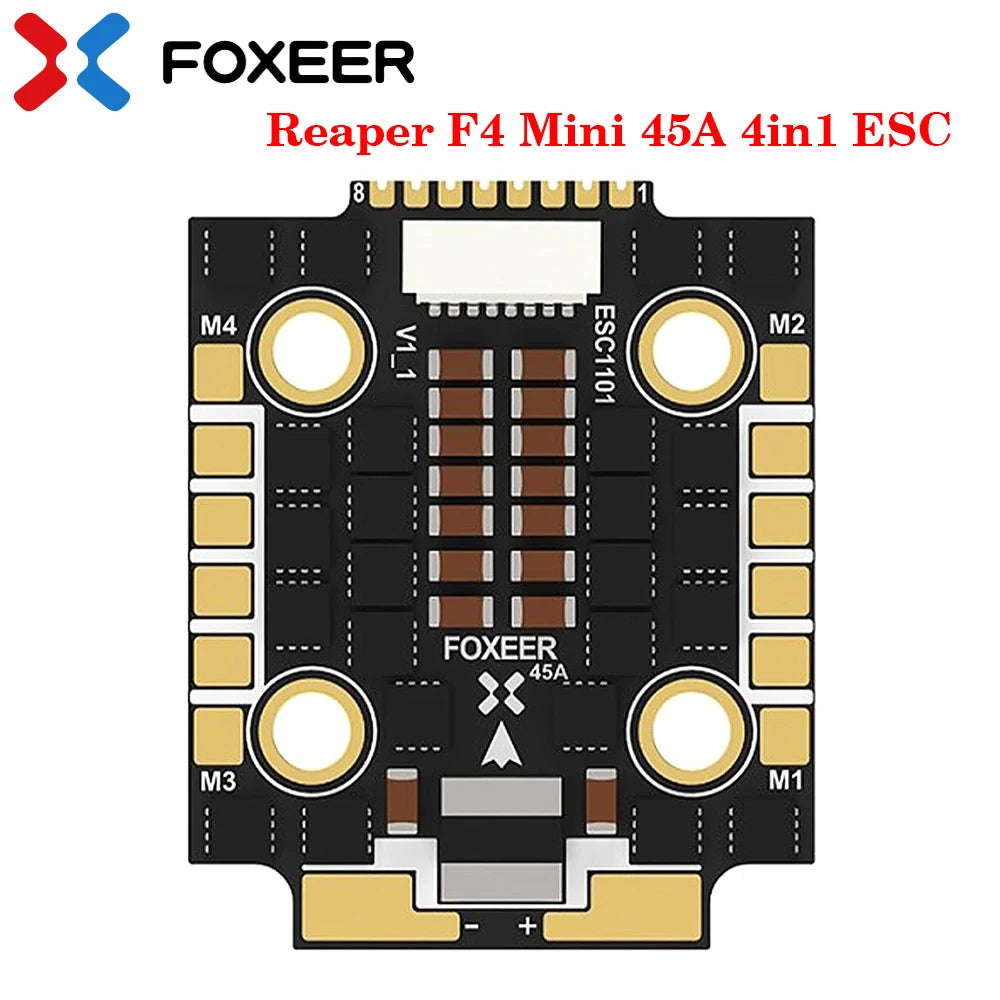

FOXEER Reaper F4 Mini 45A 4in1 ESC

FOXEER Reaper F4 Mini 45A 4in1 ESC

$59.21 USD
$0.00 USD $59.21 USD
Sale Sold out

369 in stock
FOXEER Reaper F4 Mini 45A 4in1 ESC 128K BLHeli32 Input DShot 150/ 300/ 600/ 1200/ MultiShot/ OneShot 3-6S Lipo for RC FPV Drone

Specifications

  • Firmware：FOXEER_ReaperM4IN1_F4_45A_128_Multi_32_9

  • Continuous /Burst Current：45A4 / 65A4

  • Input Voltage：DC 10V~26.2V (3 - 6S Lipo)

  • BEC：No

  • Telemetry：Supported

  • ESC Programming：BLHeli32

  • Current Scaling：115

  • Input Signal：DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.

  • Working Temperature：-20℃ ~ +55℃

  • Working Humidity：20 ~ 95%

  • Storage Temperature：-20℃ ~ +70℃

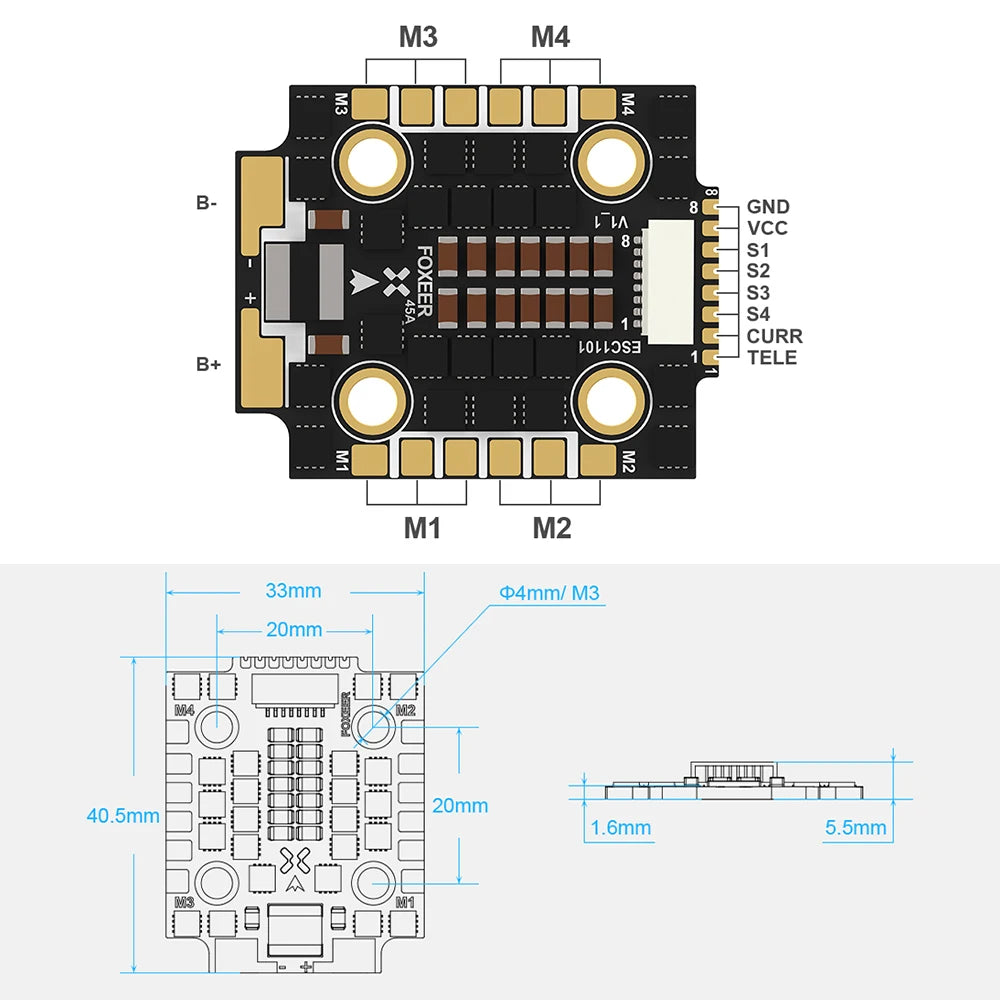

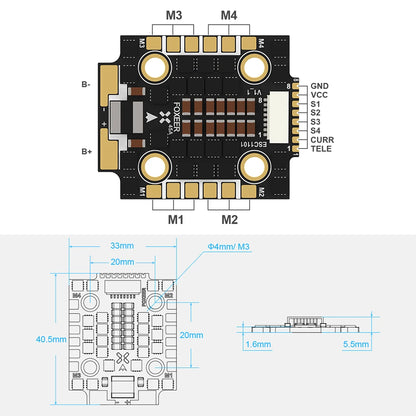

  • Mounting Hole：20x20mm, Φ4mm/ M3

  • Dimension：40.5x33x5.5mm

  • Weight：10g
