HAKRC F405 V2 F4 Mini Flight Controller Dual BEC W/ 35/40/50/60/65A 4in1 ESC DShot150/300/600/1200 PWM for RC FPV Racing Drone

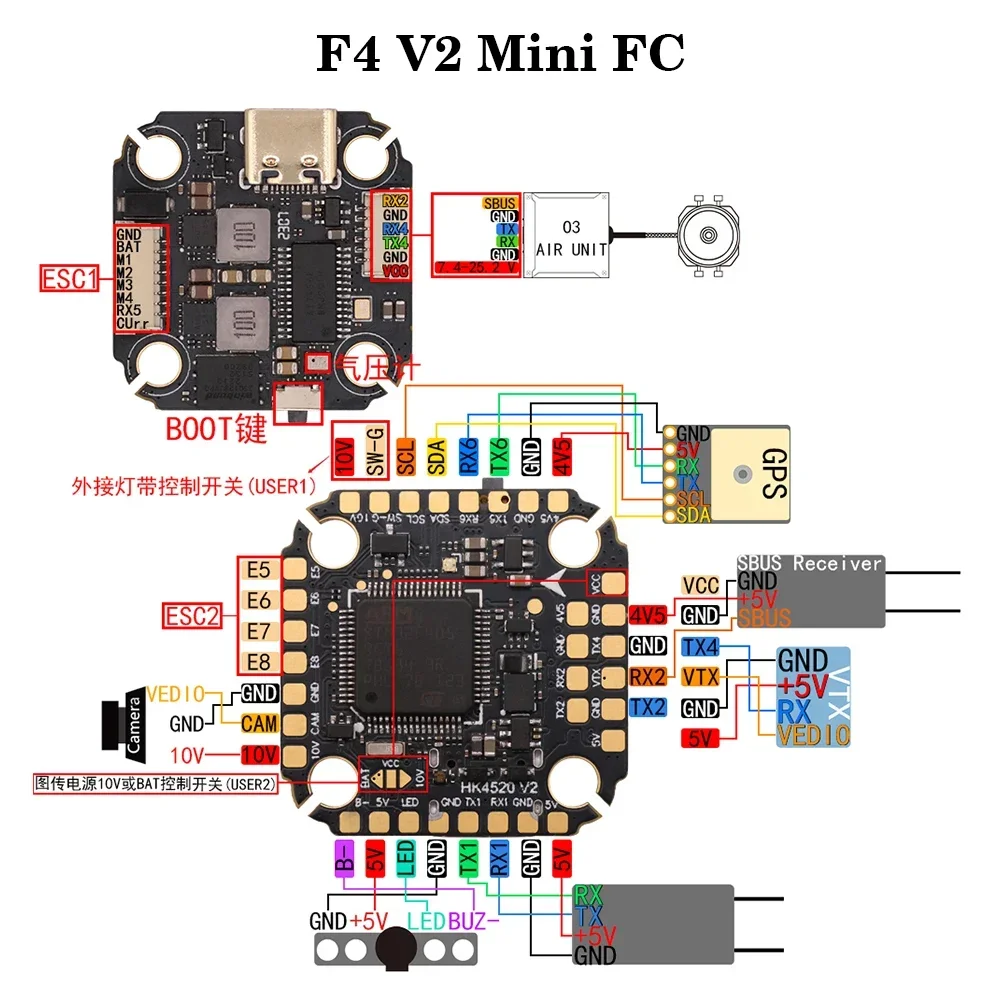

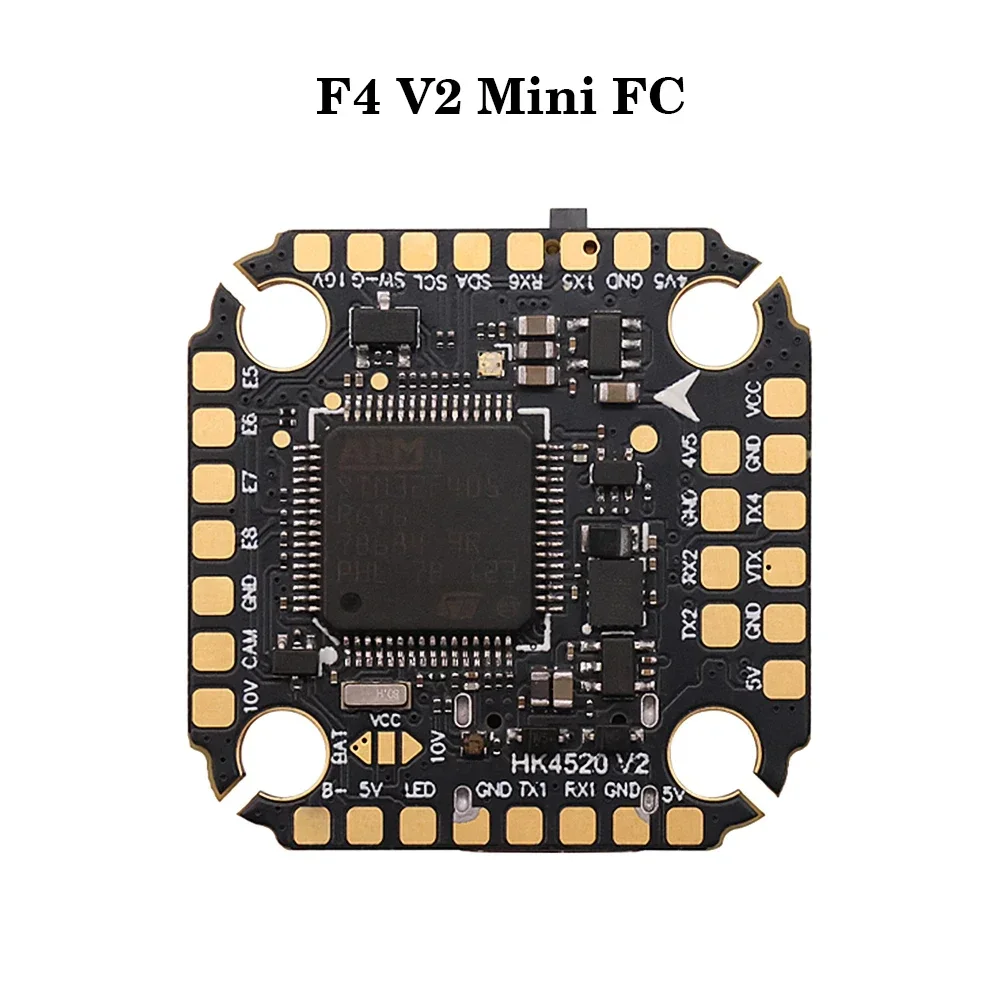

F4 V2 Mini FC
- Rx2 connected sbus
- Size: 30* 30mm (20mm-20mm installation holes)
- Packaging size: 64*64*35mm
- Product net weight: 6G
- Packaging weight: 37g
- Flying control parameters:
- CPU: STM32F405ret6
- IMU: ICM42688
- OSD: AT7456E
- Blood pressure meter: integrated
- Black box: 16M
- BEC: 5V/2.5A
- BEC: 10V/2A
- LED: Support external adjustable LED
- Sensor: built -in current sensor
- Fixedware version: hakrcf405v2
- Receiver: FRSky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver

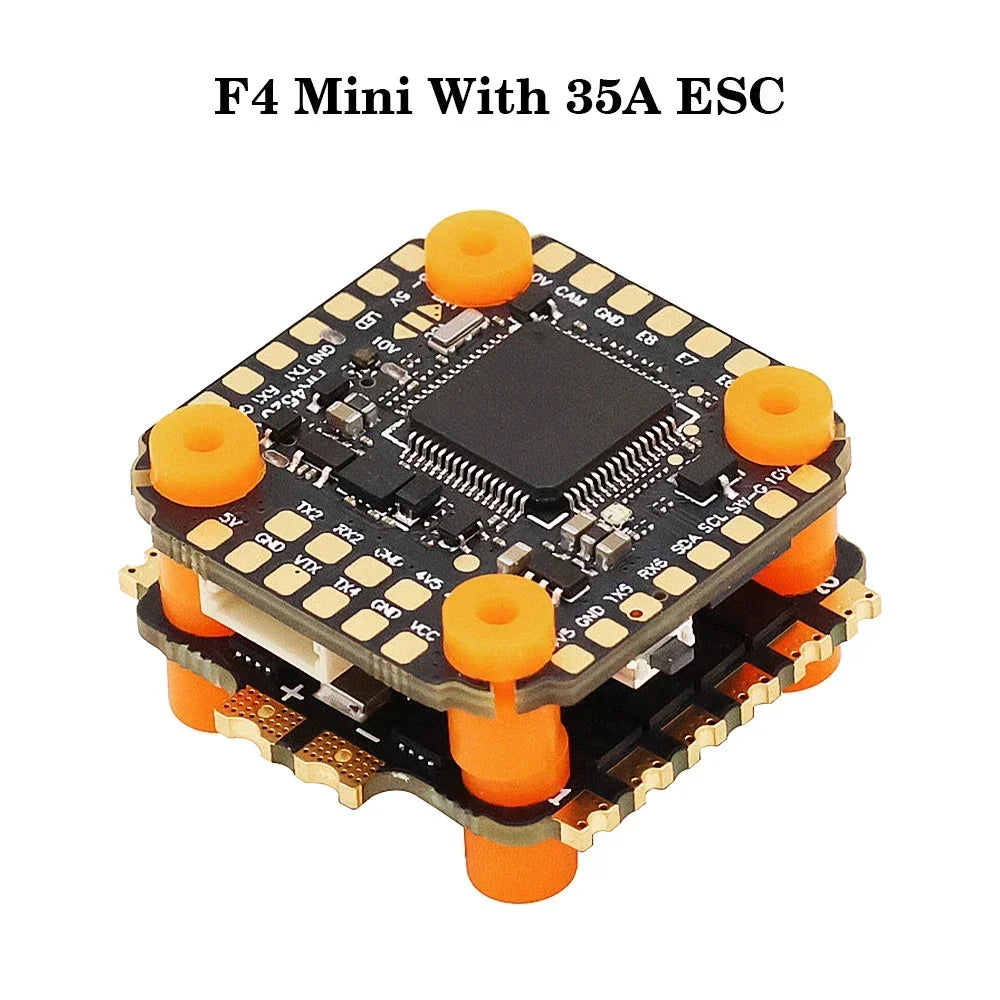

F4 Mini With 35A ESC
- Size: 31mm*30mm
- Electricity Drise: 6G
- fixed hole distance: 20mm*20mm P4MM
- Continuous current: 35A
- Maximum current: 40A (Sustainable 10s)
- Input voltage: 2S-6S
- Current ratio: 300
- Support electrical remote test data diagram
- Rathering software: blhelisuite16.7.14.9.0.3
- Driver signal support: PWMONESHOT125, Oneshot42multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

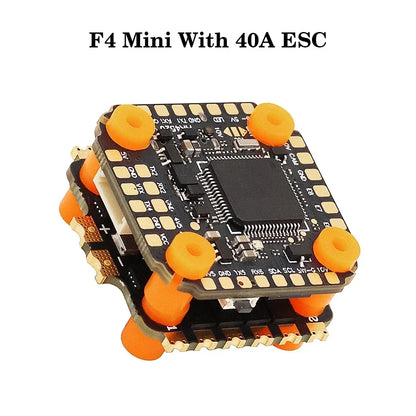

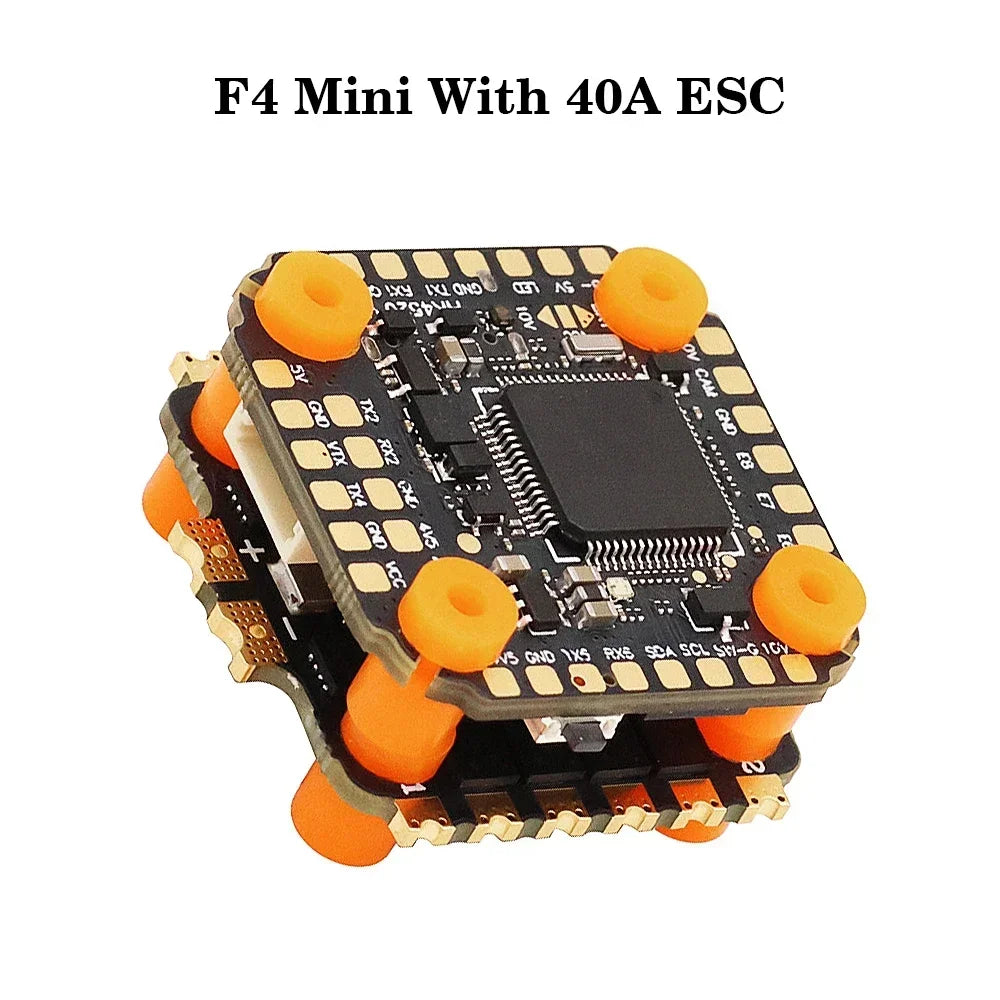

F4 Mini With 40A ESC
- Electric size: 31mm*29.5mm
- Power purposes: 6G
- fixed hole distance: 20mm*20mm in 4mm
- Continuous current: 40A
- Maximum current: 45A (Sustainable 10s)
- Input voltage: 2S-6S
- Current ratio: 300
- Support electrical remote test data diagram
- Rathering software: Blhelisuite32Activator 32.9.0.3
- Driver signal support: PWM, Oneshot125, Oneshot42Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

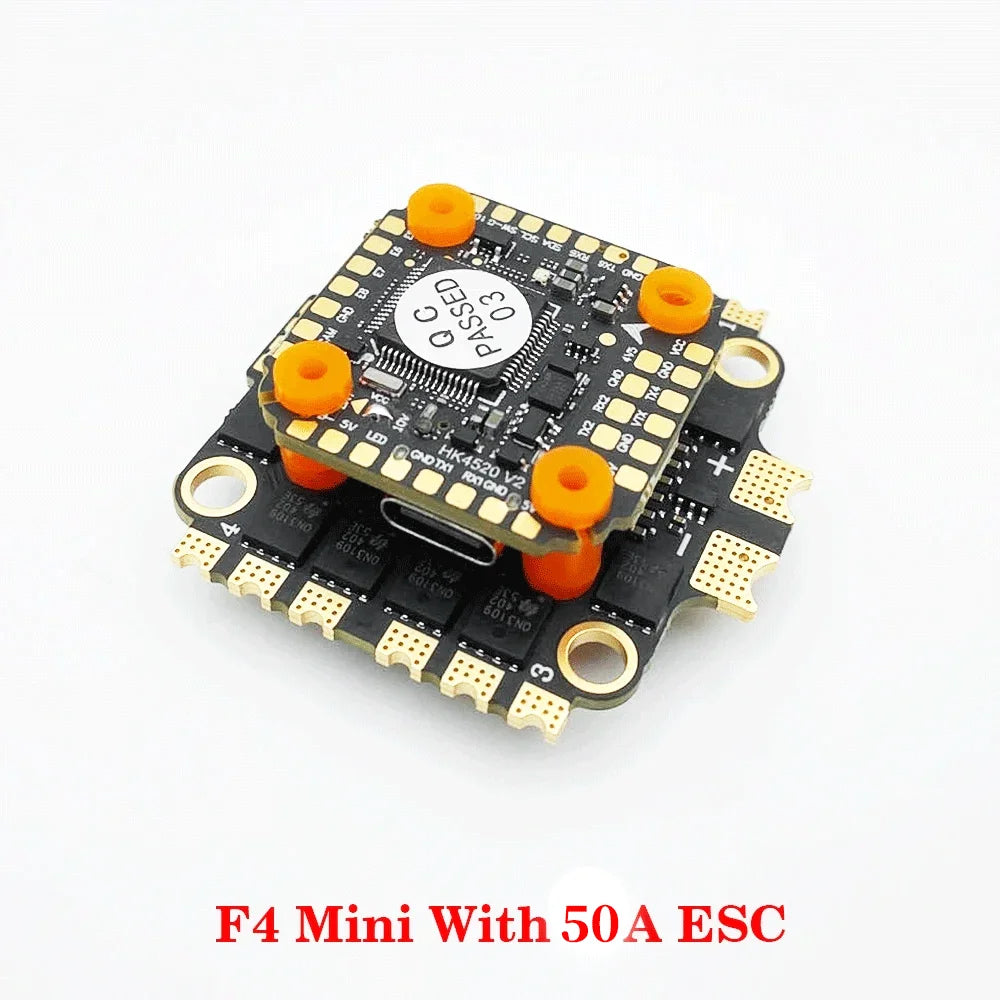

F4 Mini With 50A ESC
- Working Voltage: 2-6s
- Maximum Continuous Work Current: 50A
- Maximum operating current: 55A
- Support Communication Mode: DSHOT150/300/600 PWM, Oneshot125, Oneshot42 and Multshot
- Rathering Software: Blhelisuite
- Fixedware version: bl16.7
- Installed Hole Distance: 20*20mm / 30.5*30.5mm
- Product size: 44*44*5.5mm
- Packaging size: 62*58*18mm
- Product network weight: 13.6g
- Packaging weight: 27g
F4 Mini With 60A ESC
- Electric size: 34mm*42.5mm
- Power purposes: 11g
- Fixed hole distance: P4MM20mm*20mm
- Continuous current: 60A
- Maximum current: 70A (Sustainable 10s)
- Input voltage: 2S-8S
- Current ratio: 160
- Support electrical remote test data diagram
- Rathering software: Blhelisuite32Activator 32.9.0.3
- Driver signal support: PWMONESHOT125, Oneshot42multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

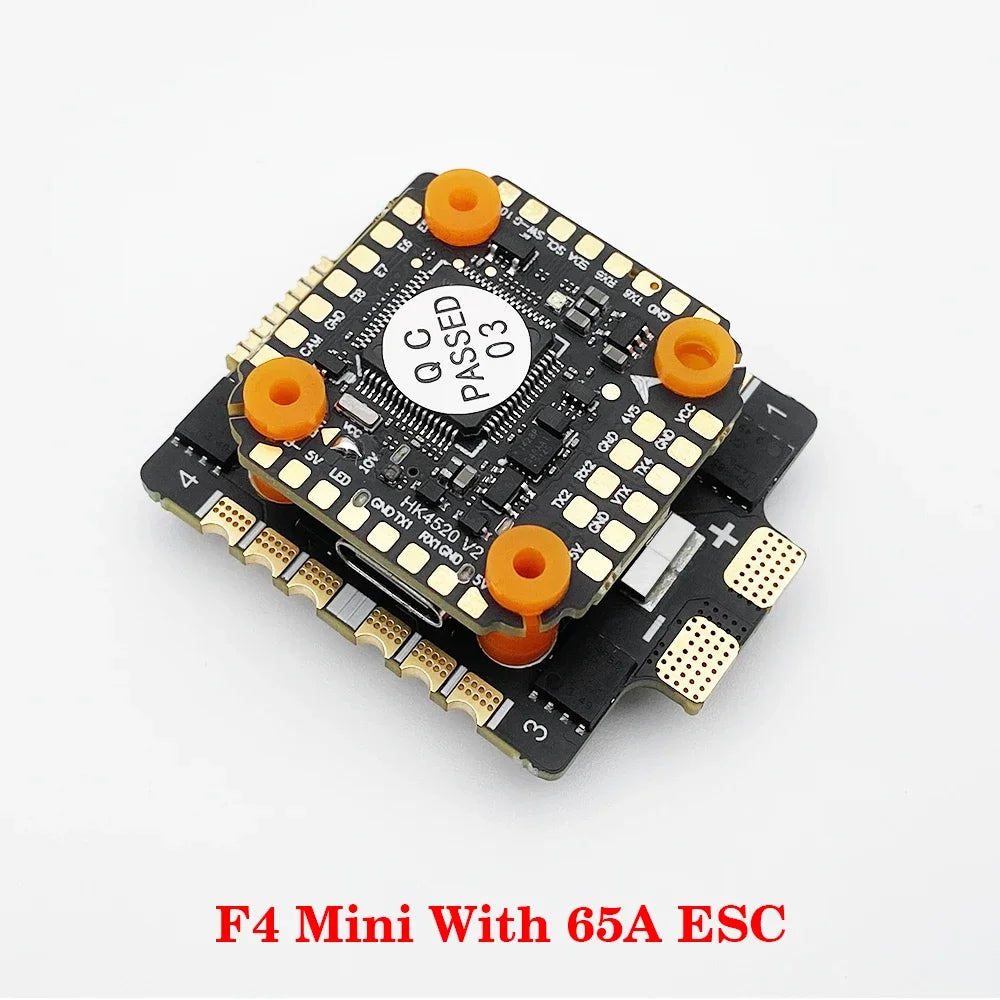

F4 Mini With 65A ESC
- Electric size: 34mm*42.5mm
- Power net weight: 11GP4MM
- Fixed hole distance: 20mm*20mm
- Continuous current: 65A
- Maximum current: 70A (Sustainable 10s)
- Input voltage: 2S-8S
- Current ratio: 90
- Support electrical remote test data diagram
- Rathering software: Blhelisuite32Activator 32.9.0.3
- Driver signal support: PWMONESHOT125, Oneshot42multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600
