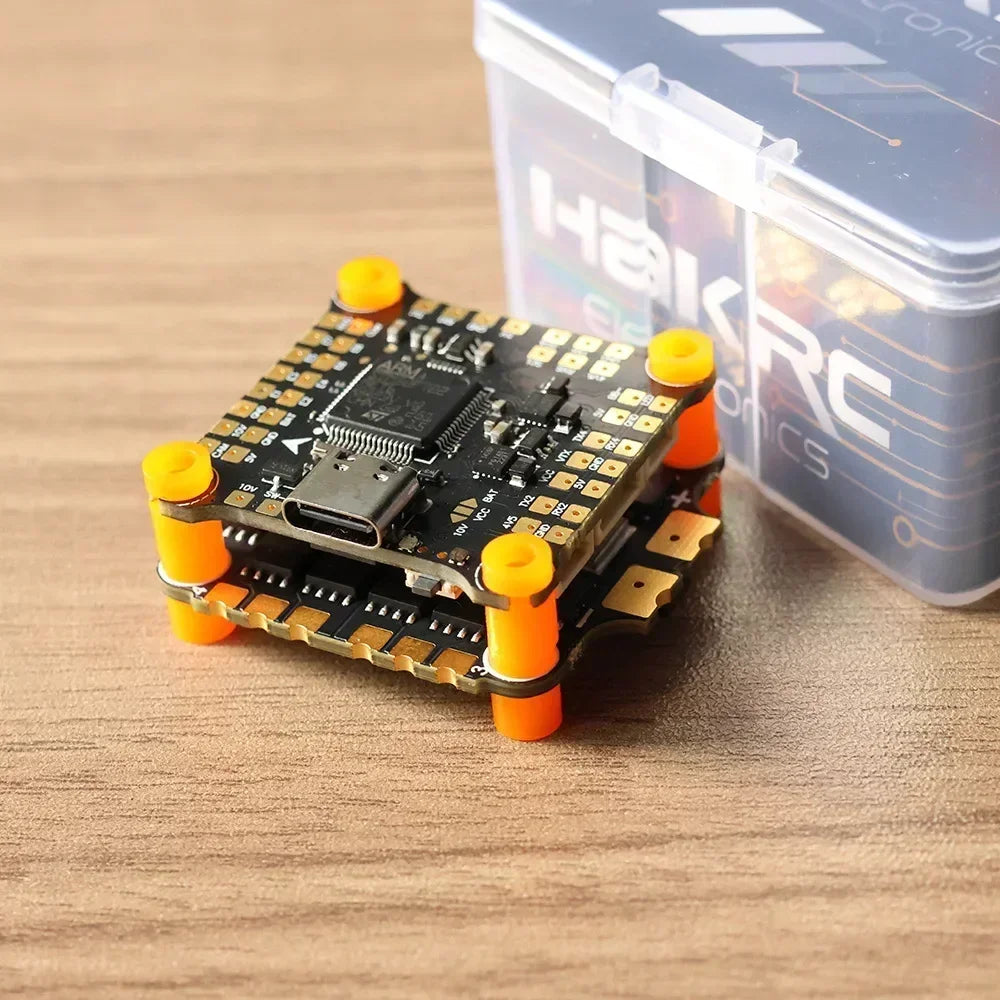

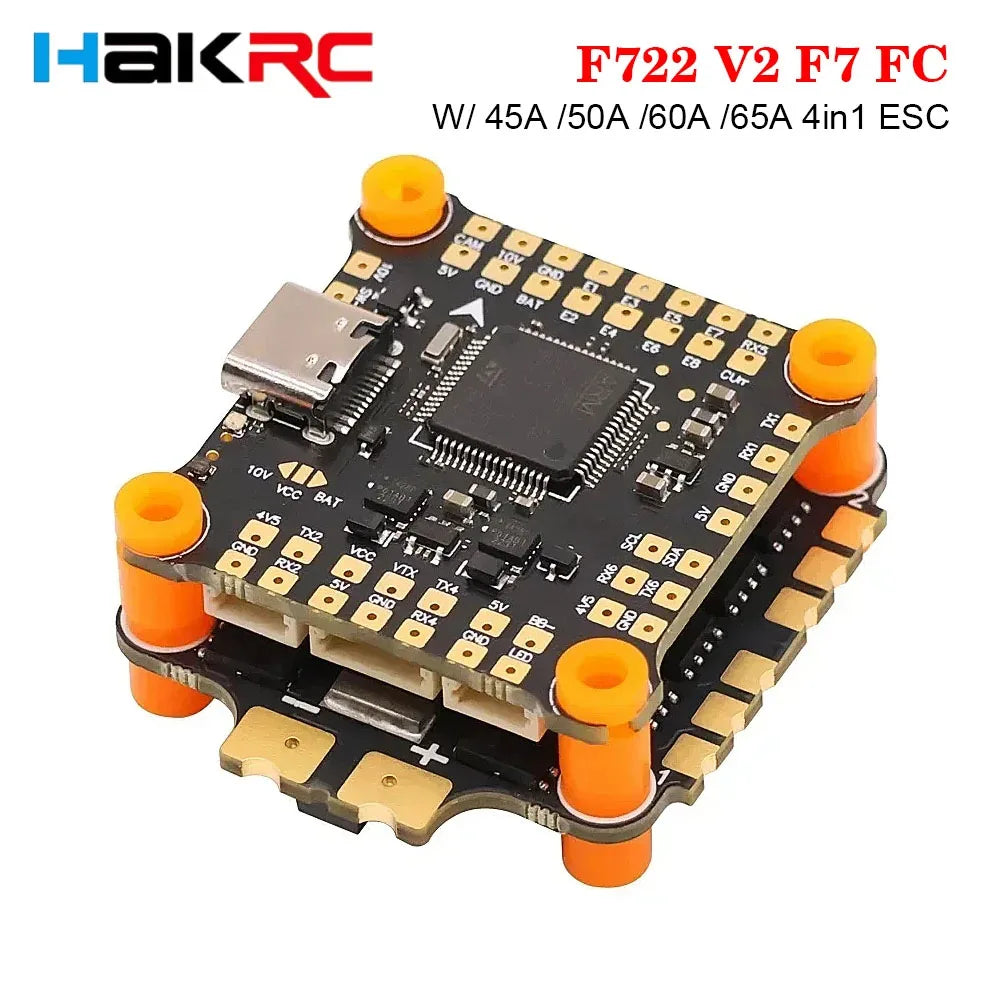

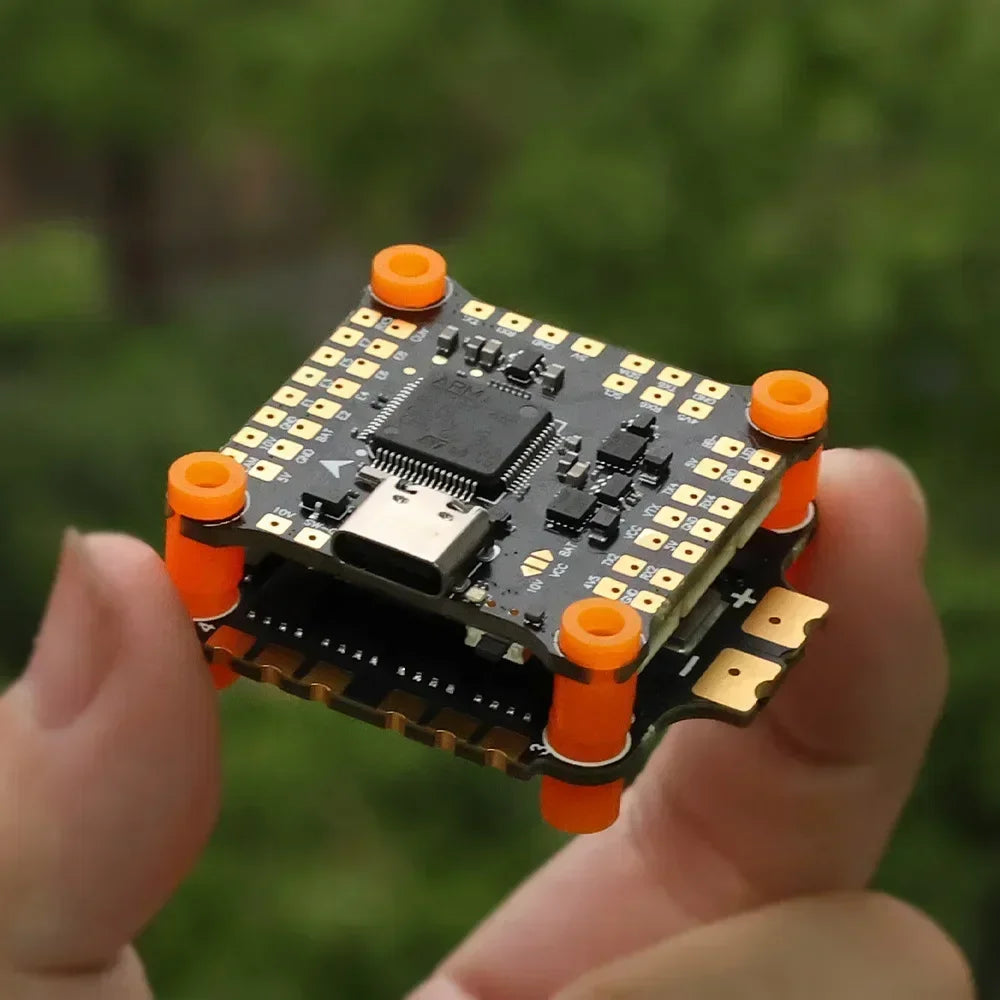

HAKRC F722 V2 F7 Stack W/ 45A /50A /60A /65A 4in1 ESC

$45.49 USD

~~$0.00 USD~~ $45.49 USD

Sale Sold out

Color F7 V2 FC F7 V2 With 45A ESC F7 V2 With 50A ESC F7 V2 With 60A ESC F7 V2 With 65A ESC

369 in stock

HAKRC F722 V2 F7 Flight Controller Dual BEC W/ 45A /50A /60A /65A 4in1 ESC DShot 150/300/600/1200 PWM for RC FPV Racing Drone

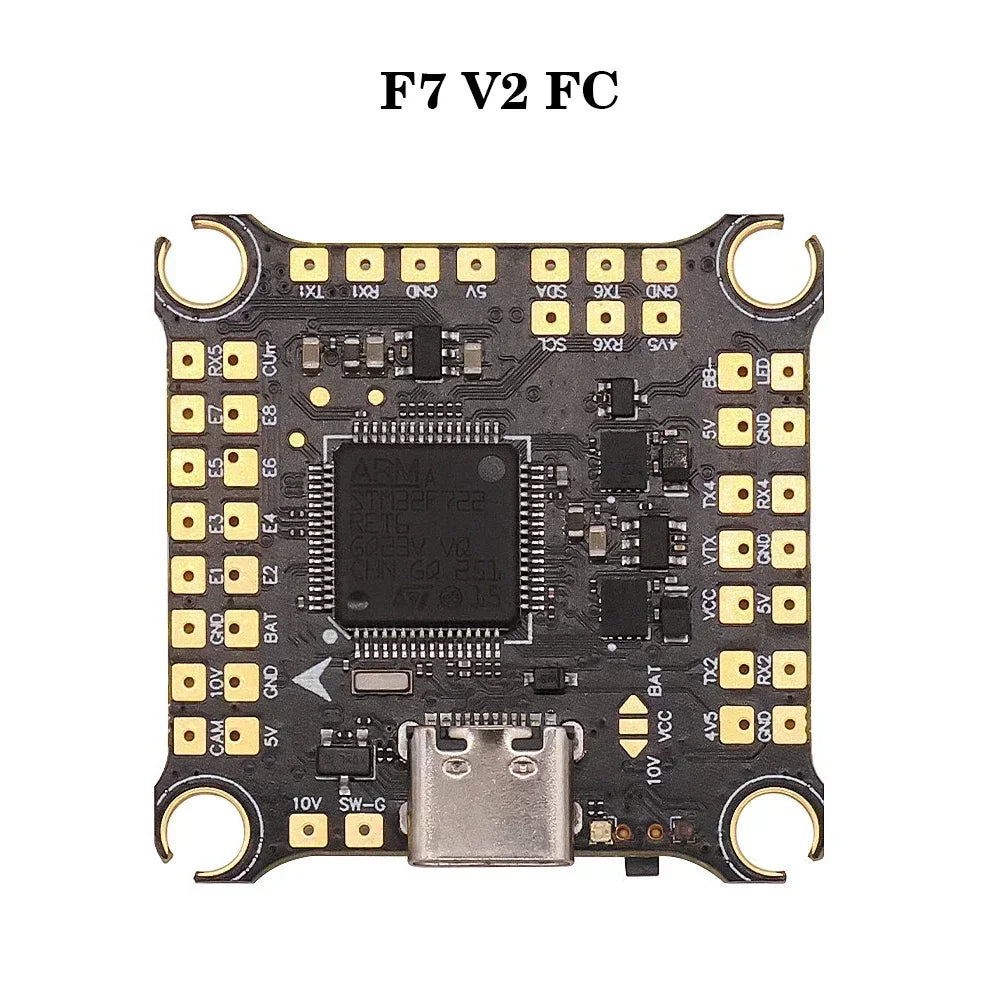

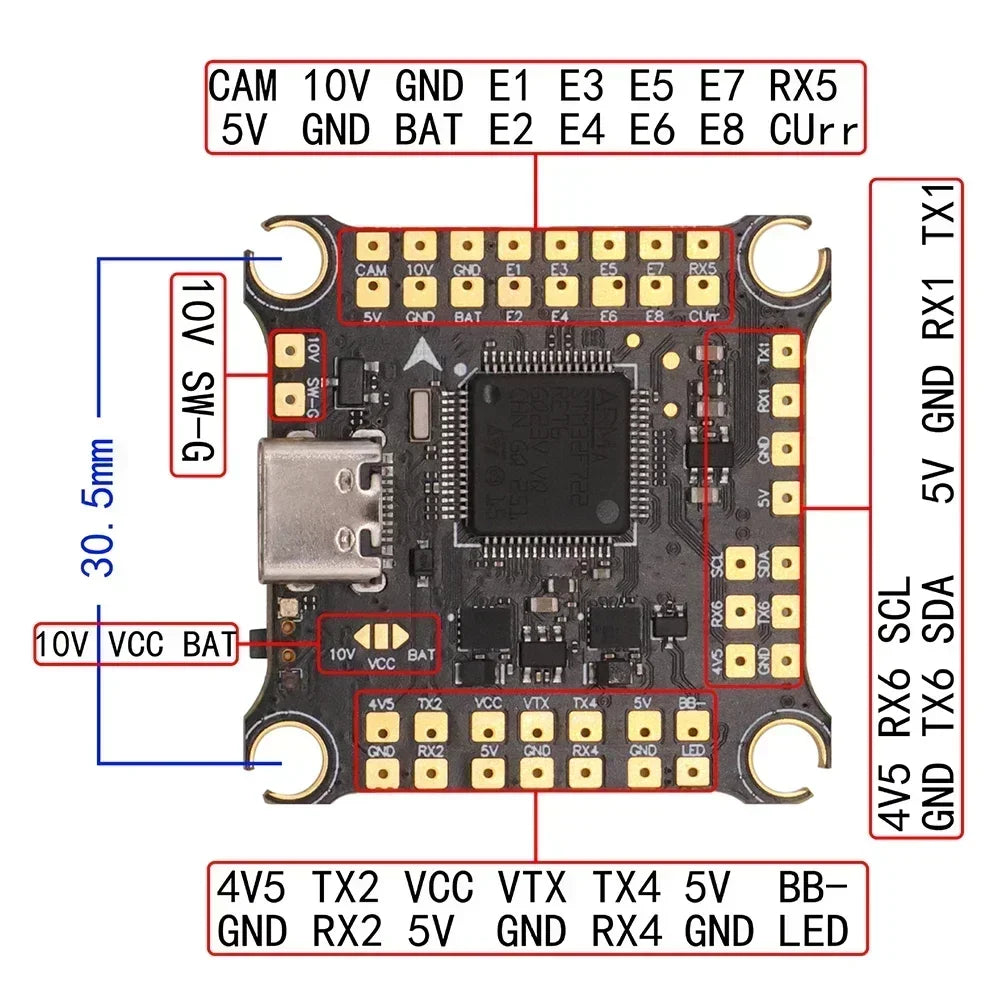

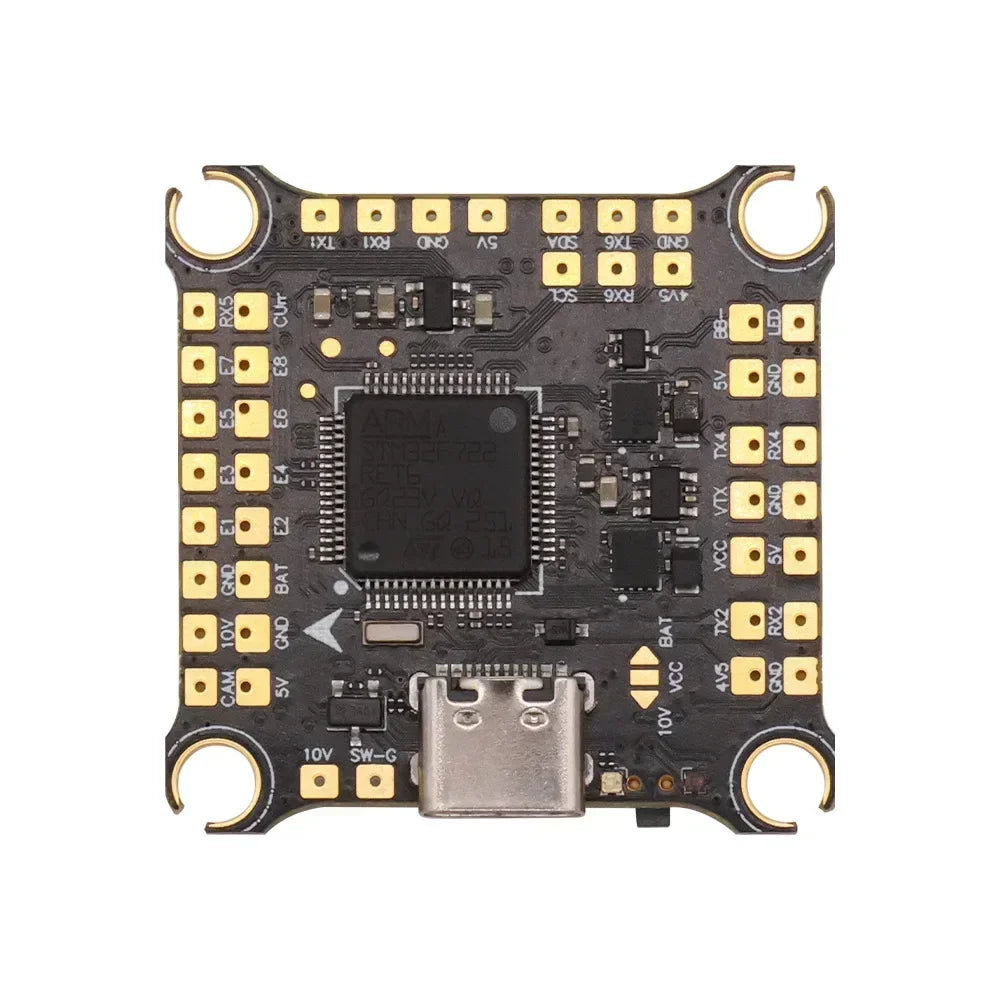

F722 F7 V2 FC

Flying control parameters:

CPU: STM32F722RT6
IMU: ICM42688 dual gyroscope
OSD: AT7456E
Ben: Integrated
Black box: 16M
BEC: 5V/3A
BEC: 10V/2.5A
LED: adjustable LED light
Sensor: built -in current sensor
Firmware version: hakrcf722V2
Reception machine: FRSKY/ FUTABA/ Flysky/ TBS Crossfire

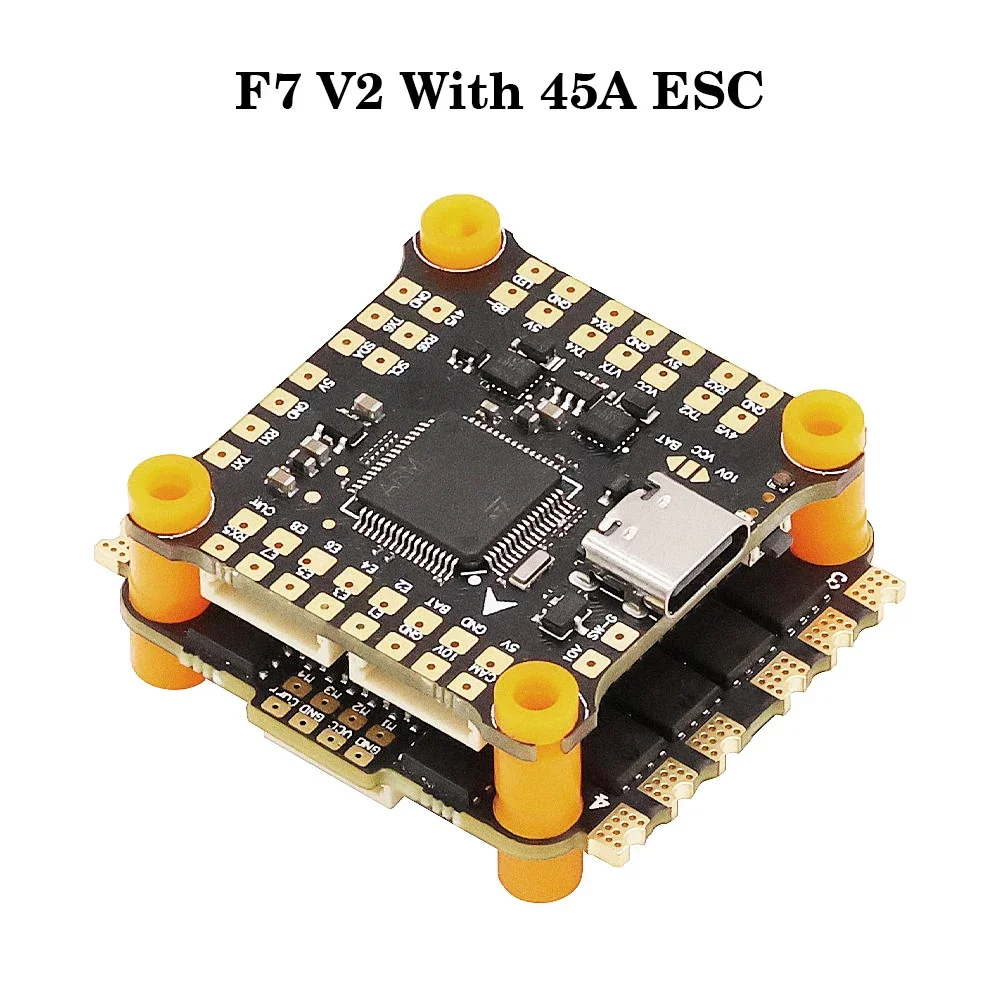

F7 V2 FC With 45A ESC
45A electrical technical parameter
Electric size: 44*44*6mm
Power purposes: 14G
Fixed hole distance: 30.5*30.5mm φ4mm
Continuous current: 45A
Maximum current: 50A (Sustainable 10s)
Input voltage: 2--6s
Rathering software: Blhelisuite
Drive signal support: DSHOT150/300/600, Multishot, PWM, Oneshot.

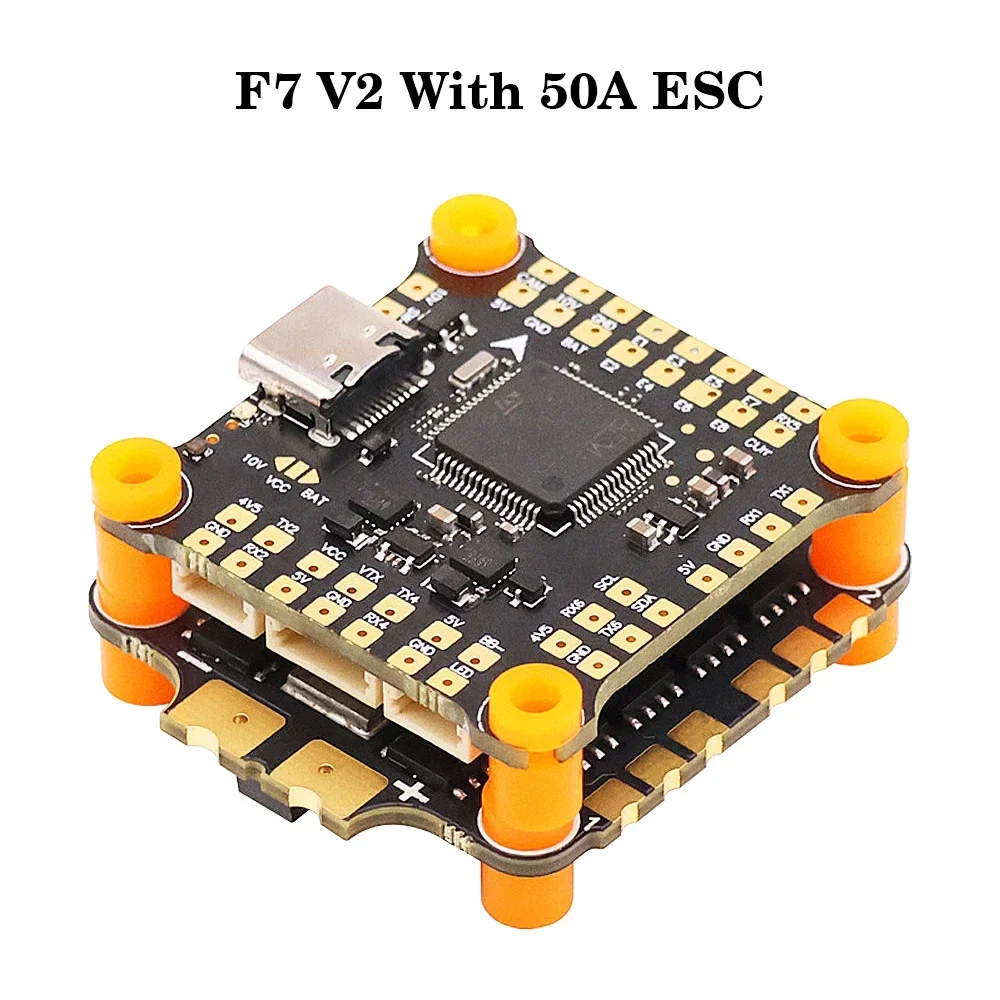

 F7 V2 FC With 50A ESC
Electric parameters:
Size: 40* 41mm (30.5mm-30.5mm installation hole)
Product net weight: 12.5g
Packaging weight: 51.5g
Input voltage: 2S-8S LIPO
A current meter ratio: 160
Continuous current: 50A
Peak current: 60A
Hardware: PWM, Damped Light
Electric firmware: BLHELI-S 16.7
Protocol support: PWM, OneShot125, 0neshot42, Multishot, DSHOT150, DSHOT300.dshot600

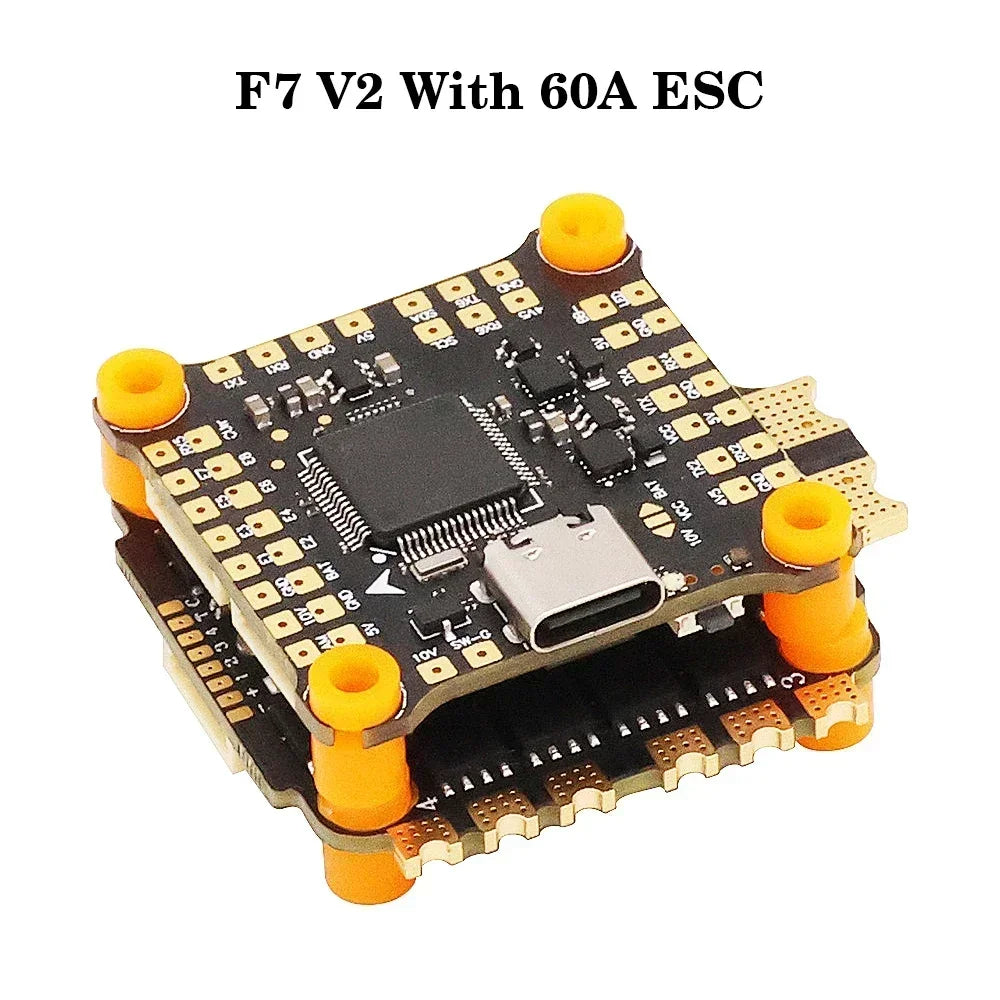

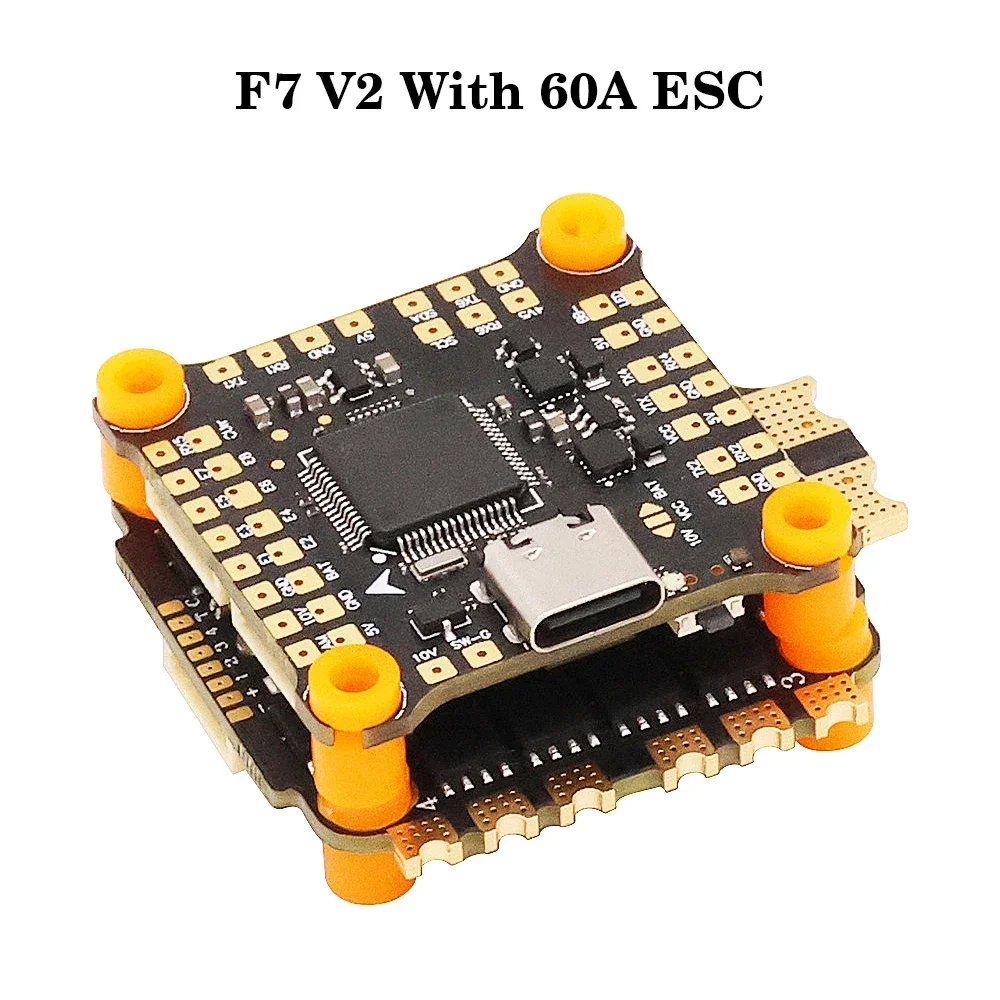

F7 V2 FC With 60A ESC
Electrical technical parameter
Input voltage: 2S-8S Lipo
A current meter ratio: 160
Continuous current: 60A
Peak current: 70A
Electric firmware: hakrc-60-k42_multi_32_8.hex

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

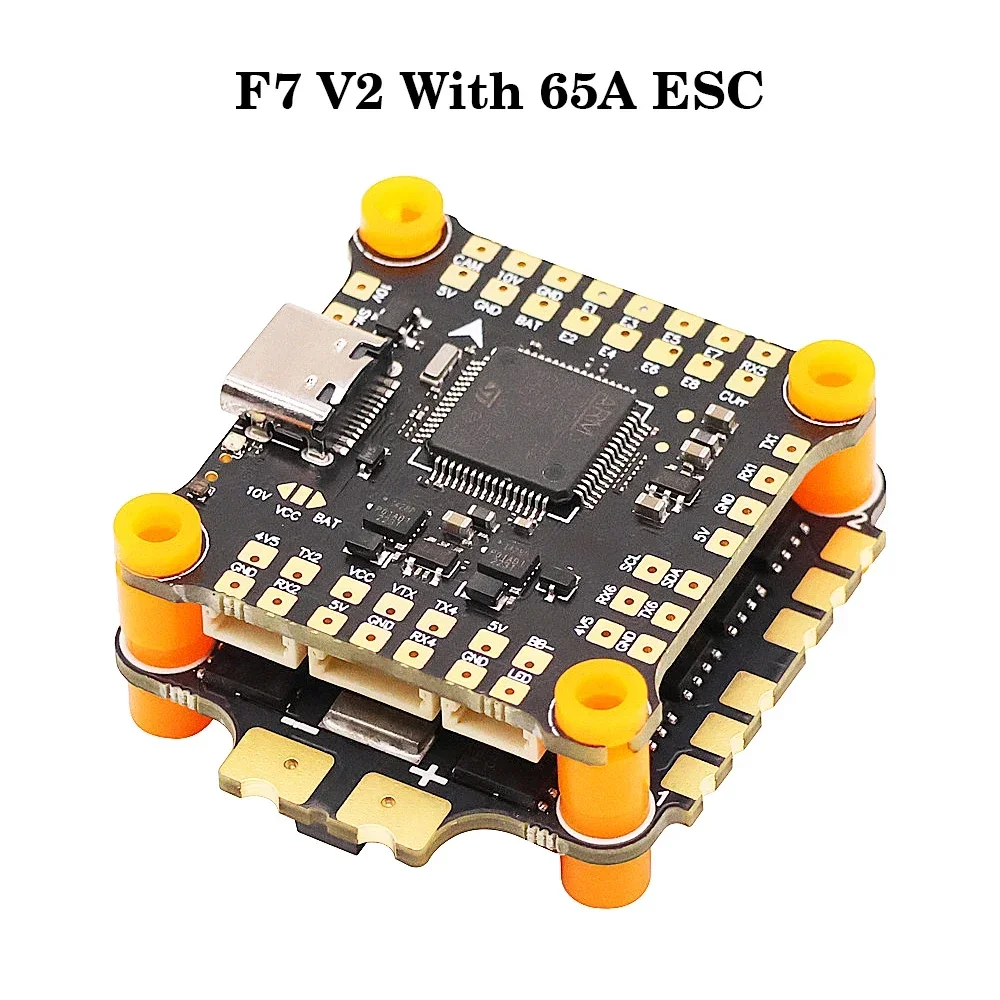

F7 V2 FC With 65A ESC

Electrical technical parameter

Input voltage: 2S-8S Lipo

A current meter ratio: 160

Continuous current: 65A

Peak current: 75A

Electric firmware: hakrc_at4g_multi_32.9 hex

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600
