Holybro High Precision RTK GNSS Antennas

$39.98 USD

~~$0.00 USD~~ $39.98 USD

Sale Sold out

Color CHX603A (4 Bands) CUX623A (4 Bands) CSX627A (4 Bands)

369 in stock

Holybro High Precision RTK GNSS Antennas Supports 3/ 4 frequency bands CH3602A/ CH7604A/ CHX603A/ CH7609A/ CSX627A for FPV Drone

GNSS Antenna-CH3602A

KEY FEATURES

Supports 3 frequency bands
Support GPS, Glonass, Galileo, Beidou,QZSS, and SBAS signal reception
Stable phase center guarantees the accuracy of positioning within millimeter level
Strong anti-interference ability to endure the harsh operating environments
25g light weight for lower power consumption
IP67 ruggedized protection

GNSS Antenna-CH7604A

KEY FEATURES:

Supports 3 frequency bands
Support GPS, Glonass, Galileo, Beidou,QZSS, and SBAS signal reception
Stable phase center guarantees the accuracy of positioning within millimeter level
D-QHA technology ensures multi-system satellite tracking
25g weight, low power consumption ,55 mA@3.3VDC only
IP67 ruggedized protection

GNSS Antenna-CHX603A

KEY FEATURES:

Supports 4 frequency bands
Support GPS L1/L2/L5 ,BDS
B1/B2/B3 ,GLONASS L1/L2/L3, Galileo E1/E5a/E5b
Stable phase center guarantees the accuracy of positioning within millimeter level
D-QHA technology ensures multi-system satellite tracking
25g weight, low power consumption ,55 mA@3.3VDC only
IP67 ruggedized protection

GNSS Antenna-CUX623A

KEY FEATURES:

Supports 4 frequency bands
Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, as well as L-Band correction service
Centimeter phase center repeatability, high gain at low elevation
Improved signal filtering and excellent multipath rejection
lightweight, low profile facilitates easier integration
Dimensions ¢43.6*40.8mm ≤30.5g

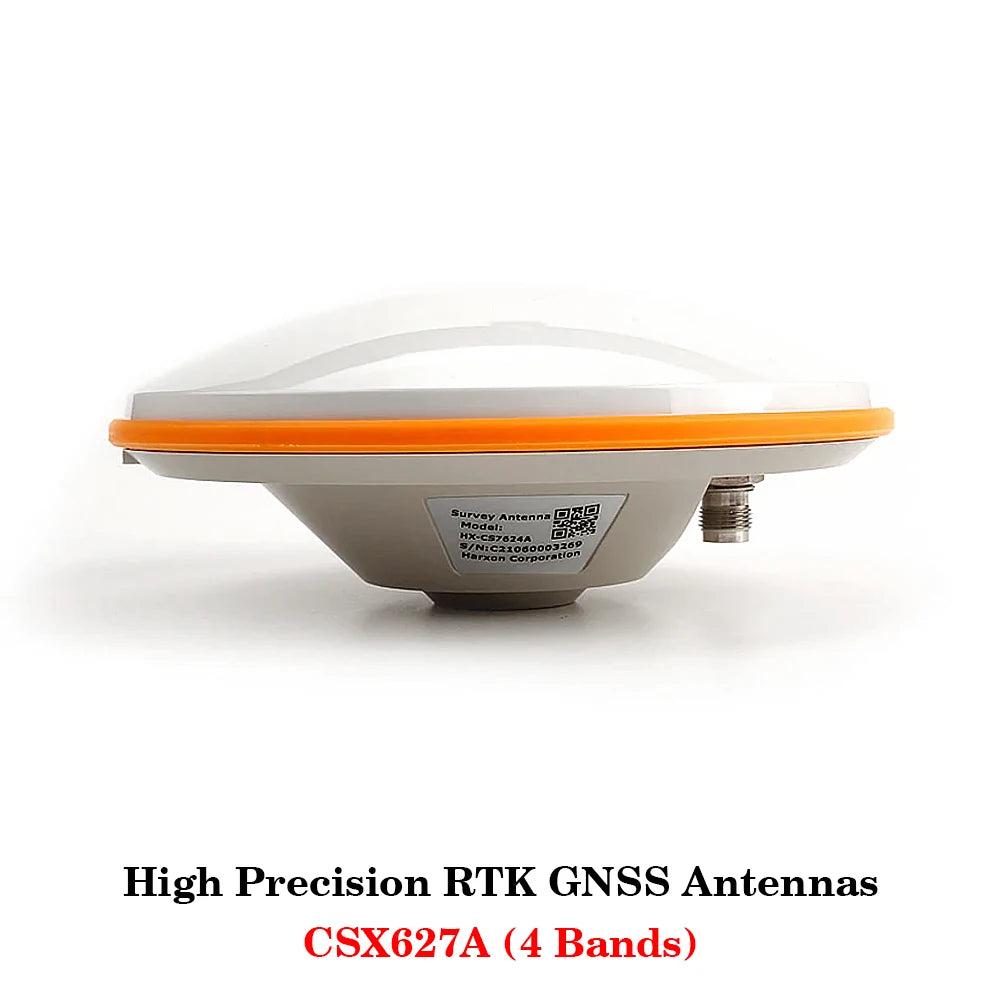

GNSS Antenna-CSX627A

KEY FEATURES:

Supports 4 frequency bands
Support GPS, Glonass, Galileo, Beidou, QZSS and SBAS signal reception
Stable phase center guarantees the accuracy of positioning within millimeter-level
Strong anti-interference ability to endure the harshest operating environments
IP67 ruggedized protection
Connector: TNC female
Mounting: BSW5/8''-11 screw,Depth:12-14mm
Weight : 440g
