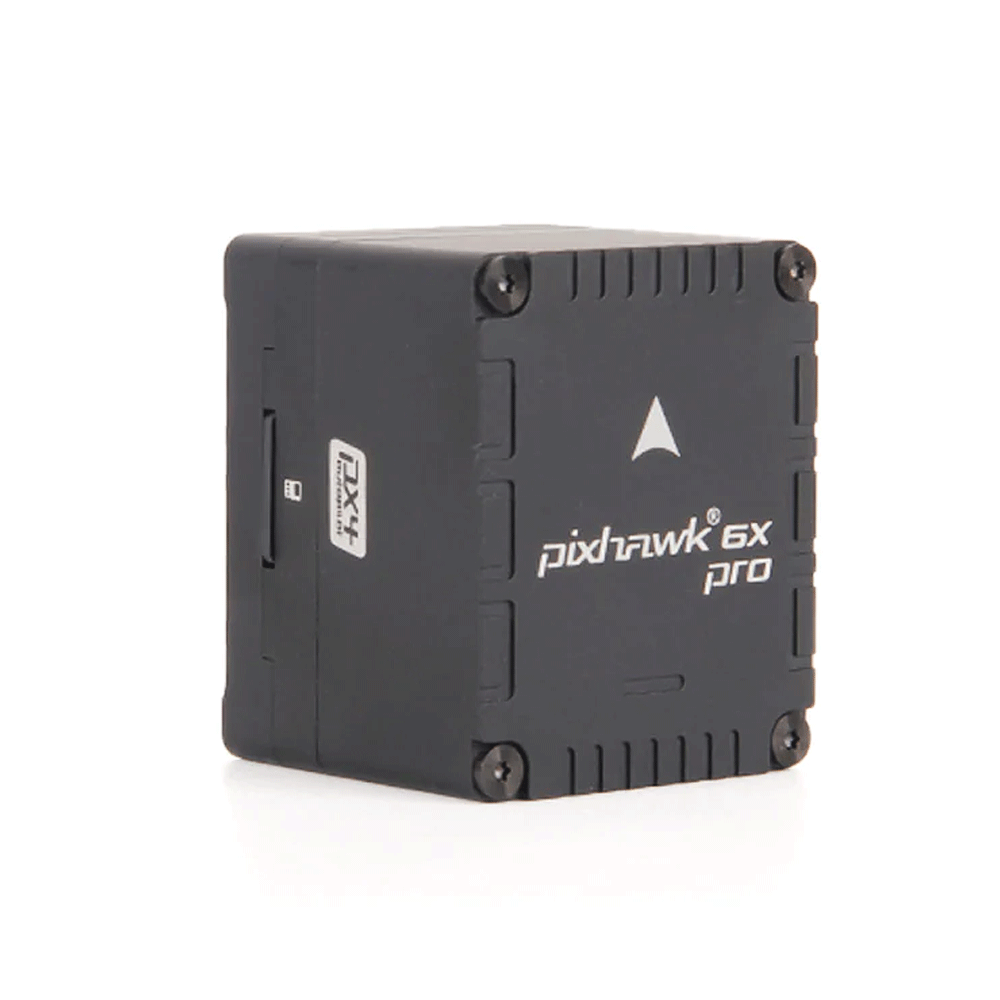

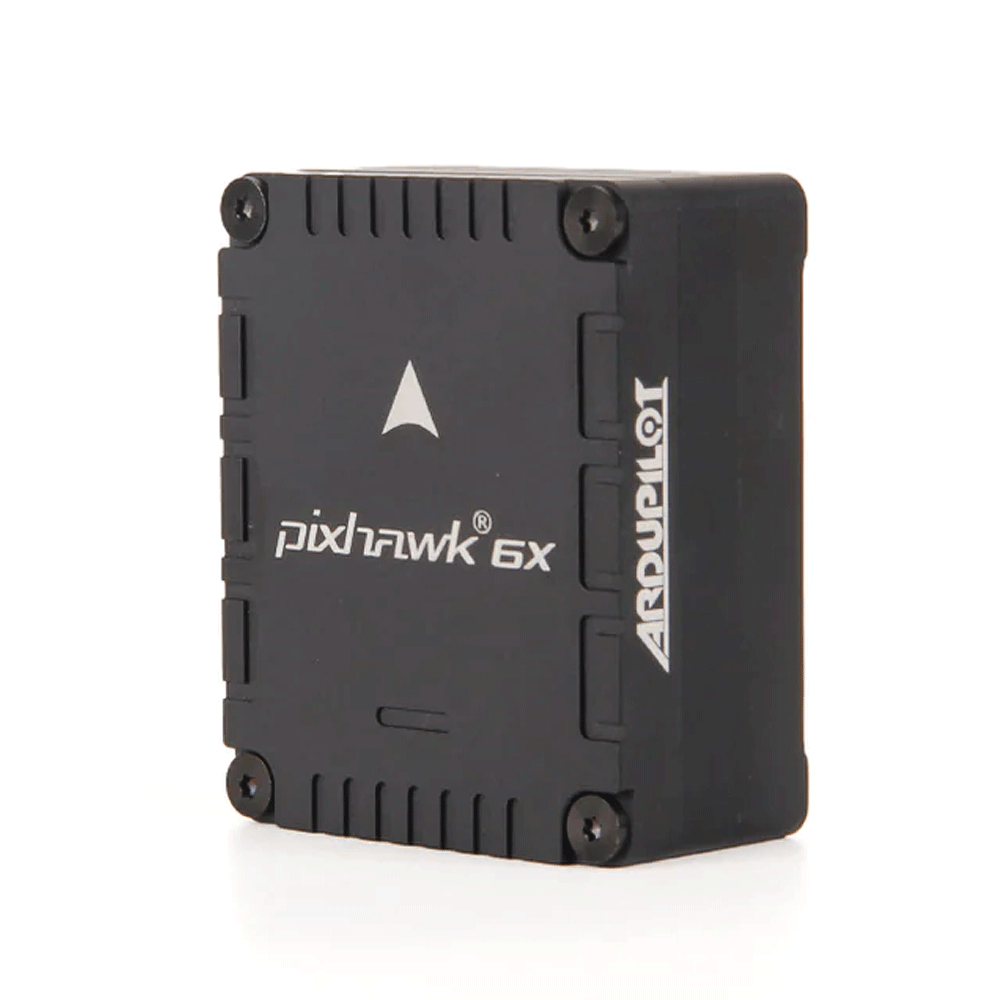

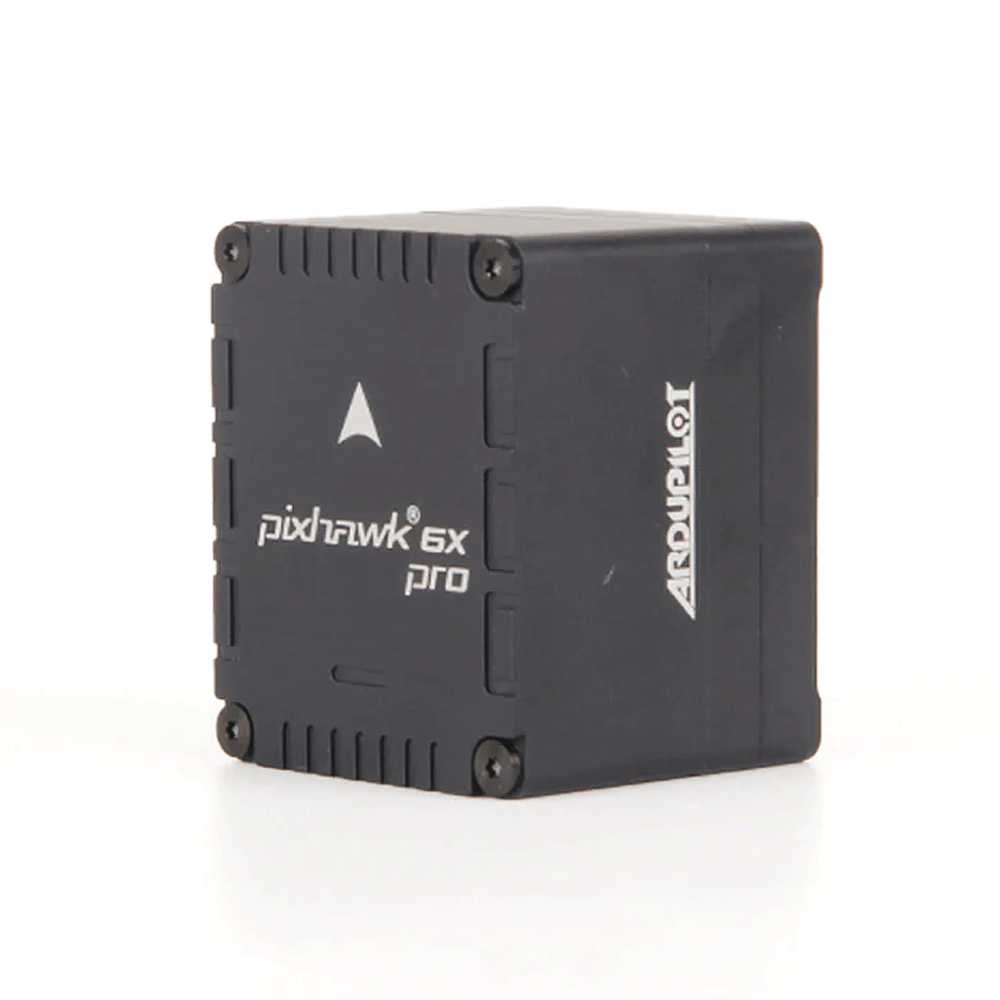

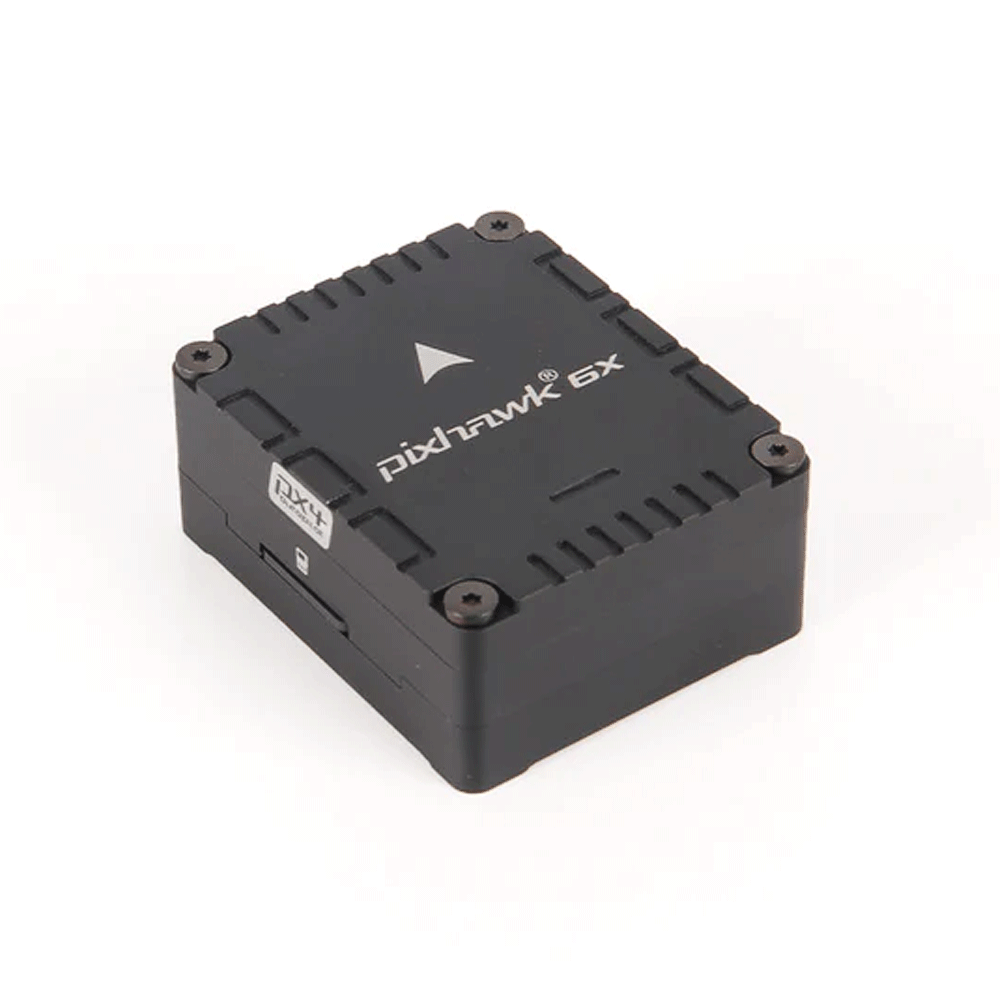

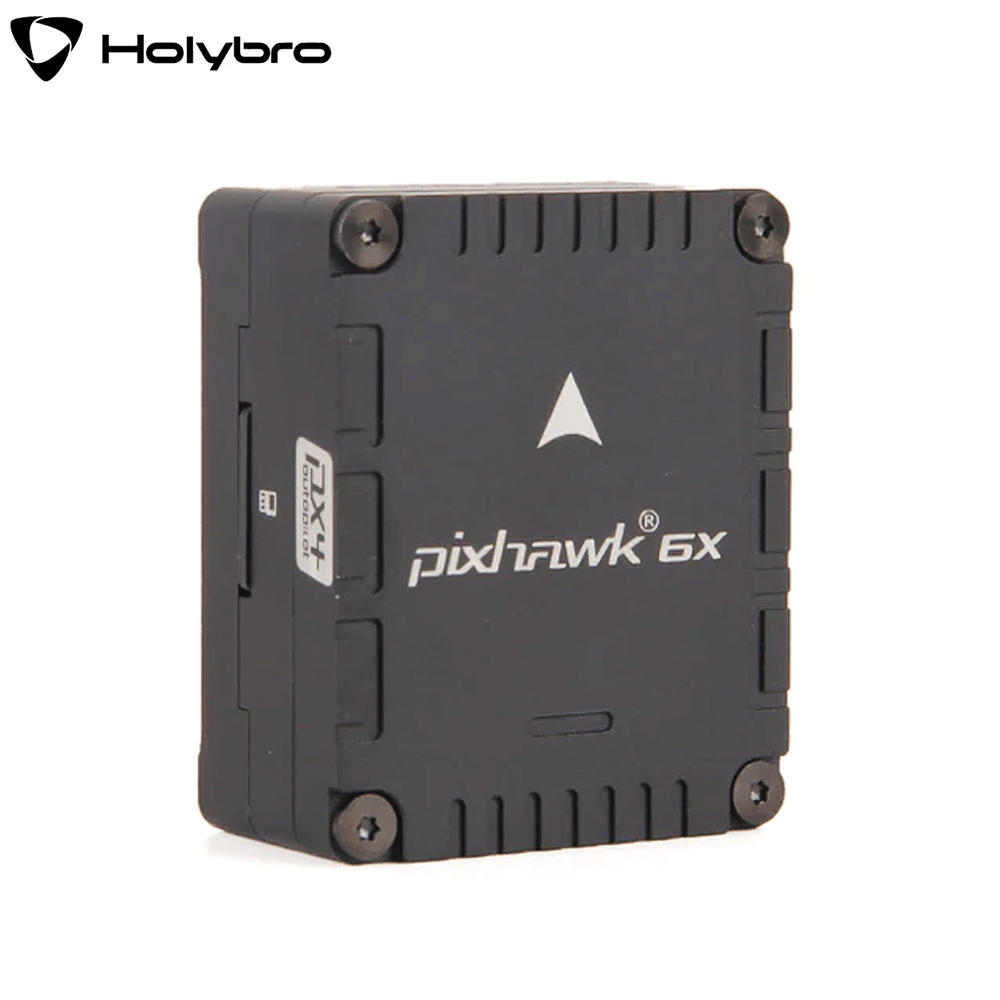

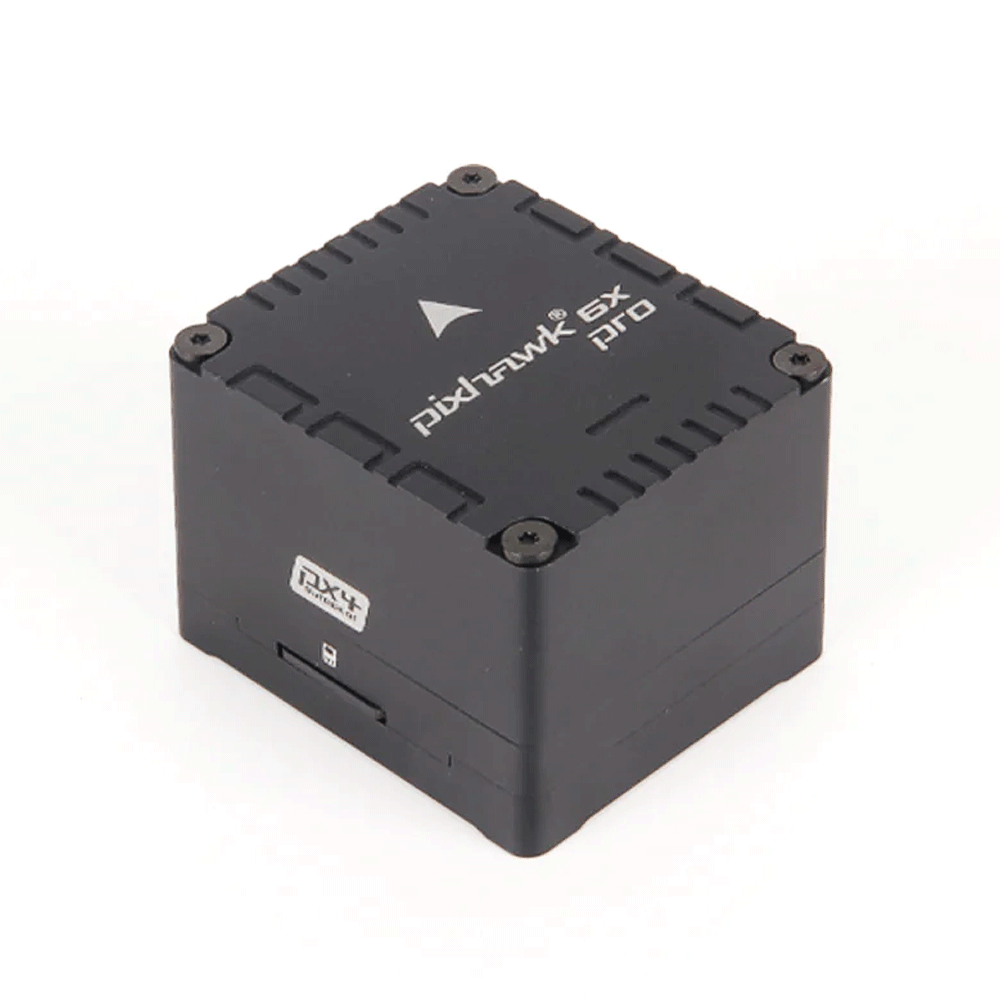

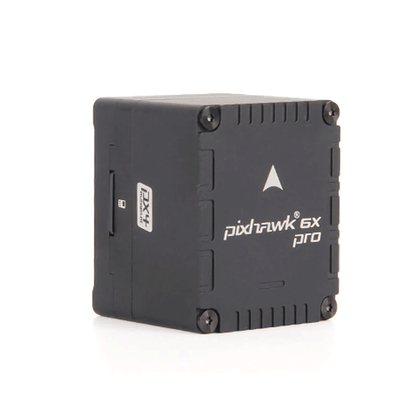

HolyBro Pixhawk 6X (ICM-45686) / Pixhawk 6X Pro Flight Controller Module for RC FPV Drone

Key Design Points

• Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors

• High performance STM32H753 Processor with a clock speed of up to 480 MHz

• Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.

• Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control

• All New advanced durable vibration isolation material with resonance frequency in the higher spectrum

• Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).

• Temperature-controlled IMU board, allowing the optimum working temperature of IMUs

• Hardware switchable 3.3V or 5V signal mode (requires baseboard modification)

• Digital power module support for better voltage and current data accuracy

• This new vibration isolation design uses the same custom-formulated durable isolation material as the Pixhawk 6X Pro, instead of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drone

Specification

Processors & Sensors

• FMU Processor: STM32H753

  • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

• IO Processor: STM32F103

  • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

• On-board sensors (Shipping Currently, Rev8)

  • Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)

  • Barometer: ICP20100 & BMP388

  • Mag: BMM150

• On-board sensors (Previous Revision, Rev 3/4)

  • Accel/Gyro: BMI088/ICM-20649

  • Accel/Gyro: ICM-42688-P

  • Accel/Gyro: ICM-42670-P

  • Mag: BMM150

  • Barometer: 2x BMP388

• NXP EdgeLock SE050 Plug & Trust hardware secure element

Electrical data

• • Voltage Ratings:

    • Max input voltage: 6V

    • USB Power Input: 4.75~5.25V

    • Servo Rail Input: 0~36V

  • Current Ratings:

    • Telem1 & GPS2 combined current limit: 1.5A

    • All other ports combined current limit: 1.5A

  • PWM Signal Voltage:

    • Default 3.3V (Adjustable to 5V with a change onboard resistor)

  • Operating Temperature: -25-85°C
