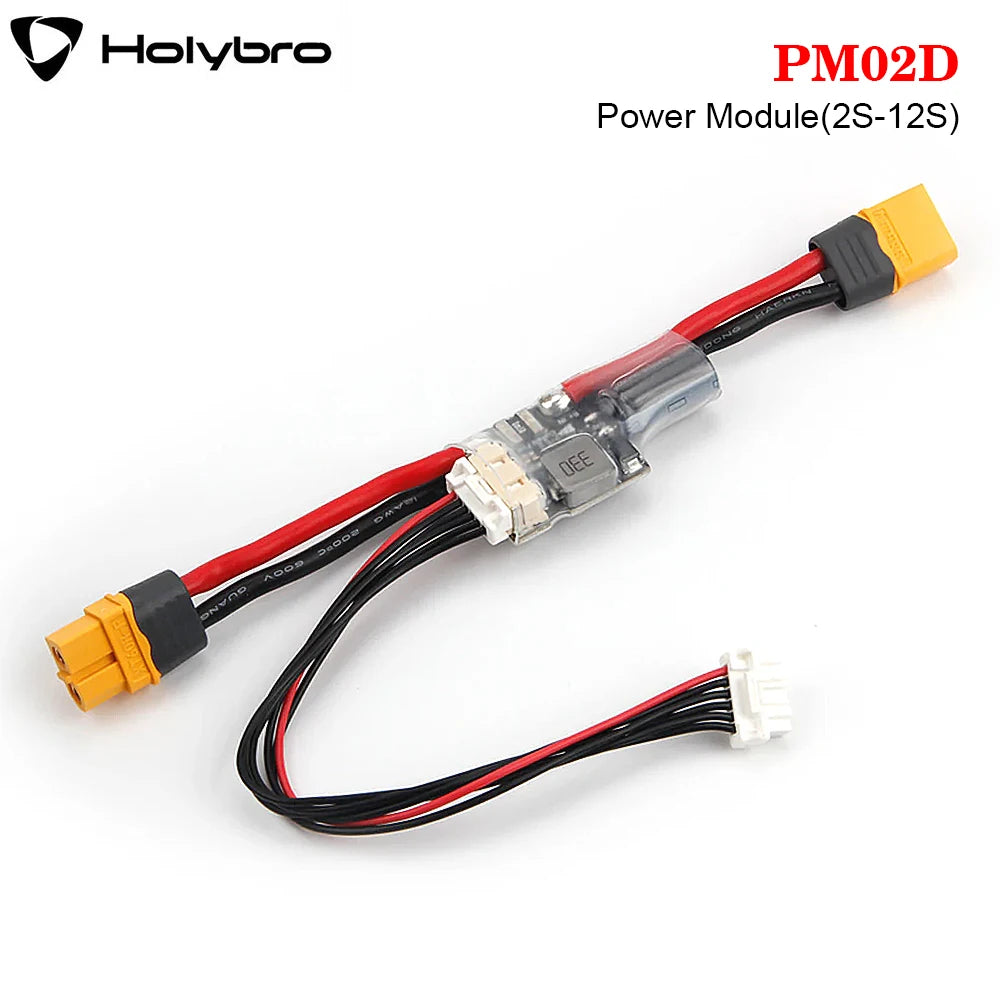

Holybro PM02D Power Module(2S-12S)
Holybro PM02D Power Module(2S-12S)
369 in stock
Couldn't load pickup availability
-
PM02D HV version is supported by PX4. For Ardupilot, it is supported in version 4.4 and later. Full setup guide can be foundhere.
-
This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series .
-
NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
-
Description
-

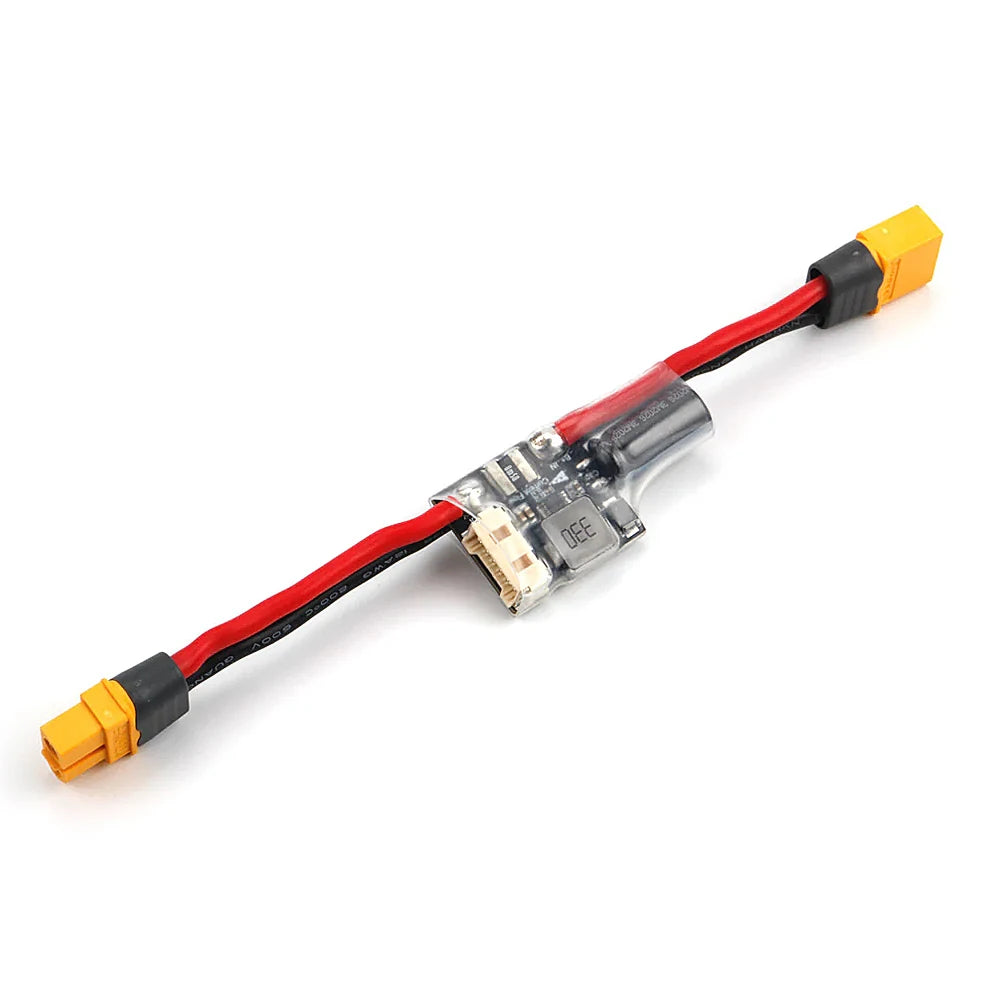

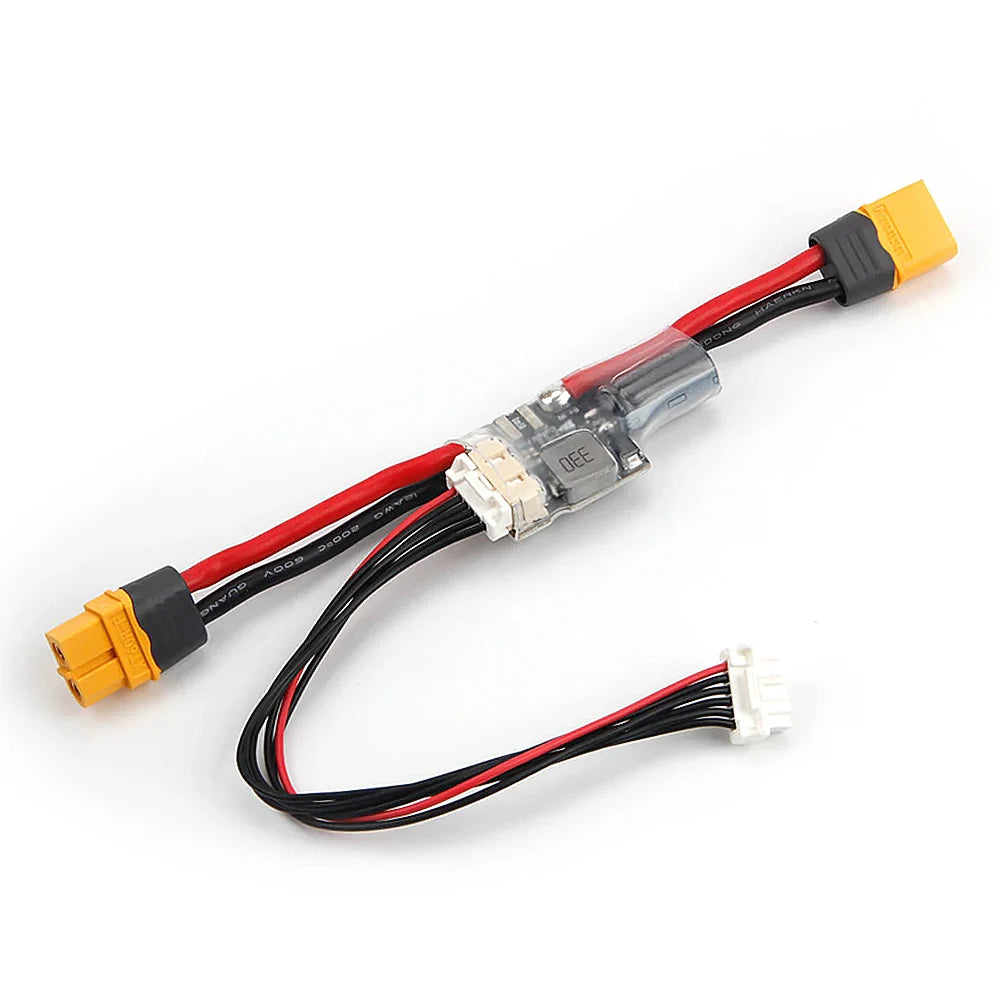

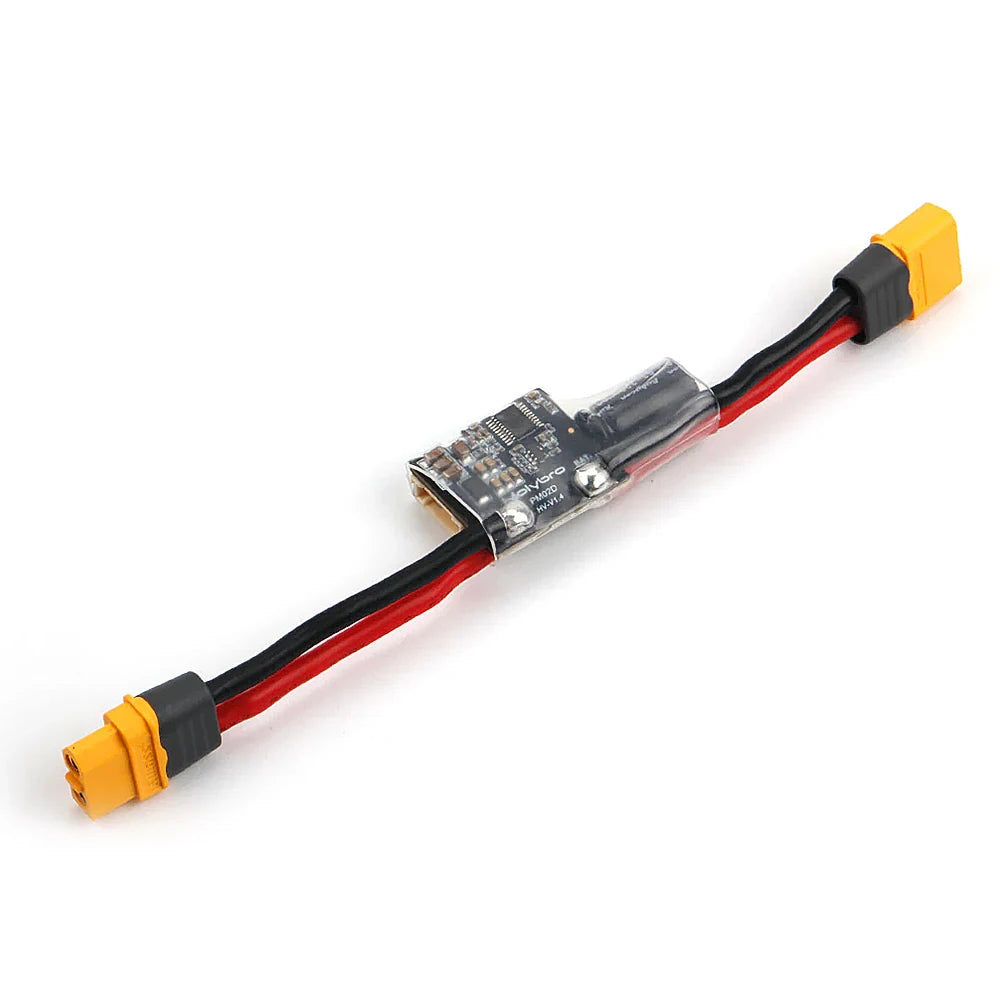

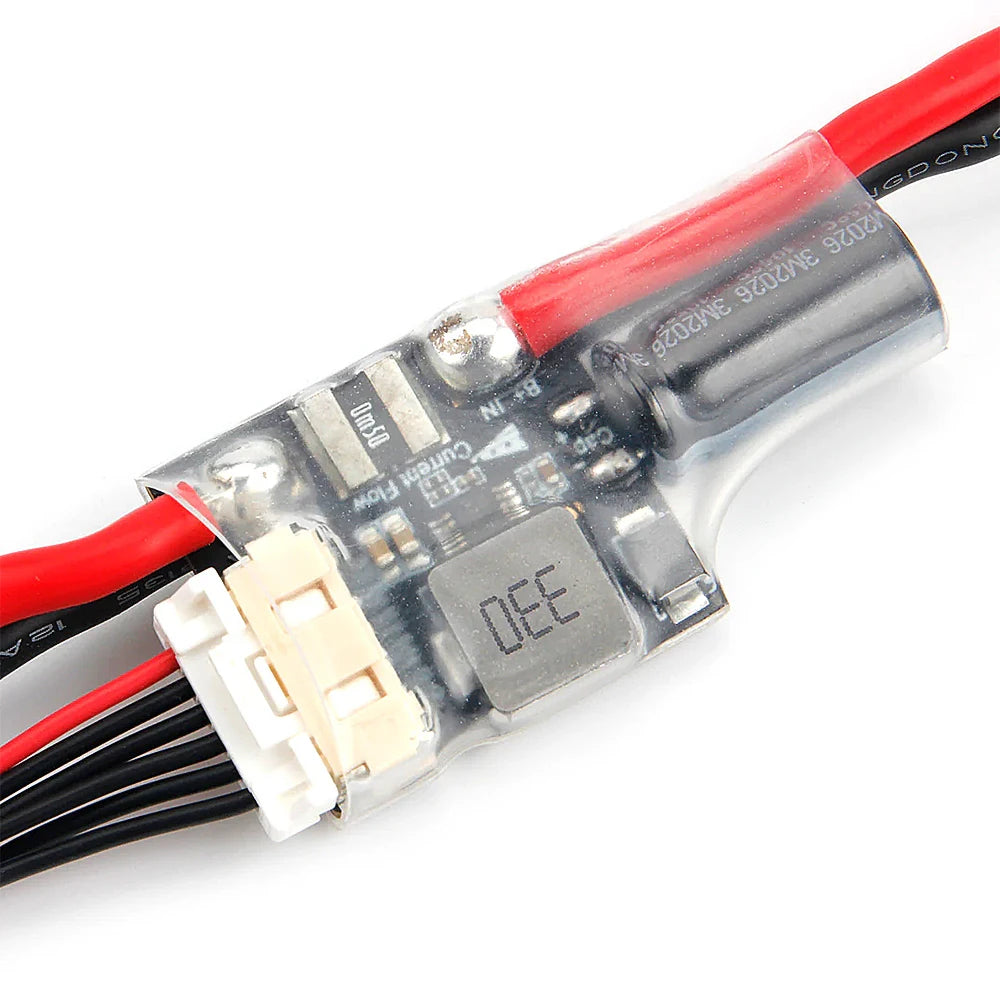

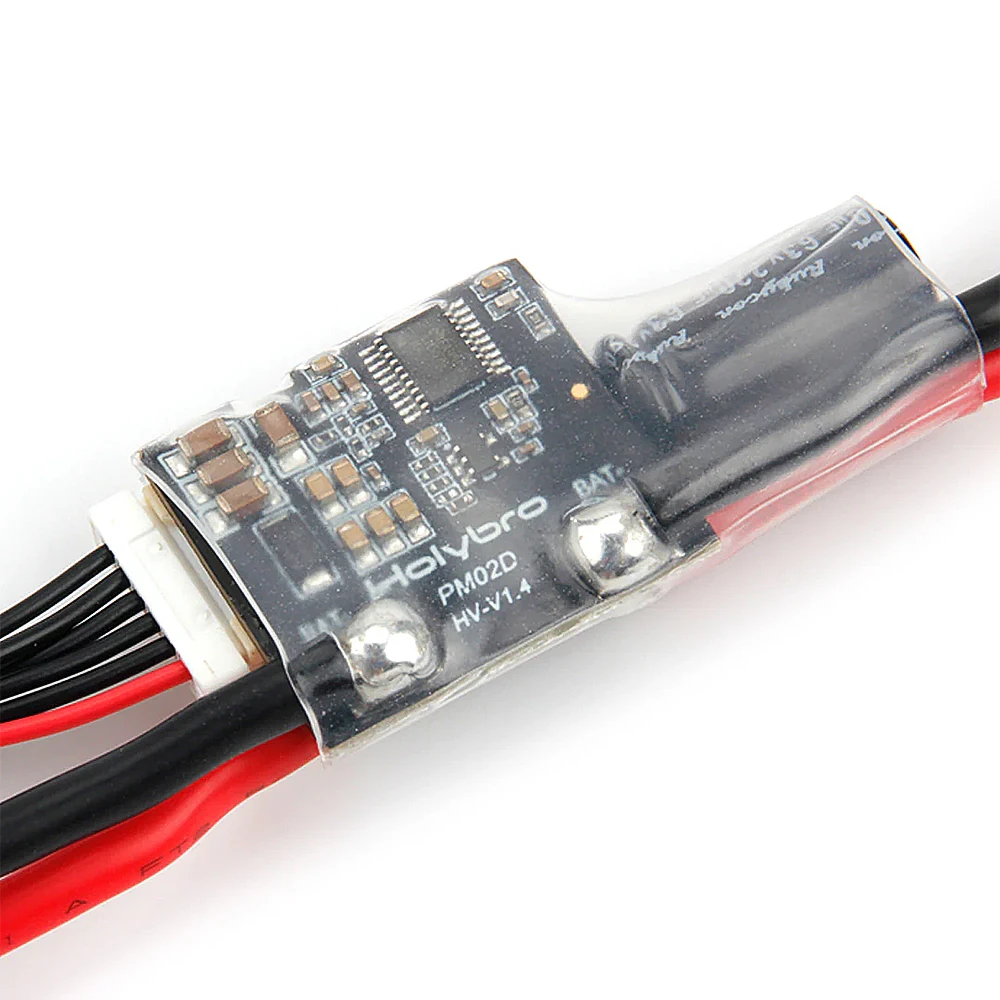

PM02D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 12S (HV). The Power Module comes completely assembled with XT60 connectors, wrapped in shrink tubing for physical damage protection.
-
It is not designed to power servos, please use your aircraft's ESC/BEC for that. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.
-
Input voltage : 2S-12S
-
PCB Cont. Current Rating: 60A
-
PCB Burst Current Rating: 100A (<60 Sec)
-
Max current sensing:327A
-
Voltage and current monitor with I2C compatible interface
-
Outputs 5.2V and 3A max
-
Weight: 20g
Current Rating:
-
The PM02D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer to this chart as reference.
Setup:
-
If you are using the PM02D HV version, you must set SENS_EN_INA228 to enable.
-
Full setup guide can be found here.
Package Includes：
