Holybro X650 Kits

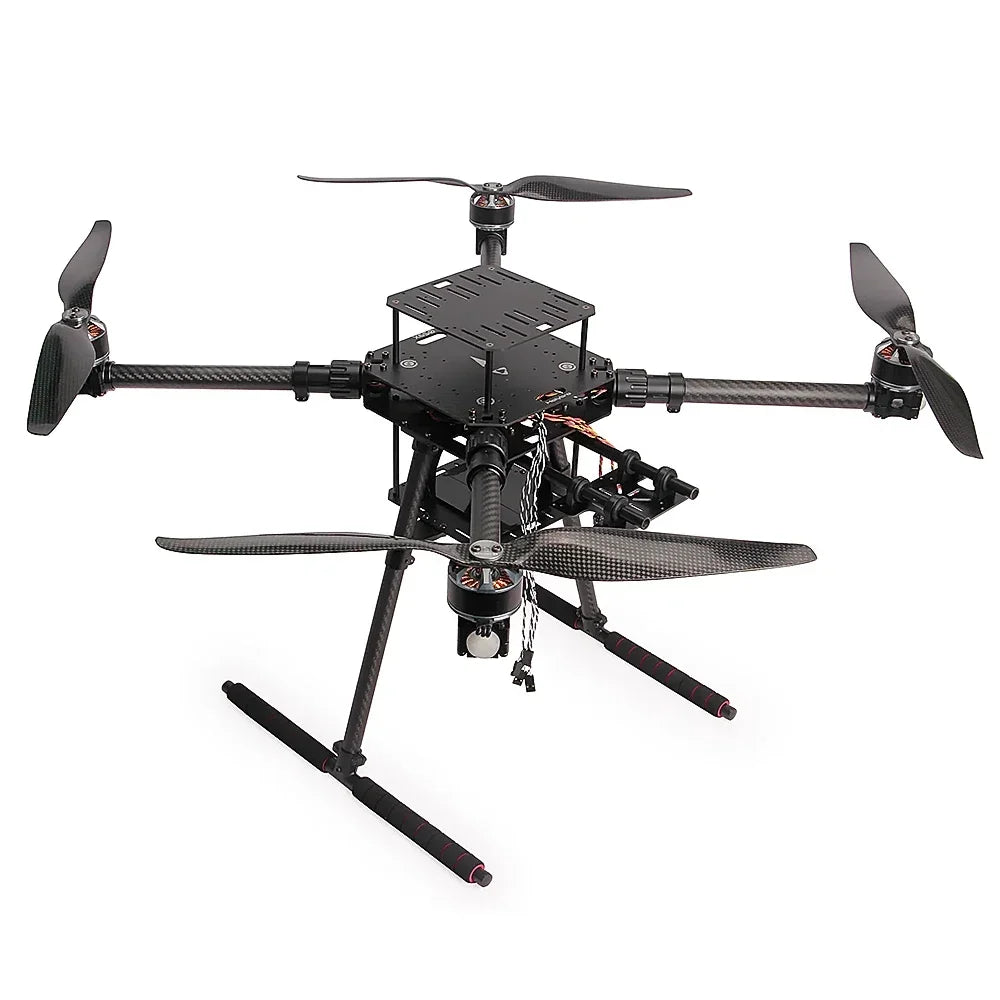

Holybro X650 Kits Wheelbase 650mm Carbon Fiber plate ARF N4014 KV330 Motor Tekko32 F4 45A ESC Gemfan 1555 Propellers FPV Drone

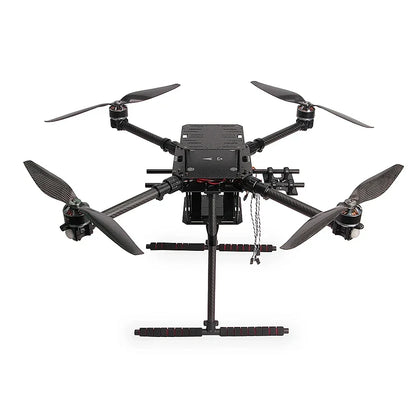

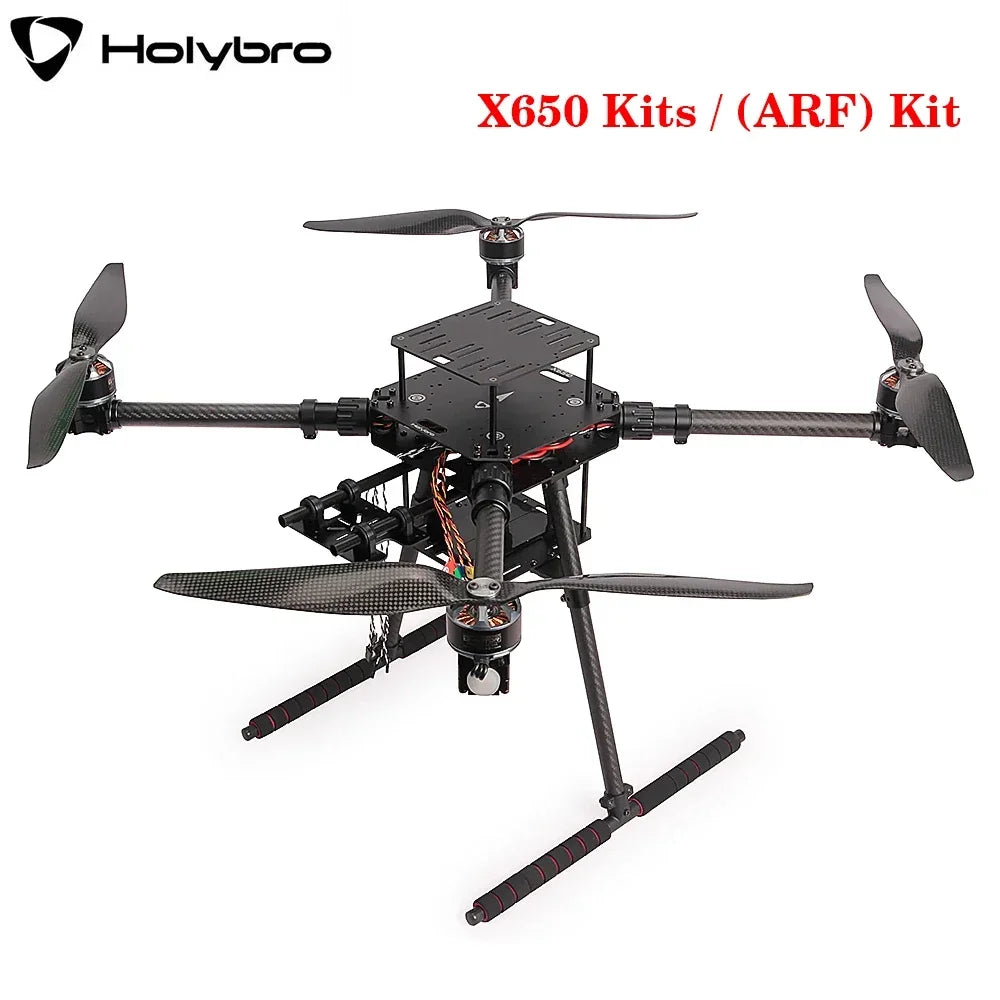

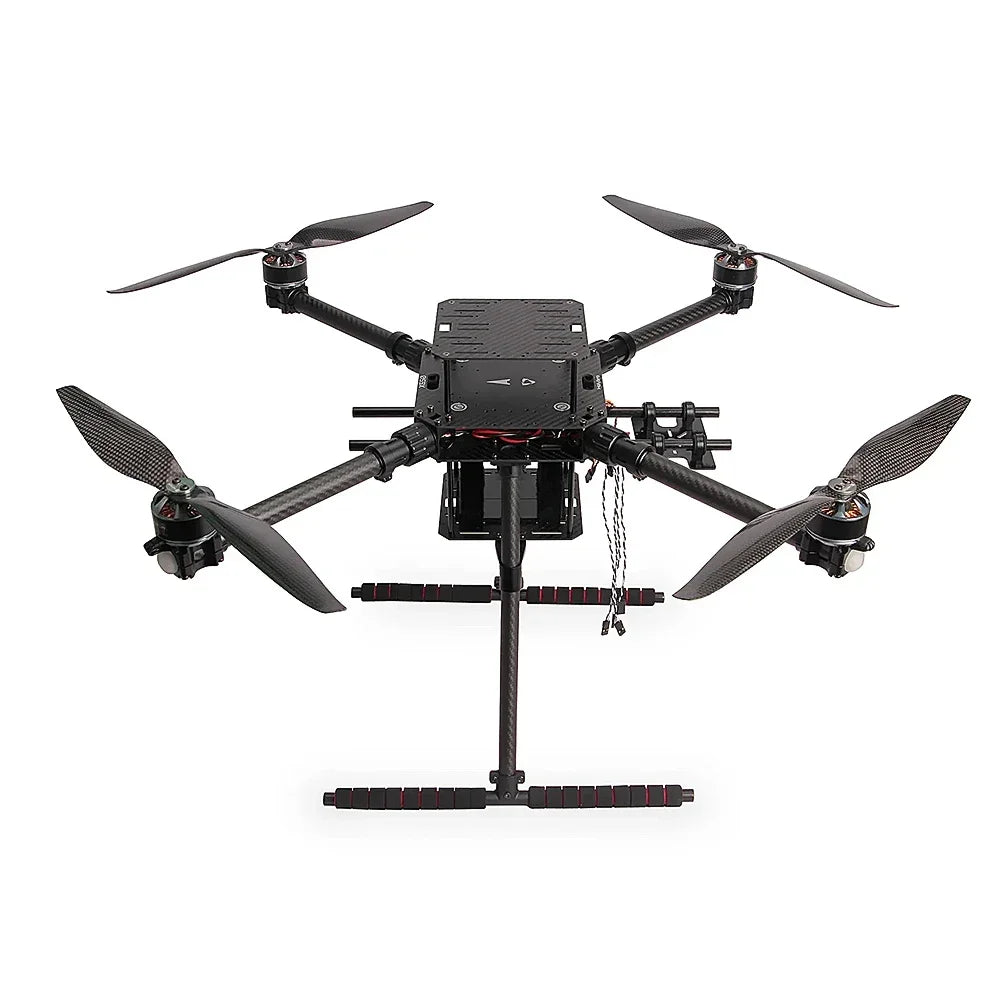

Almost Ready-to-Fly (ARF) Kit Feature:

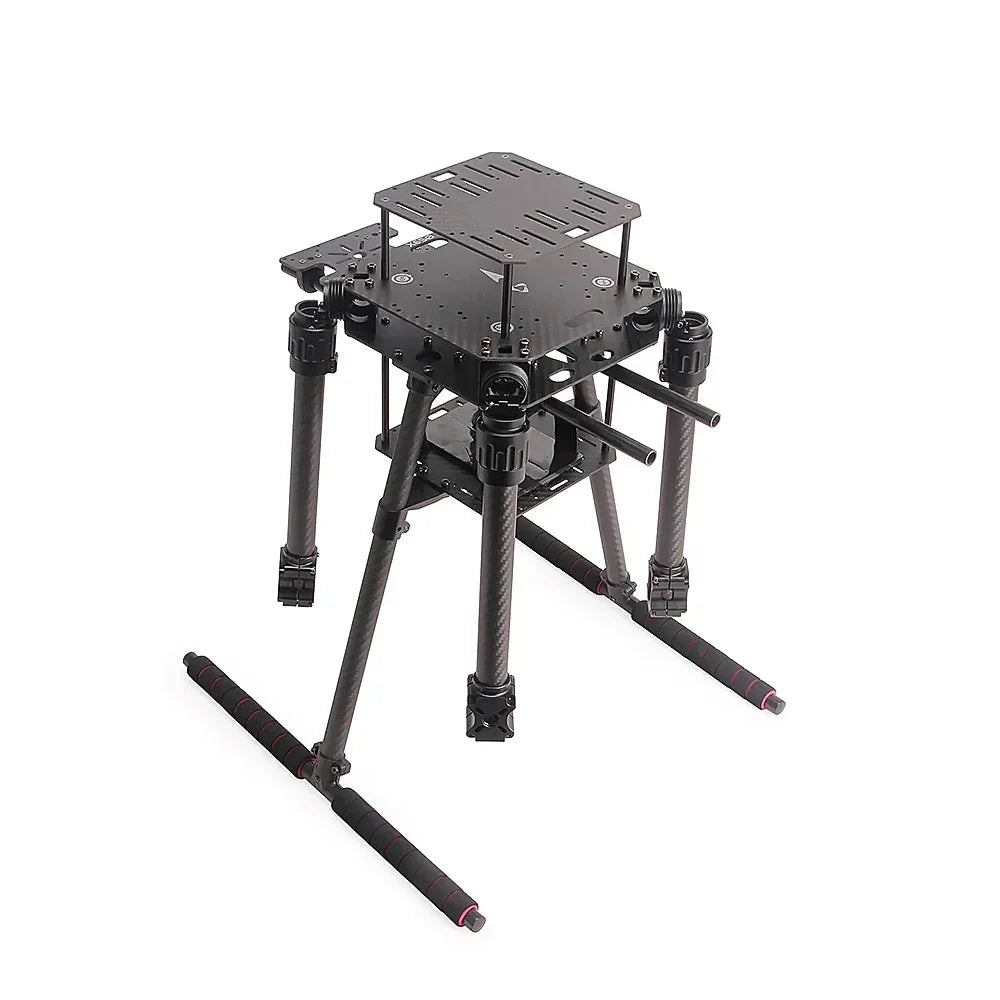

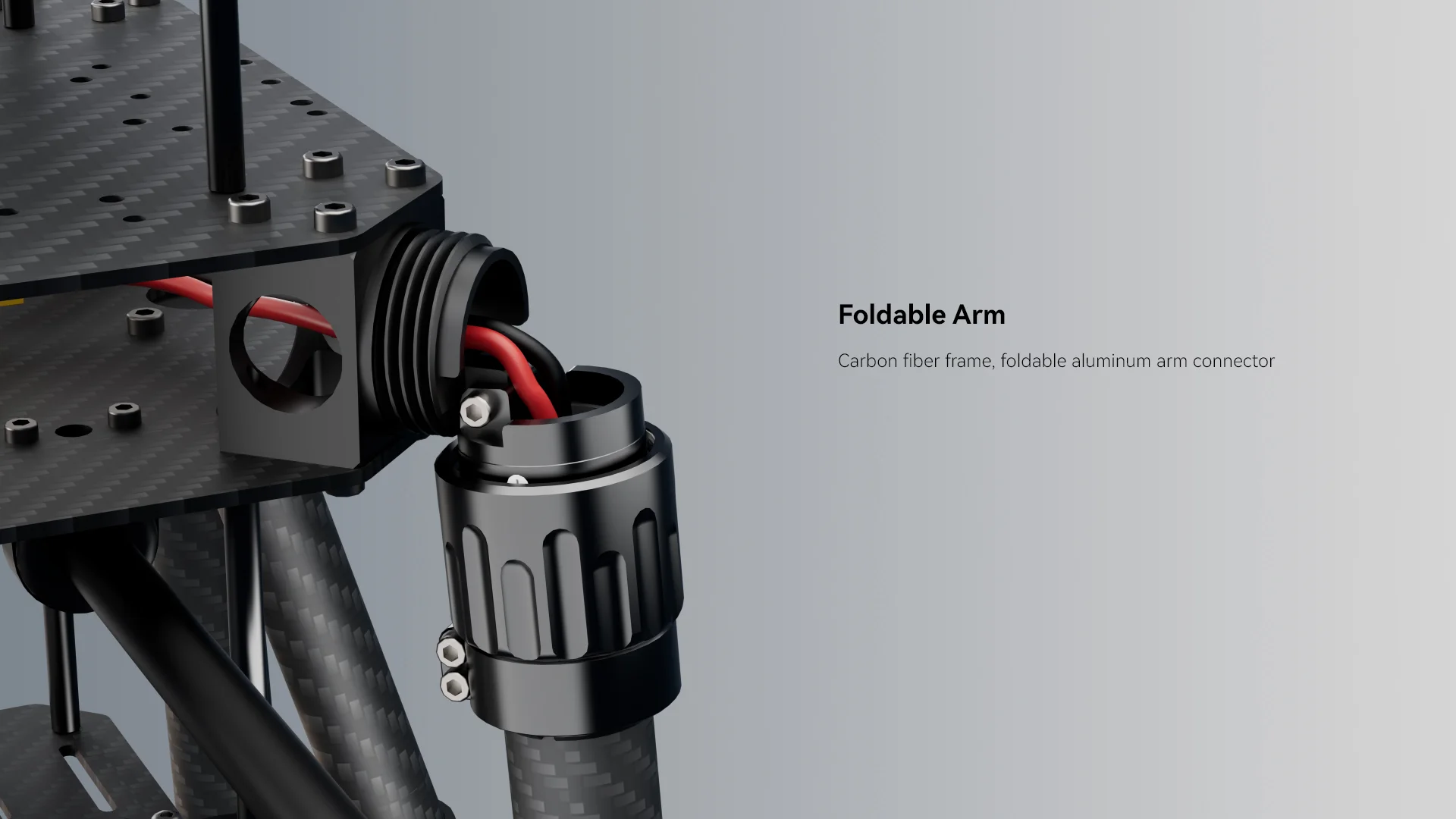

• Carbon Fiber frame with foldable aluminum arm connector

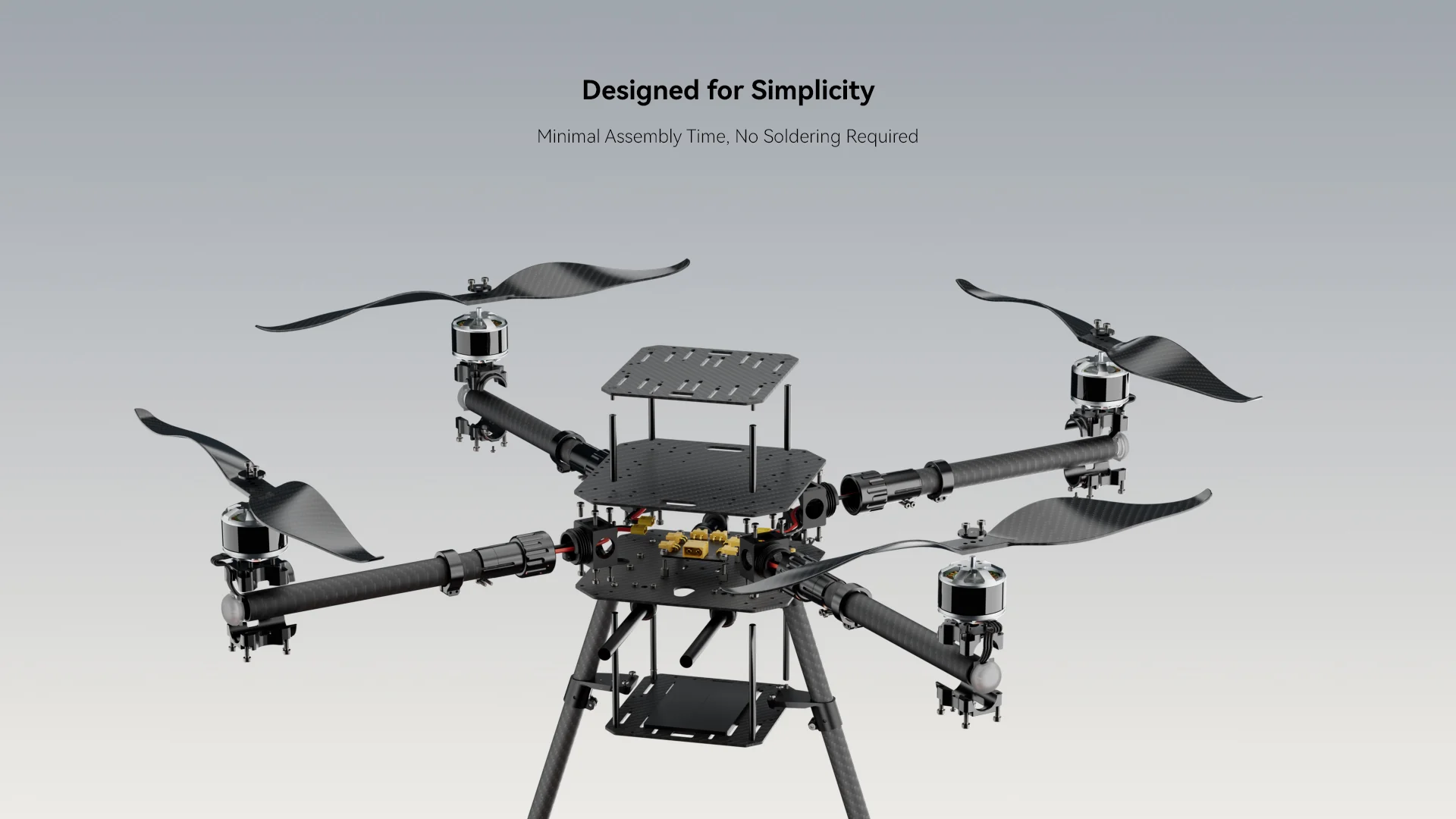

• New frame design with minimal assembly time, no soldering required

• Easy & straightforward installation

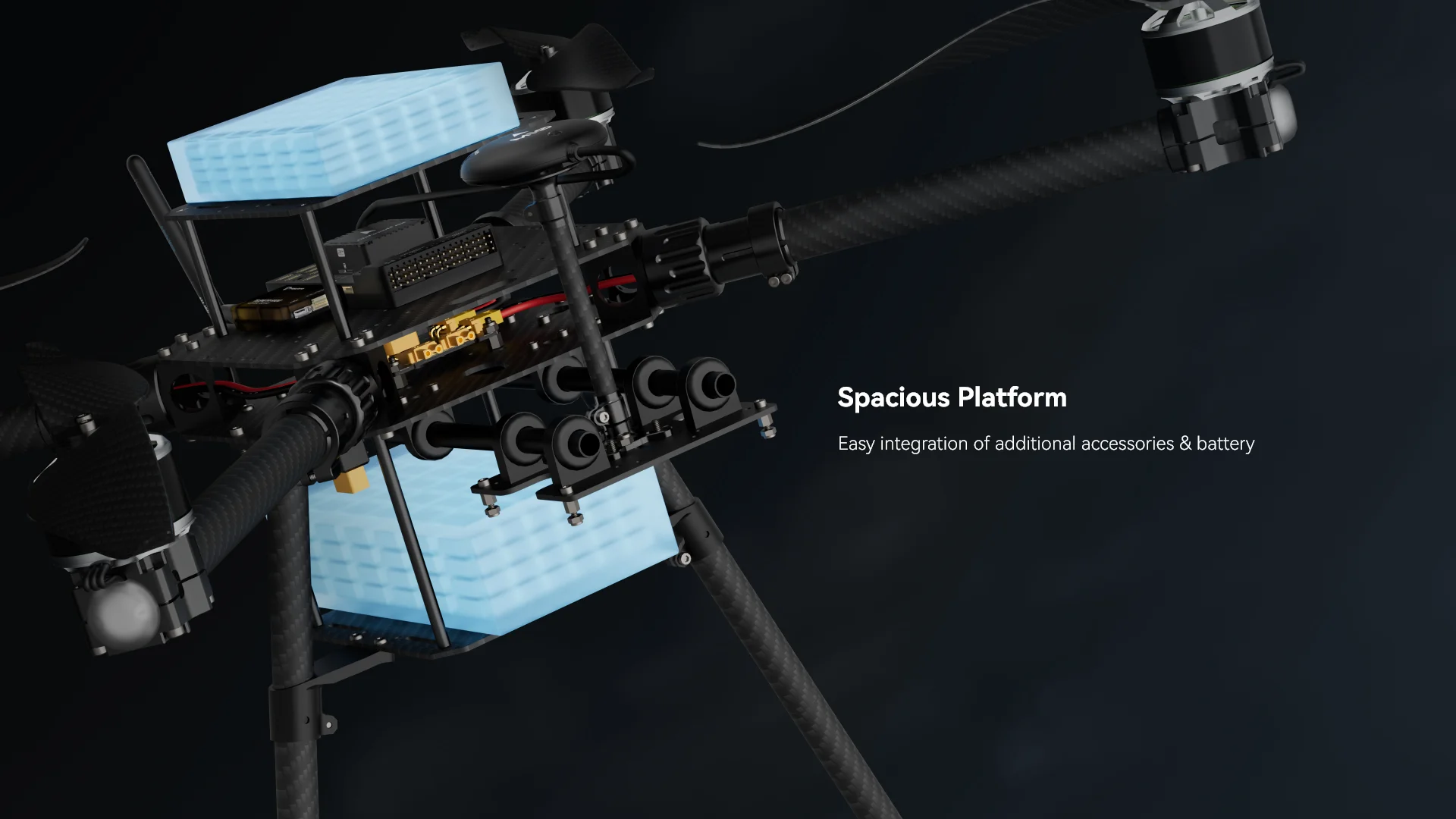

• Spacious platform for easy integration of additional accessories & battery

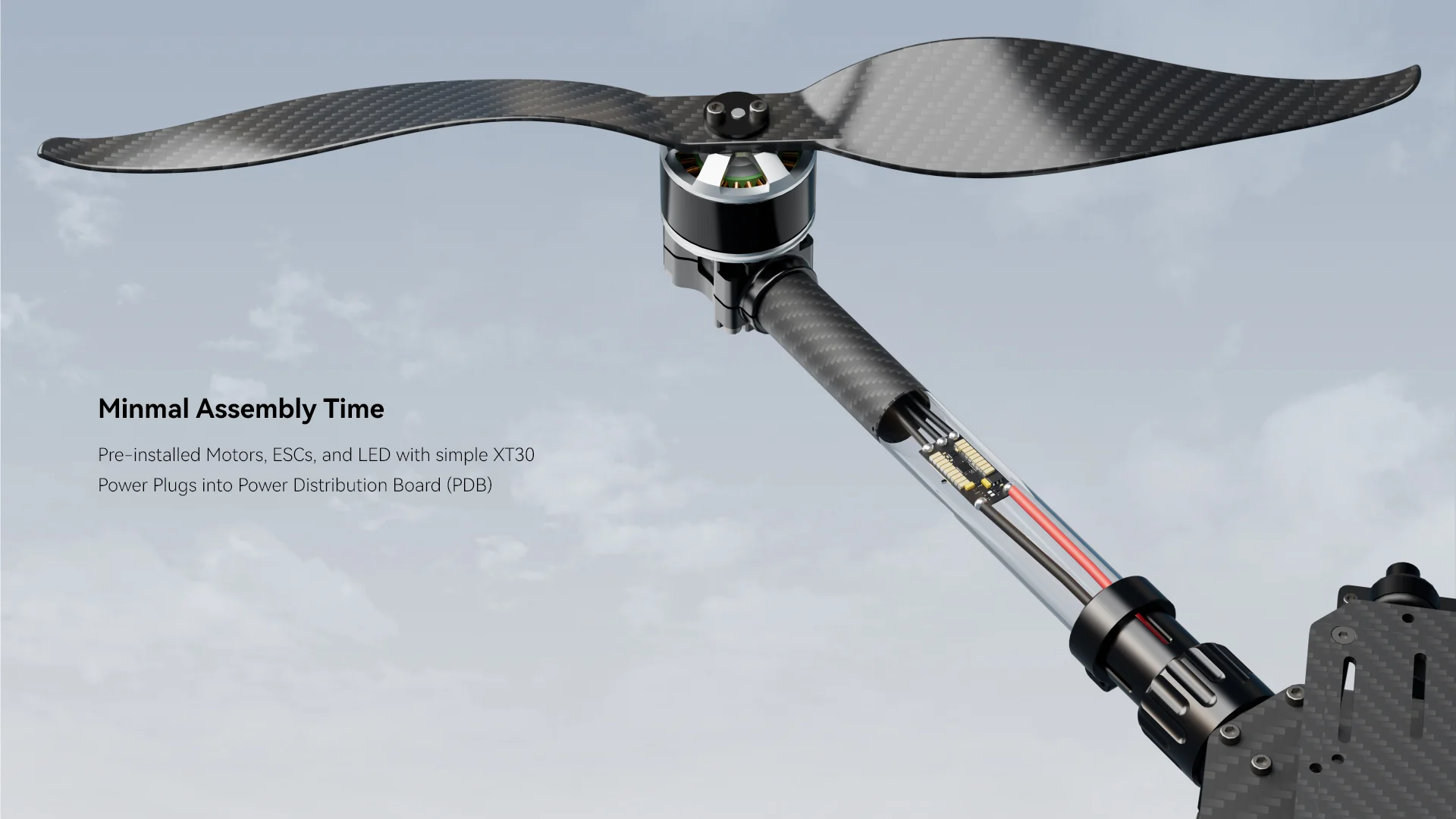

• Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB

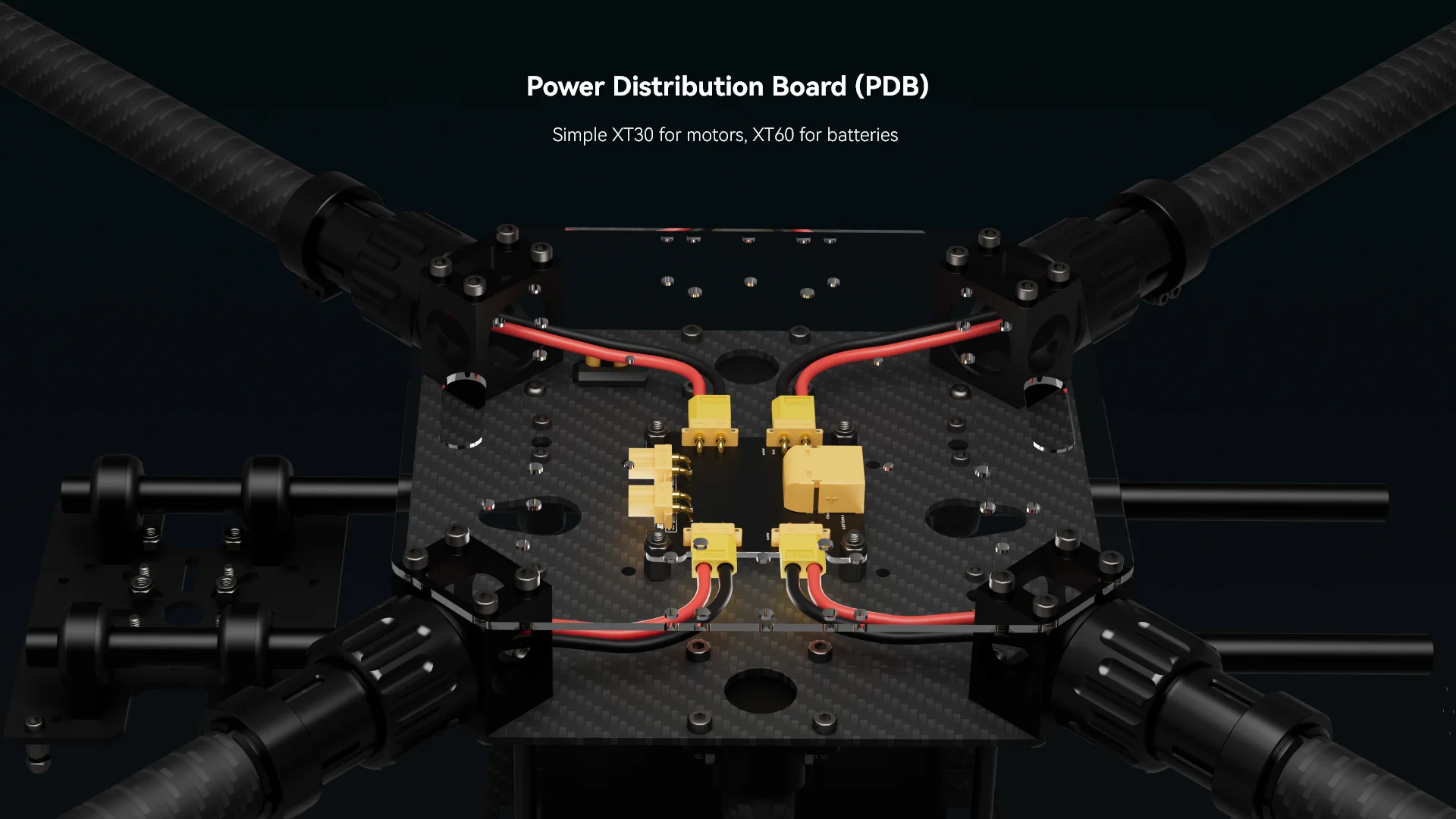

• Power distribution board (PDB) with XT60 & XT30 plugs

• Optional depth camera mount for Intel RealSense depth camera

• X650 V2 Frame Kit

• Preinstalled Items:

  • 4 Motors - Tmotor MN4014 KV330 Motor with XT30 Plug

  • 4 ESCs - Tekko32 F4 45A ESC with XT30 Plugs

  • 4 LED - NeoPixel WS2812 LED (Setup Instruction)

• Gemfan 1555 Carbon Fiber Propellers (4 pcs)

• Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)

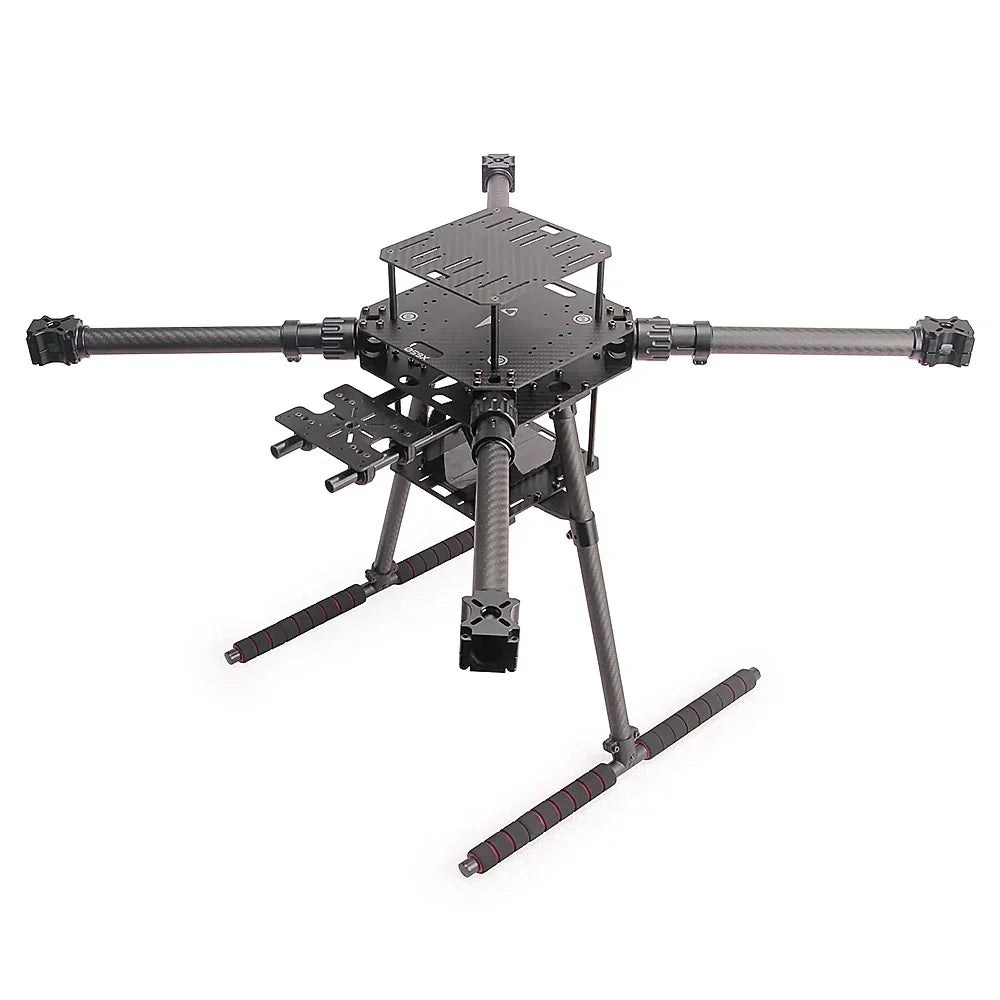

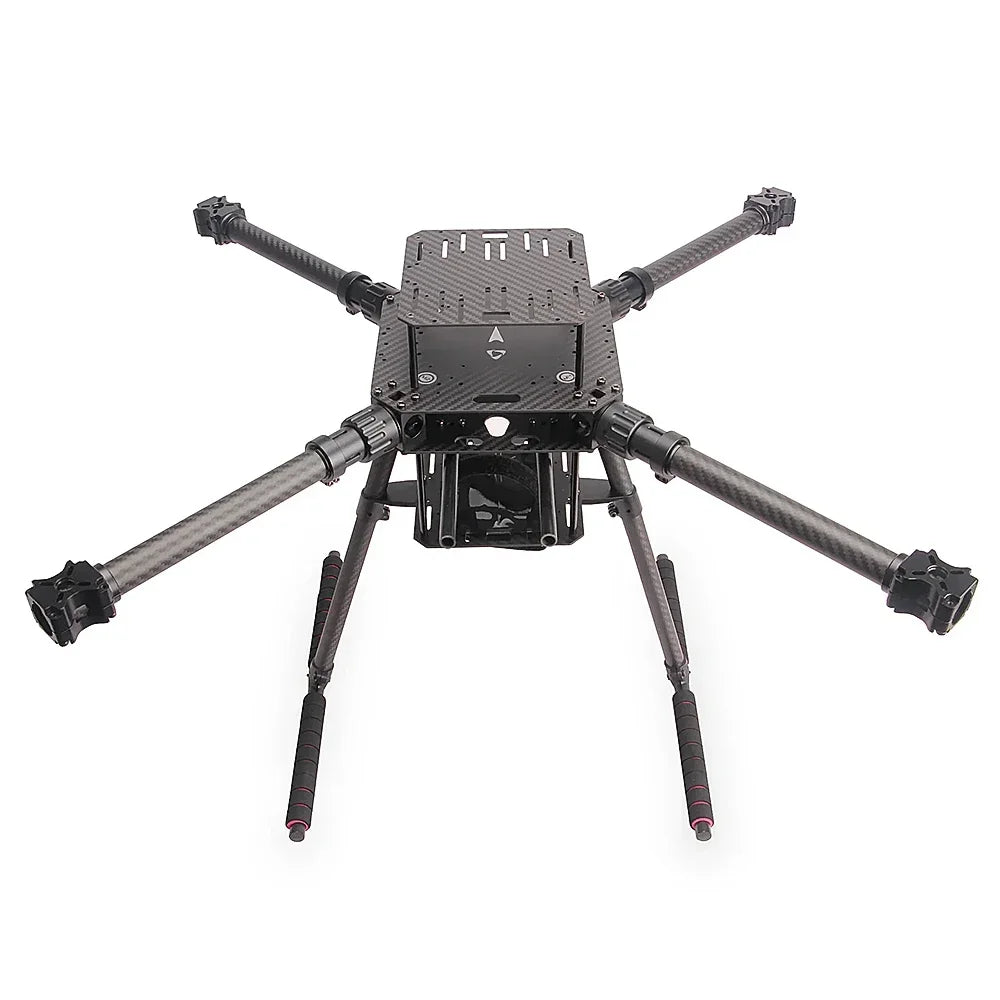

• X650 V2 Frame Only

• Wheelbase: 650mm

• Motor mount

  • Mount pattern: 16-25mm

• Body - Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)

• Arm - High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount

• Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.

• Upper & Battery Plate - 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.

• Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano

• Dual 10mm Ø rod x 320 mm long rail mounting system

• Two battery pads & Straps

• Hand tools for installation

• Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)

• Full Kit Weight: 2000g (without battery)

• Payload:

  • 4.3kg (without battery)

  • 3.5kg (with 5200mAh 750 gram battery)

  • 3.1kg (with 10000mAh 1200 gram battery)

• Takeoff Weight Limit: 6300g (70% throttle)

• Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)

Dimension

Recommendation Combination (Not Included):

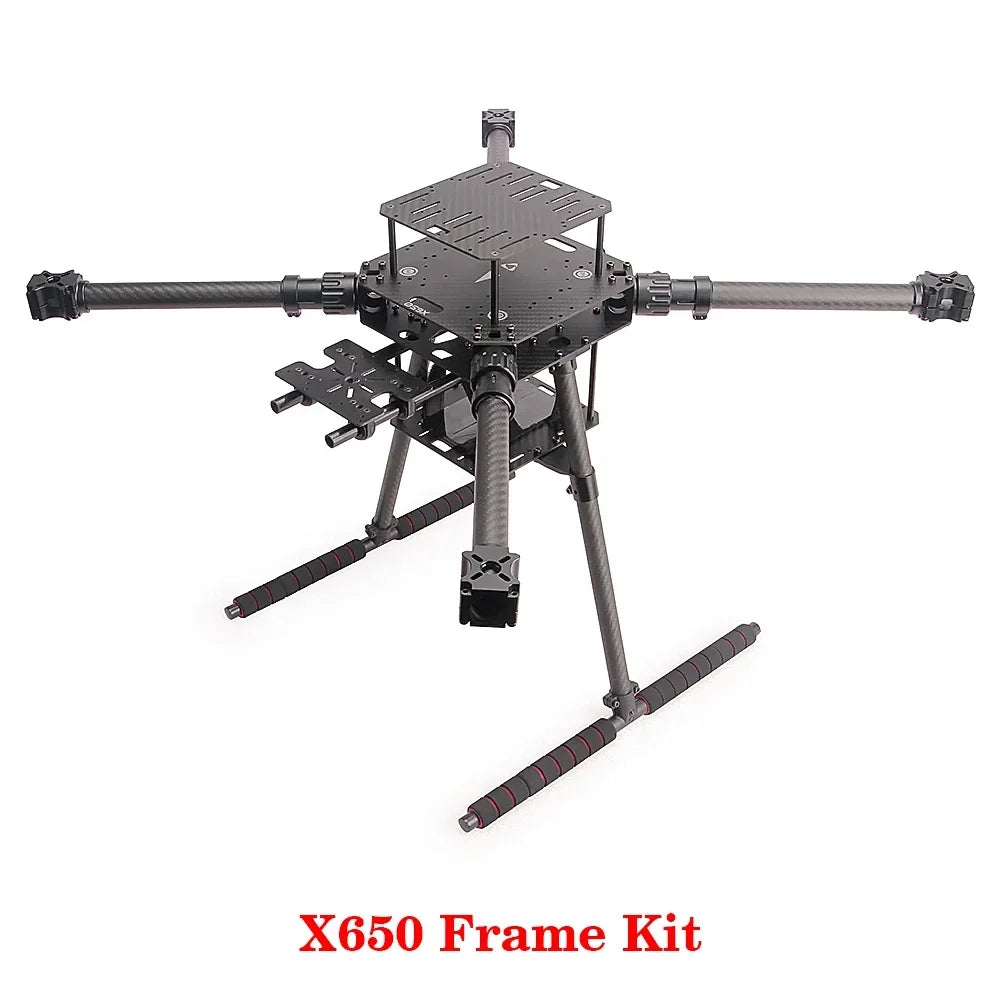

X650 Frame Kit

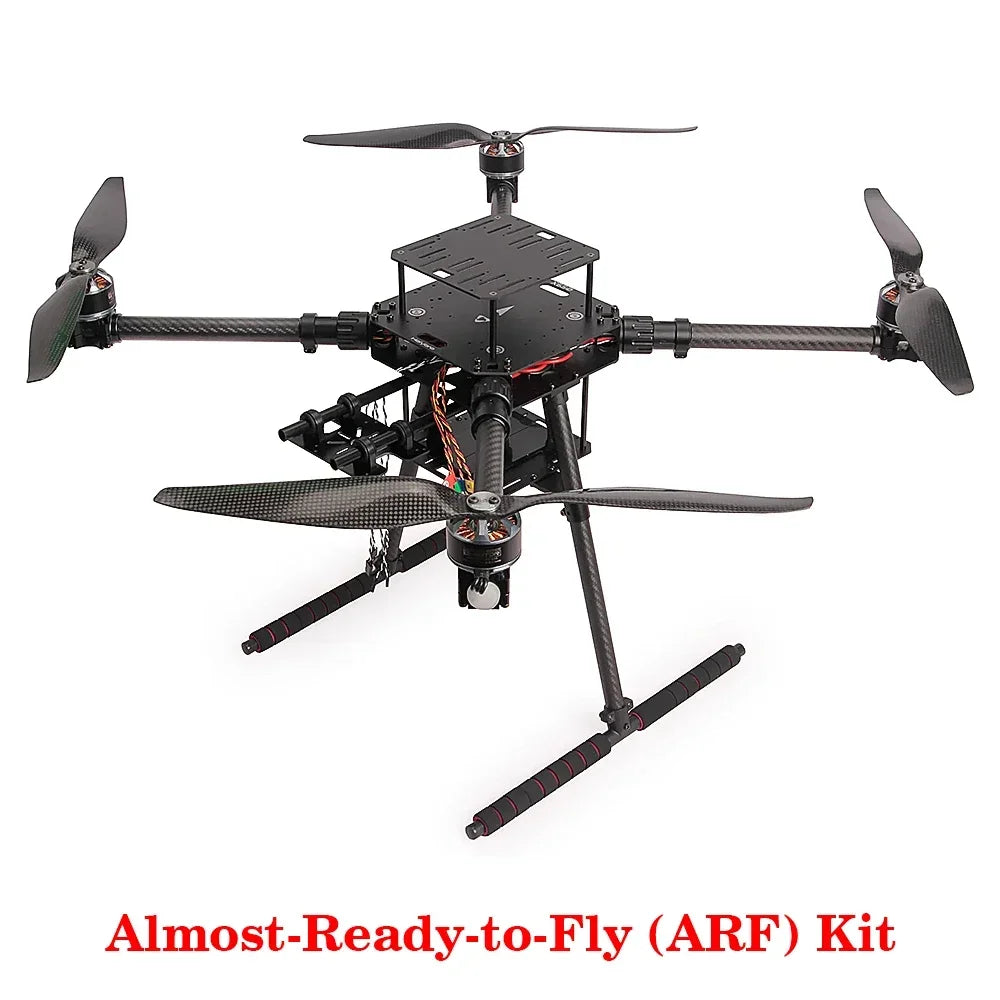

Almost-Ready-to-Fly(ARF) Kit
