IFlight Borg Mini H7 W/RX Stack (60R 4-IN-1 BL32 ESC)

• Introducing the All-New Borg Series – Power Meets Precision!

• The Borg Mini H7 Flight Stack is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!

Flight Controller Features

• Supports 4S to 8S battery inputs, offering versatility for various racing setups.
• Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
• FPC cables ensure secure connections with ESCs enhance reliability across.
• Onboard ELRS 2.4G receiver with external antenna, supports switching to external receivers.
• Onboard 4 LED strip interfaces with short-circuit protection, so an LED short circuit will not affect flight controller operation.

ESC Features

• Support 4- 8S Battery Input for versatile power options.
• 6-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
• Integrated Anti-Spark Filter protects your equipment from voltage spikes.
• Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.

Flight Controller Specifications

• Product Name: Borg Mini H7 Flight Controller  - SMD Rx
• Input voltage: 4-8S; Support LIHV battery
• MCU: STM32H743VIH6
• Gyro: ICM42688
• OSD Chip: AT7456E（LGA）
• Flash: 32MB (Blackbox flash)
• UARTS: 5
• Motor outputs: 4
• I2C serial: Support
• VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
• LED controller: Yes
• Beeper pad: Yes
• Betaflight Firmware target: IFLIGHT_BORG_Mini_H7
• Mount pattern: 20*20 φ4
• Dimensions: 36*27mm±1
• Weight: 7.7g±1
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

SMD Receiver Specifications

• MCU: ESP8285
• RF: SX1281
• Receiver Type: 2.4GHz
• Telemetry power: 100mW (20dBm)
• LNA: YES
• Lua Script: iFlight 2400 RX
• TCXO: Yes
• Firmware: iFlight2.4GHz_2400_RX

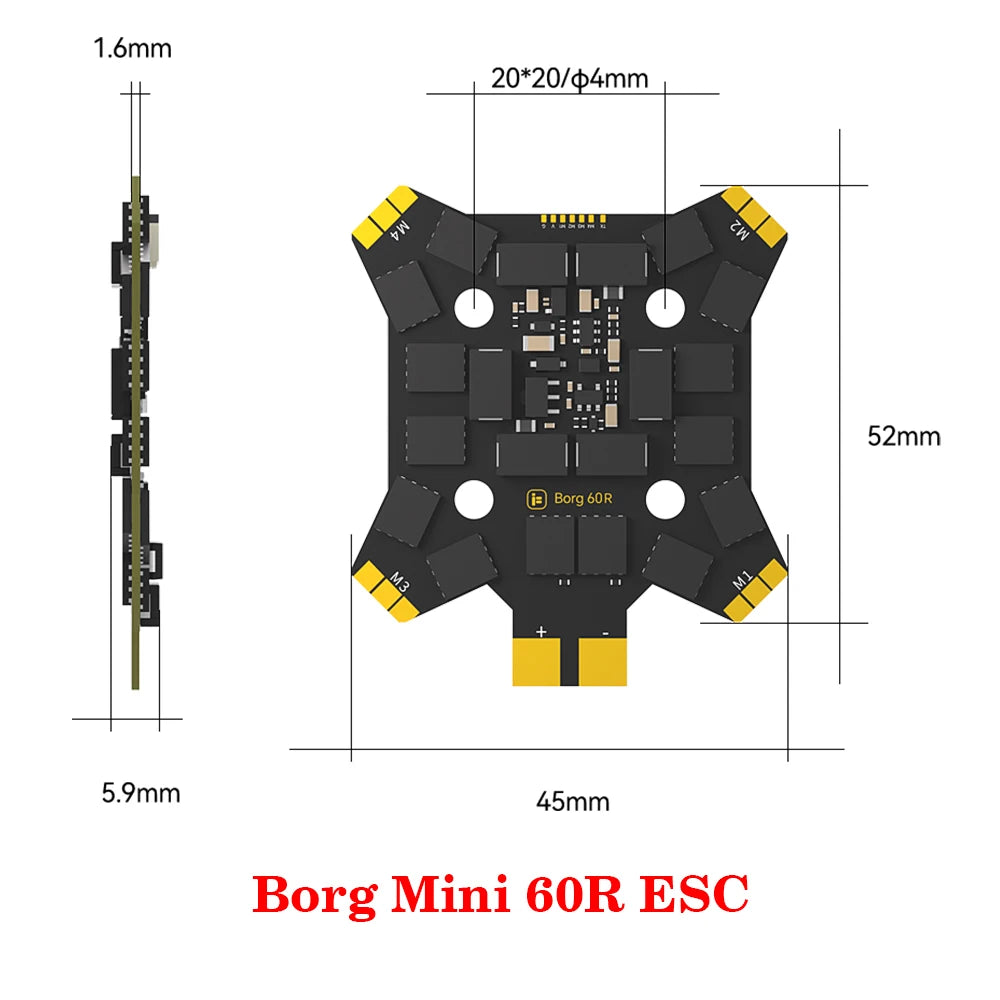

ESC Specifications

• Product Name: Borg 60R ESC
• Input Voltage: 4-8S; Support LIHV battery
• Max. Continuous Current: 60A
• Max. Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32bit ESC)
• Target: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: No
• BEC: No
• Telemetry: Supported
• Bidirectional DSHOT: Supported
• Dimensions: 45*52mm±1
• Mounting Holes: 20 x20 mm/Φ4mm
• Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

• UART 1 for VTX HD / Analog
• UART 2 for ESC Telemet
• UART 4 for On-board Receiver
• UART 7 for GPS or other sensors that require a serial port
• UART 8 for GPS or other sensors that require a serial port

• 1 x Borg Mini H7 Flight Controller With SMD Receiver
• 1 x Borg 60R 4-in-1 ESC
• 1 x Cable set
• 5 x silicon grommets

• resource PINIO 1 PD10
• set pinio_config = 1,1,1,1
• set pinio_box = 40,41,255,255
• set box_user_1_name = VTX_ON_OFF
• aux 0 40 8 900 2100 0 0
• save
