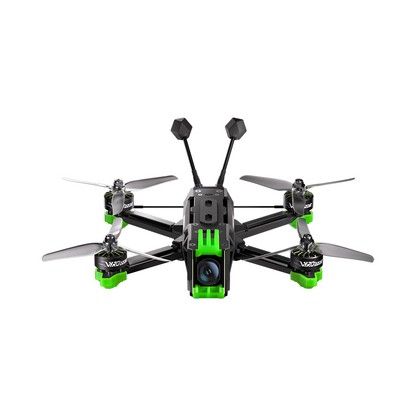

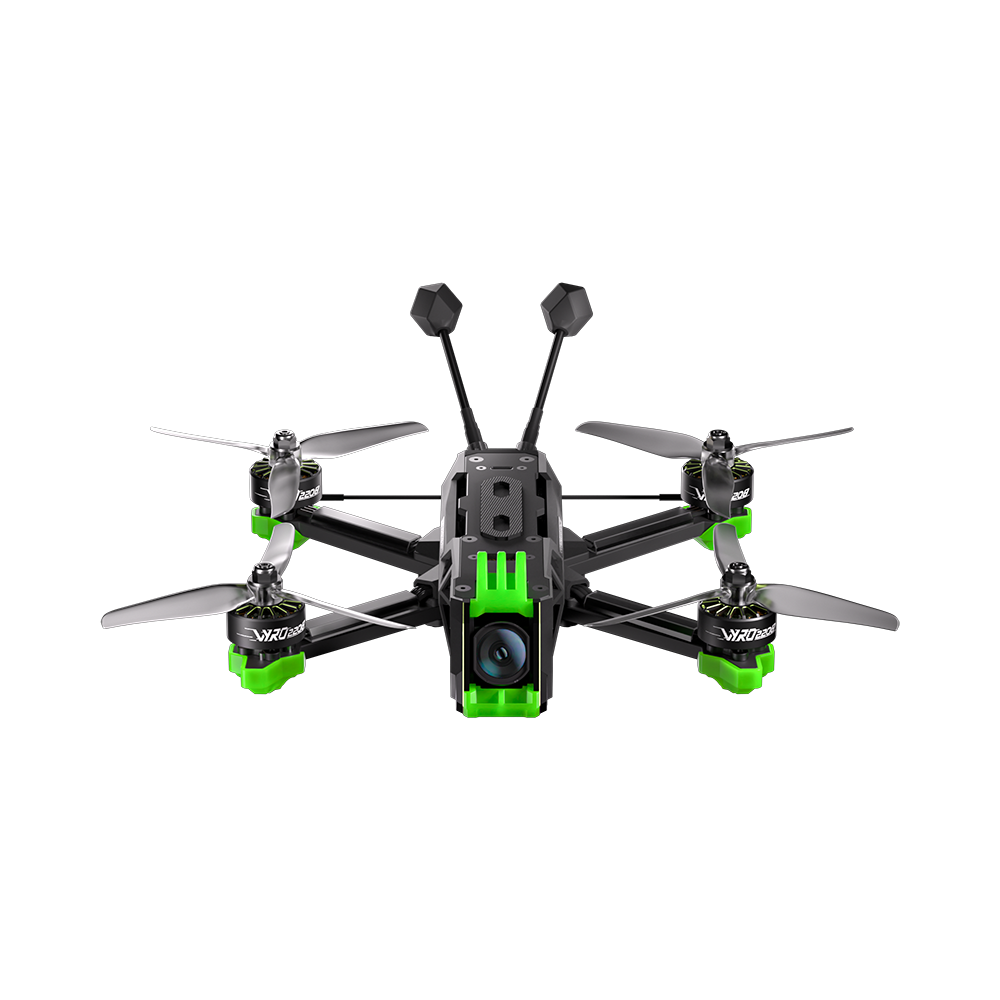

IFlight TITAN X5 O4 6S HD Kit

The X5 features reinforced 6mm arms and a squashed X layout for agile Freestyle handling and a clear HD view with no props in sight. Powerful and responsive, it handles high-speed chases, rapid climbs, and freestyle combos with ease.

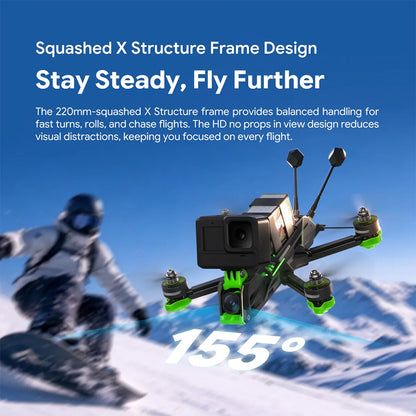

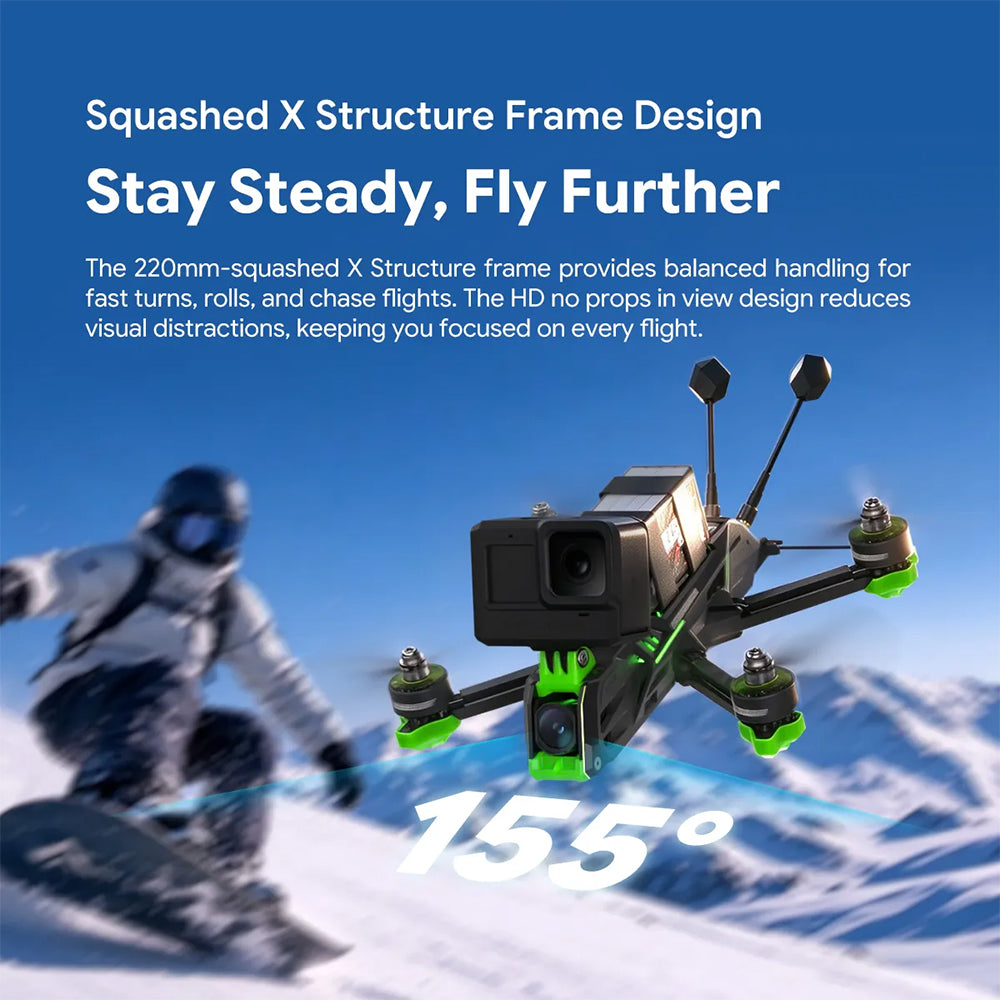

Stay Steady, Fly Freely

The 220mm-squashed X  frame provides balanced handling for fast turns, rolls, and chase flights. The HD no props in view design reduces visual distractions, keeping you focused on every flight.

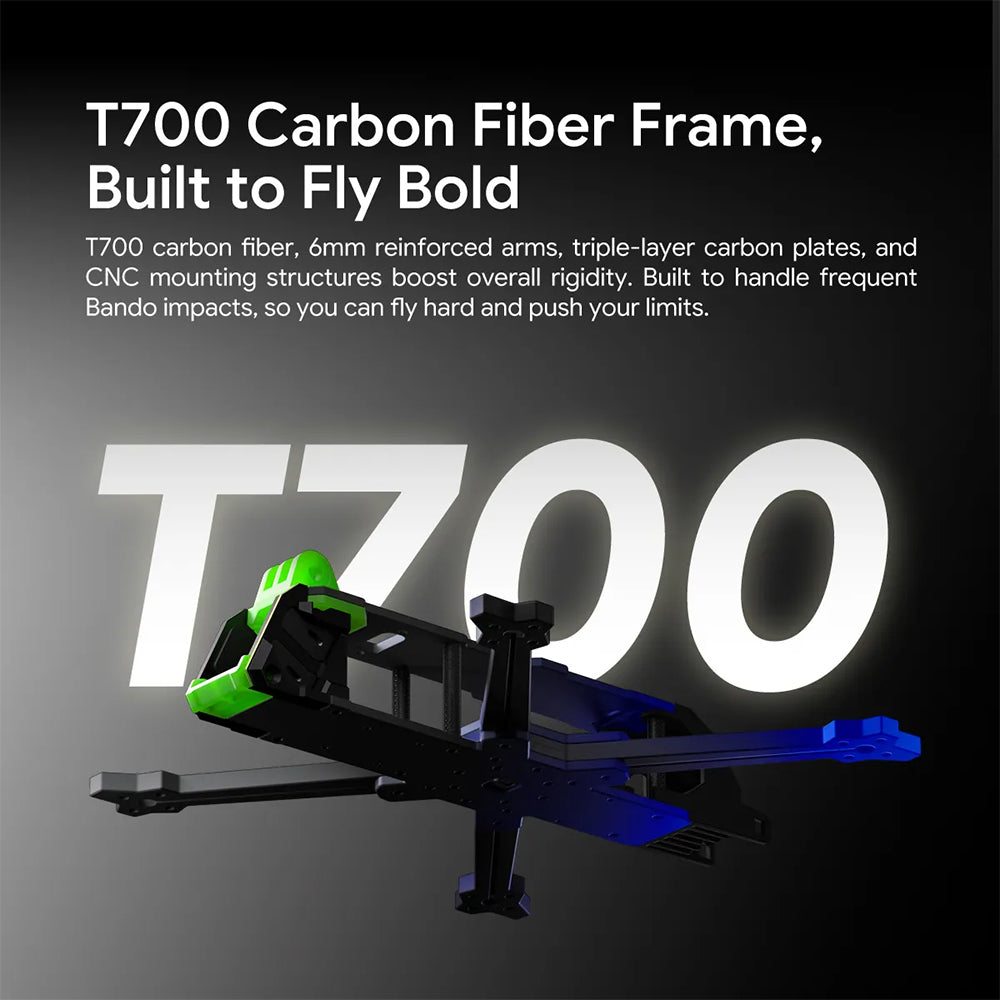

T700 Carbon Fiber Frame, Built to Fly Bold

T700 carbon fiber, 6mm reinforced arms, triple-layer carbon plates, and CNC mounting structures boost overall rigidity. Built to handle frequent Bando impacts, so you can fly hard and push your limits.

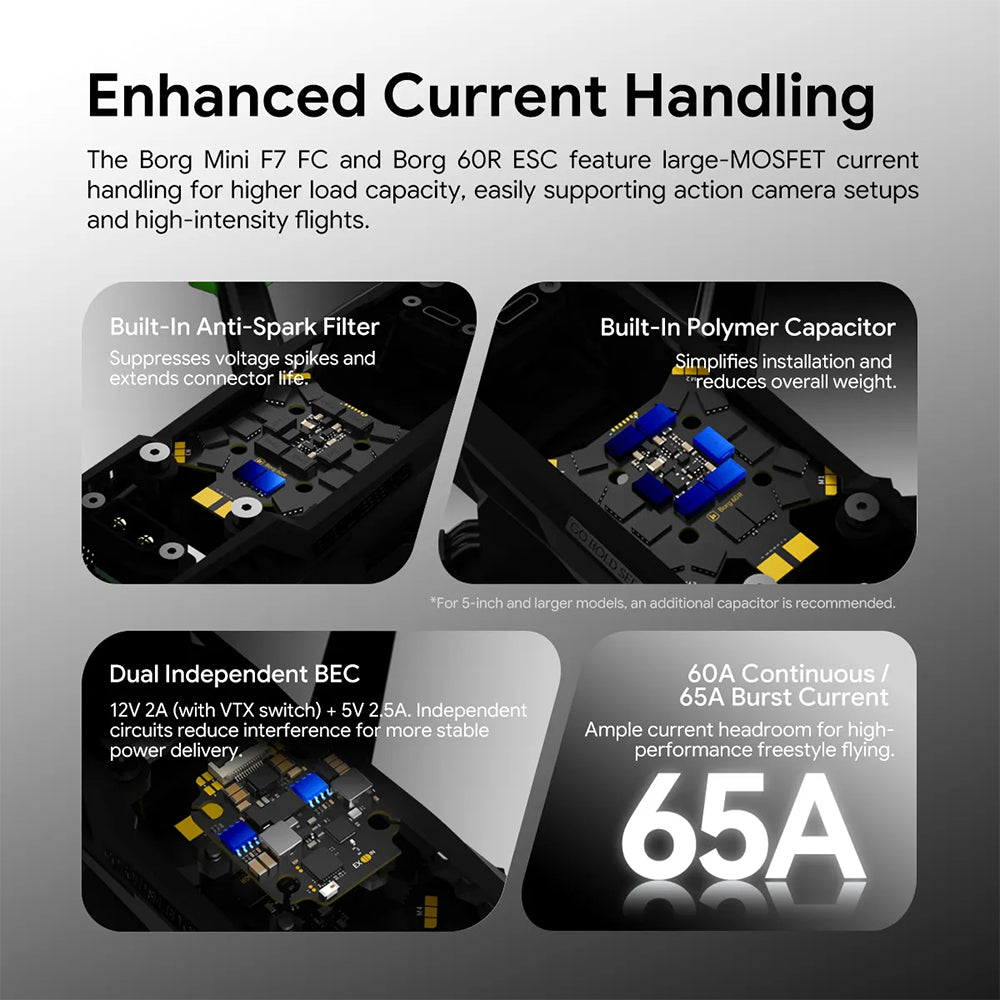

Enhanced Current Handling

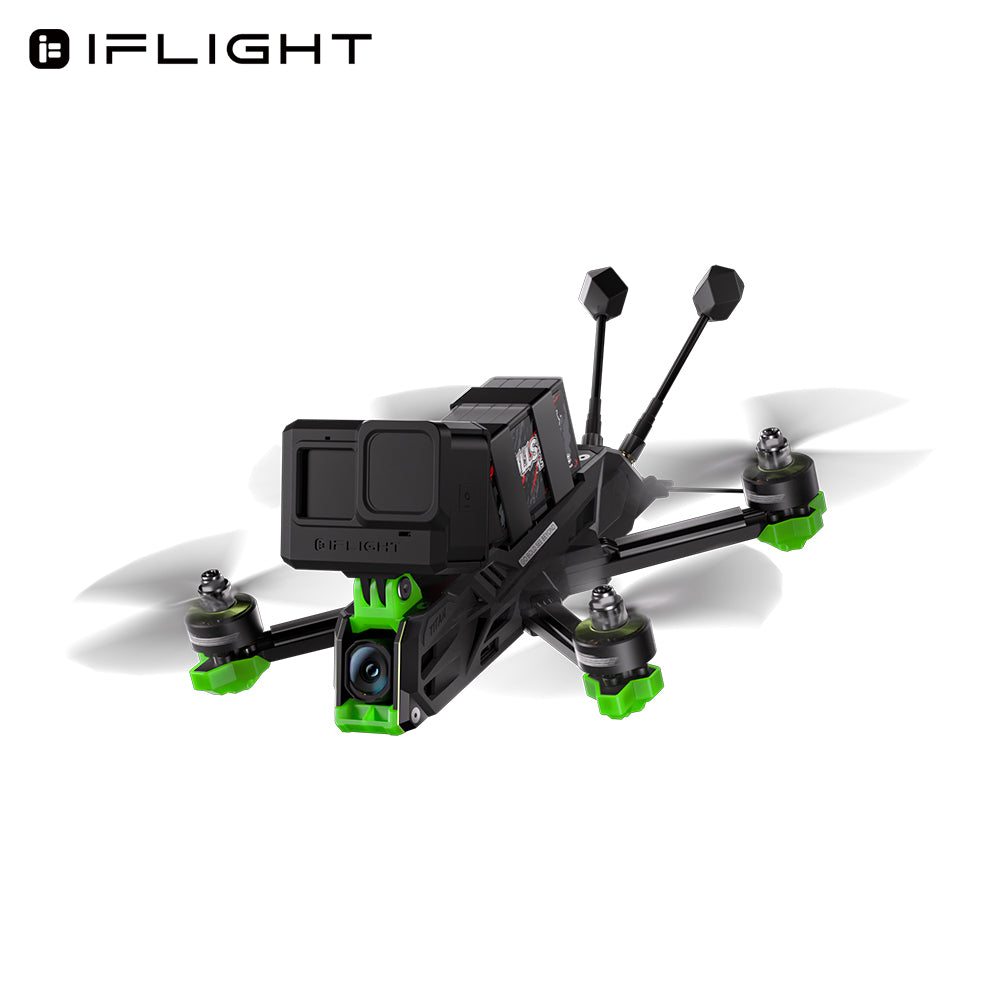

The Borg Mini F7 FC and Borg 60R ESC feature large-MOSFET current handling for higher load capacity, easily supporting action camera setups and high-intensity flights.

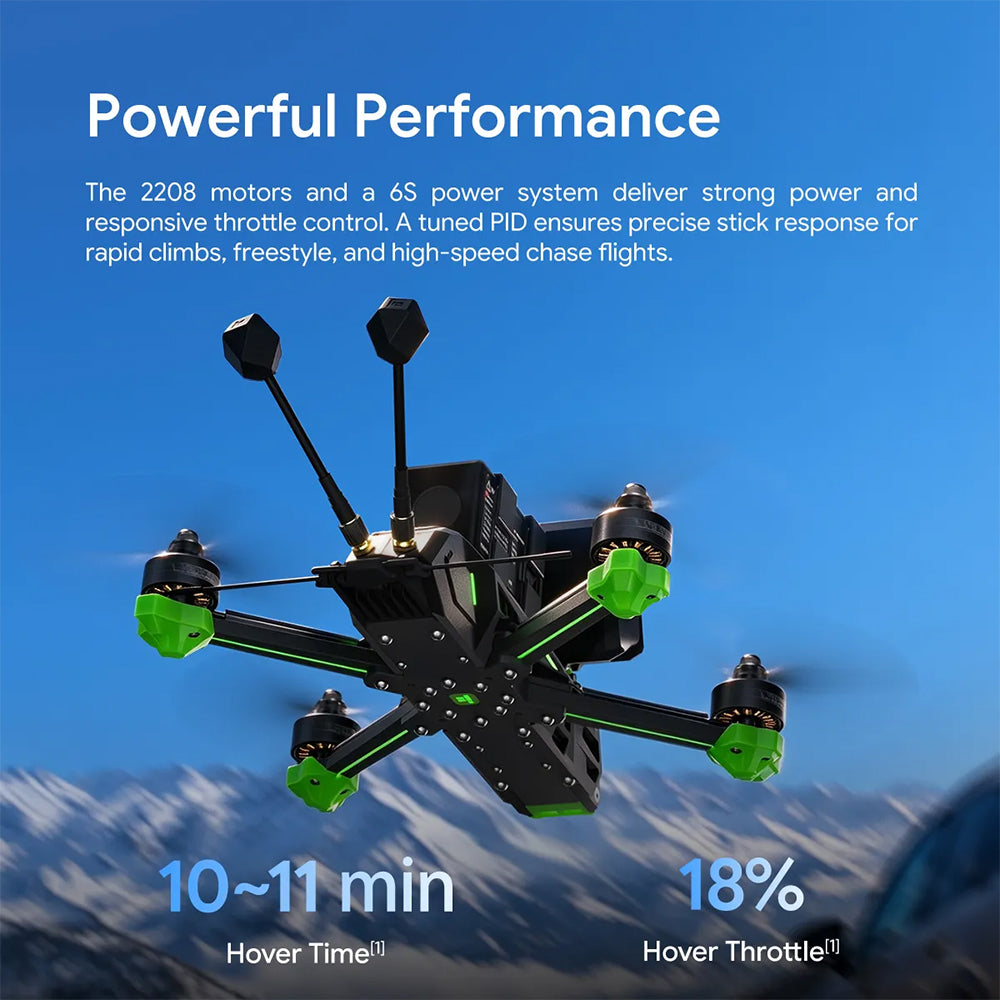

Powerful Performance

The 2208 motors and a 6S power system deliver strong power and responsive throttle control. A tuned PID ensures precise stick response for rapid climbs, freestyle, and high-speed chase flights.

DJI O4 Air Unit Pro, Fly Freely, Capture It All

The 1/1.3-inch  image sensor delivers enhanced low-light performance for clear footage day and night. With 4K resolution and a 155° ultra-wide FOV, it captures immersive, high-speed flight footage, from freestyle tricks to outdoor cruising.

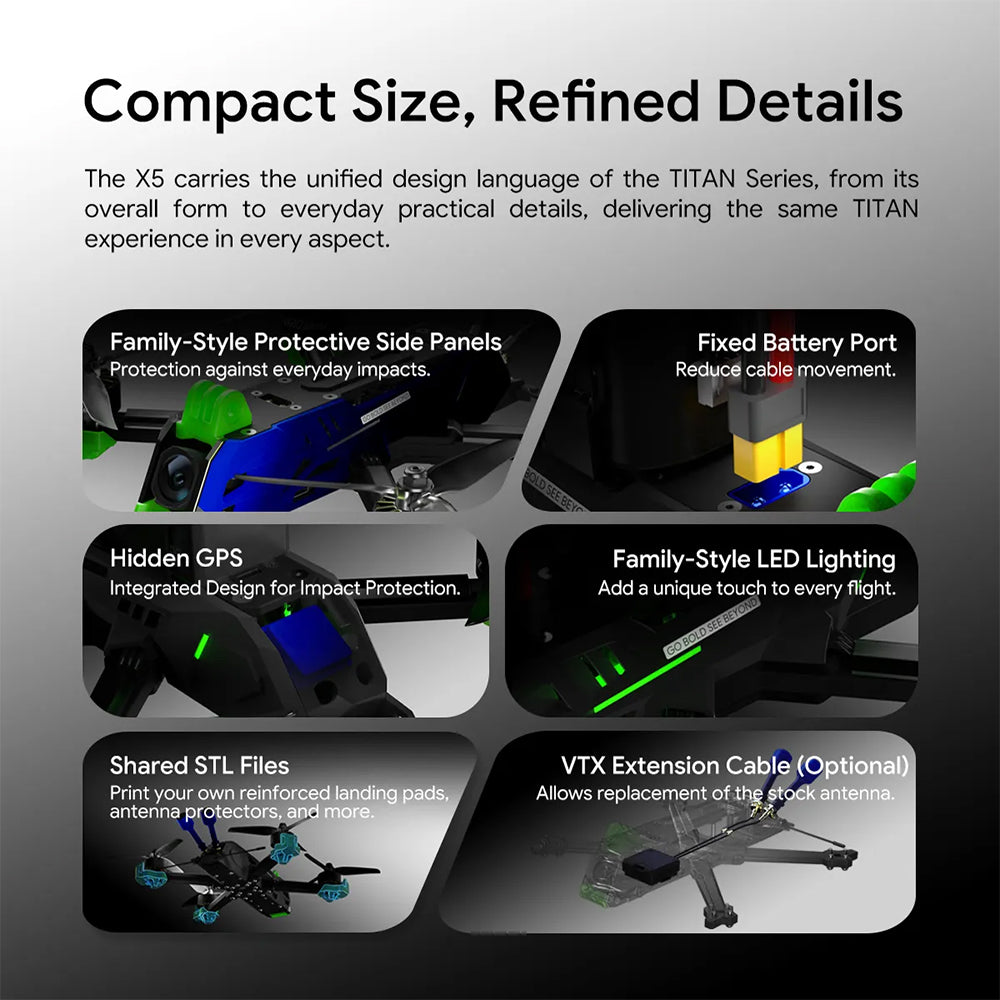

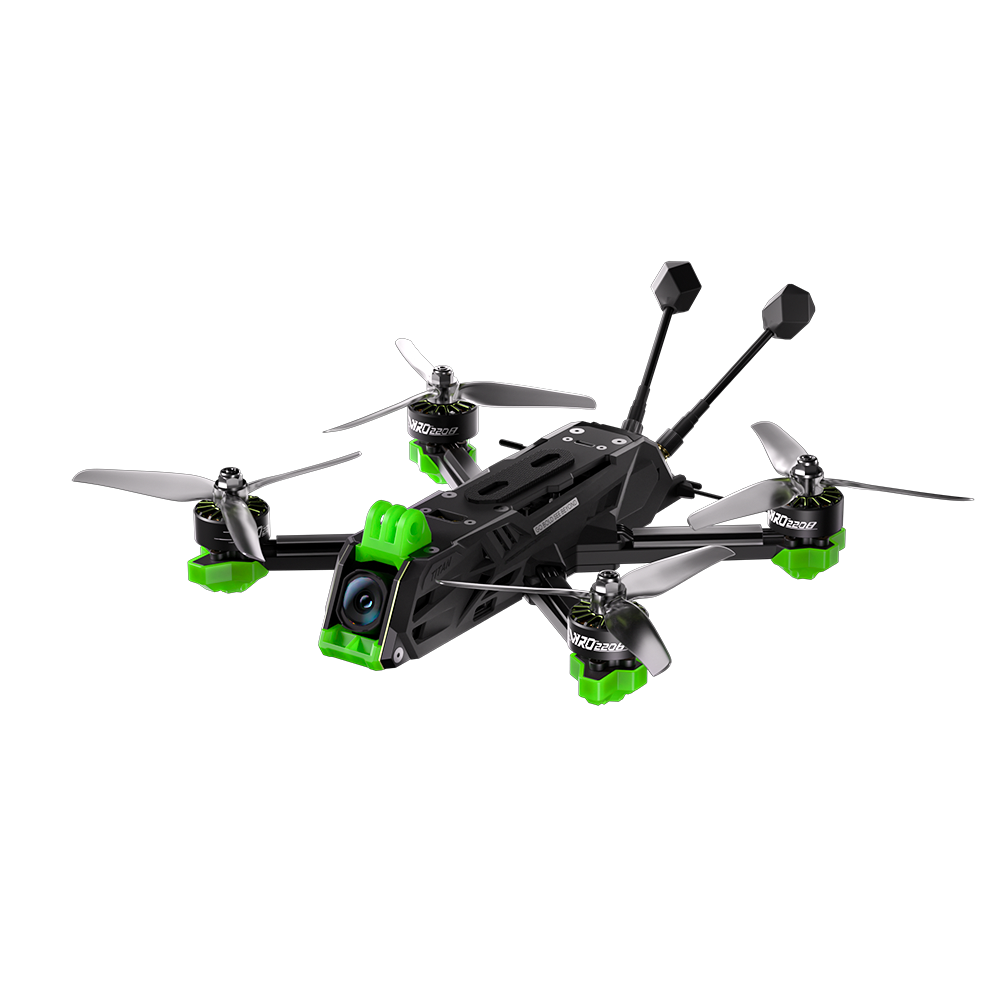

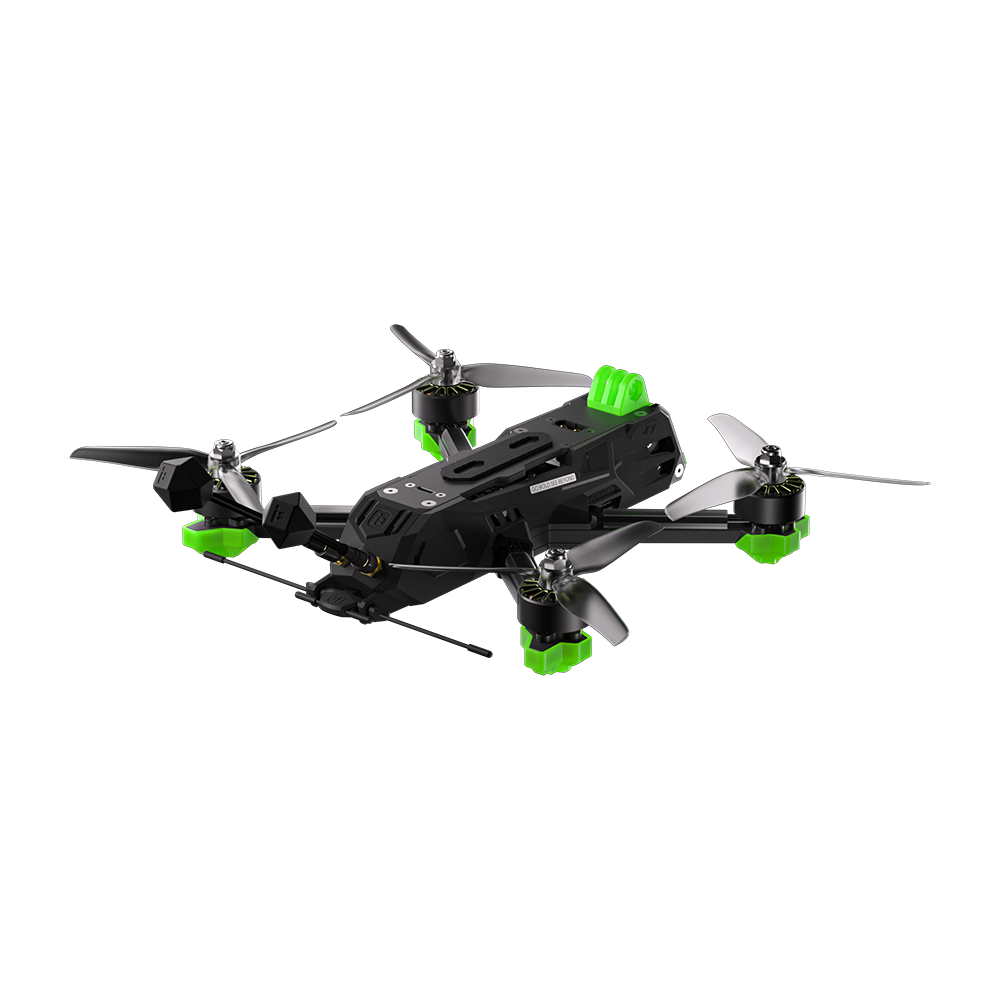

Compact Size, Refined Details.

The X5 carries the unified design language of the TITAN Series, from its overall form to everyday practical details, delivering the same TITAN experience in every aspect.

- Family-Style Protective Side Panels. Protection against everyday impacts.

- Fixed Battery Port. Reduces cable movement.

- Family-Style LED Lighting. Add a unique touch to every flight.

Shared STL Files

Print your own reinforced landing pads, antenna protectors, and more.

Product Name: TITAN X5

Geometry: Squashed X

FC: Borg Mini F7 Flight Controller

ESC: Borg 60R ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 220mm wheelbase

Motor: VYRO 2208 1950KV motors

Prop: HQProp J35 propellers

Weight: 520g±5g(Without Battery)

Takeoff Weight: Approx. 786g±5g (incl. 6S 1550mAh)

Dimensions (L×W×H): 296×303×85.3mm

Max Speed: 187km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 10.5min with 6S 1550mAh battery No Load

Max load: 200g

Operating Temperature Range: -10℃-40℃

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x TITAN X5 O4 HD

1 x Battery pad

2 x propeller(Pairs)

2 x Battery strap
