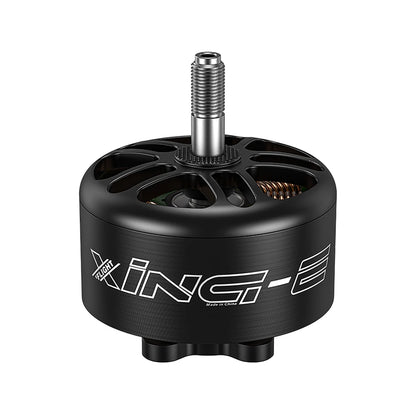

IFlight XING-E 3314 900KV Cinelifter Motor
IFlight XING-E 3314 900KV Cinelifter Motor
Regular price
$29.13 USD
Regular price
$0.00 USD
Sale price
$29.13 USD
369 in stock
Quantity
Couldn't load pickup availability

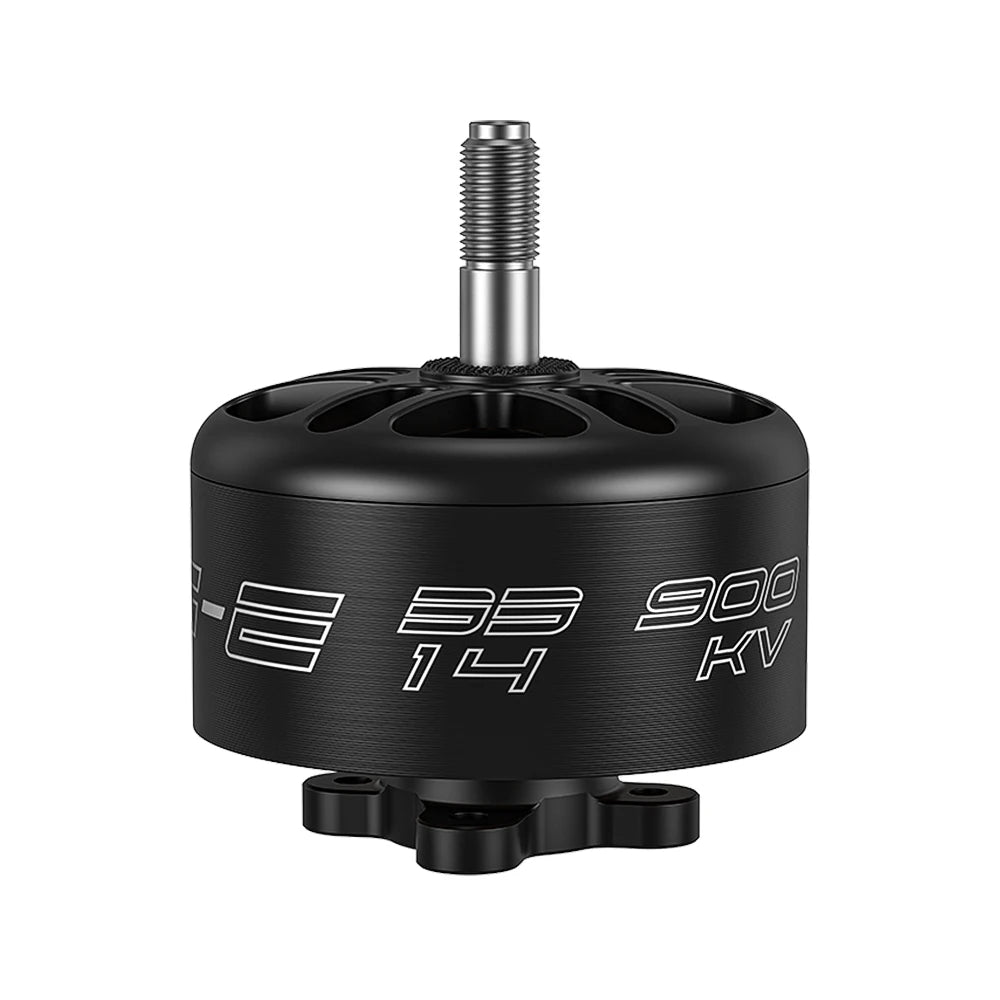

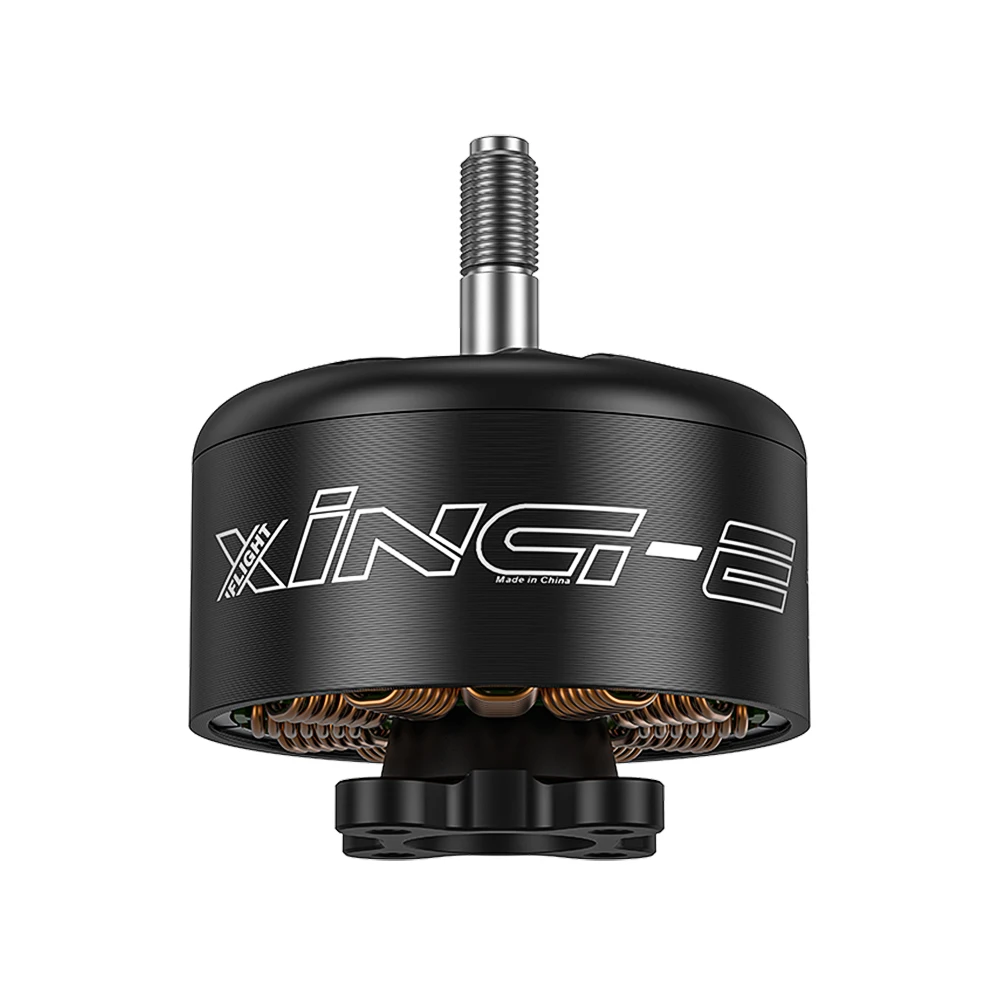

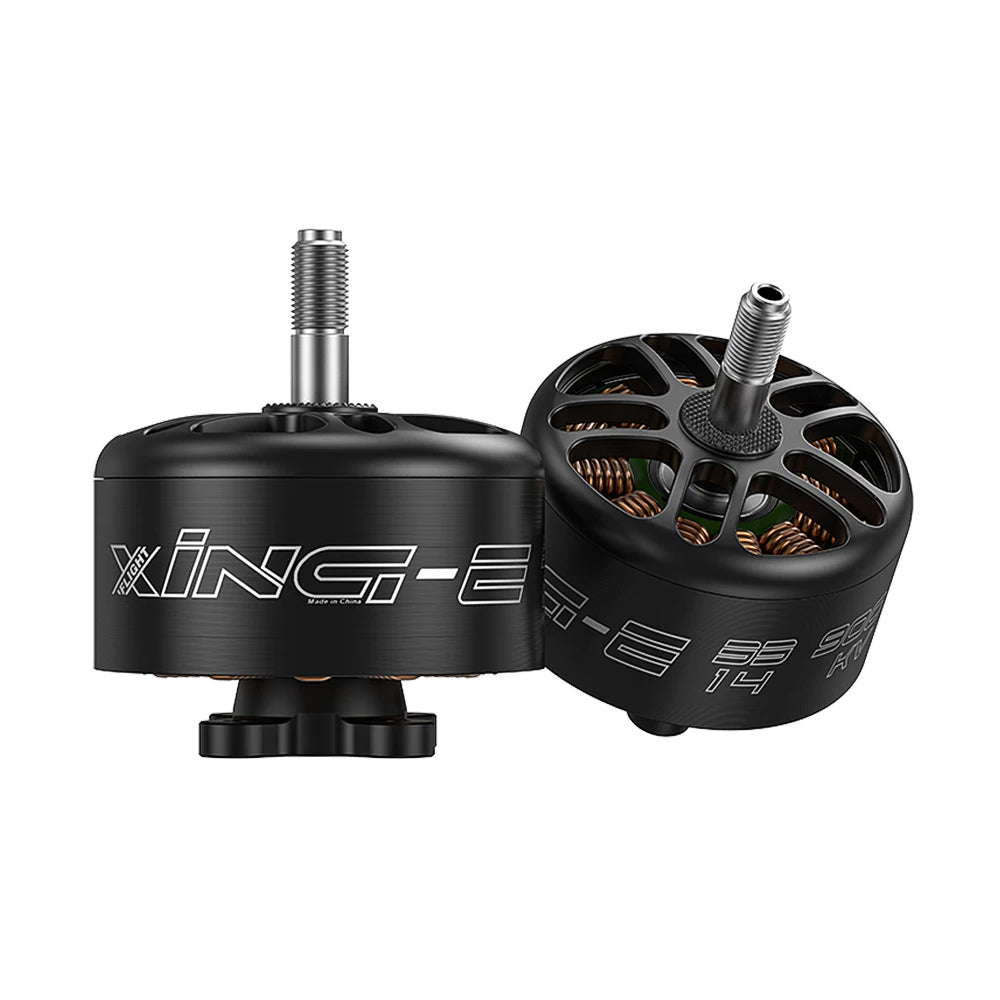

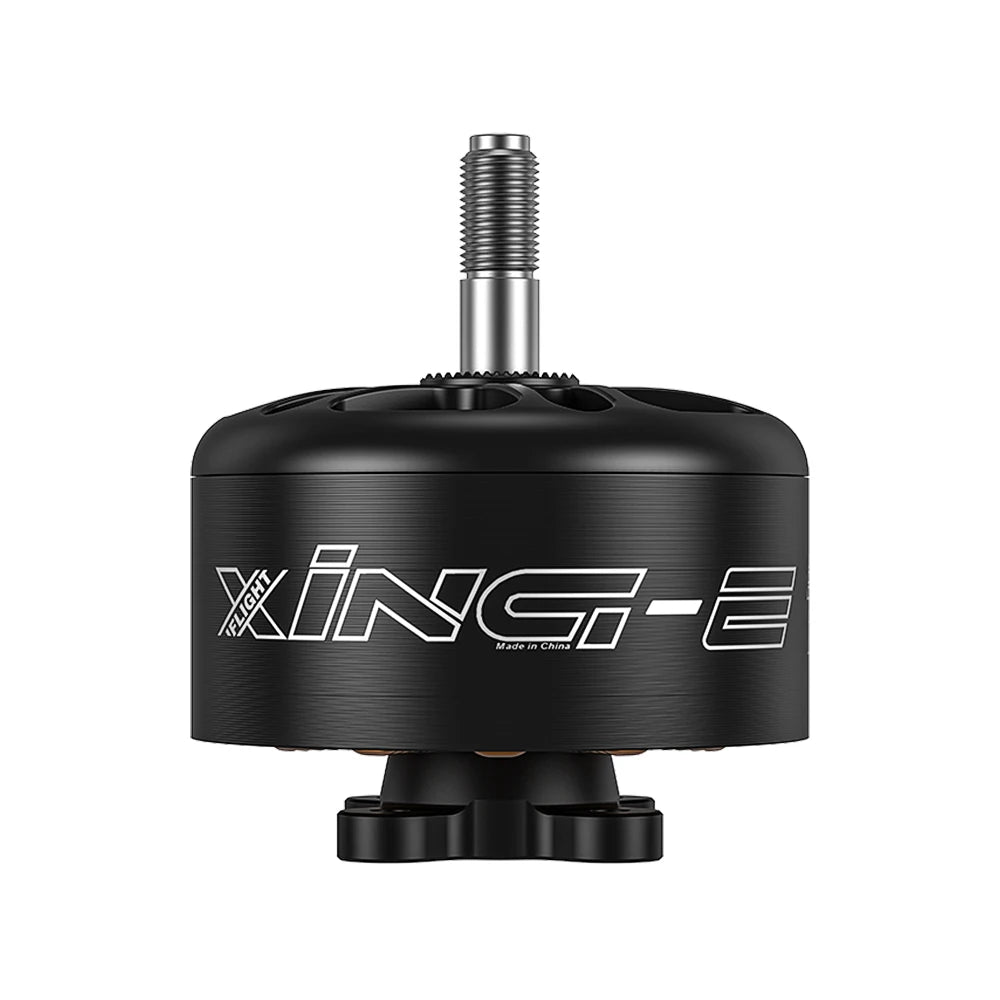

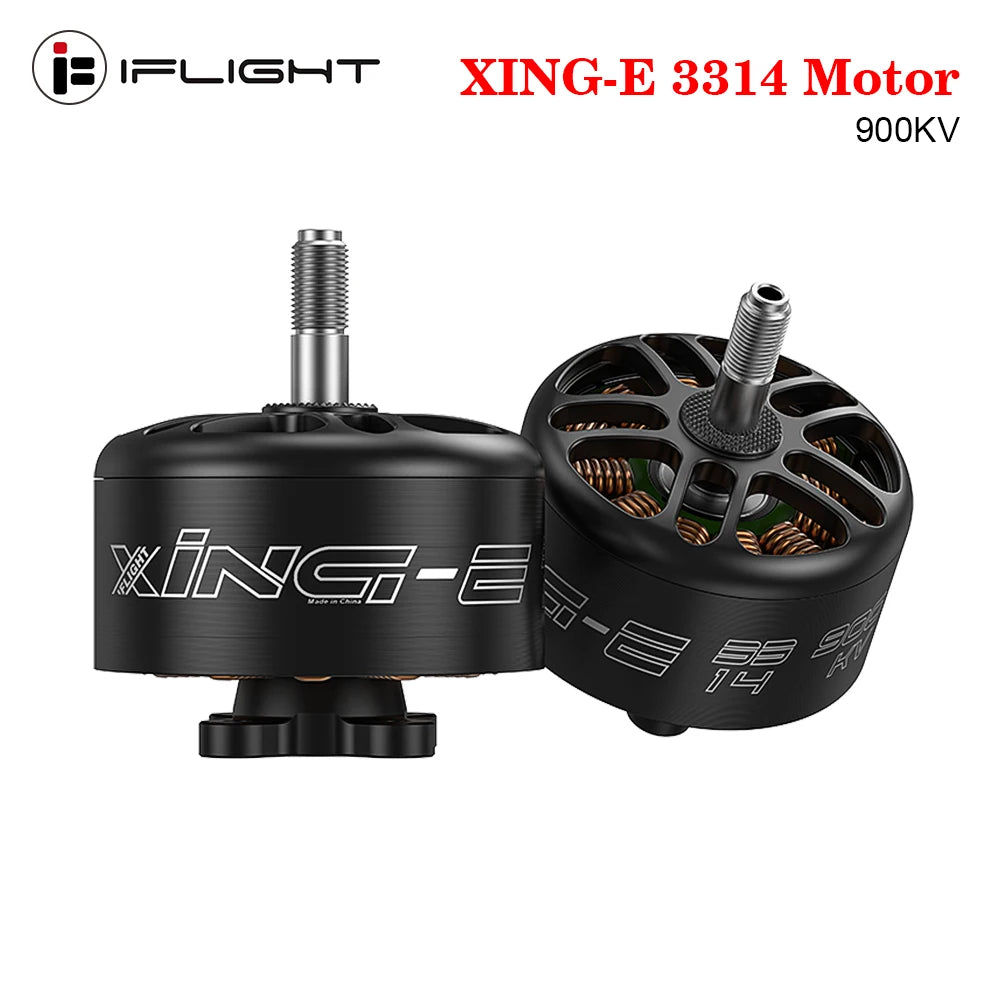

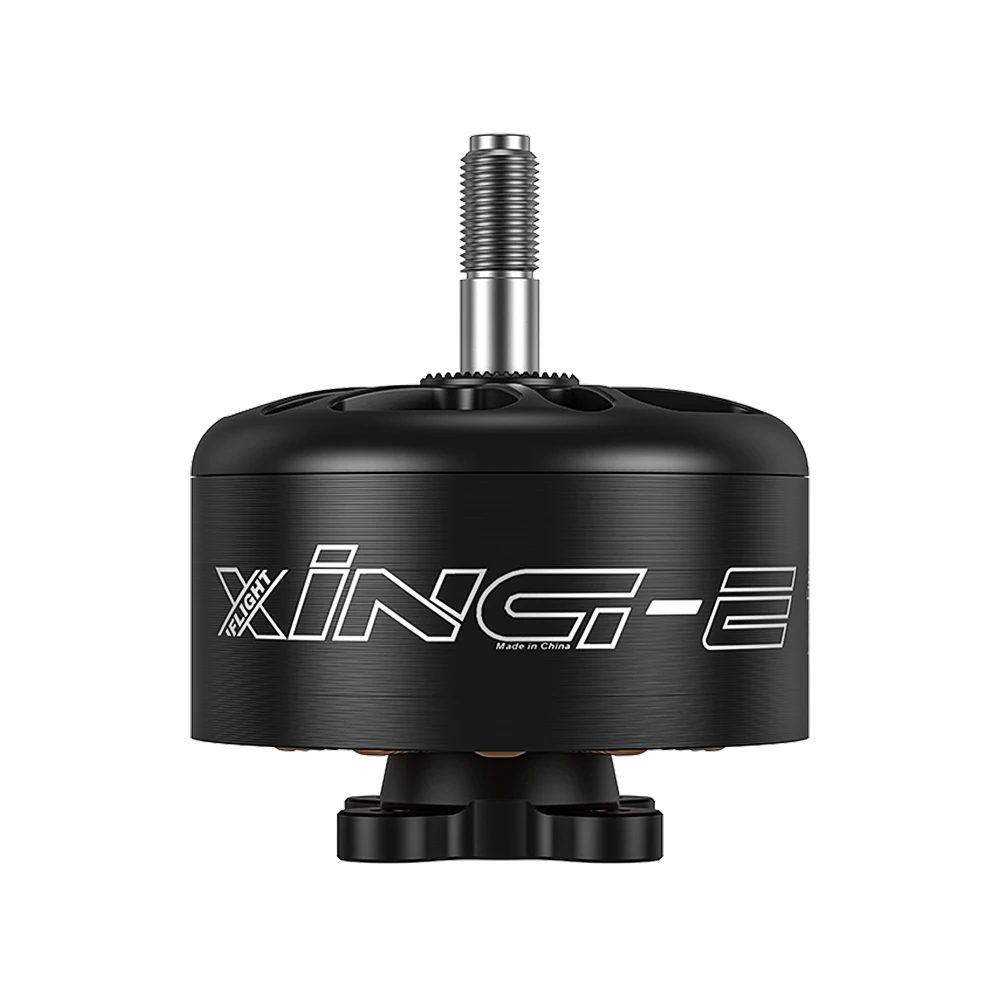

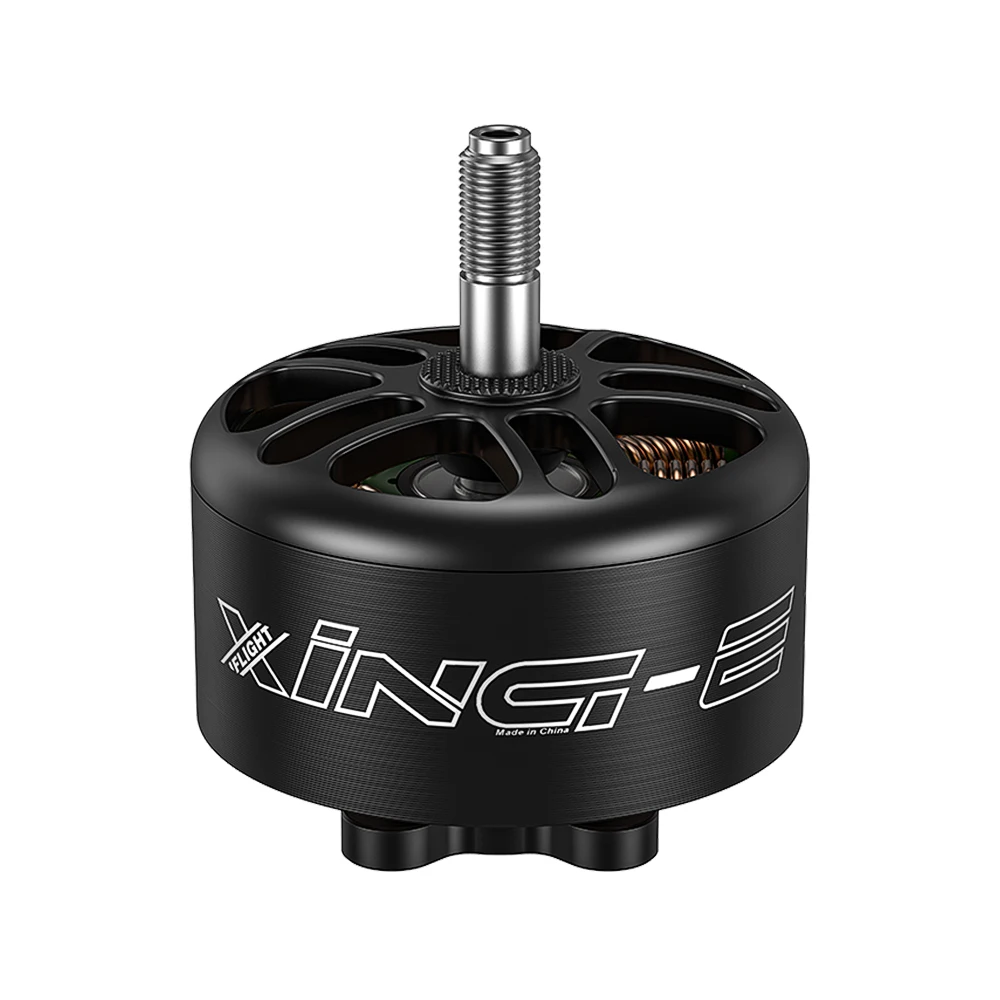

IFlight XING-E 3314 900KV Cinelifter Motor 5mm Shaft 6S Lipo for RC FPV Drone
View full details
Changelog
- March 11, 2024: The motor's Shaft Protruding Length is available in 15mm and 17mm specifications and will be sent out randomly.

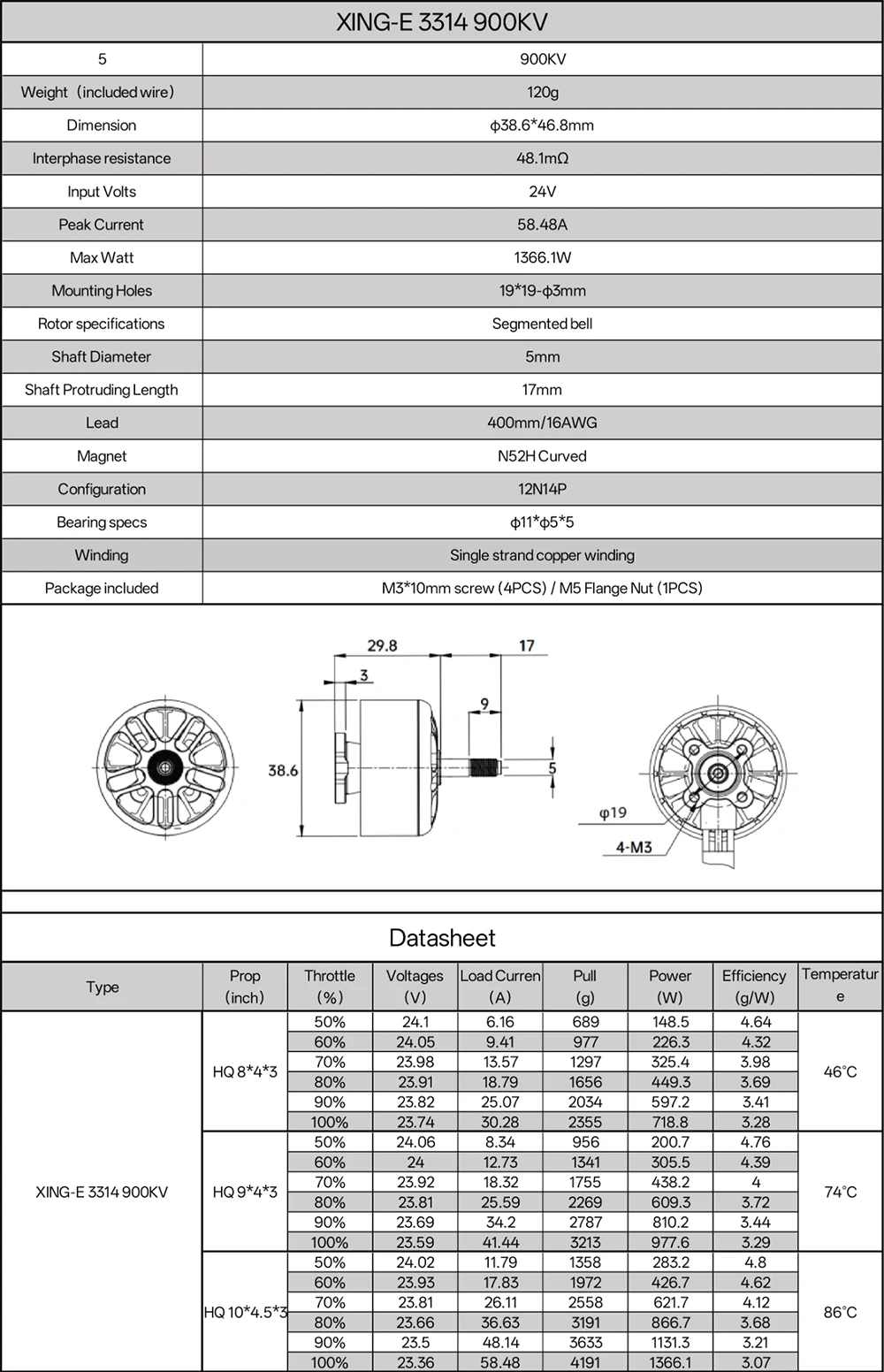

Specifications
- Model: XING-E 3314 Motor
- KV: 900KV
- Weight(included wire): 120g
- Dimension: φ38.6*46.8mm
- Interphase Resistance: 48.1mΩ
- Input Volts: 24V
- Peak Current: 58.48A
- Max Watt: 1366.1W
- Mounting Holes: 19*19 φ3mm
- Shaft Diameter: 5mm
- Rotor Specifications: Segmented bell
- Shaft Protruding Length: 15mm / 17mm
- Lead: 400mm/16AWG
- Magnet: N52H Curved
- Configuration: 12N14P
- Bearing Specification: φ11*φ5*5
- Winding: Single Strand copper winding
Packing List
- 1 x XING-E 3314 900KV Brushless Motor
- 4 x M3*10 screws
- 1 x M5 Flange Nut
