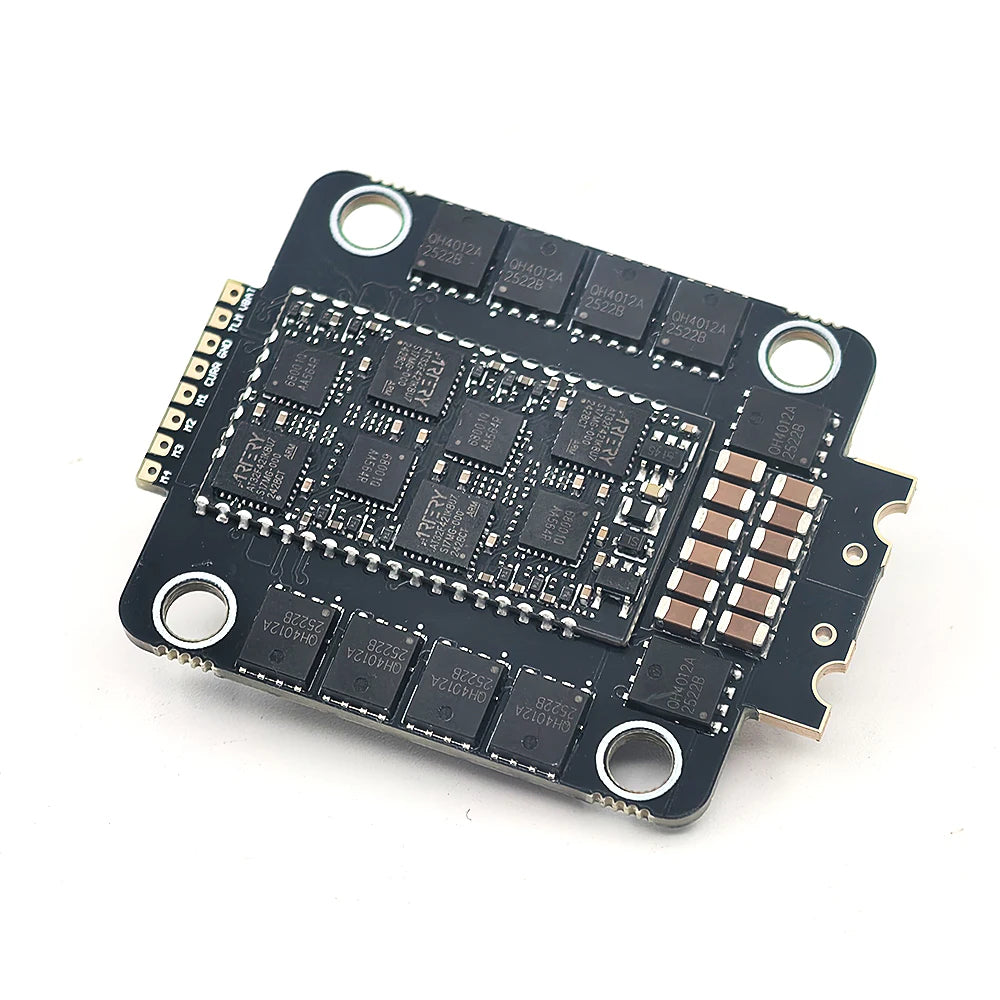

Holybro Tekko32 F4 4in1 50A ESC(AM32)

• F4 MCU @150Mhz / PWM output up to 96K / 4~6S / AM32 / 30x30

• The all new Tekko32 is the first 4in1 ESC in market to adapt the fast F4 MCU @150Mhz, providing a smooth control operation and quick response.

Features:

• New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)

• PWM Frequency: 16k to 96k

• Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specification:

• Continuous Current: 50A x4

• Burst Current: 60A x4

• Supports 4-6S battery

• Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

• ESC telemetry Supported

• Onboard analog current sensor

• No output BEC

• 1000uf 35v capacitor included (highly recommended for 6s setup)

• Amperage meter scale ratio: 120 (V1.9 Version)

• Dimensions: 48x37x6mm / Weight: 13.8g

• Mounting holes: M4 30.5x30.5mm (M3 grommets included)

PIN MAP

Package includes:

• Tekko32 F4 4in1 50A ESC *1

• M3 Anti-Vibration Silicone Grommet Insert *4

• Electrolytic capacitor: 1000uF 35v *1

• 8pin to 8pin 1mm pitch 65mm cable *1

• 8pin to 8pin 1mm pitch 25mm cable *1
