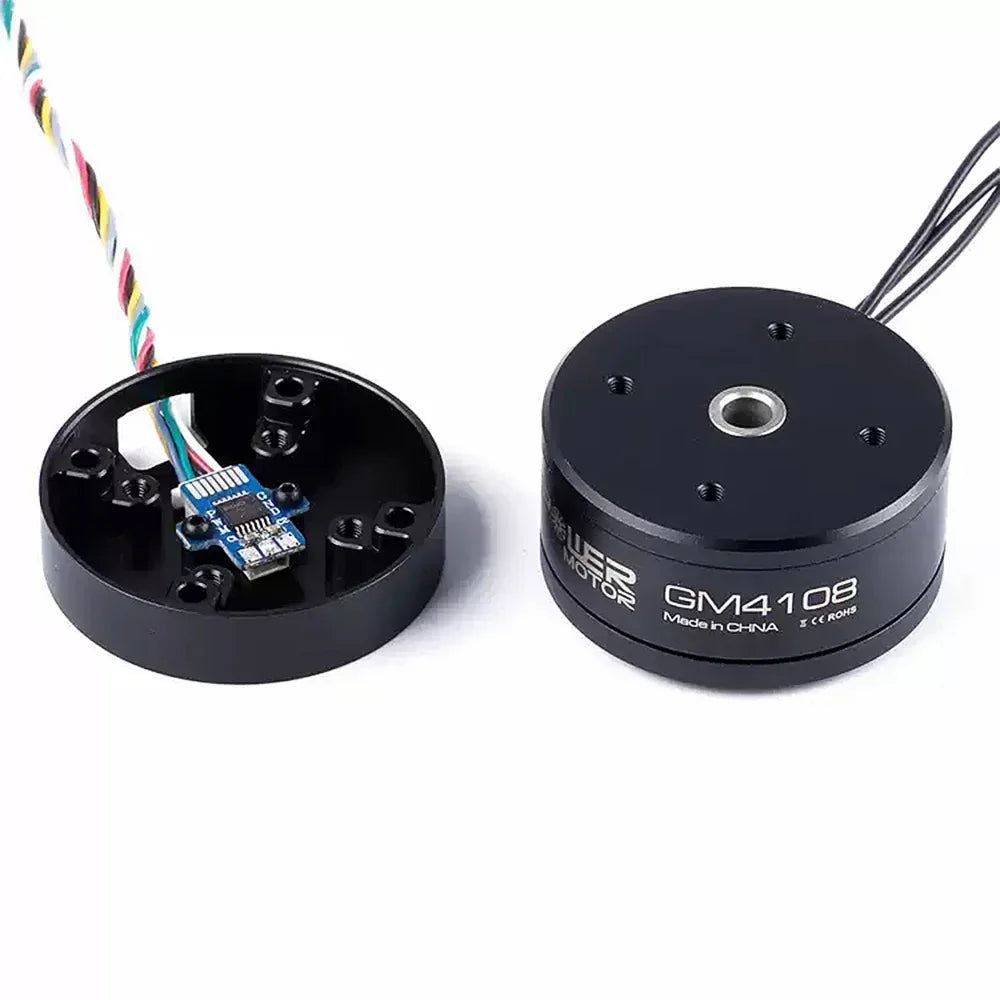

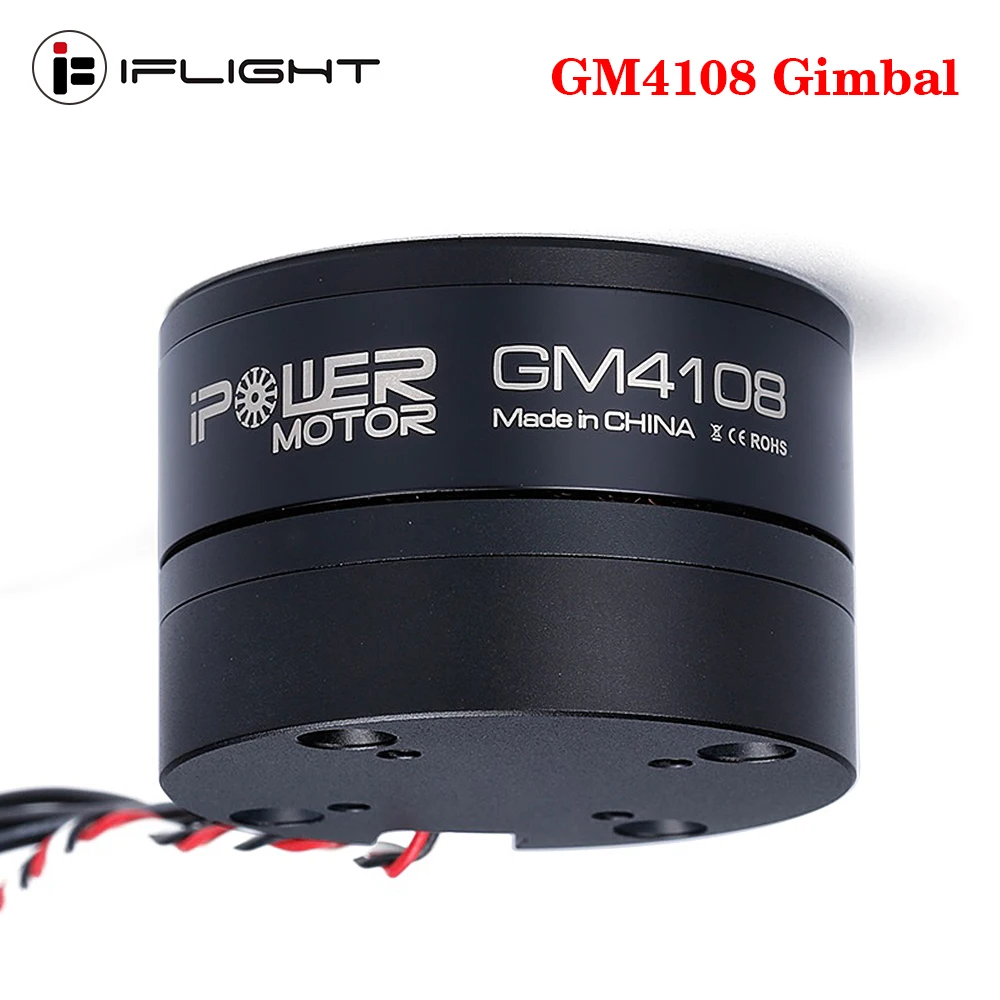

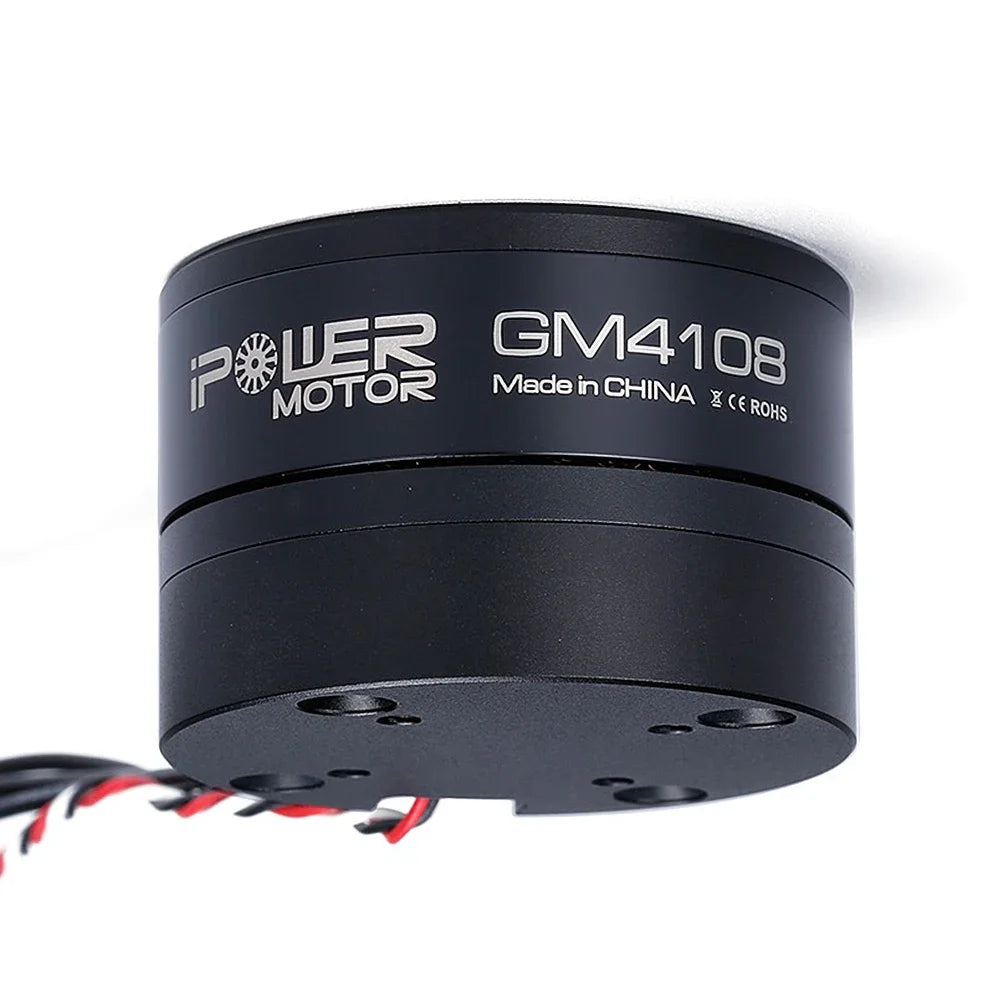

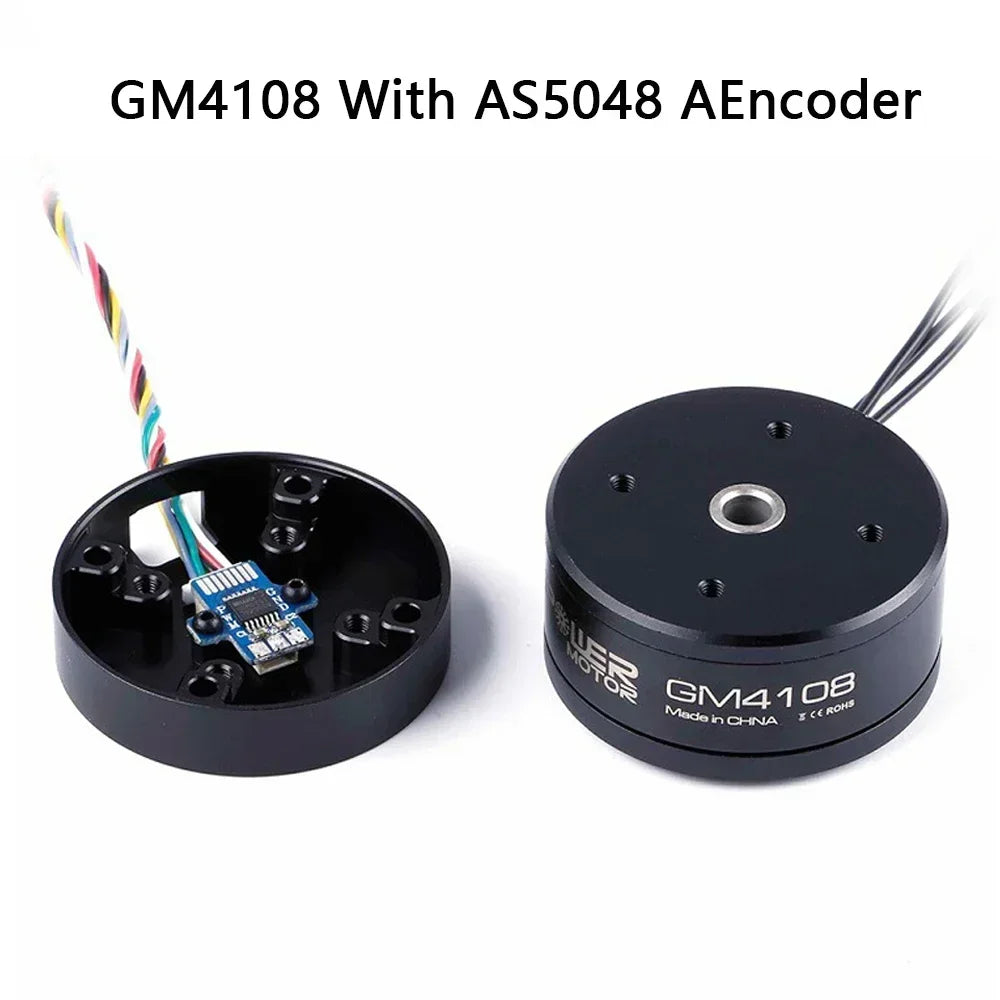

IFlight IPower GM4108 With AS5048A Encoder Brushless Gimbal Motor

IFlight IPower GM4108 With AS5048A Encoder Brushless Gimbal Motor for FPV Applicable Camera Stabilization 600-1200g 5N/ 7N/ GH2

Specs:

• Model NO.:GM4108 / GM4108 With AS5048

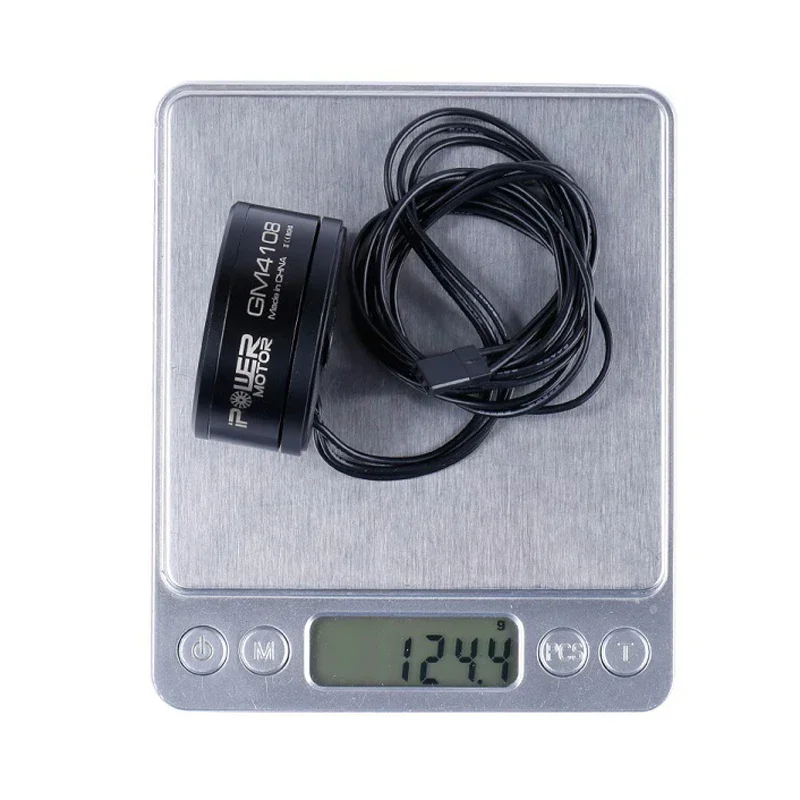

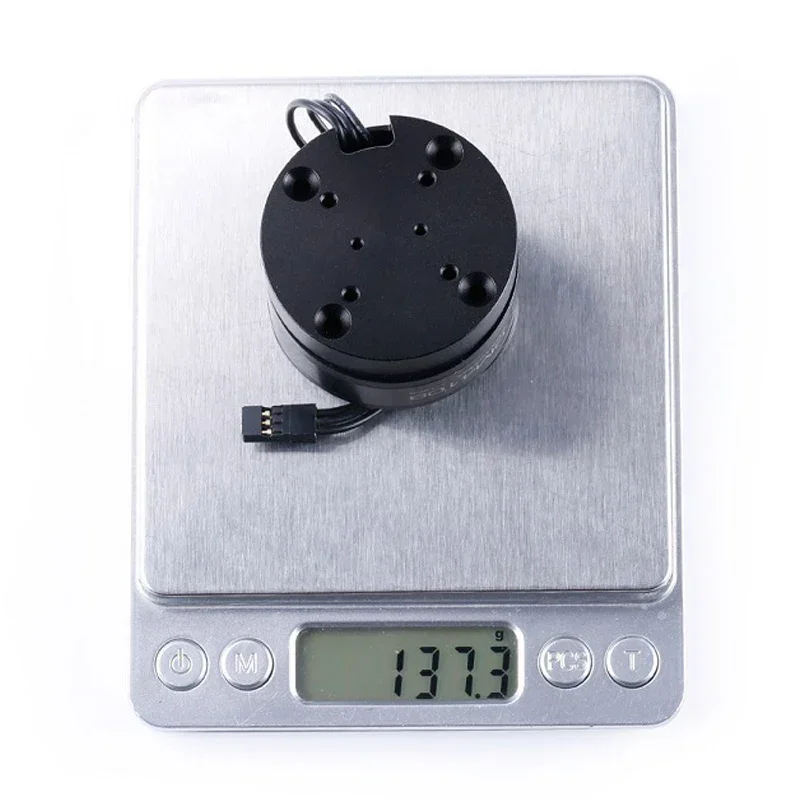

• Weight:(GM4108 124.4g) (GM4108 With AS5048 137.3g)

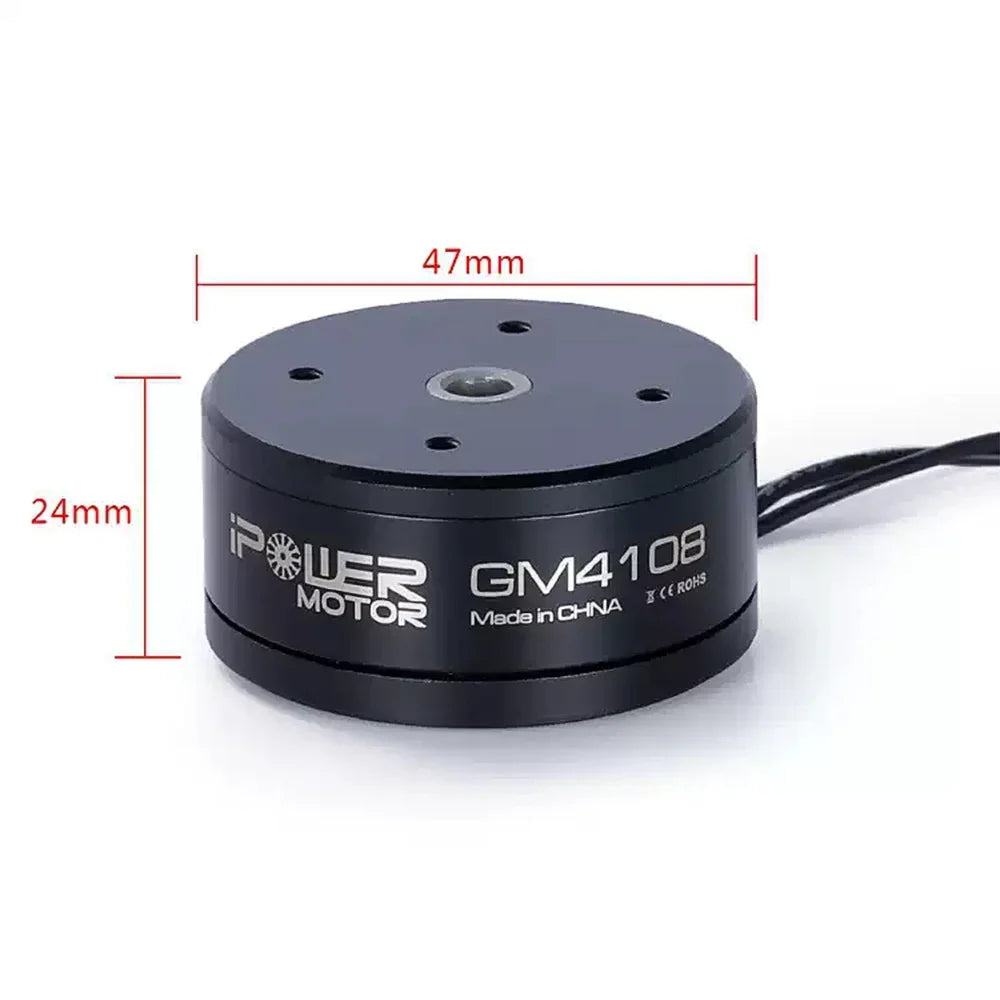

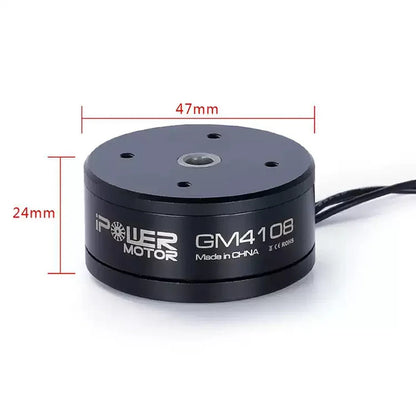

• Motor Dimensions:47x32.2mm
• Stator Dimensions:41x8mm
• Copper wire(OD):0.17mm
• Configuration:24N22P
• Resistance:11.2 ohms
• Test Working Voltage: 11.1V
• Test Working Current: 0.1A
• Test Working RPM: 627
• Pre-wounded with 120 turns,hollow shaft

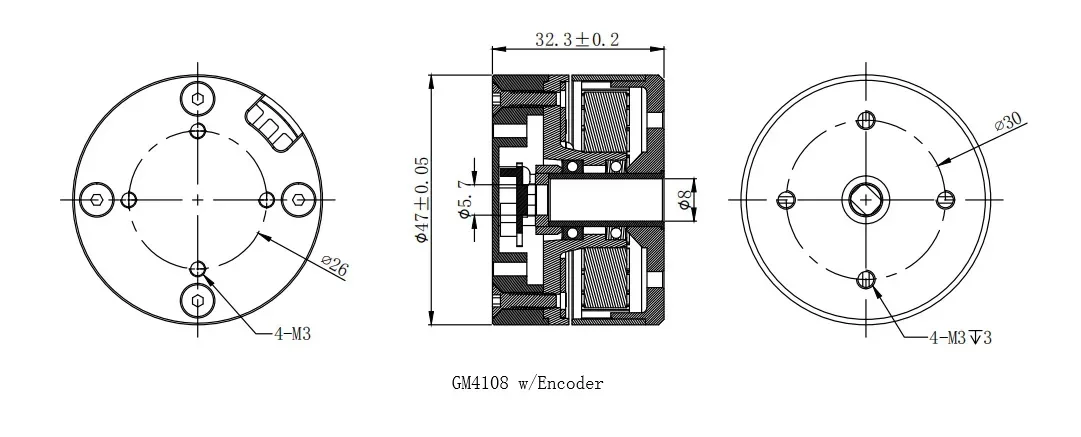

• Bottom mounting holes: see the draft
• Camera range: 600-1200grams

Package included:

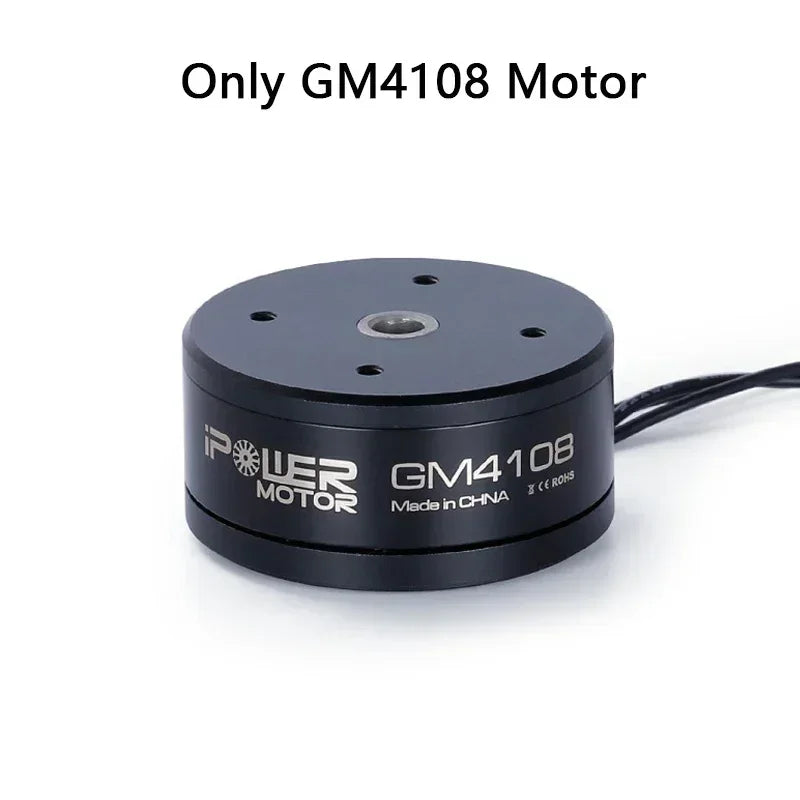

• 1 x iPower GM4108 Gimbal Motor ( AS5048A Encoder Optional)
