Radiolink R16SM 16 Channels Mini Receiver

Radiolink R16SM 16 Channels Mini Receiver

$9.71 USD
$0.00 USD $9.71 USD
Распродажа Продано

В наличии: 369

Radiolink R16SM 2.4G 16 Channels Mini RC Receiver CRSF SBUS Signal RX Built-In Telemetry for FPV Racing Drone Quad Airplane Helicopeter for Radiolink T16D, T12D, T8FB, T8S; RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS


Features:

  • 16 Channels: Support universal SBUS CRSF signal for FPV racing drone.

  • Long Range Control: 3000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

  • Voice Broadcast Customization: When working with the RadioLink 16-channel remote control T16D, it can broadcast the current flight mode, signal strength, power battery voltage, and other information in real time.

  • Strong Anti-interference: FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance.

  • 3-12V Wide Voltage Input: with 16 channels output and 3V to 12V input voltage, is compatible with all flight controllers on the market.

Real-time Built-In Telemetry

  • The receiver features a built-in data transmission function, allowing for the transmission of rich information without the need for external sensors.

  • In addition to real-time transmission of the RSSI value and model battery voltage, the OSD information such as latitude, longitude, speed, heading, the number of GPS satellites received, distance, PITC, ROLL, YAW, battery voltage, current, capacity, flight mode will be displayed on the transmitter screen when the R16SM is connected to the flight control and GPS.

*Attention: At the SBUS signal mode, only latitude, longitude, and battery voltage information will be telemetry, so the CRSF signal mode is suggested.

CRSF and SBUS Signal-supported
R16SM users can select CRSF or SBUS signal output mode according to their needs. And combine with the flight control to realize long-distance nesting of baitboat, fun FPV competitions for racing model cars, or long-distance voyages of fixed-wing aircraft.



Voice Broadcast Customization

When working with the RadioLink 16-channel remote control T16D, it can broadcast the current flight mode, signal strength, power battery voltage, and other information in real time.



*And the voice broadcast content and voice broadcast format can be customized, so you can get the required

3-12V Wide Voltage Input

R16SM, with 16 channels output and 3V to 12V input voltage, is compatible with all flight controllers on the market.

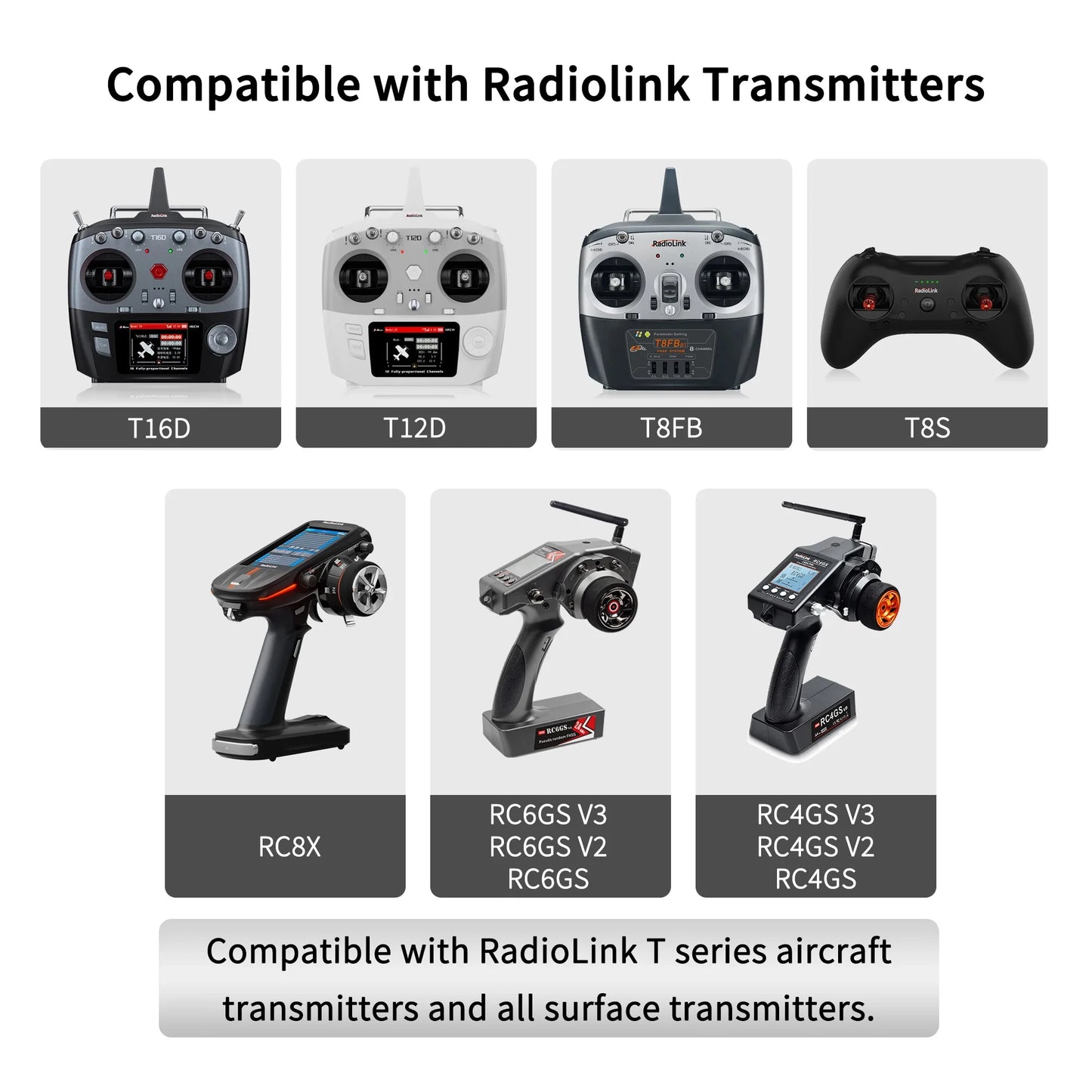

Multiple Transmitter Compatible

R16SM is compatible with RadioLink T-series aircraft transmitters and all the surface transmitters.


Package Included:

  • R16SM Receiver x 1

  • Flight Controller Connect Cable x 1
