Radiolink R4FGM 4 Channel Mini Receiver

Name: Radiolink R4FGM 4 Channel Mini Receiver
Brand: RC FPV Drone Store
SKU: MC0346
Price: 9.71 USD
Availability: InStock

$9.71 USD

~~$0.00 USD~~ $9.71 USD

Распродажа Продано

В наличии: 367

Radiolink R4FGM 4 Channel Mini Receiver with Gyro for 1:28 1:64 RC Pocket Drift Car Hotwheel Work for RC4GS RC6GS T8S T8FB RC8X

Features:

【4 Channels】: Mini size 25mm*13mm(0.98*0.51inch), light weight 3g(0.1oz), can be used it for 1:28 and 1:64 RC mini cars.

【Excellent Anti-interference】: With pseudo random FHSS algorithm, which makes R4FGM with excellent anti-interference ability, control range up to 1300 feet (400 meters) on the ground.

【Integrated Gyro】: Built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.

【400 Meters Control Distance】:Stable remote-control distance is up to 400m on the ground. Control with camera and display screen/goggle makes the FPV fun and cool.

【Support Digital Servo】: R4FGM with a factory date of 2023/4/26 and later support digital servo, the servo speed of 4ms or 3ms can be selected on Radiolink RC8X V1.1.5.

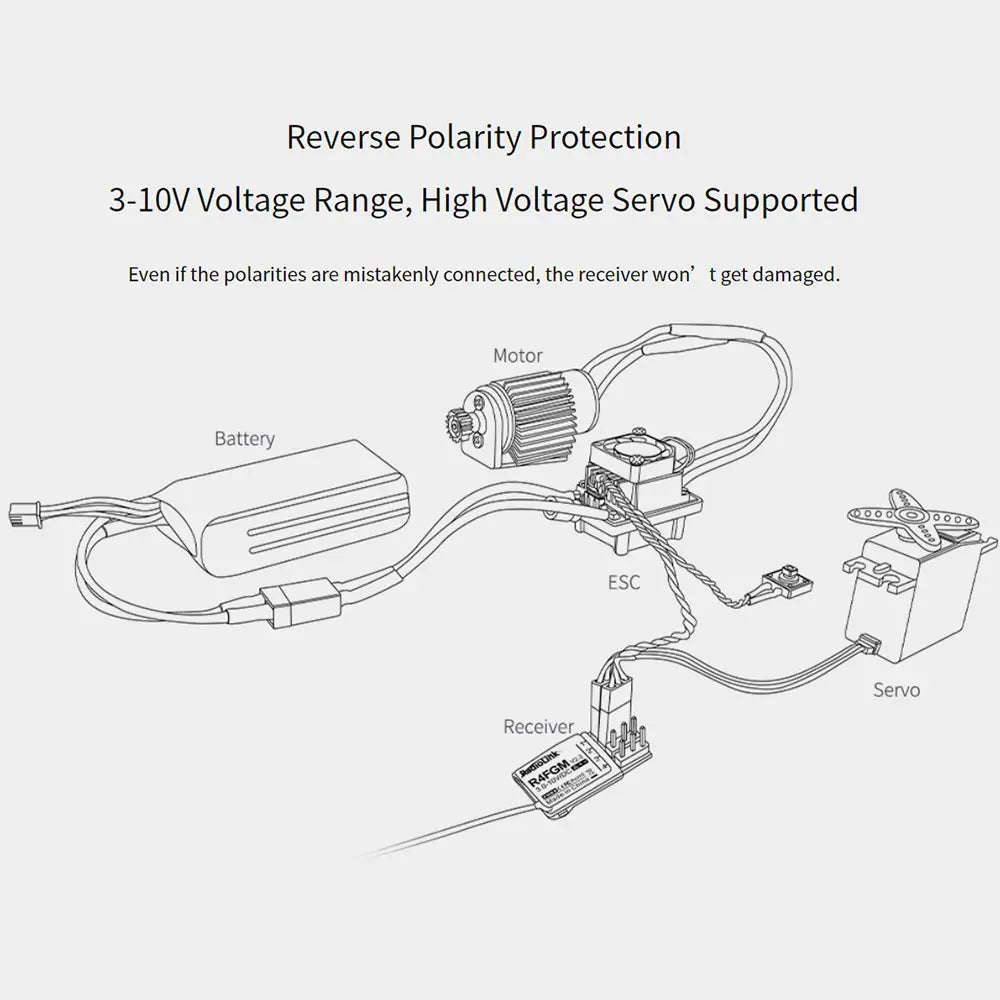

【Reverse Polarity Protection】: Even the polarities are mistakenly connected, receiver not damaged. The power of 3-6V supports high voltage servo.

【Simple Bind and Switch Modes】: No need any setting on controller when R4FGM bind with radio, press 1 second to bind. Shot press 3 times within 1 second to on/off Gyro mode.

R4FGM Specifications:

Channel: 4
Version: V2.1. (R4FGM_V2.1 support digital servo, the servo speed is 4ms or 3ms can be selected on RC8X V1.1.5.)
Gyro Inside: Yes
Signal Output: PWM, 2.4GHz
Control Distance: More than 400 meters
Model Application: RC car/boat
Frequency: 2.4GHz ISM
Spread Spectrum: FHSS
Channel Resolution: 4096
Voltage Range: 3~6V DC
Operating Current: 30mA (base on power voltage)
Antenna Length: 90mm
RF Power: <10dbm
Size: 25*13mm
Weight: 3g
Compatible Transmitter: RC6GS/RC4GS/RC4GSV2/RC6GS V2/RC4GS V3/RC6GS V3/T8FB/T8S/RC8X

Package Included:

R4FGM Receiver x 1

R4F Features:

Mini Size: Only 31*11*10mm 4g light weight, R4F even can be use for 1:28 mini RC cars.
Anti-Interference: R4F with frequency hopping spread spectrum (FHSS) and 67-channel pseudo random to ensure excellent anti-interference performance, perfect for multi-players compete synchronously.
Fast Response: The high resolution ratio of 4096, the stability of 0.5us, the low drop-out rate and the high-speed processor of 48MHz M0 ensure the extreme fast response within 12ms.
400m Control Distance: Stable remote control distance up to 400 meters on the ground.
High Voltage Servo: Wide operating voltage tolerance that from 3 to 6 volts that makes HV servo has supported

R4F Specifications:

Channel: 4
Signal: PWM
Model Application: Car/boat
Control Distance: 400 meters on the ground
Frequency: 2.4GHz ISM
Spread Spectrum: FHSS 67-channel pseudo random frequency hopping
Antenna Length: 205mm
Operating Current: 30mA (base on power voltage)
Voltage Range: 4.8~10 V DC
RF Power: <10dbm
Channel Resolution: 4096
Compatible Transmitter: RC6GS/RC4GS/RC6GS V2/RC4GS V2/RC6GS V3/RC4GS V3/T8FB,T8S, T8FB
Size: 31*11*10mm
Weight: 4g

Package Included:

R4F Receiver x 1

How to Bind With Transmitter:
1. Put the transmitter and the receiver close to each other about of 50 centimeters.
2. Turn on the transmitter, then power on the receiver.
3. There is a black button on the side of receiver, press the binding button in 1 second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.
