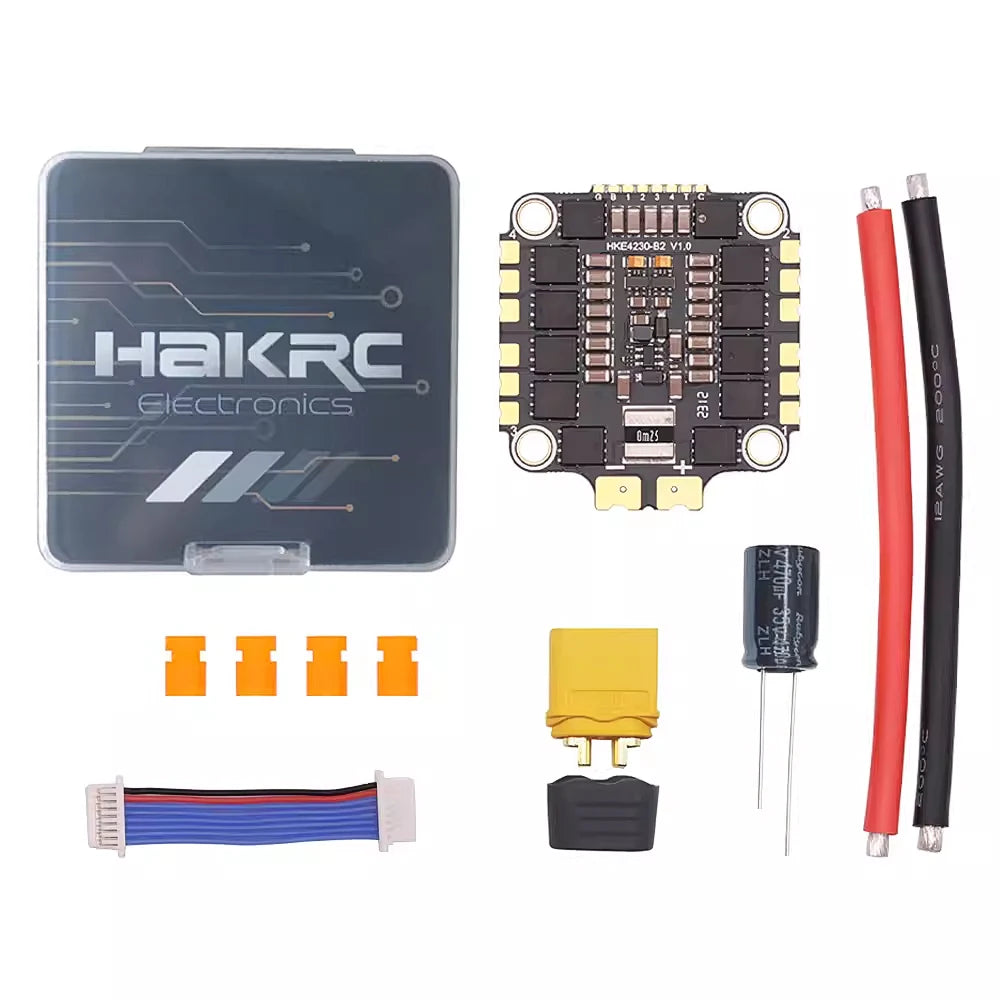

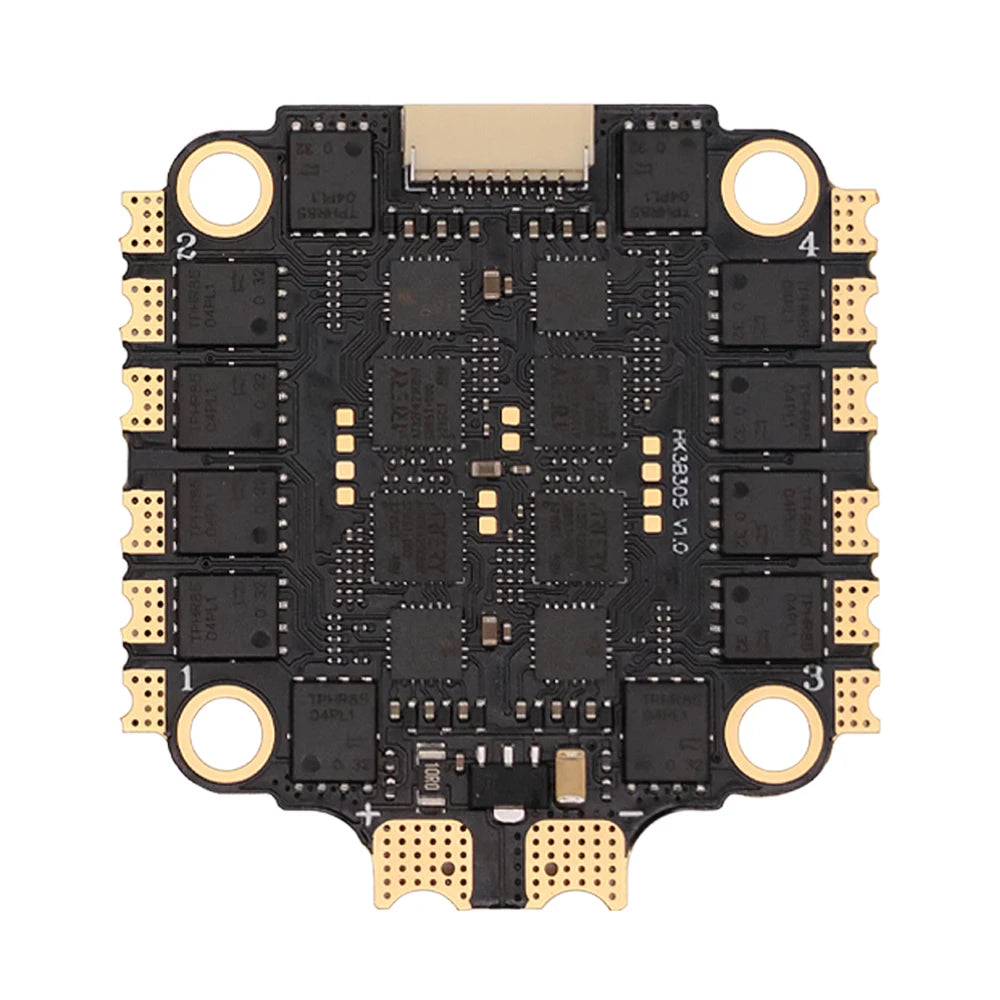

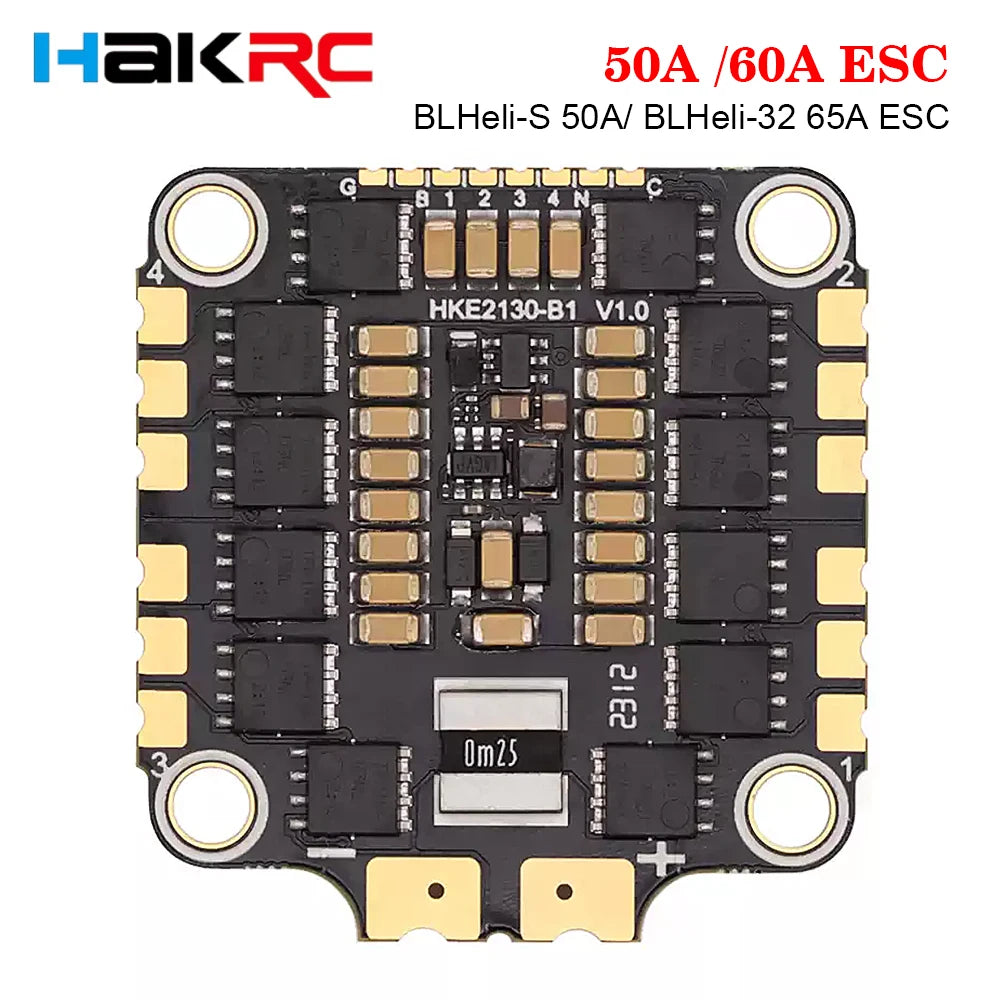

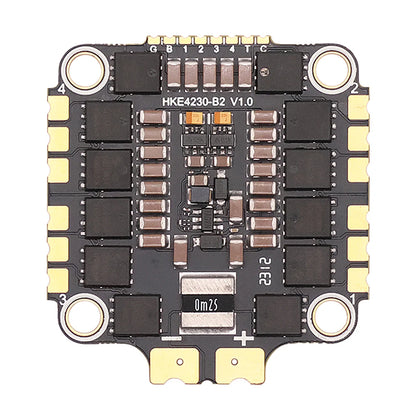

HAKRC BLHeli-S 50A/ BLHeli-32 65A 4in1 Brushless ESC

HAKRC BLHeli-S 50A/ BLHeli-32 65A 4in1 Brushless ESC Support DShot 150/ 300/ 600/ PWM/ Oneshot 2-8S Lipo for RC FPV Racing Drone

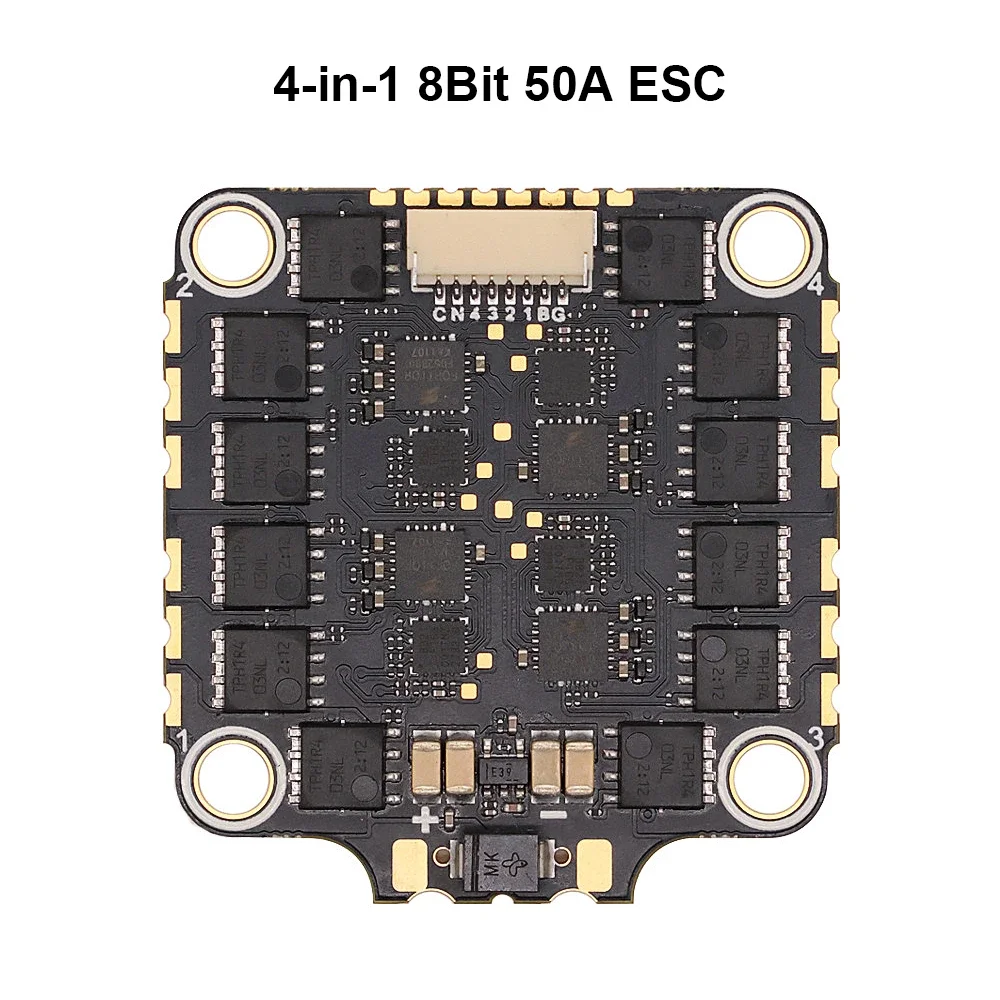

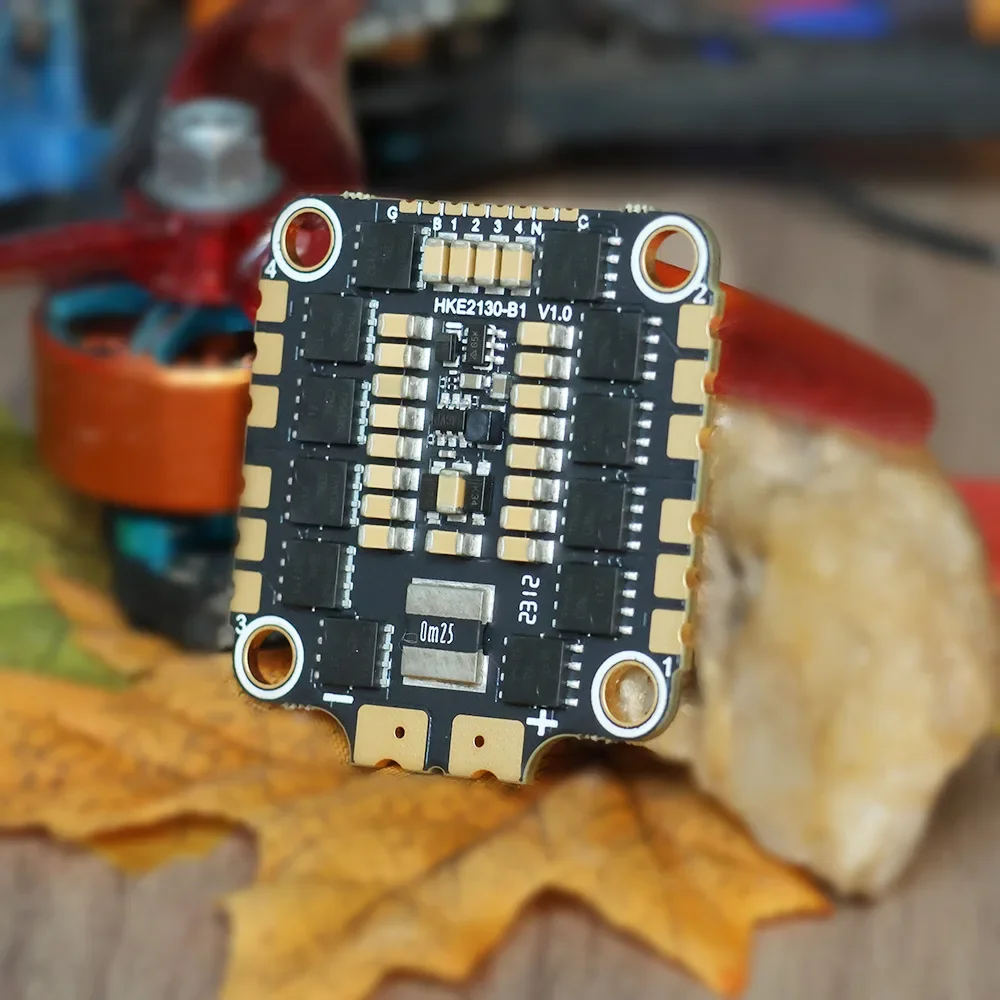

4-in-1 8bit 50A ESC:

• PCB adopts high -end 6 -layer 20Z thickened copper leather. It has stronger current capacity and good heat dissipation.

• MOS uses imported 40V high -ending MOS, and has a long life -long load capacity.

• Adopt industrial -grade LDO to resist high temperature.

• Adopt high -quality Japanese village capacitors, strong filter performance

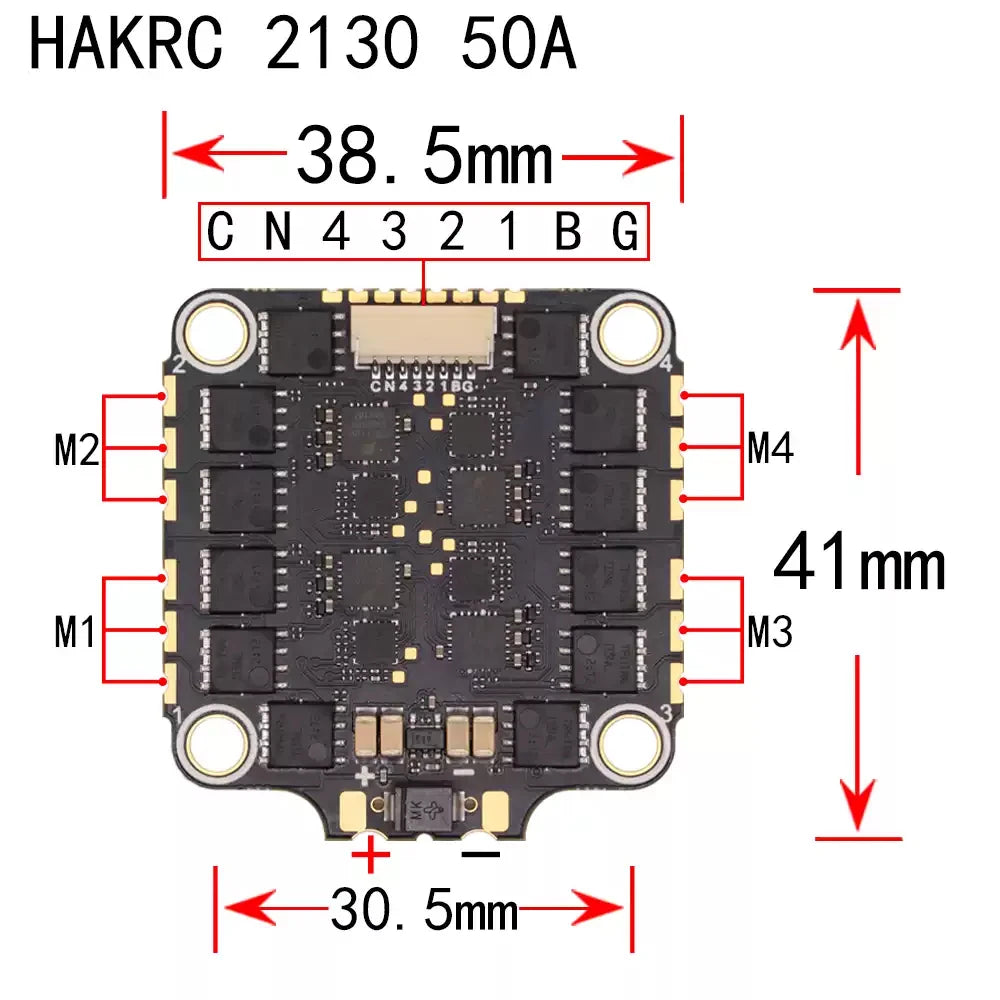

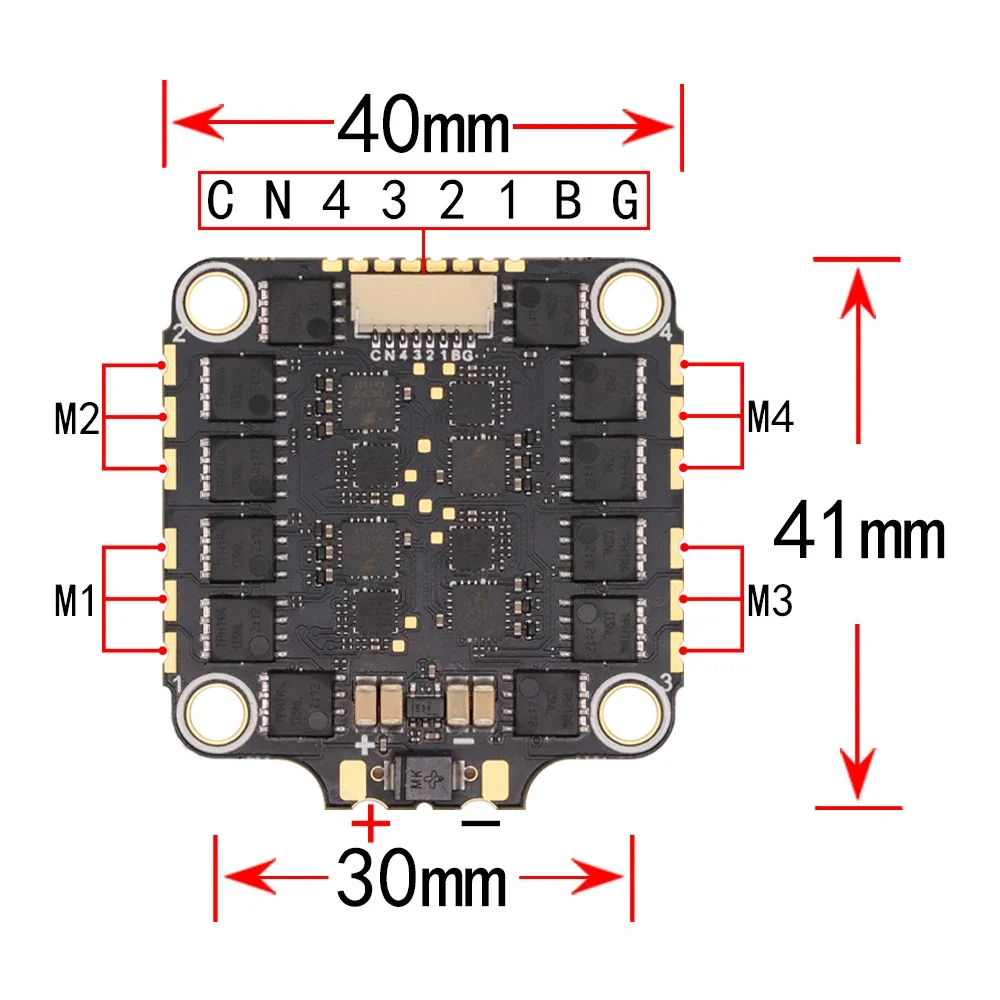

• Size: 40* 41mm (30.5mm-30.5mm installation hole)

• Packaging size: 64*64*35mm

• Product net weight: 12.5g

• Packaging weight: 51.5g

Electric parameters:

• Electric firmware: BLHELI-S 16.7

• Protocol support: PWM, OneShot125, 0neshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

• Input voltage: 2S-6S LIPO

• A current meter ratio: 160

• Continuous current: 50A Peak current: 60A

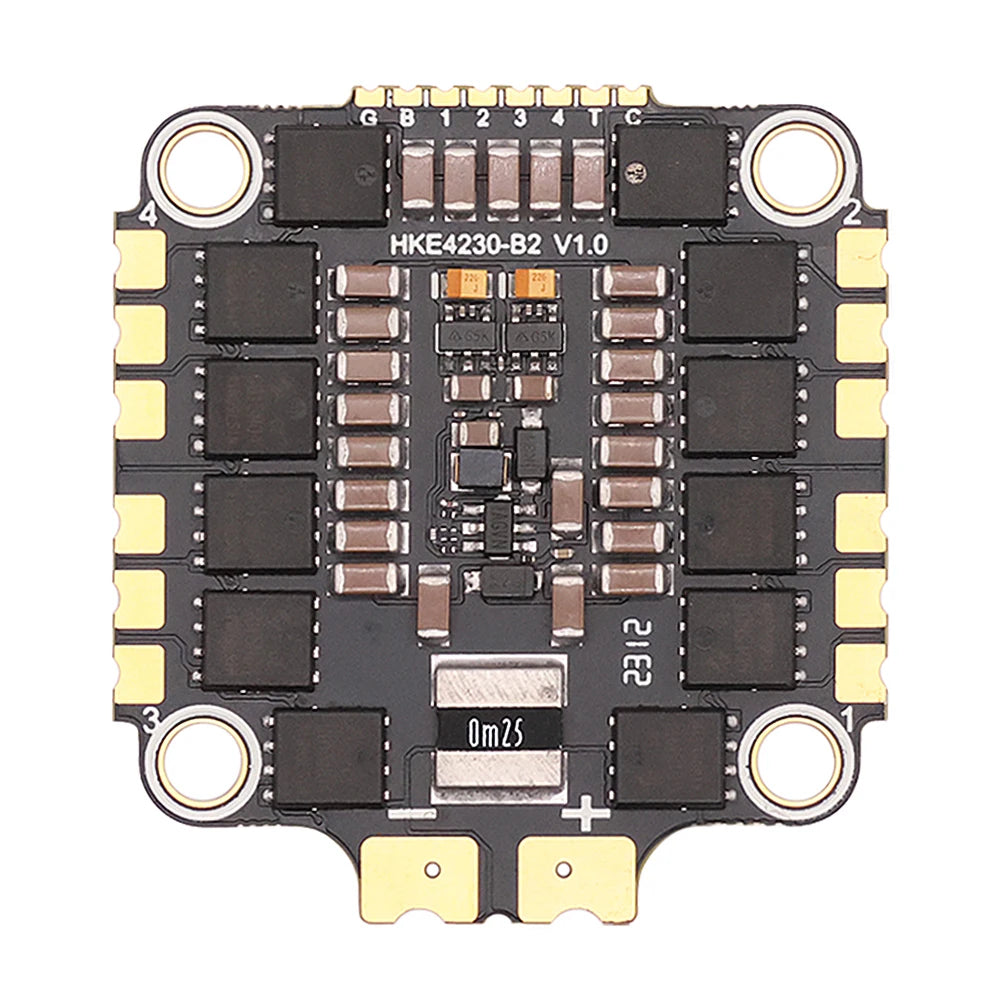

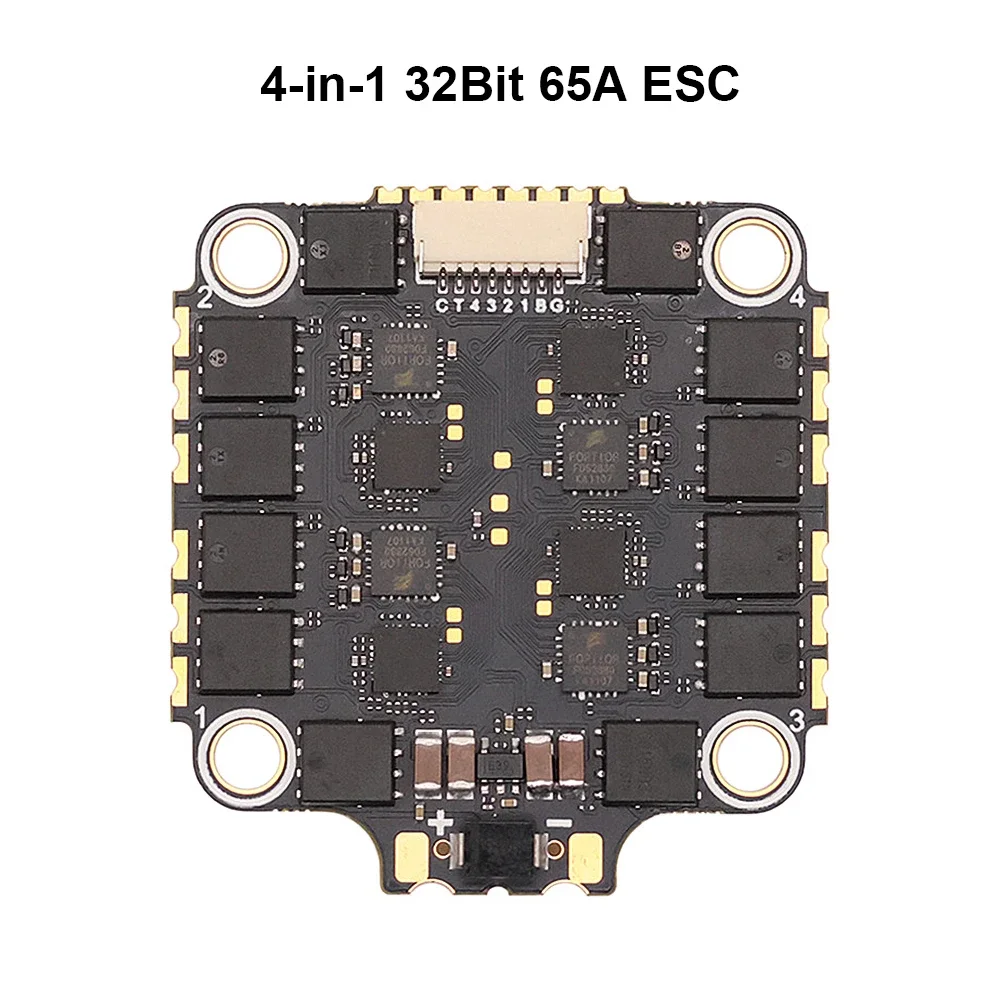

4-in-1 32bit 65A ESC:

• The PCB uses a high -end 6 -layer 20Z thickened copper leather, which has stronger current capacity and good heat dissipation.

• MOS uses imported 40V high -resistant MOS, and has a long life -long load capacity.

• Using industrial -grade LDO to resist high temperature.

• The high -quality Japanese village -field capacitance is adopted, and the filter performance is full of small function, which can monitor the speed and temperature of the motor in real time.

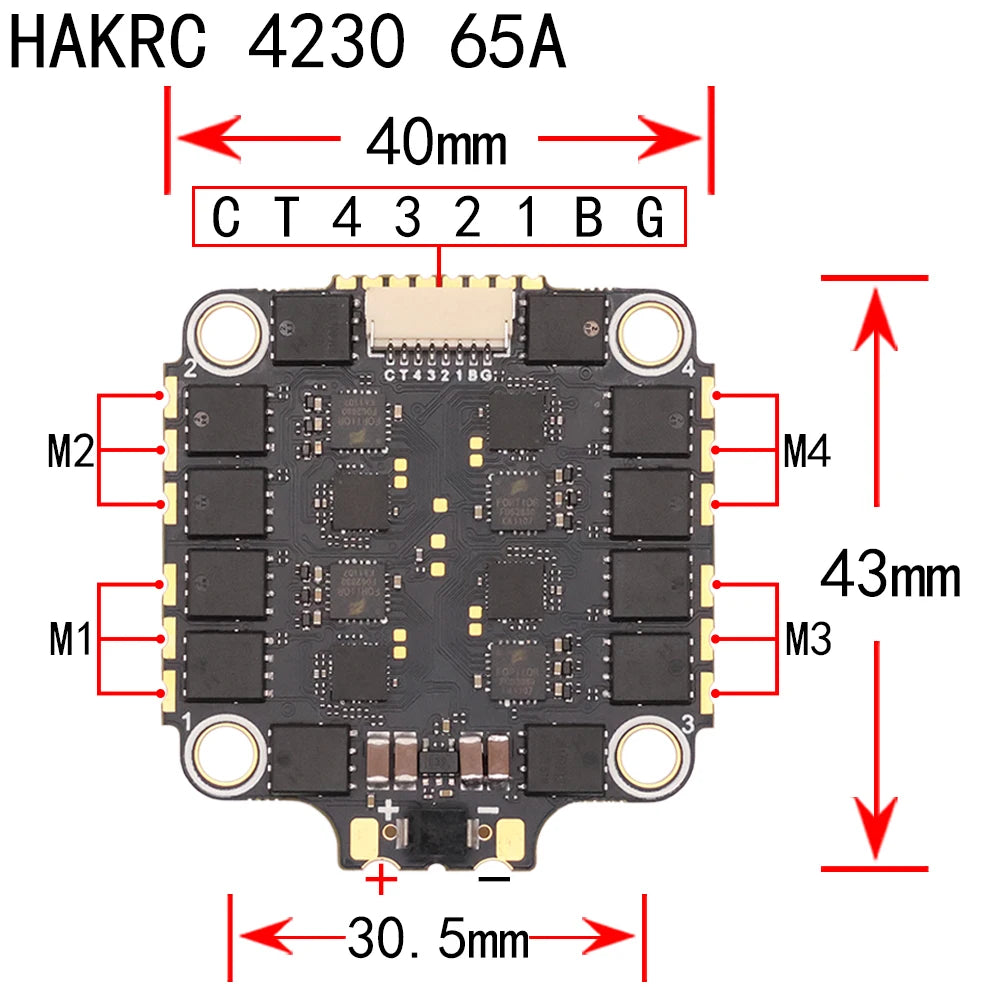

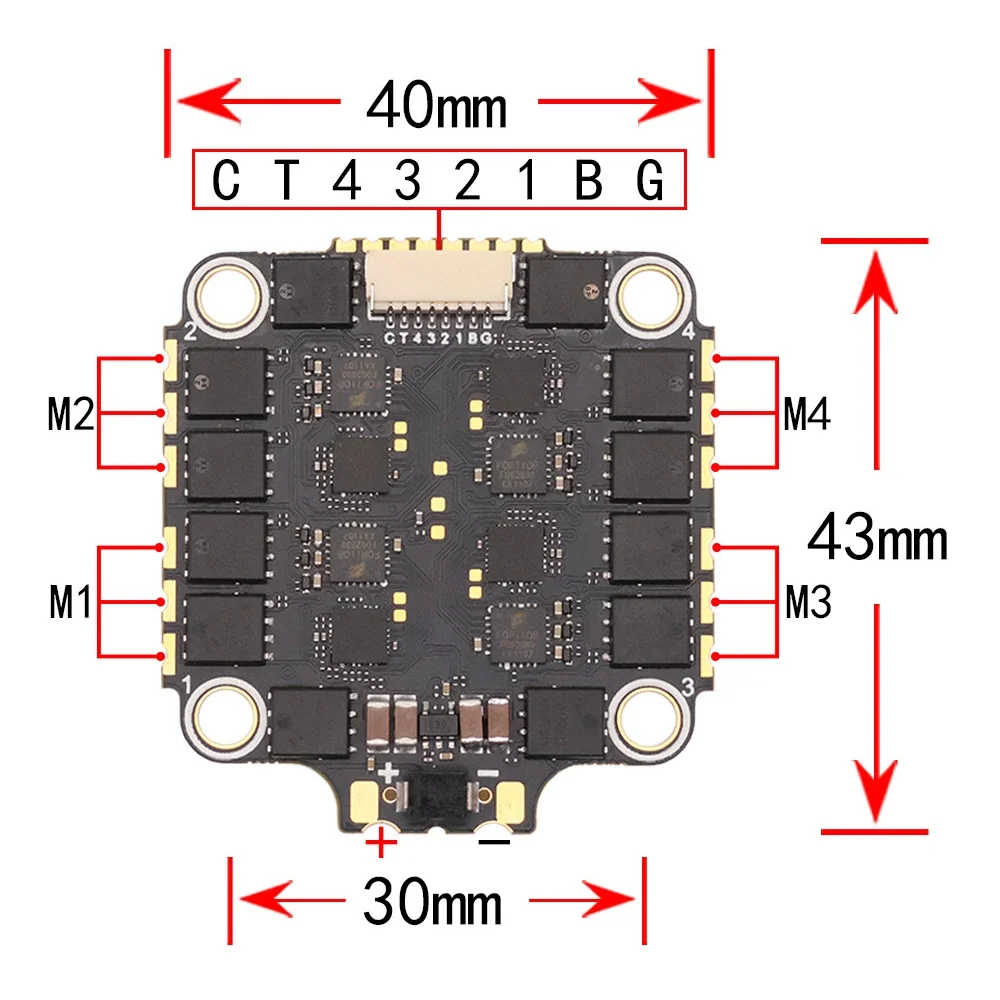

• Size: 40* 43mm (30mm-30mm installation hole)

• Packaging size: 64*64*35mm

• Product net weight: 14G

• Packaging weight: 53g

Electric parameters:

• Electrical firmware: hakrc at4G Multi 32.9 HEX

• Protocol support: PWM, OneShot125, 0neshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

• Input voltage: 2S-8S LIPO

• A current meter ratio: 160

• Continuous current: 65A

• Peak current: 75A
