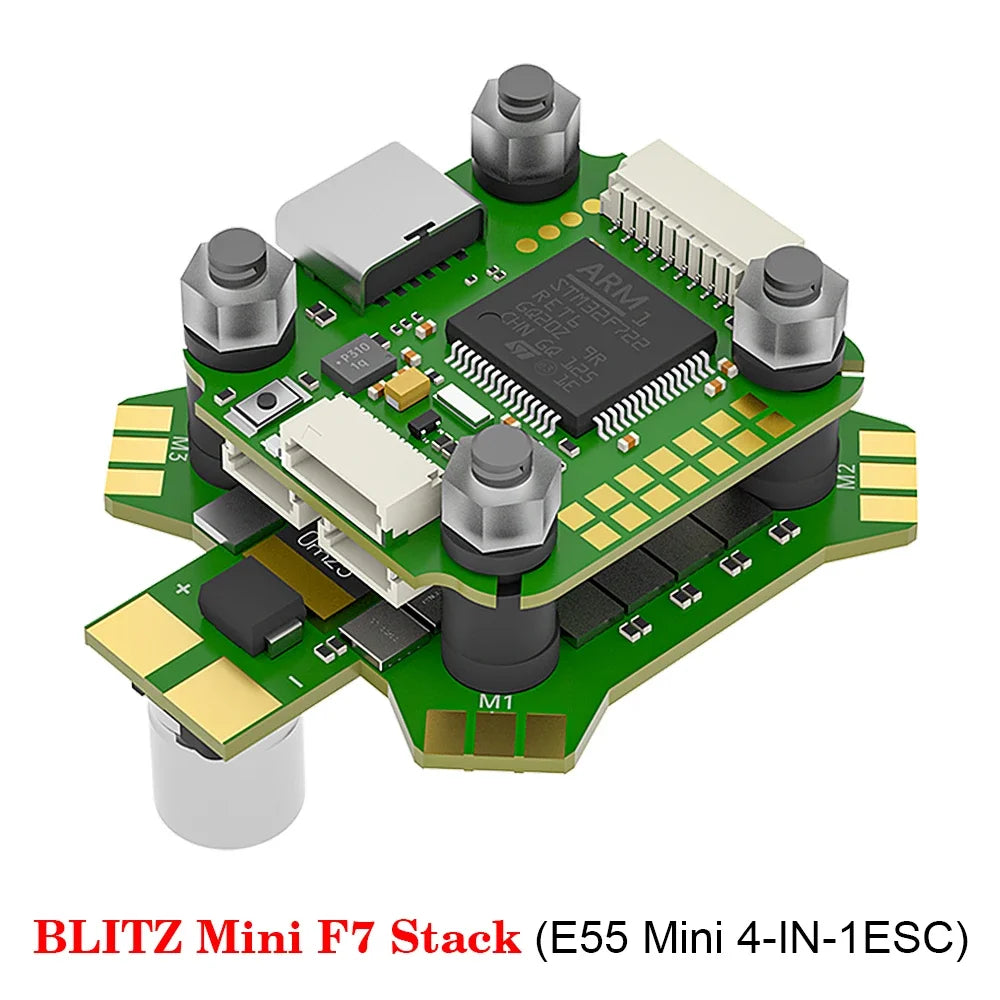

IFlight BLITZ Mini F7 Stack (BLITZ E55 4in1 ESC 2-6S/ BLITZ Force 5.8GHz 600mW Adjustable VTX)

IFlight BLITZ Mini F7 Flight Controller W/ BLITZ E55 4in1 ESC 2-6S/ BLITZ Force 5.8GHz 600mW Adjustable VTX for RC FPV Drone

• Improved circuit design, better components and lower electrical noise!

• DJI HD VTX Connector (Plug-and-Play / No soldering required)

• FC indicator LEDs for visual debugging

• October 20, 2023: Flight control Blackbox flash capacity changed from 16MB to 8MB

• April 6, 2024: The flight control is updated to version V1.2, and the gyroscope is changed from BMI270 to ICM42688.

• June 27, 2024: Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test" in the "Download" column of this page.

• MCU: STM32 F722

• Gyro: ICM42688

• Barometer: DPS310

• OSD Chip: AT7456

• Flash: 8MB (Blackbox flash)

• UARTS: 6

• Motor outputs: 4x (SH1.0 connector)

• I2C serial: SDA / SLA pads

• Smartaudio / IRC Tramp VTX protocol supported

• LED controller: Yes

• Beeper pad: Yes

• Firmware target: IFRC-IFLIGHT_BLITZ_F722

• Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

• Dimensions: 30.5x27 mm

• Weight: 5g

• UART 1 for VTX HD / Analog

• UART 2 for a Receiver

• UART 3/4/5 for GPS or other sensors that require a serial port

• UART 6 for ESC Telemetry

• Mounting Holes: 20*20mm/Φ4mm

• Weight: 11.3g

• Supports 2-6S Lipo input

• MCU： G071

• Constant: 55 Amps

• Burst: 65 Amps

• Current sensor: Yes

• BEC: No

• Current rate: 200

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

• Firmware: BLHeli 32

• Target: IFLIGHT_BLITZ_G071_01 32.9

• Firmware: BLHeli 32

• Power: PIT/25/200/400mW/600mW

• Antenna interface: MMCX

• VTX protocol : IRC Tramp

• Output 40 channels.

• Size: 29*29mm

• Mounting pattern: 20*20Φ3/25*25 mmΦ2

• Weight: 4g

• If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.
