Radiolink T16D 16 Channels 2.4G RC Transmitter
Radiolink T16D 16 Channels 2.4G RC Transmitter
369 件存货
无法加载取货服务可用情况
Radiolink T16D 16 Channels 2.4G RC Transmitter and R16F Receiver Support ELRS Module for RC FPV Drone
T16D Main Features
-
freeRTOS&LVGL GUI System
-
Low Latency (3ms Fast Response)
-
External Module (ELRS/Crossfire/BETAFPV)
-
Real-time Data Telemetry (Voltage, Signal, Distance, etc.)
-
RSSI, Low Voltage Fail Safe Alert Setting, etc.
-
Dual/Triple Rate, EXPO, EPA, Throttle Cut, Mix Control, etc.
-
Wired/Wireless Training, RC Simulator SupportJoystick Mode Change (Left Hand to Right Hand)
-
RC Model Options( Quad, Airplane, Glider, Helicopter, Car, etc.)

16 Channels
Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.

Built-in Simulator Functionality and Trainer Support
With no external dongle needed, connect to your computer via a Type-C cable to seamlessly support open-source simulators such as TRYP FPV, AeroFly, Uncrashed, Liftoff、 FPV LOGIC、Velocidrone.
*Requires a firmware upgrade to V1.7.1 and compatible with macOS and Windows systems.

Mainstream External Modules Support
Supports ELRS, Crossfire, and Other Mainstream Long-range Modules: It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules.

Unique Personalized and Humanized Voice Broadcast Customization
According to actual user needs: Voice broadcast language, broadcast form, and broadcast content can be customization.

External Simulator Functionality and Trainer Support
Support external simulators: Support VRC PRO, CarX, Shenli Cosa and other simulators), support trainer function.

Menu Theme Customization
Theme Setting: This function can be used to set the theme color, background color, font color and box color. All colors can be customized.

Fishing Spot User Defined
100 Fishing Spot Storage: At the BaitBoat Model, the Latitude and Longitude of the 100 fishing spots can be saved and

Ergonomic Design
Rich function button: Four 2-position switches, three 3-position switches, 2 pieces of dials, 2 pieces of sliders(can back to the center automatically).

Receiver Supports Upgrade Online
With a Type-C cable (for data transmission): Connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra device.

Voltage Protection System
Support for Universal Battery: JST 2Pin connector supports multiple type batteries: 8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable.
*RadioLink’s voltage protection software ensures vital components are protected from a reverse polarity connection.

Wide Compatible Receivers
Compatible with :R16F(Std)/R12F/R8EF/R8FM/R8SM/R8XM/R8FGH/R8FG/R7FG/R6FG/R6F/R4FGM



Color: M1 with R16F & M2 with R16F

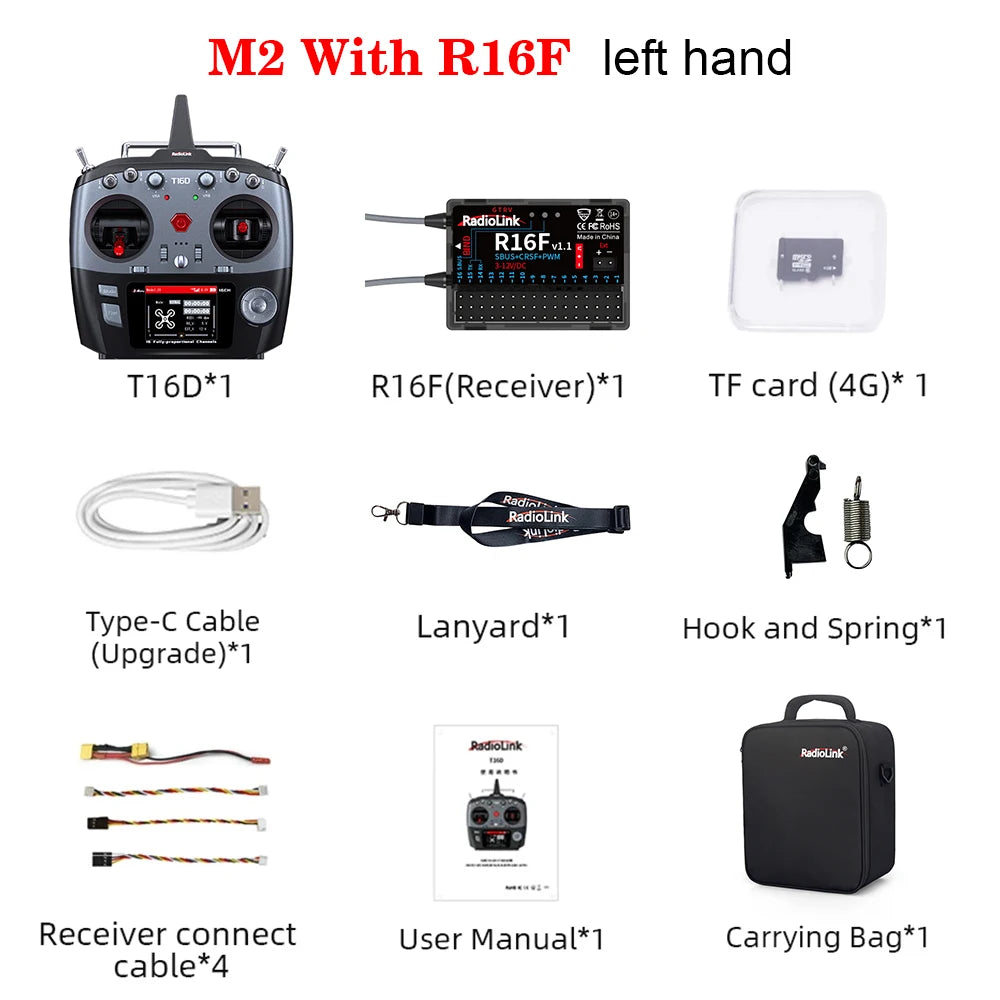

Package Included:

T16D Specfications:
-
Channel: 16 channels
-
Signal Output: PWM&SBUS&PPM&CRSF
-
Operating Systems: freeRTOS+LVGL GUI
-
Modulation Mode: GFSK
-
PWM Output Range: 875-2125
-
Storage Model Quantity: 100
-
Storage Subsidiary ID Models: 16
-
Screen: 2.8 inches 16 colorful screens, 320*240 pixels
-
Operating Voltage: 7.4-18.0V(8pcs AA battery, a 2$-4s LiPo or 18650 Lithium battery)
-
Type-C Port Input Voltage: 5V(T16D also can powered by computer or mobile power bank via Type-C cable)
-
Type-C Port Input Current: 500mA
-
Type-C Port Output Voltage: 4.6V-5.0V
-
Type-C Port Output current: Maximum 1A
-
Operating Current: 100mA(±10mA)@8.4VDC
-
Control Distance:
-
① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
-
② CRSF: Depends on the RX and TX of the long-range module
-
Adaptable Models: Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot
-
Dimension:174.3*206.9*106.9mm(6.86"*8.15"*4.21")
-
Weight: 558g(19.68oz)
R16F Specfications
-
Antenna Length: 205mm (8.07”)
-
Dimension:35.6*25*13.6(1.4"*0.98"*0.54")
-
Weight: 17g (0.6oz)
-
Operating Voltage: 3-12V
-
Operating Current: 50±10mA@5V
-
Signal Output: SBUS+CRSF+PWM
-
EXT Battery Input: 1S-14S
-
Compatible transmitter: T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS
-
Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
-
Multi-language instruction manual
-
T16D manual in English
-
(More languages will be launched soon)
